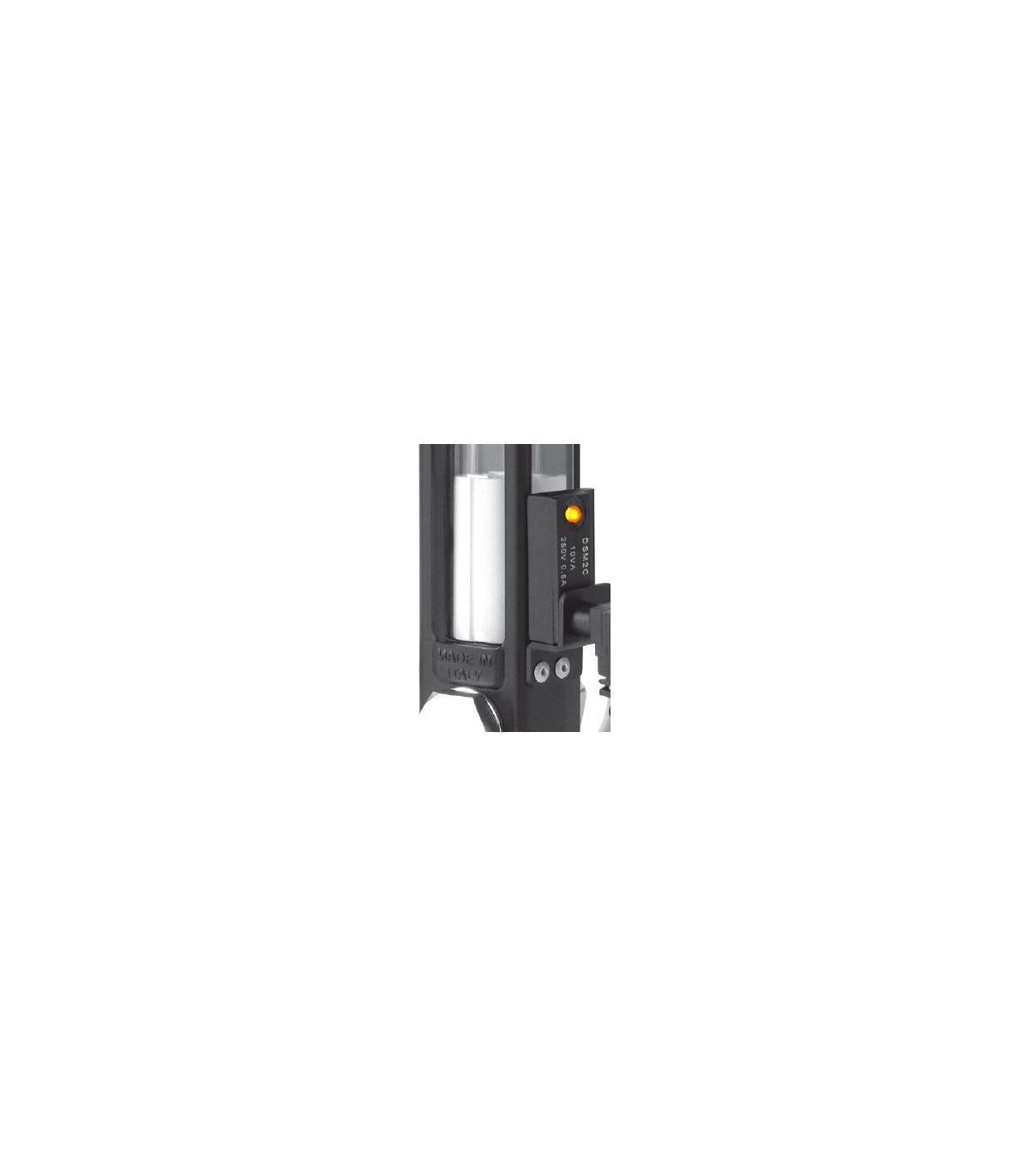

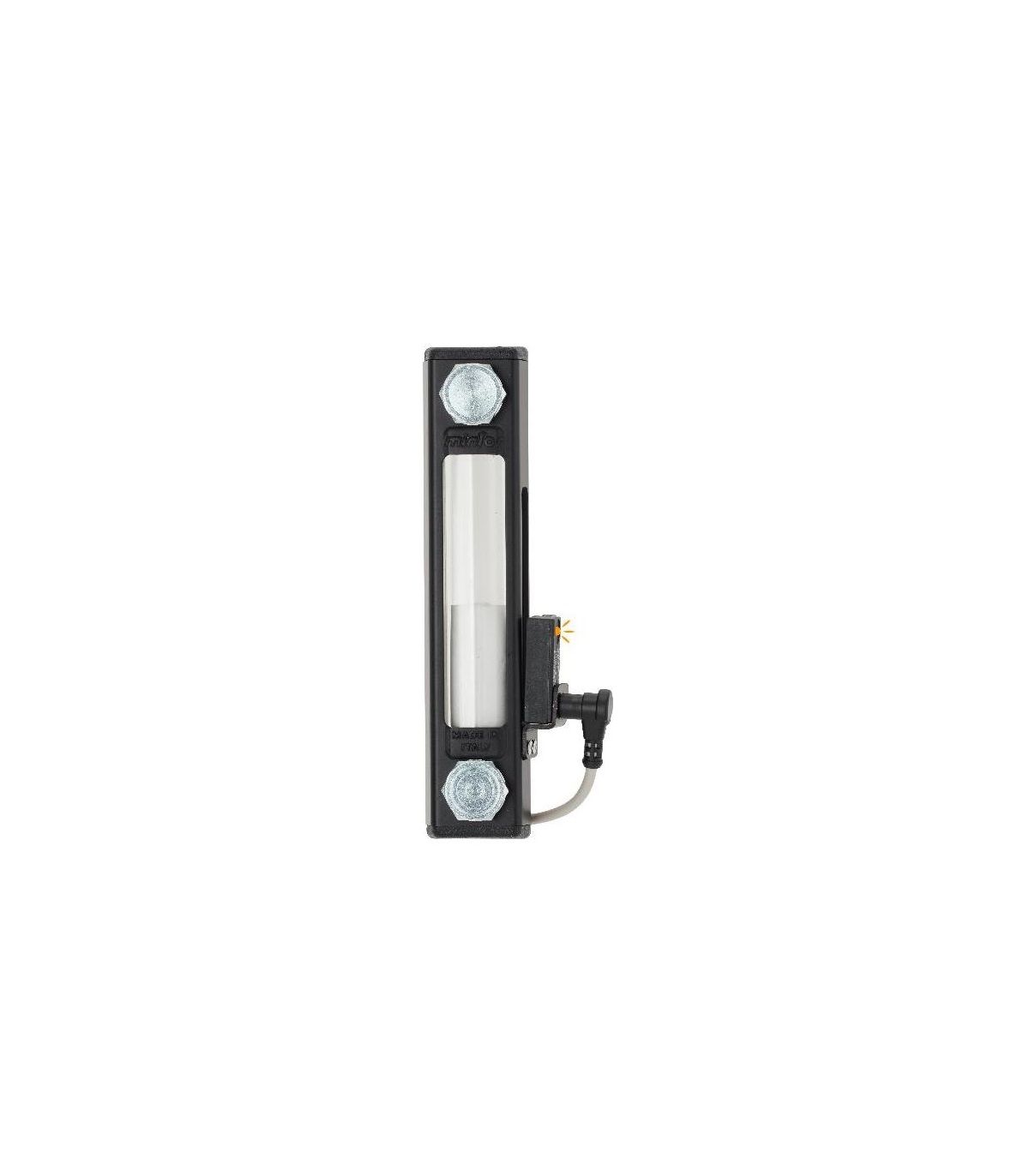

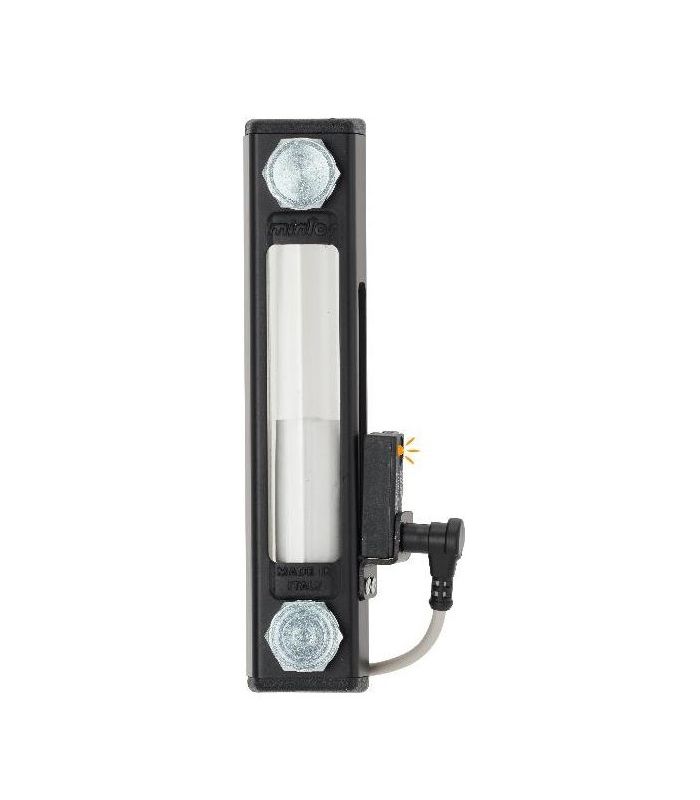

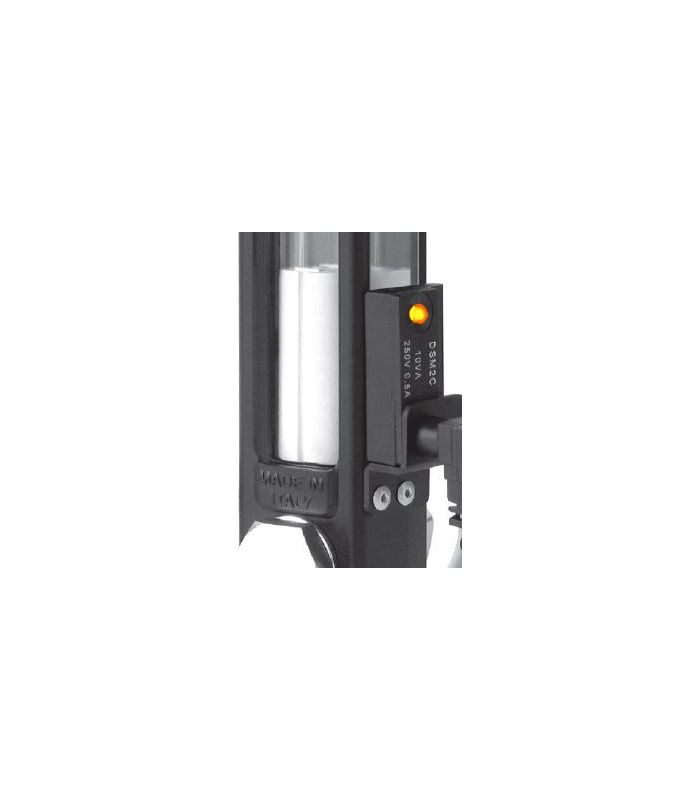

ELECTRIC OIL LEVEL

An electric oil level gauge is used to measure the amount of oil in a reservoir, tank, or hydraulic system. Its function is to ensure the system has the necessary amount of oil for proper operation. It indicates when the level is low using an electrical signal.

Applications: hydraulic systems, machinery crankcases, electrical transformers, centralized lubrication tanks, industrial machinery.

Technical specifications:

Oil level normalized.
3 center-to-center lengths available to choose from: 76, 127 and 254 mm.
AC/DC setting 250 Volt. 0.5 Amp.
It comes with 2.5 meters of cable. (It must first be passed through a relay)
Check the screw threads (M-10 or M12)
Operating temperature -20ºC / +90ºC.
Maximum pressure 2 bar.
Compatible with oils of the HH - HM - HR - HV - HG categories

€83.49 (tax included)

€69.00 (tax excl.)

CHOOSE MODEL

Reference:

4900076

Description
Comments

Description

electric oil level

Product Details

Reference 4900076

Comments
