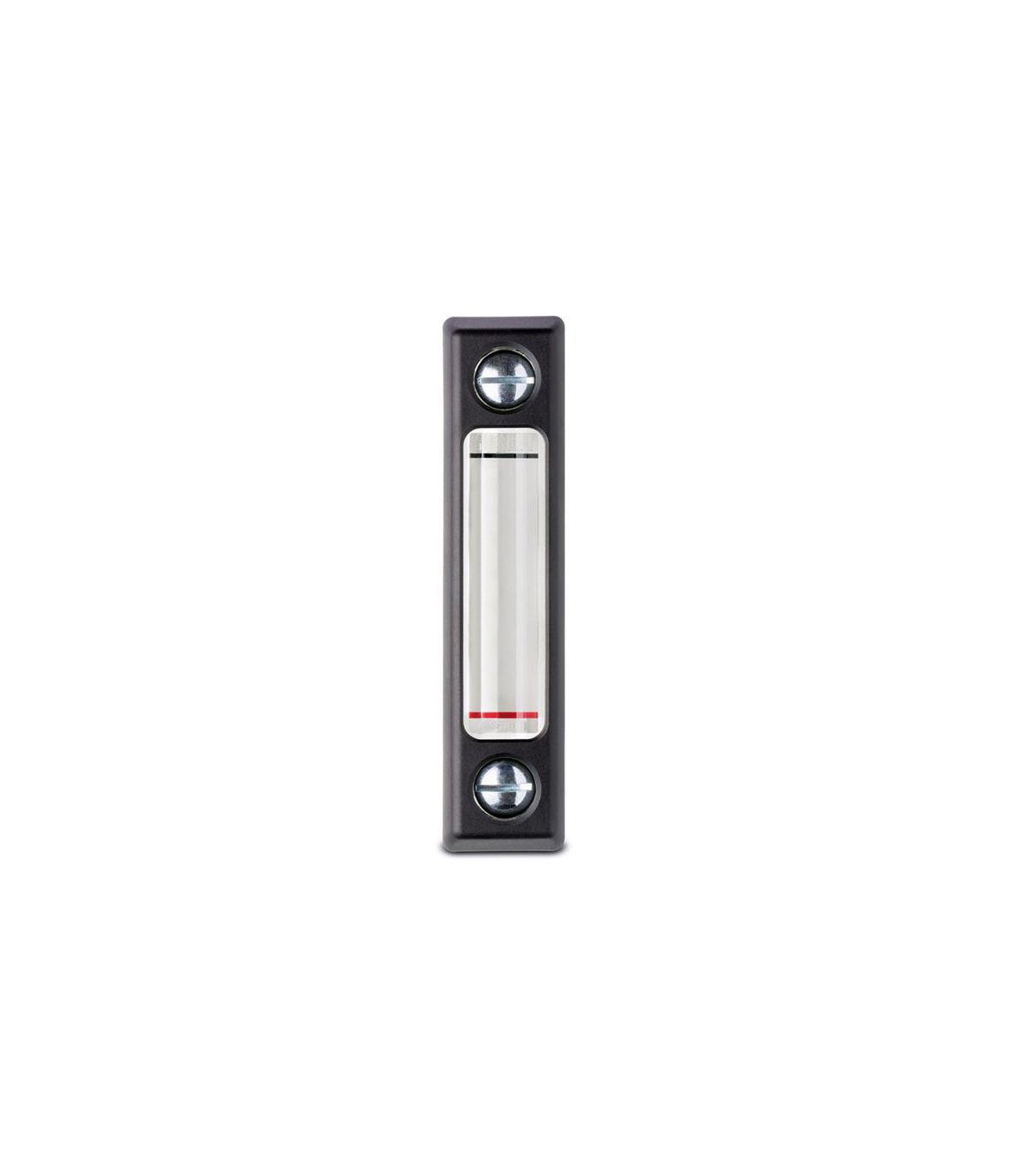

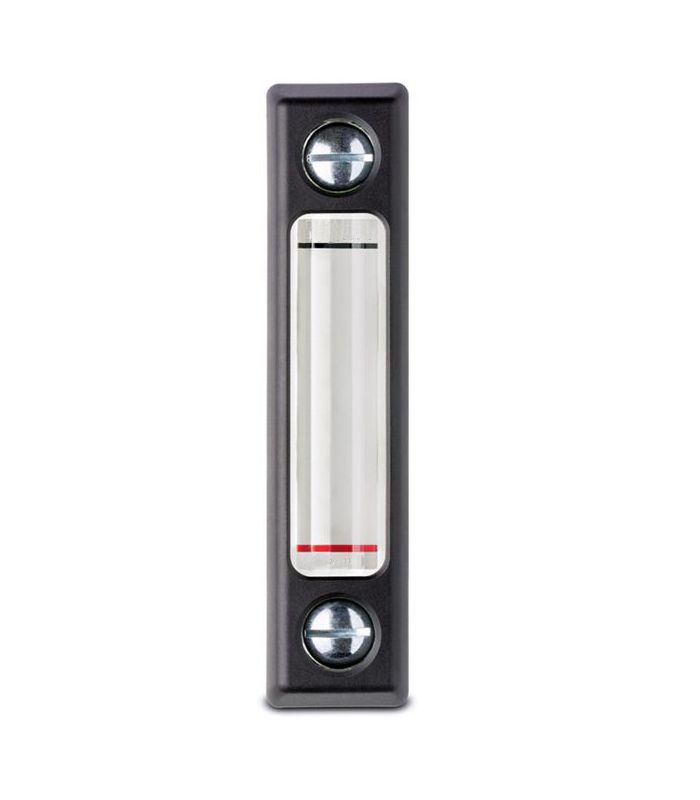

OIL LEVEL

OIL LEVEL

An oil level gauge is used to measure the amount of oil present in a reservoir, tank, or hydraulic system. Its function is to ensure that the system has the necessary amount of oil for proper operation.

Applications: hydraulic systems, machinery crankcases, electrical transformers, centralized lubrication tanks, industrial machinery.

Technical sheet:

  • Normalized oil level.
  • 3 center-to-center lengths available to choose from: 76, 127, and 254 mm.
  • Check the screw threads (M-10 or M12)
  • Working temperature -20ºC / +90ºC.
  • Maximum pressure 2 bar.
  • Compatible with oils of category HH - HM - HR - HV - HG

*Check delivery time for model 127*

€10.45 (tax included)
€8.64 (tax excl.)
CHOOSE MODEL
  • 76
  • 127
  • 254
Reference:
49000010
Description

oil level

NIVEL ACEITE

Product Details
49000010
