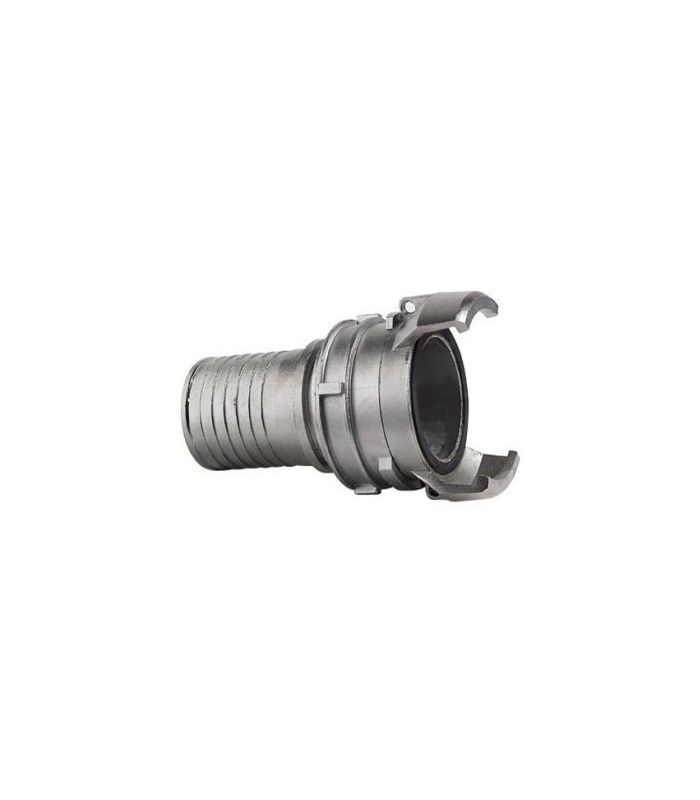

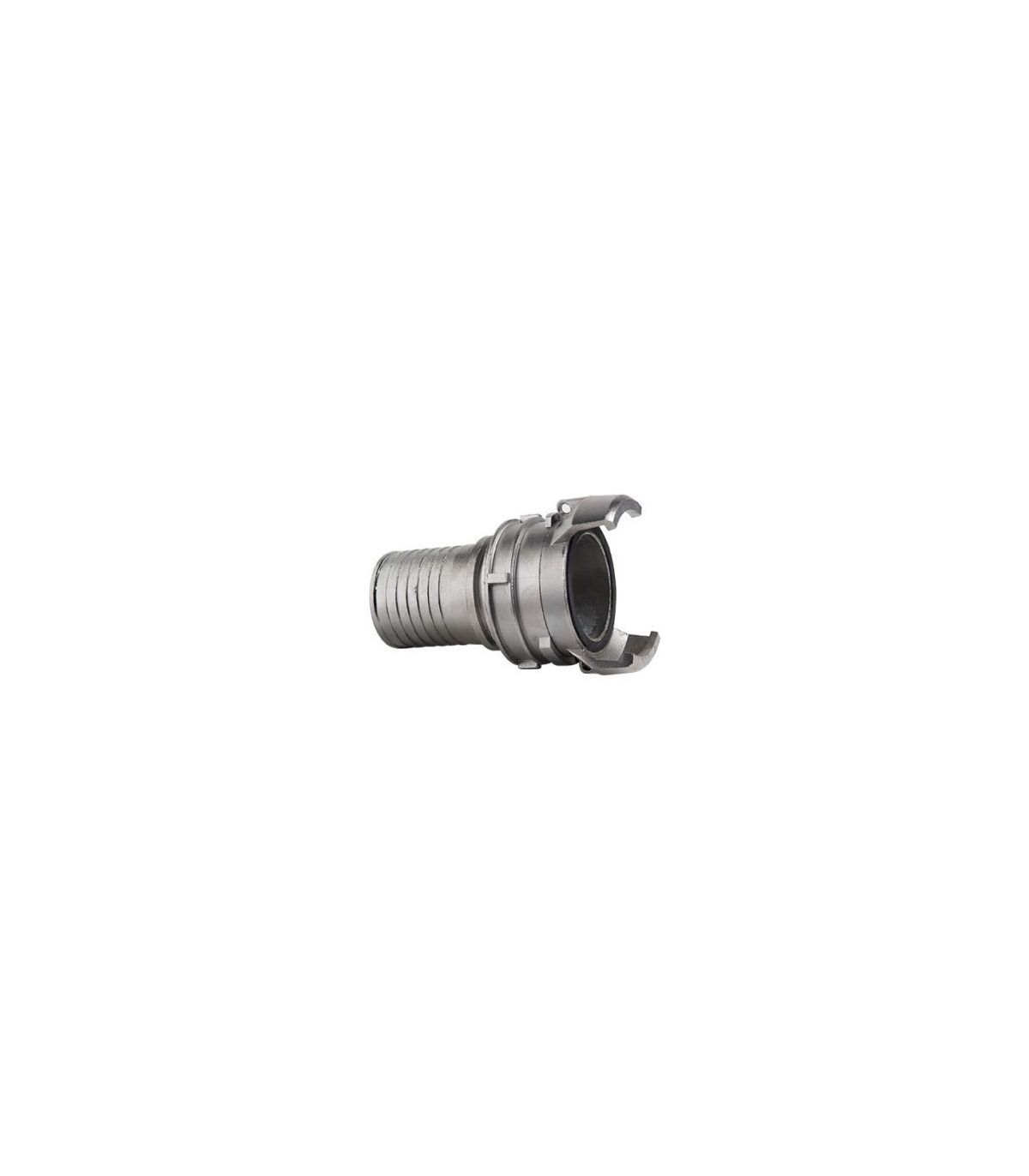

GUILLEMIN HOSE WITH CLOSURE

GUILLEMIN HOSE WITH CLOSURE

The Guillemin hose clamp is a type of hose coupling used to quickly connect and disconnect hoses, ensuring a watertight seal. It is ideal for transferring fluids and powdered materials. It is characterized by its lack of threads, as it connects directly to the hose via a serrated shaft.

Applications: Chemical and petrochemical industry, Food and pharmaceutical industry, Textile industry, Construction, Agriculture, Mining.

Technical specifications:

  • Symmetrical guillemin fitting with spigot for hose.
  • Max. pressure 16 bar.
  • BSPP type threads (cylindrical)
  • Gasket included in NBR (see other materials)
  • Available in INOX-316 steel and aluminum (other materials available upon request)
€4.86 (tax included)
€4.02 (tax excl.)
DIAMETERS
  • Ø 25
  • Ø 35
  • Ø 40
  • 30
  • 35
  • 45
  • 50
  • 55
  • 70
  • 75
  • 80
  • 90
  • 100
  • 110
DN
  • DN-25
MATERIAL
  • ALUMINUM
Reference:
717001
Description

Guillemin hose with closure

DN 20 25 32 40 50 65 80 100 125 150
TO 32 37 42.5 55 70 84 113 123 160 196
B 23 27.5 32 43 54 70 85 103 132 156
C 20 24 30 34 45.5 55 69 92 118 139
D 25 30 35 40 51 65 76 100 128 152
L1 75 76 79 112 127 134 149 192 200 278
L2 33 33 33 45 48 55 60 95 92 136
Product Details
717001
