GUILLEMIN REDUCTION WITH CLOSURE
GUILLEMIN REDUCTION WITH CLOSURE
GUILLEMIN REDUCTION WITH CLOSURE
GUILLEMIN REDUCTION WITH CLOSURE
GUILLEMIN REDUCTION WITH CLOSURE
GUILLEMIN REDUCTION WITH CLOSURE

GUILLEMIN REDUCTION WITH CLOSURE

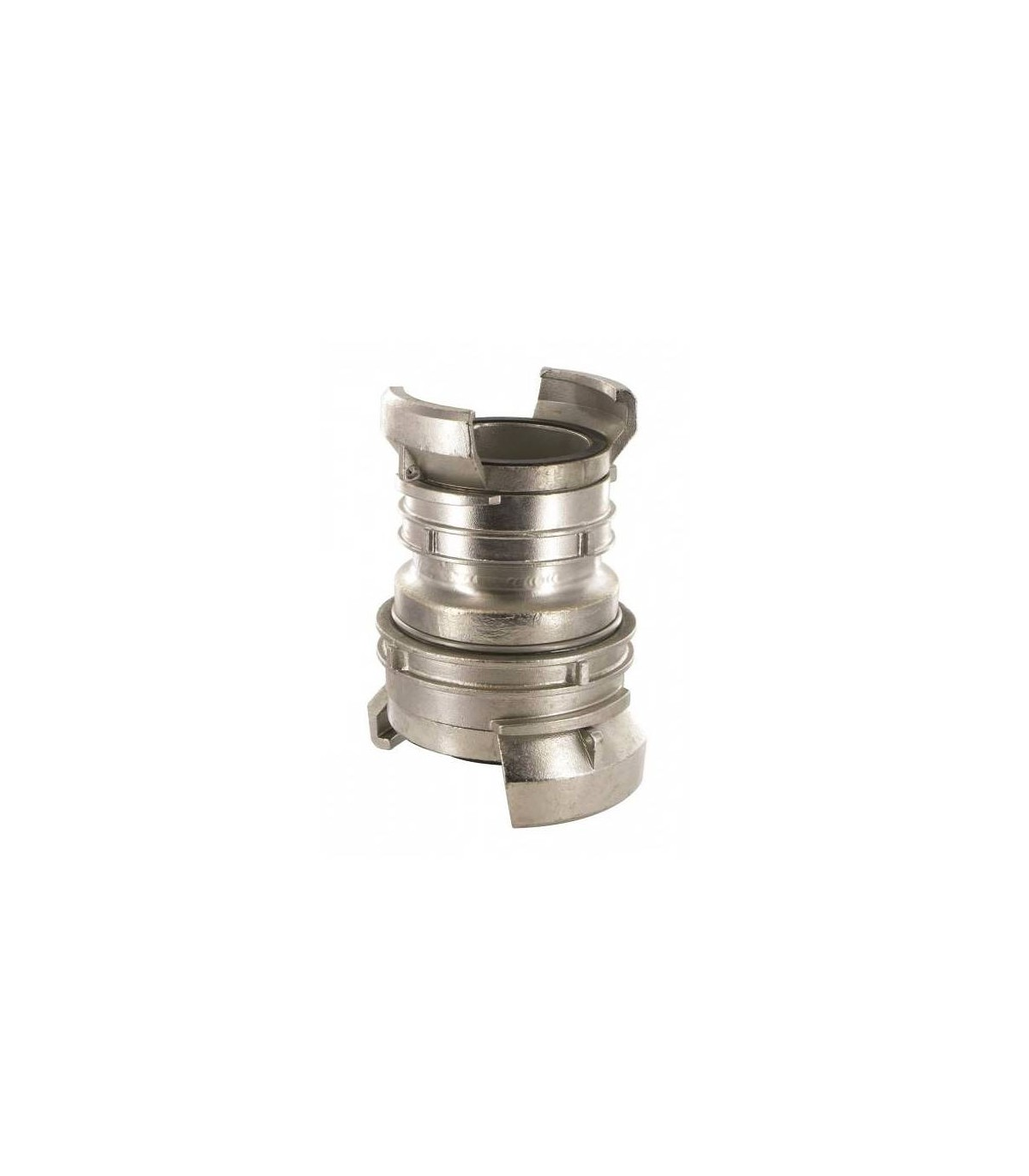

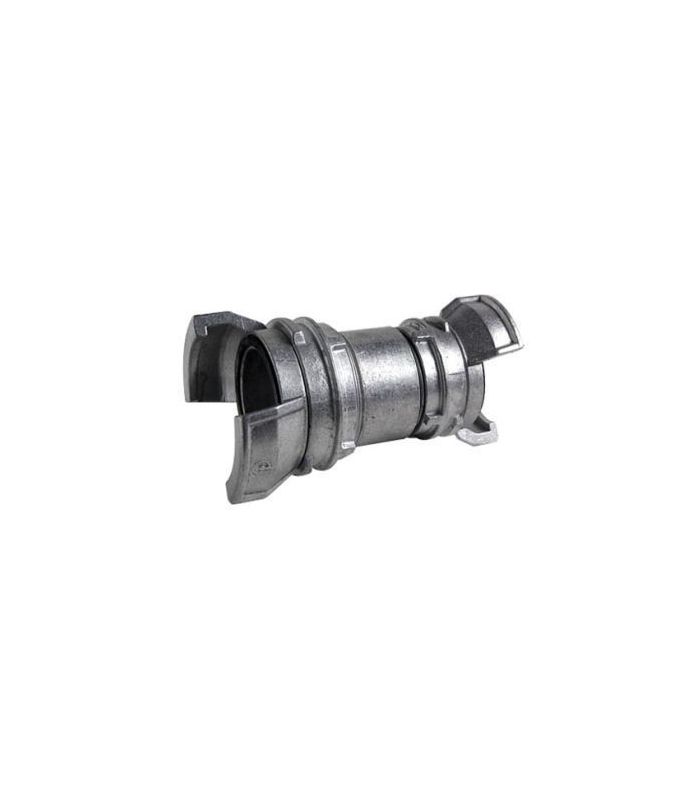

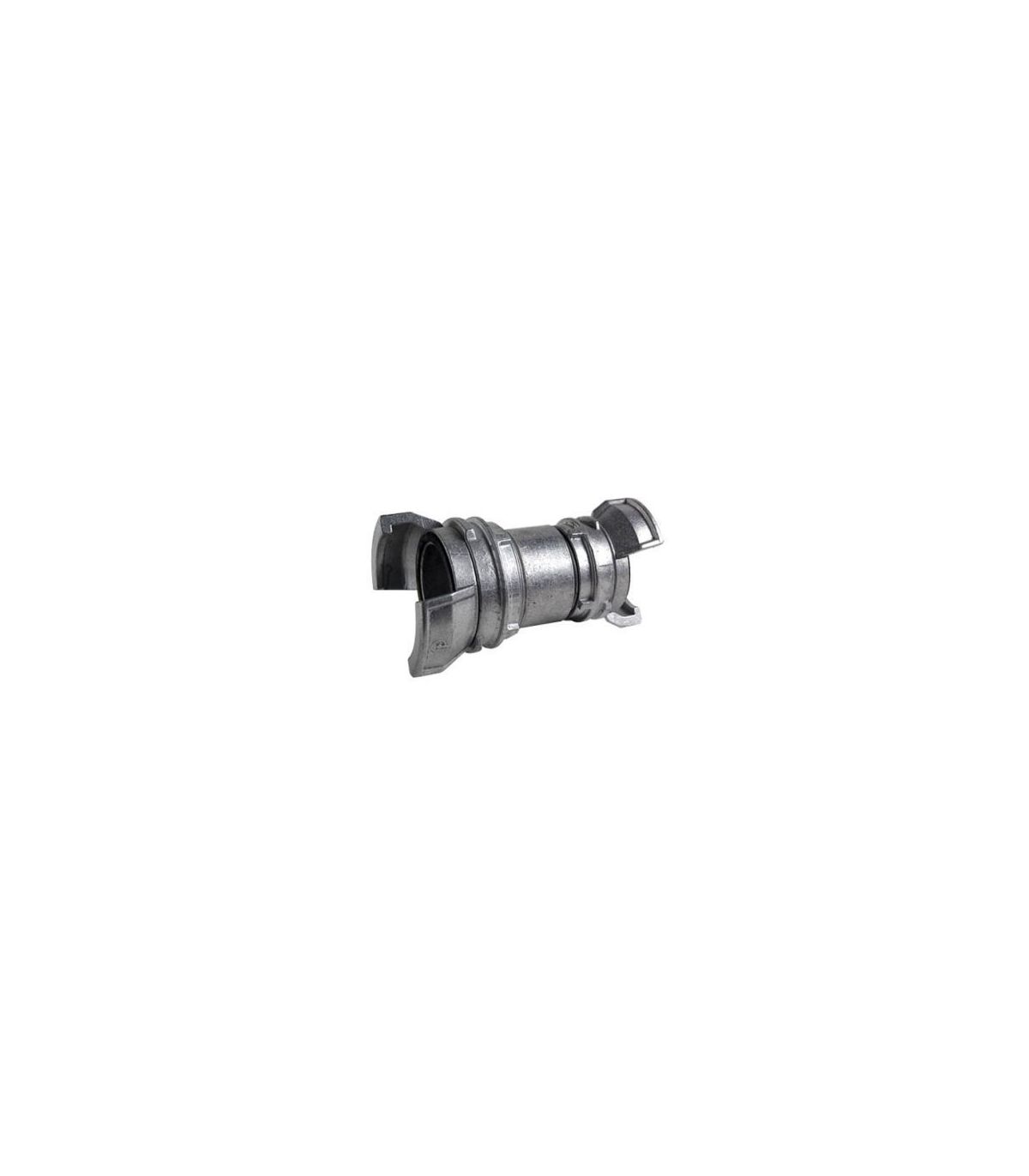

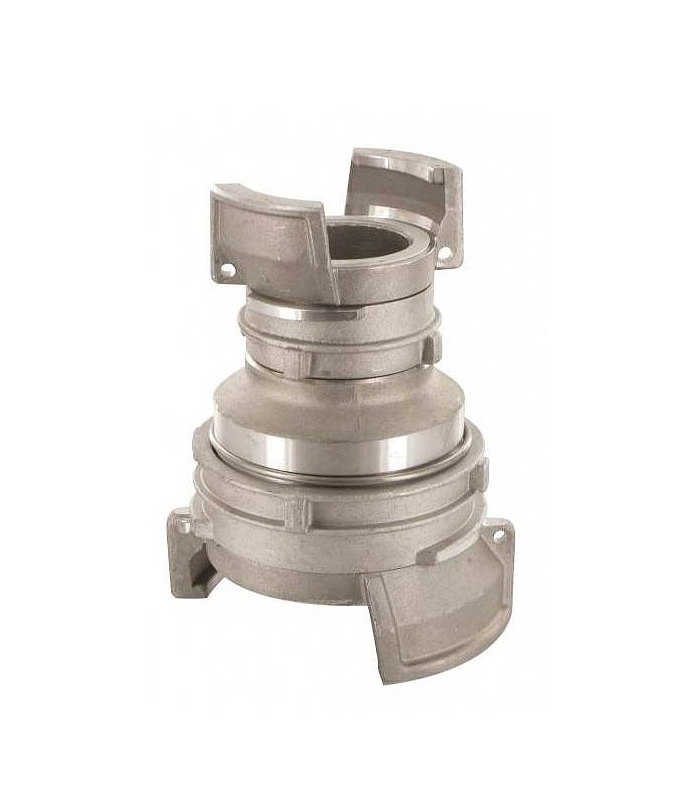

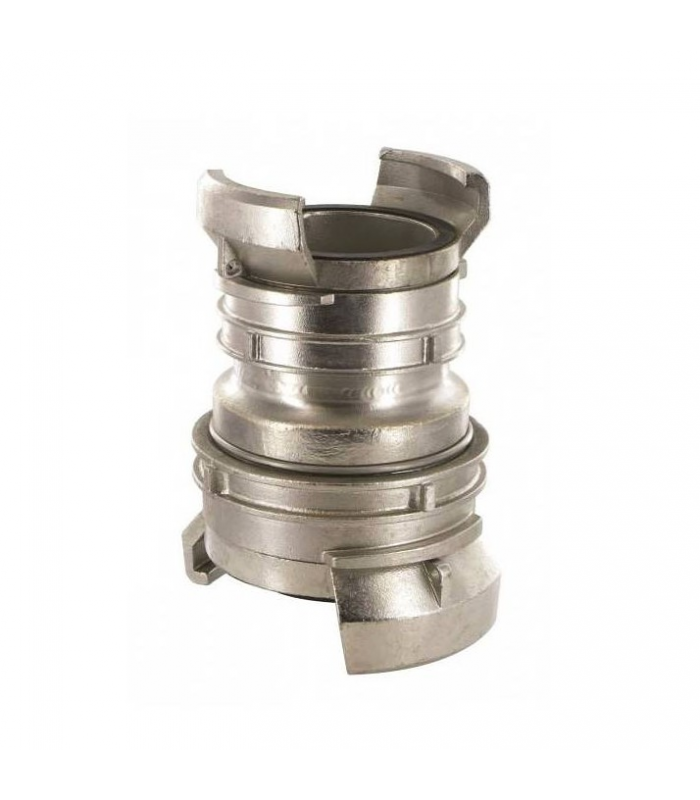

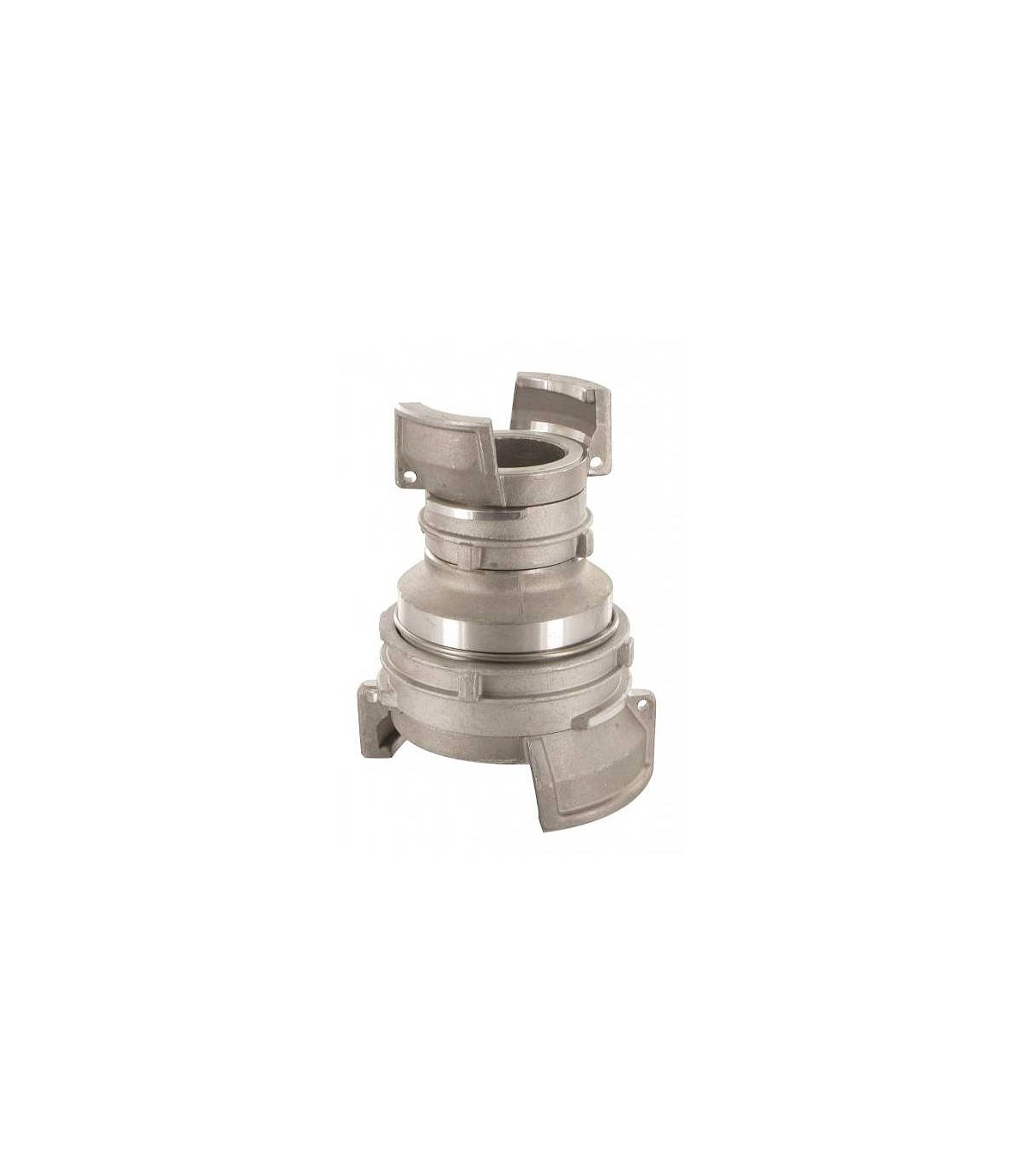

Guillemin reducer with lock

A Guillemin reducer with a locking mechanism is a type of fitting used to join two pipes or tubes of different diameters. It is characterized by its symmetrical design and airtight sealing system, making it ideal when a high degree of safety and reliability is required. It is ideal for transferring fluids and powdered materials.

Applications: Chemical and petrochemical industry, Food and pharmaceutical industry, Textile industry, Construction, Agriculture, Mining

Main features:

  • Symmetrical guillemin fitting.
  • Max. pressure 16 bar.
  • BSPP type threads (cylindrical)
  • Gasket included in NBR (see other materials)
  • Available in INOX-316 steel and aluminum (other materials available upon request)
€18.08 (tax included)
€14.94 (tax excl.)
DN
  • DN-50 DN-40
  • DN-65 DN-40
  • DN-65 DN-50
  • DN-80 DN-40
  • DN-80 DN-50
  • DN-80 DN-65
  • DN-100 DN-40
  • DN-100 DN-50
  • DN-100 DN-65
  • DN-100 DN-80
MATERIAL
  • ALUMINUM
Reference:
717401
Description

Guillemin reducer with lock

A Guillemin reducer with a shut-off fitting is a quick-connect fitting for hoses and pipes, based on the Guillemin coupling system , which allows two pipes of different diameters to be joined and the flow of fluid to be safely shut off when not connected to another fitting or hose.

The Guillemin system is a symmetrical quick-connect coupling, widely used in industry, chemical, agricultural and fire protection , which allows coupling between two identical fittings using claws and a safety ring, without the need for tools.

Materials

  • Aluminum or stainless steel
  • NBR sealing gasket that guarantees a hermetic seal

Applications

  • Transfer of industrial liquids
  • Chemical and petrochemical systems
  • Water, irrigation and fire protection networks

Technical specifications of a guillemin reducer with closure:

Material DN AND E1
Aluminum 50-40 85 71
Aluminum 65-40 102 71
Aluminum/316 Stainless Steel 65-50 102 86
Aluminum 80-40 124 86
Aluminum/316 Stainless Steel 80-50 124 86
Aluminum/316 Stainless Steel 80-65 124 102
Aluminum 100-40 145 71
Aluminum 100-50 145 85
Aluminum 100-65 145 102
Aluminum/316 Stainless Steel 100-80 145 124

Product Details
717401
