Guillemin Links: What they are, features, applications and functions

What are guillemin fittings?

Guillemin couplings are a symmetrical coupling system, meaning both halves are identical. Guillemins have locking rings to connect and secure the other half. They are the French standard for tank connections. They are suitable for both pumping and suction of liquids and solids such as powders and granules.

Features of guillemin links

The main characteristics of the Guillemin links that Disumtec has are:

• They are available in 316 stainless steel, aluminum, bronze or polypropylene.
• In sizes ranging from DN50 to DN150
• For male and female threaded hoses
• Ideal for working under pressures up to 240 PSI (16 bar)
• Smooth surfaces help prevent product buildup
• Easy to connect - Compliant with Spanish standard EN14420-8 and French standard NF E-29572.

Applications

Guillemin links are used in a wide range of applications, including:

• Fluid transfer: Guillemin couplings are used to connect hoses to tanker trucks, silos, and other fluid transfer equipment.
• Civil engineering: Guillemin couplings are used in construction to connect hoses to pumps, concrete mixers, and other construction equipment.
• Food industry: Guillemin couplings are used in the food industry to connect hoses to packaging machines, food processing equipment, and other food handling equipment.

How do guillemin fittings work?

The Guillemin coupling connects simply by joining both halves and rotating a locking ring that fits into a channel on the other half of the coupling, creating a firm and secure connection. The couplings can be tightened by hand or with the help of specially designed wrenches.

The standard material for the guillemets is aluminum and stainless steel , with optional sealing rings in white EPDM, Viton, NBR, and Kalrez available upon request. The couplings are also available without the locking mechanism, although the locking mechanism must be present on at least one of the halves to enable connection.

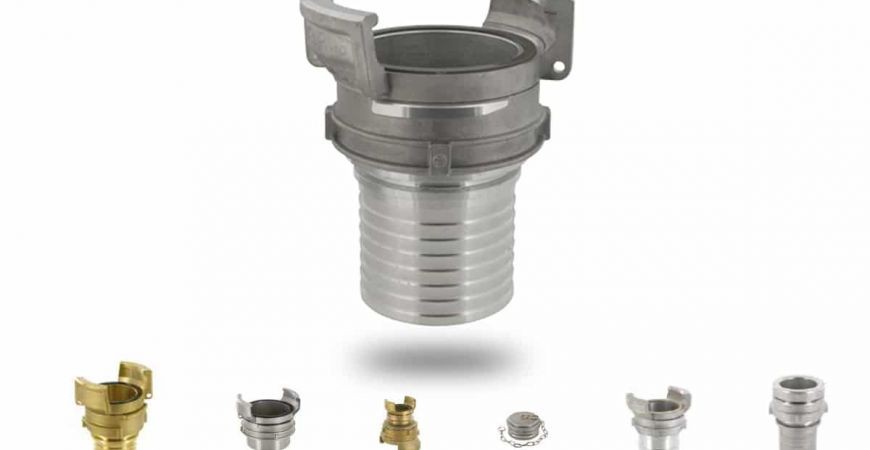

Below we show some of the most commonly used guillemines: guillemine with tenon, guillemine male thread, guillemine female thread, etc.
