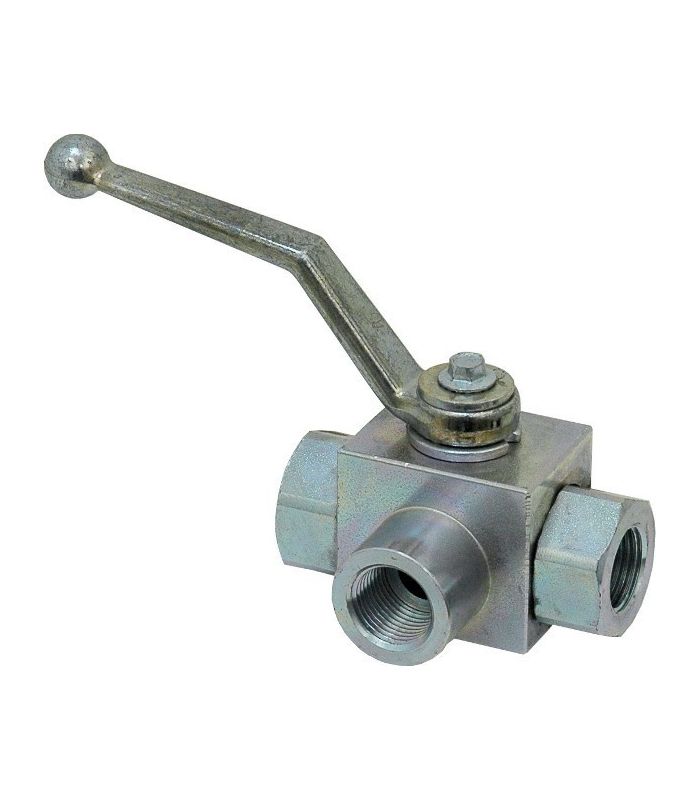

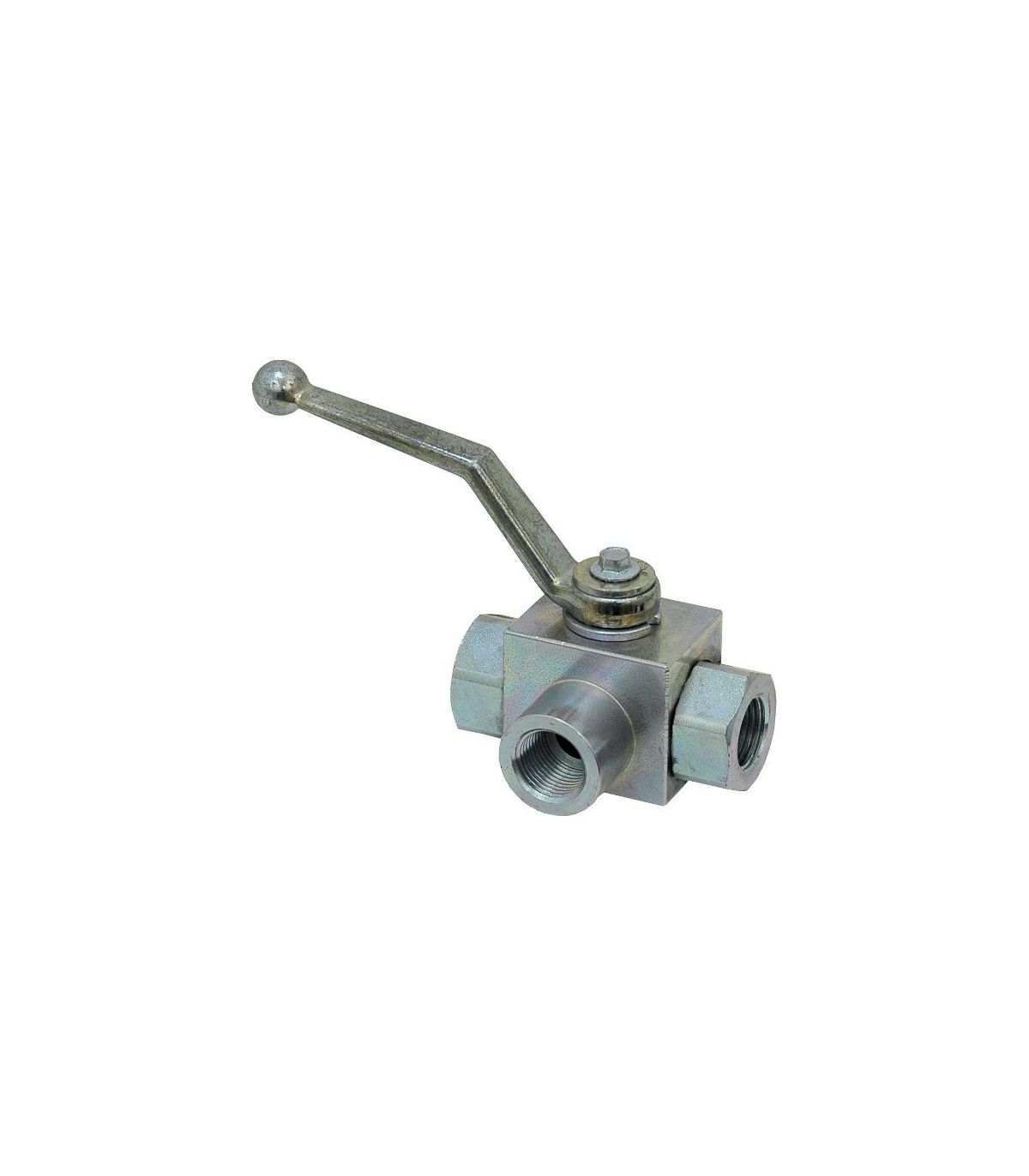

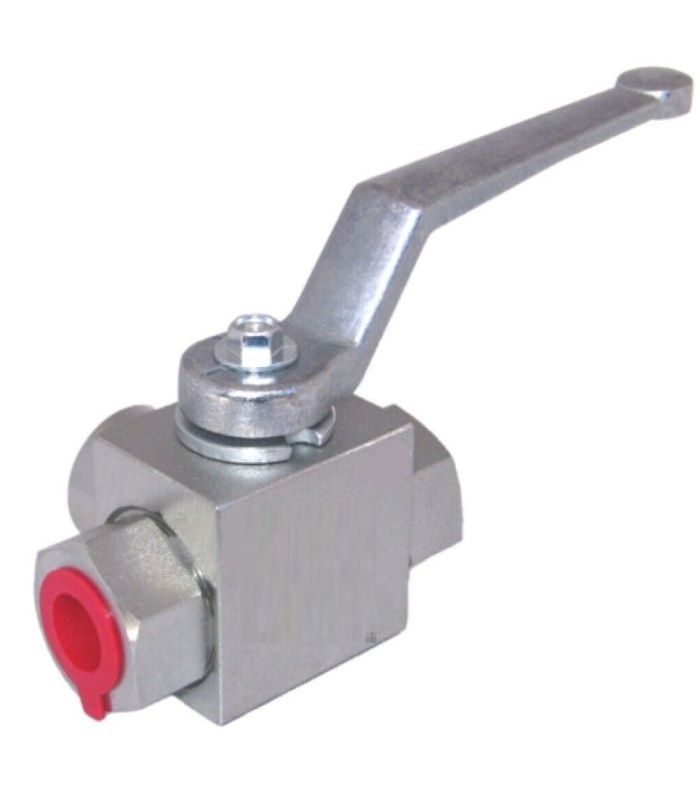

3-WAY HYDRAULIC BALL VALVE "L"

A 3-way "L" type hydraulic ball valve is an essential component in hydraulic systems that require the ability to divert fluid flow between different circuits.

Applications: heavy machinery, industrial machinery, power steering systems, lubrication systems.

Technical sheet:

Total closure in high and low pressures.
Fixing holes.
Pressures:
- 1/4"-3/8"-1/2" 500 bar.
- 3/4" 400 bar
- 1" - 11/4" - 11/2" - 2" 315 bar
Floating ball closure.
Working temperature -20º / 100ºC
Constructed of carbon steel, chrome-plated steel sphere.

€26.62 (tax included)

€22.00 (tax excl.)

SELECT THE THREAD

Reference:

46260009

Description
Comments

Description

3-way hydraulic ball valve "L" passage

VALVULA DE BOLA 3 VIAS L

Product Details

Reference 46260009

Comments
