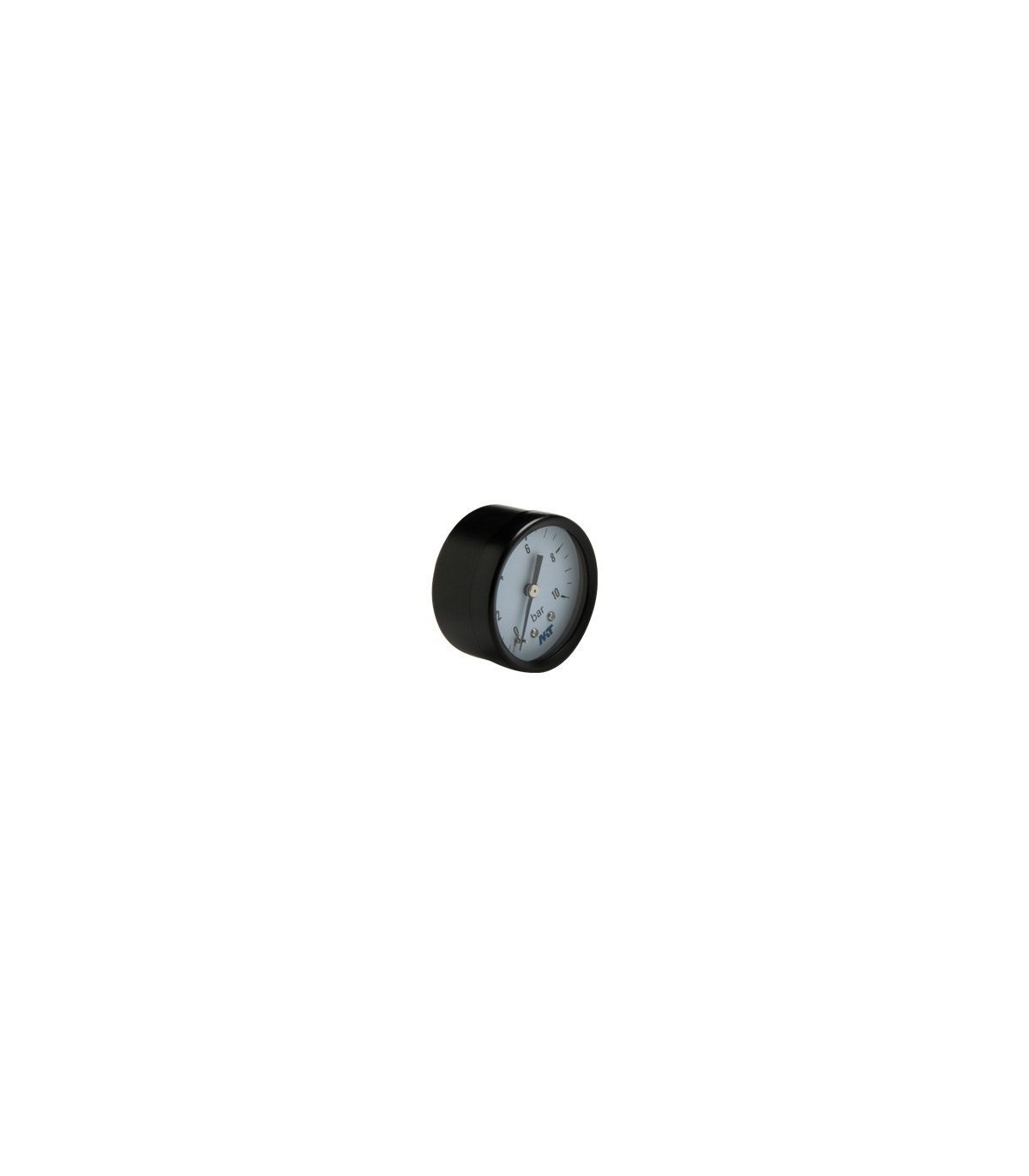

MANOMETER Ø50 CENTRAL THREAD 1/8"

MANOMETER Ø50 CENTRAL THREAD 1/8"

Pressure gauge Ø50 center thread 1/8"

A Ø50 pressure gauge with a 1/8" central thread is a measuring instrument used to indicate the pressure of fluids (air, water, oil or other compatible fluids) by means of an indicator needle in pneumatic or hydraulic systems.

Applications: Pneumatic installations, Compressors and pressure regulators, Industrial machinery, Pressure control systems.

Main features :

  • Case and rim: Carbon steel, painted
  • Fitting: Brass 1/8”
  • Transmission: Copper alloy
  • Needle: Black
  • Sphere: White lacquered aluminum
  • Screen: Transparent Polycarbonate
  • Tolerance: +/- 1.7%
  • Temperature 70ºC
  • IP43 protection rating
€7.32 (tax included)
€6.05 (tax excl.)
PRESSURE
  • 1.6 Bar
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
  • 12 Bar
  • 16 Bar
  • 25 Bar
Reference:
41050003
Description

Pressure gauge Ø50 center thread 1/8"

A Ø50 manometer with a 1/8" central thread is a mechanical device with a 50 mm diameter sphere that measures the internal pressure of the system and displays it by means of an indicator needle , incorporating a 1/8" central threaded connection for direct mounting.

It is a measuring instrument used to indicate the pressure of a fluid (air, gas or liquid) in a system.

Main features

  • Sphere diameter: Ø 50 mm
  • Connection: 1/8" center male thread
  • Screen: Transparent Polycarbonate
  • Clear analog reading
  • Robust construction for industrial use

Applications

  • Pneumatic systems
  • Pressure regulators
  • Compressors and air networks
  • Industrial machinery

Technical specifications of a pressure gauge Ø50 with 1/8 central thread:

MANOMETRO 50 ROSCA CENTRAL 18

Product Details
41050003
