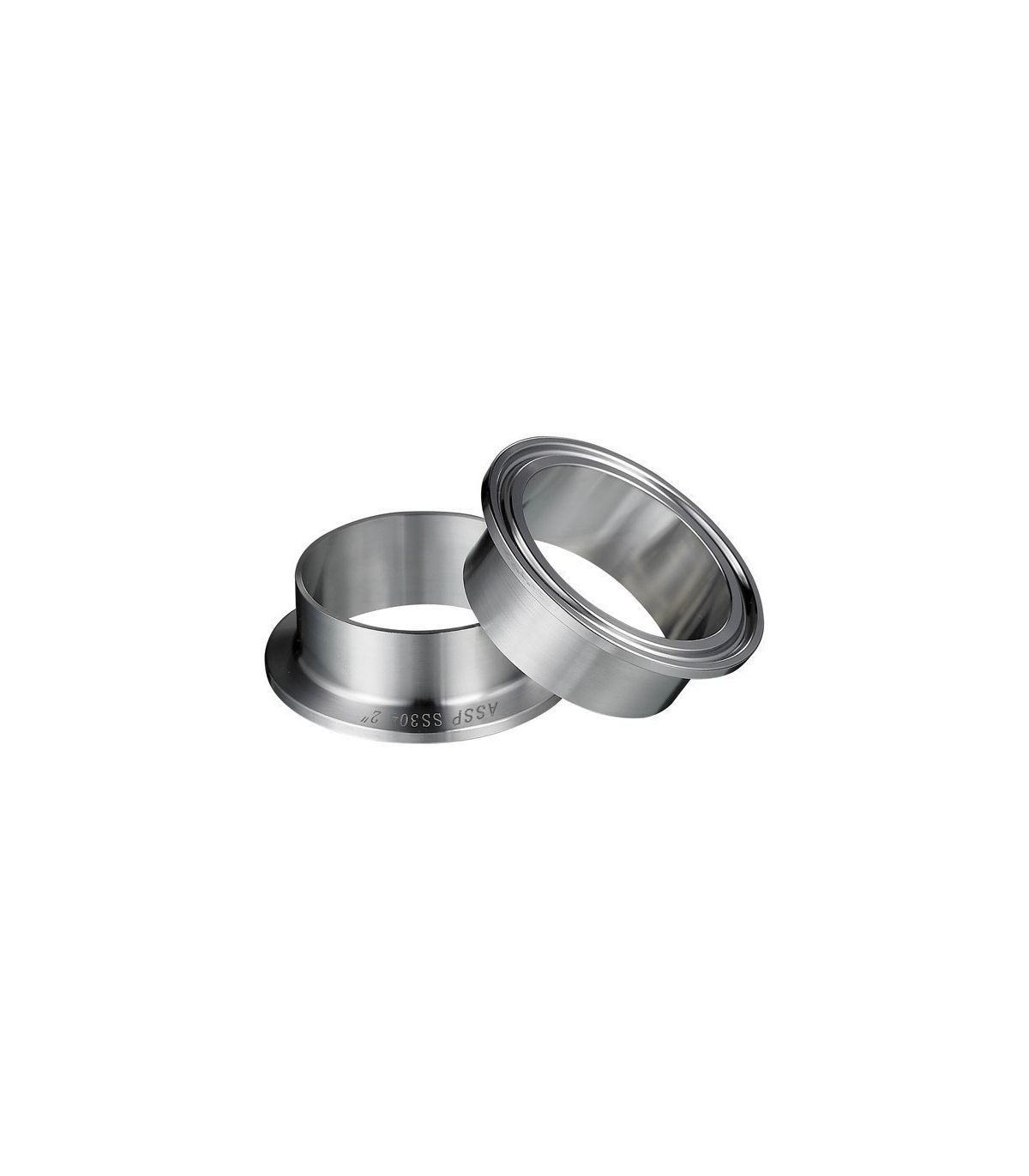

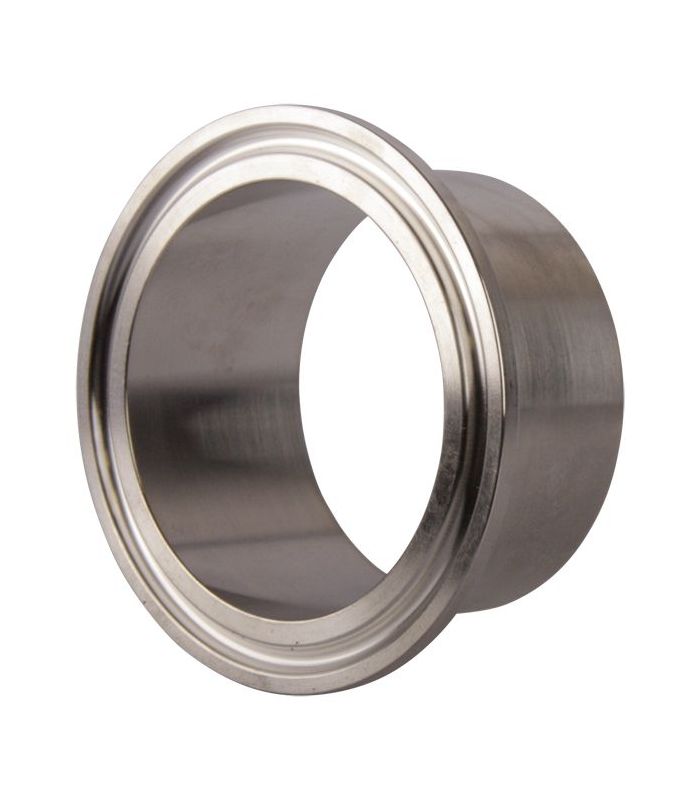

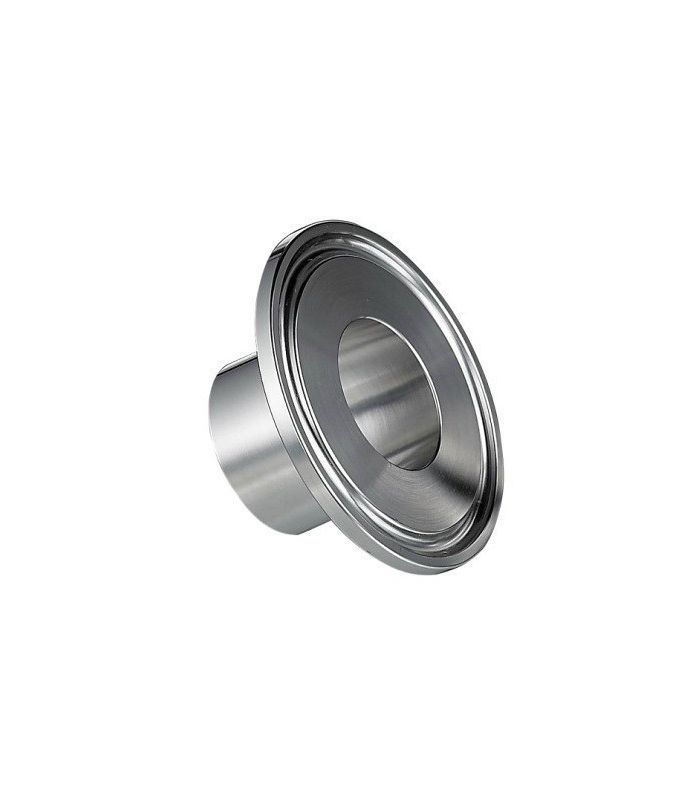

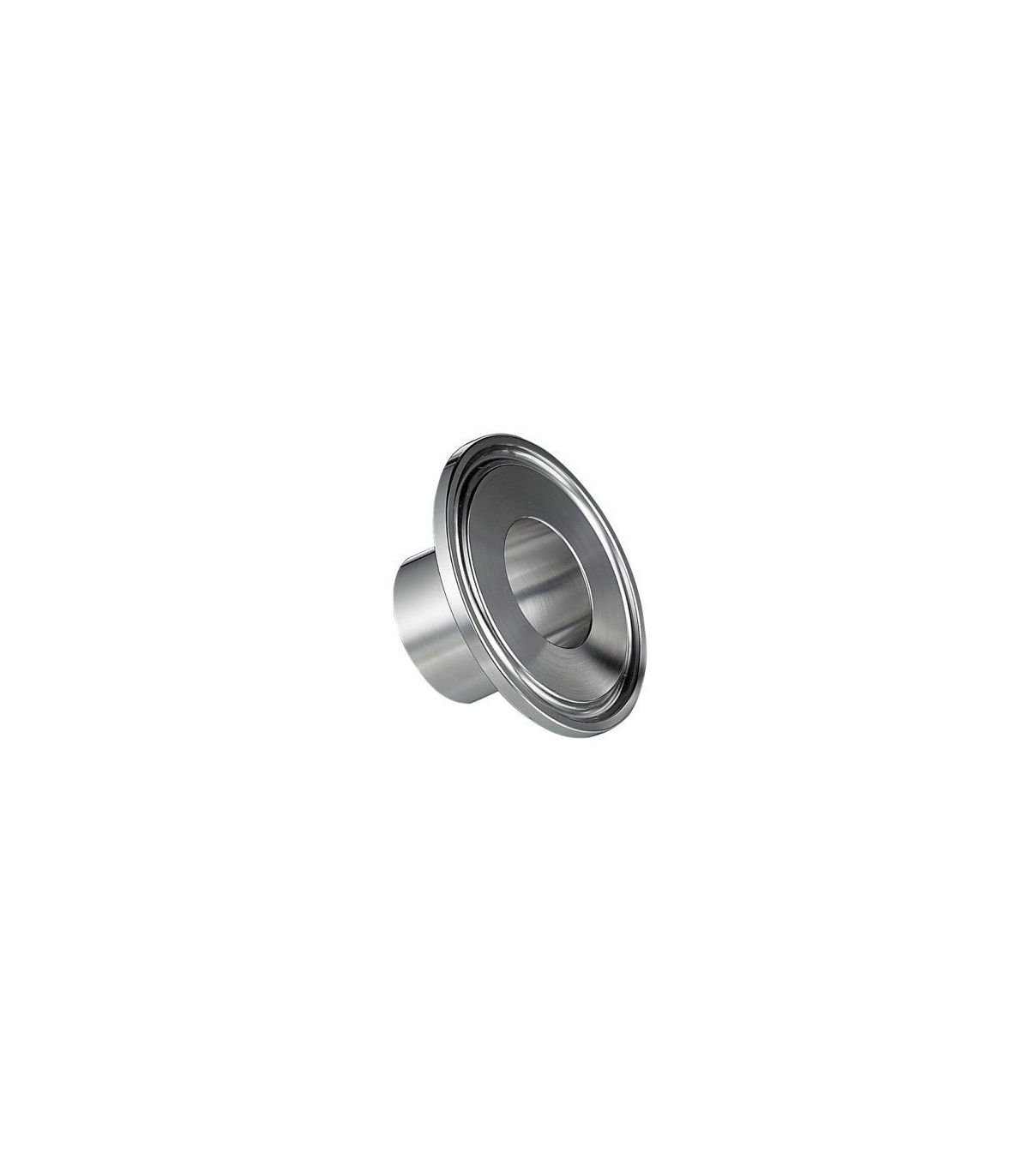

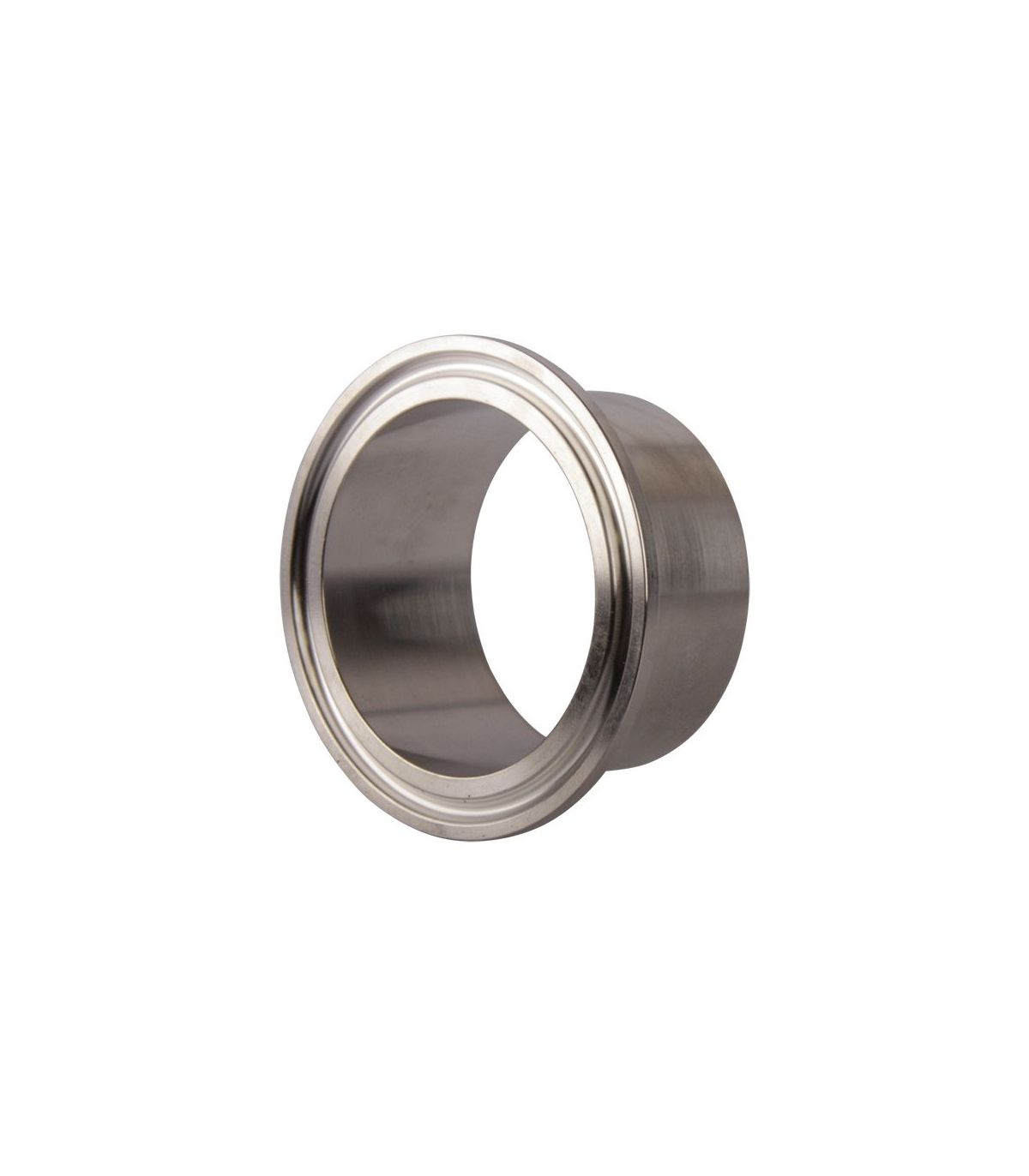

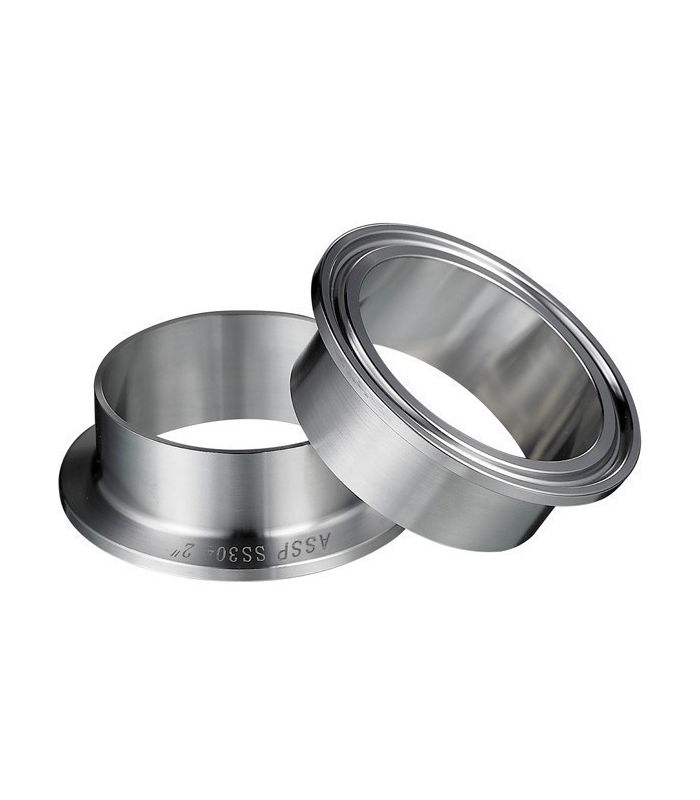

ISO-2852 WELDING CLAMP BUSHING
ISO-2852 WELDING CLAMP BUSHING
ISO-2852 WELDING CLAMP BUSHING
ISO-2852 WELDING CLAMP BUSHING
ISO-2852 WELDING CLAMP BUSHING
ISO-2852 WELDING CLAMP BUSHING

ISO-2852 WELDING CLAMP BUSHING

The ISO-2852 Clamp welding sleeve allows for the hygienic and detachable joining of pipes and equipment using Clamp clamps, guaranteeing a secure seal and easy maintenance.

Applications: healthcare sector and food sector.

Main features:

  • For ISO-1127 tubing
  • Made of 316 stainless steel.
  • Sanitary polishing.

The height (H) may vary depending on the manufacturer.

€5.78 (tax included)
€4.78 (tax excl.)
DN
  • DN-20
  • DN-25
  • DN-32
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
Reference:
67160001
Description

Welding bushing clamp ISO-2852

An ISO-2852 Clamp weld-on sleeve allows for hygienic and detachable joining between pipes and equipment, and is widely used in industries where high standards of cleanliness and corrosion resistance are required.

Advantages

  • Hygienic and detachable connection without threads
  • Easy cleaning and maintenance (CIP/SIP)
  • High corrosion resistance
  • Secure installation by welding
  • Compatible with international healthcare systems

Applications

  • Food industry
  • Pharmaceutical industry
  • Beverages and dairy products
  • Biotechnology and cosmetics
  • Processes with high hygiene requirements

Technical data sheet for a welding clamp bushing ISO-2852:

Code DN L (mm) F (mm) C (mm) S (mm)
67160001 20 50.4 26.9 28.6 1.6
67160002 25 50.4 33.7 28.6 1.6
67160003 32 50.4 42.4 28.6 1.6
67160004 40 64 48.3 28.6 1.6
67160005 50 77.4 60.3 28.6 2
67160006 65 90.9 76.1 28.6 2
67160007 80 106 88.9 28.6 2
67160008 100 130 114.3 28.6 2

Product Details
67160001
