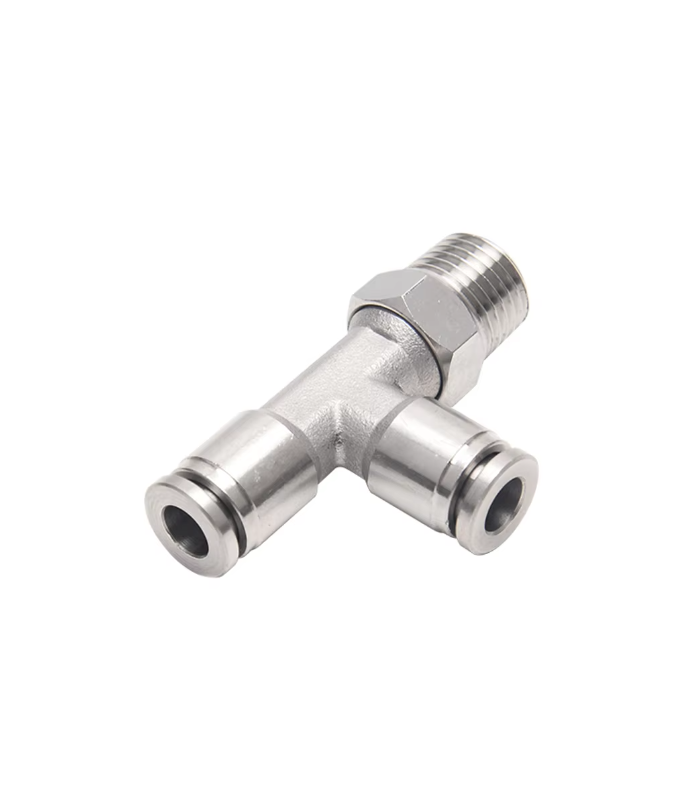

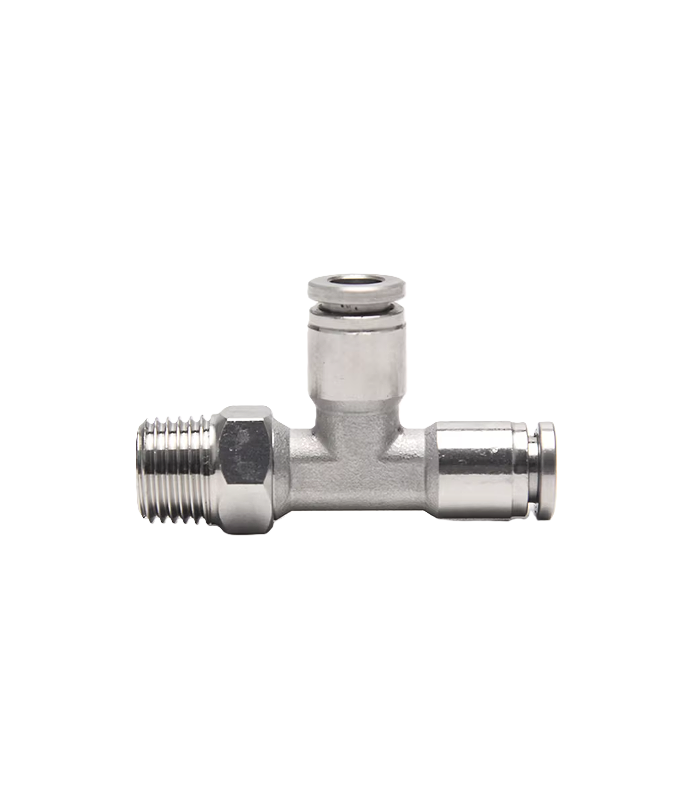

STAINLESS STEEL SIDE MALE THREAD TUBE TEE
STAINLESS STEEL SIDE MALE THREAD TUBE TEE
STAINLESS STEEL SIDE MALE THREAD TUBE TEE
STAINLESS STEEL SIDE MALE THREAD TUBE TEE

STAINLESS STEEL SIDE MALE THREAD TUBE TEE

You tube male thread side stainless steel

Its function is to join three sections of pipe at a single point, forming a "T" shaped joint. It has a main inlet and two side outlets.

Applications: Food industry, Chemical industry, Pharmaceutical industry, Construction, Naval.

Technical data sheet:

  • Body and push button made entirely of AISI 316L stainless steel.
  • Gasket in VITON (FKM).
  • Suitable for aggressive fluids and environments and the food industry.
  • Working pressures: -1 / 15 bar (at 20ºC).
  • Working temperatures: -20 - 160ºC.
  • Long service life.
€62.29 (tax included)
€51.48 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
17130010
Description

You tube male thread side stainless steel

Product Details
17130010
