STAINLESS STEEL ELBOW TUBE CONNECTION
STAINLESS STEEL ELBOW TUBE CONNECTION
STAINLESS STEEL ELBOW TUBE CONNECTION
STAINLESS STEEL ELBOW TUBE CONNECTION

STAINLESS STEEL ELBOW TUBE CONNECTION

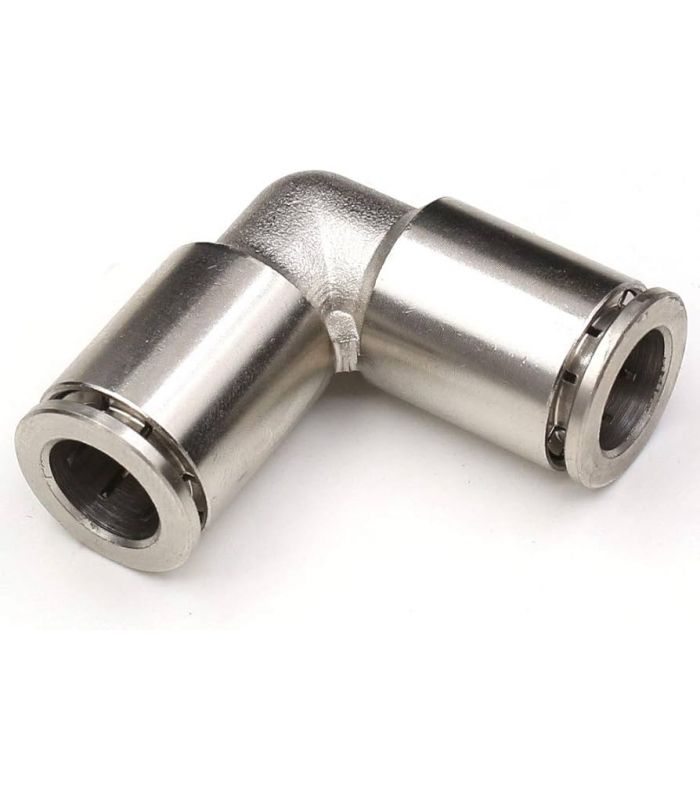

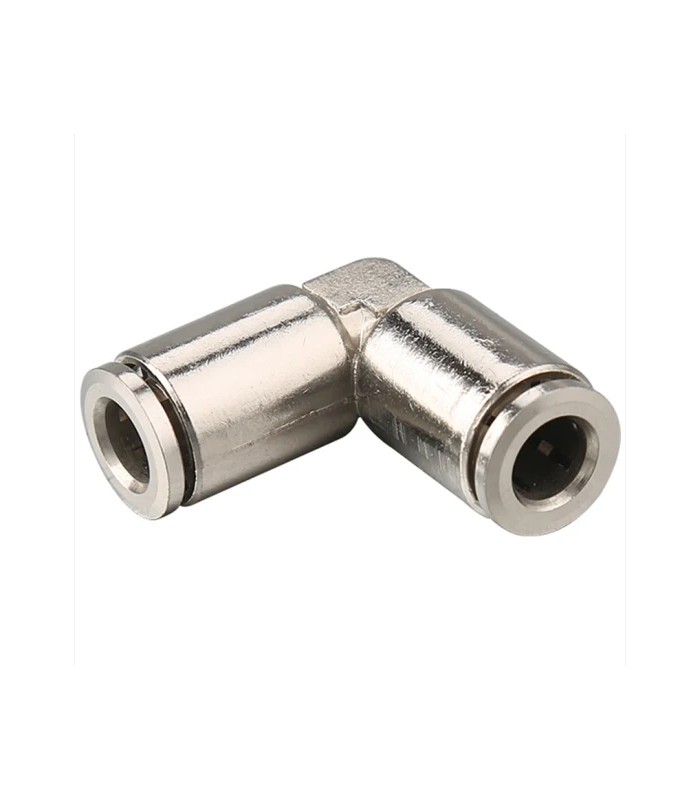

Stainless steel elbow pipe fitting

Its function is to join two sections of pipe at a 90 degree angle to change the direction of flow within a pipe system.

Applications: food industry, chemical industry, pharmaceutical industry, naval industry and construction.

Technical data sheet:

  • Body and push button made entirely of AISI 316L stainless steel.
  • Gasket in VITON (FKM).
  • Suitable for aggressive fluids and environments and the food industry.
  • Working pressures: -1 / 15 bar (at 20ºC).
  • Working temperatures: -20 - 160ºC.
  • Long service life.
€26.05 (tax included)
€21.53 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
17080002
Description

Stainless steel elbow pipe fitting

Product Details
17080002
