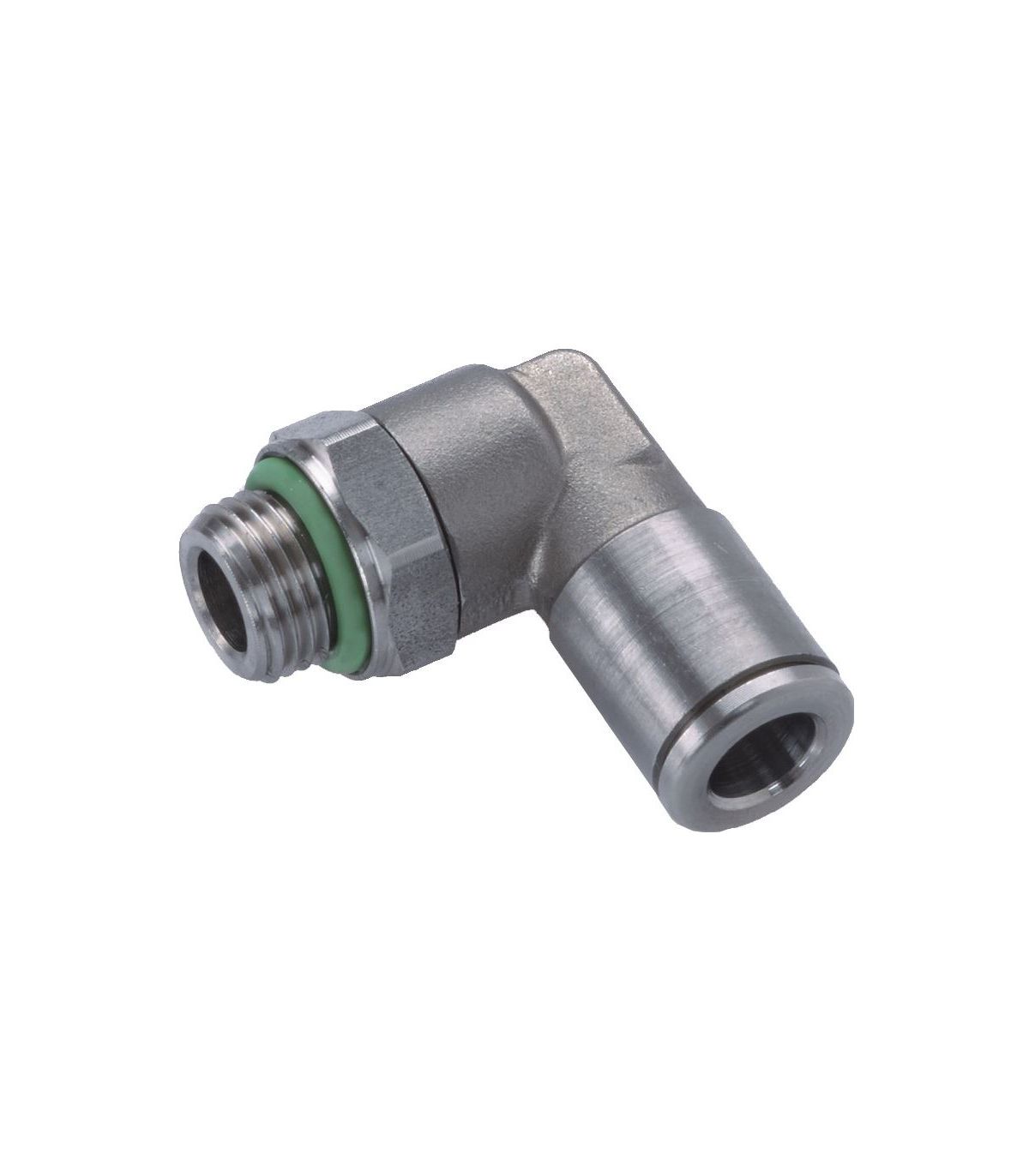

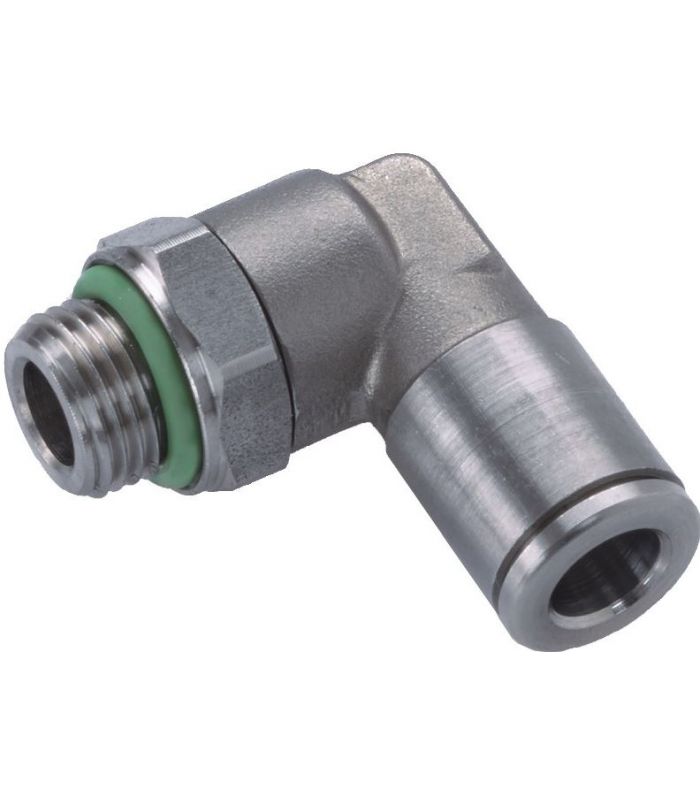

STAINLESS STEEL ADJUSTABLE CYLINDRICAL THREAD TUBE ELBOW UNION

STAINLESS STEEL ADJUSTABLE CYLINDRICAL THREAD TUBE ELBOW UNION

Adjustable cylindrical threaded pipe elbow union in stainless steel

The elbow allows the flow direction to be changed at a 90 degree angle and the outlet can be adjusted.

It consists of an elbow-shaped main body, with a female thread at one end and a swivel fitting at the other.

The connection is made by means of a cylindrical profile thread, which is less airtight than a conical thread.

Common applications: food industry, chemical industry, pneumatics and hydraulics, refrigeration.

Technical data sheet:

  • Body and push button made entirely of AISI 316L stainless steel.
  • Gasket in VITON (FKM).
  • Suitable for aggressive fluids and environments and the food industry.
  • Working pressures: -1 / 15 bar (at 20ºC).
  • Working temperatures: -20 - 160ºC.
  • Long service life.
€32.19 (tax included)
€26.60 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-1/8
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
17030005
Description

Elbow union tube cylindrical thread adjustable stainless steel

Product Details
17030005
