5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB
5/2 1/4 Locking Cam Valve MVMB-220-4TB

5/2 1/4 Locking Cam Valve MVMB-220-4TB

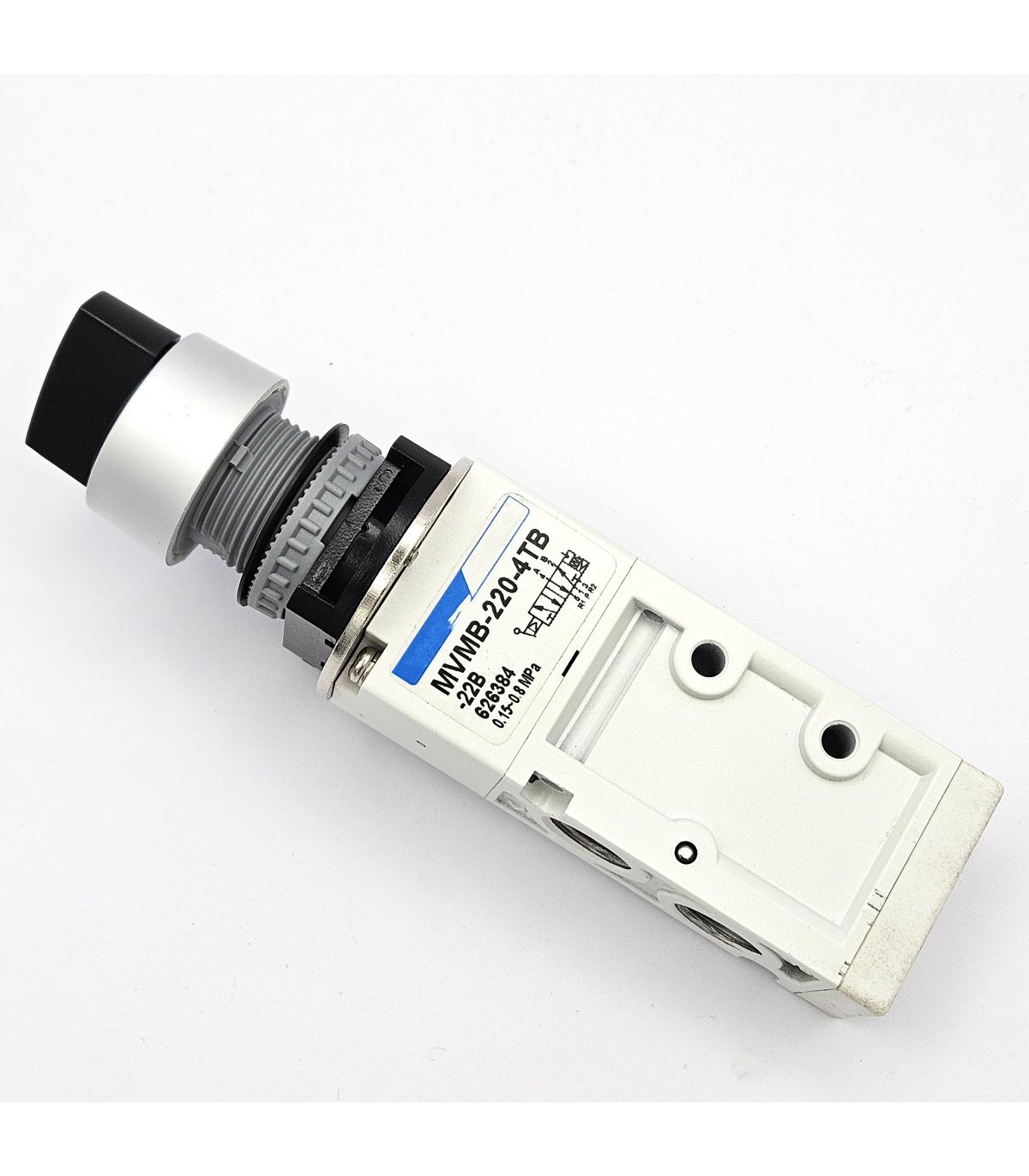

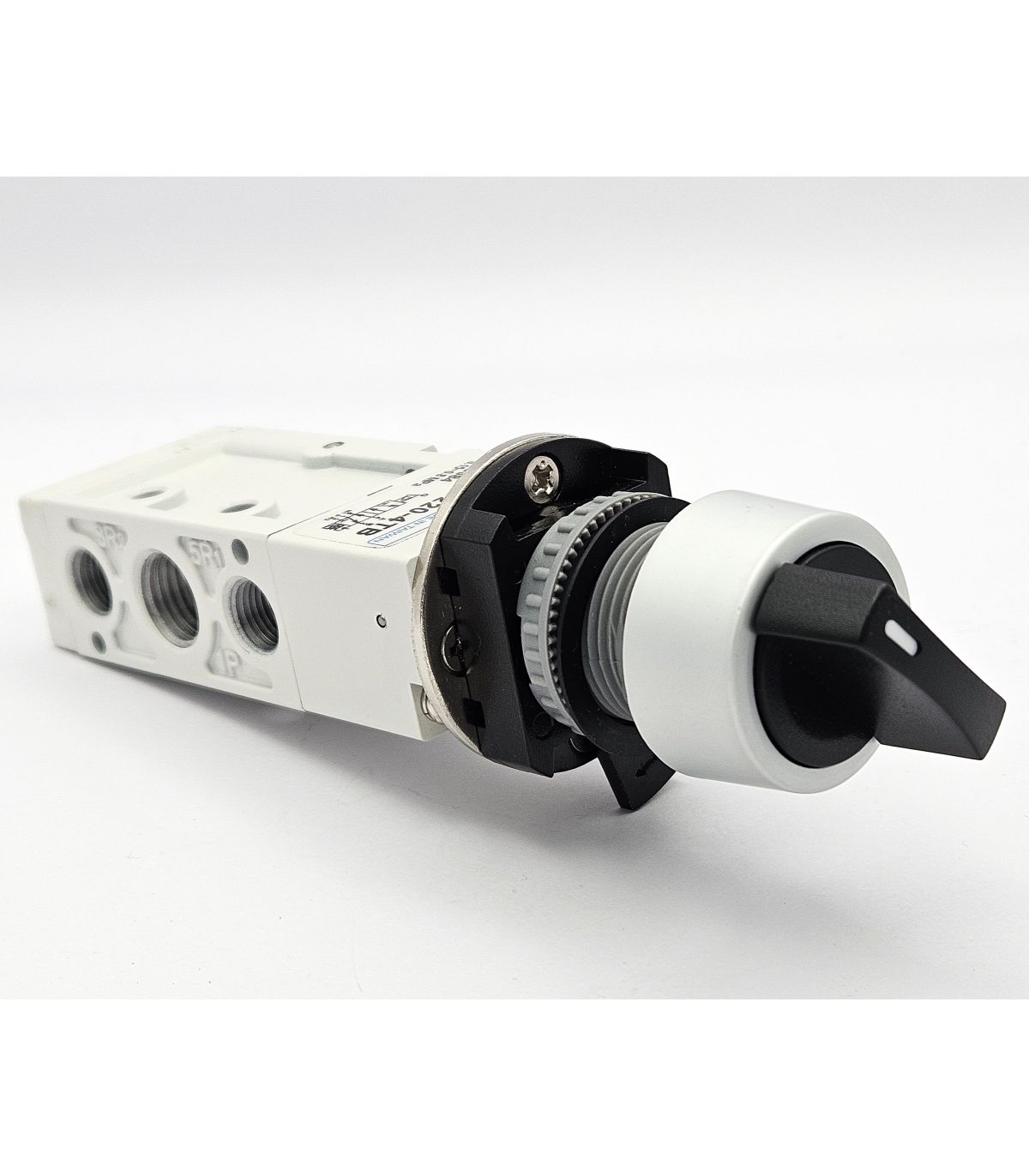

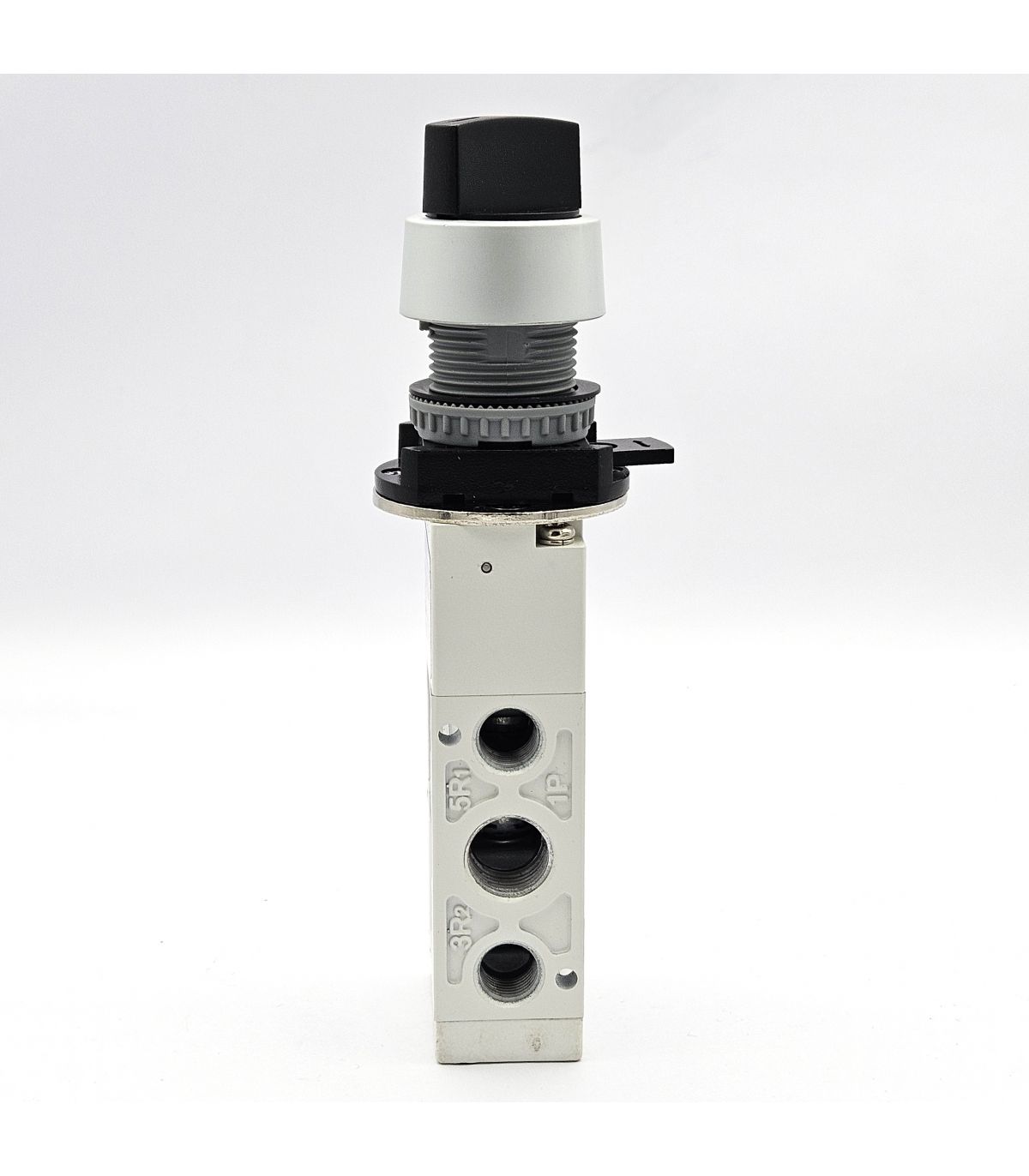

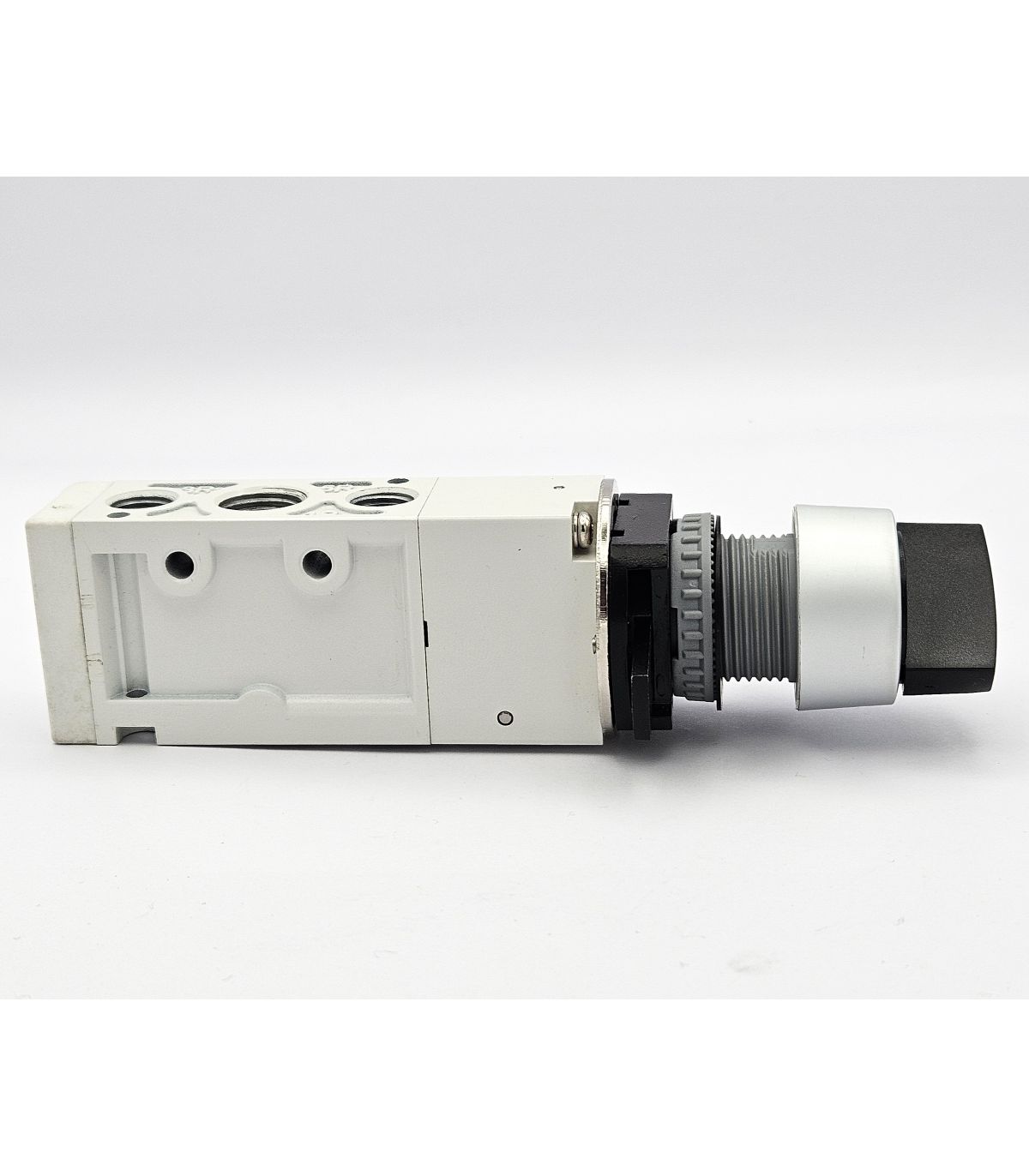

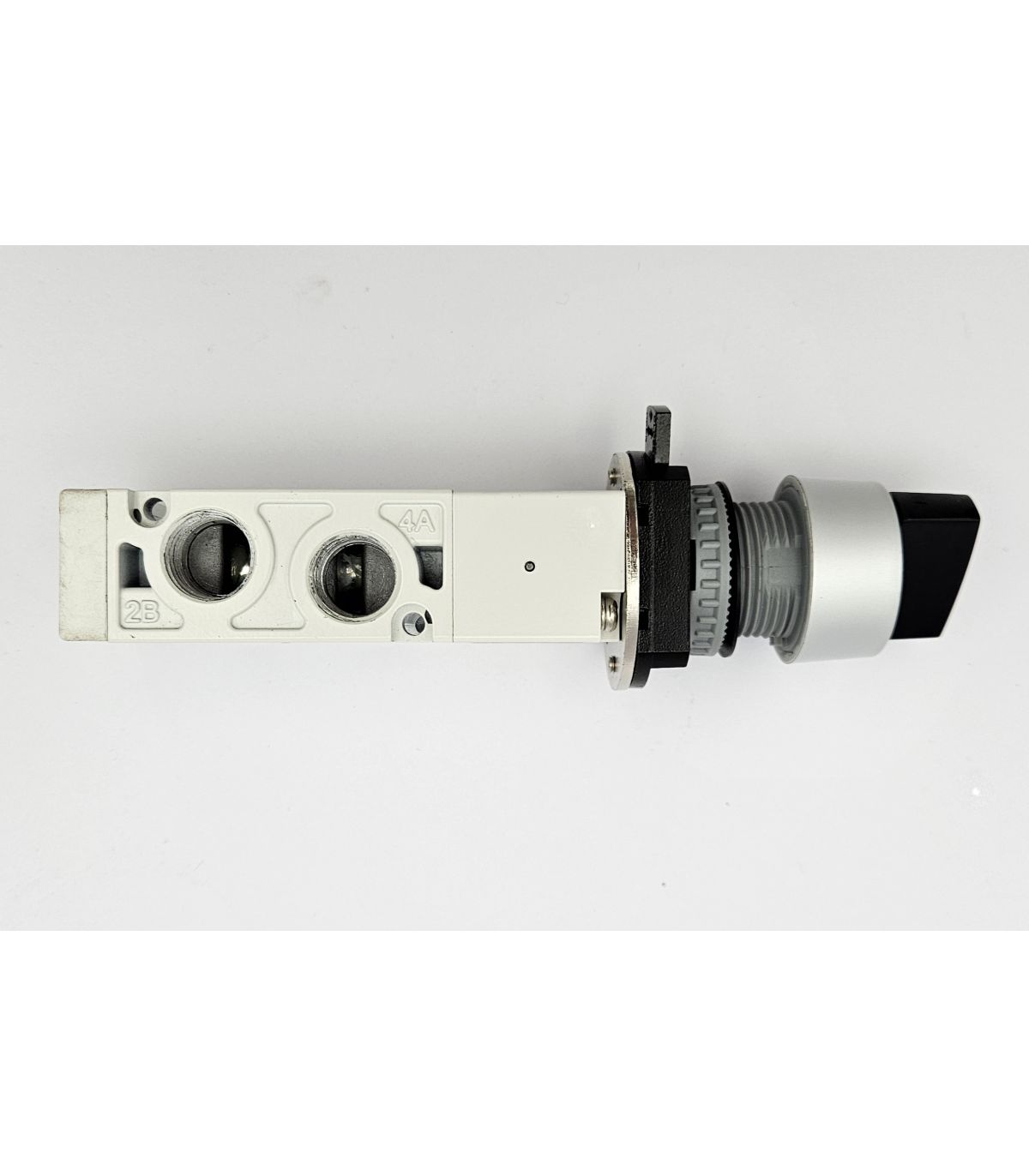

The MVMB-220-4TB 5/2 1/4 cam-operated locking valve is a 5-way, 2-position (5/2) mechanical pneumatic valve designed for the manual control of pneumatic cylinders and actuators. It features cam or rotary locking actuation, allowing the selected position to be maintained until further manual operation.

Applications: industrial automation, pneumatic control panels, manual compressed air control.

Main features:

  • 5/2 1/4" MINDMAN Distributor with Locking Cam
  • Detachable cam for panel mounting.
  • 1/8" exhaust thread
  • Pressure range 0.15 - 8 bar.
  • Temperature -5/60ºC.
  • Effective section 18 mm²
€32.67 (tax included)
€27.00 (tax excl.)
Reference:
MVMB2208A4TB22
Description

5/2 1/4 Locking Cam Valve MVMB-220-4TB

The MVMB-220-4TB 5/2 1/4 cam locking valve is a 5-way, 2-position (5/2) mechanical pneumatic valve designed for the manual control of pneumatic cylinders and actuators. It features cam or latching rotary actuation, allowing the selected position to be maintained until further manual operation.

Its 5-way configuration allows for managing air supply and exhaust in double-acting cylinders, while the 2 positions determine the direction of pneumatic flow. The latching system keeps the valve in the activated position without requiring continuous operation.

Function

It allows reversing the direction of airflow to control the forward and backward movement of pneumatic actuators, maintaining the selected position until a new manual action.

Applications

  • Control of double-acting pneumatic cylinders
  • Industrial automation
  • Pneumatic control panels
  • Manual compressed air control systems

Technical specifications of a 5/2 1/4 locking cam valve MVMB-220-4TB:

Product Details
MVMB2208A4TB22
