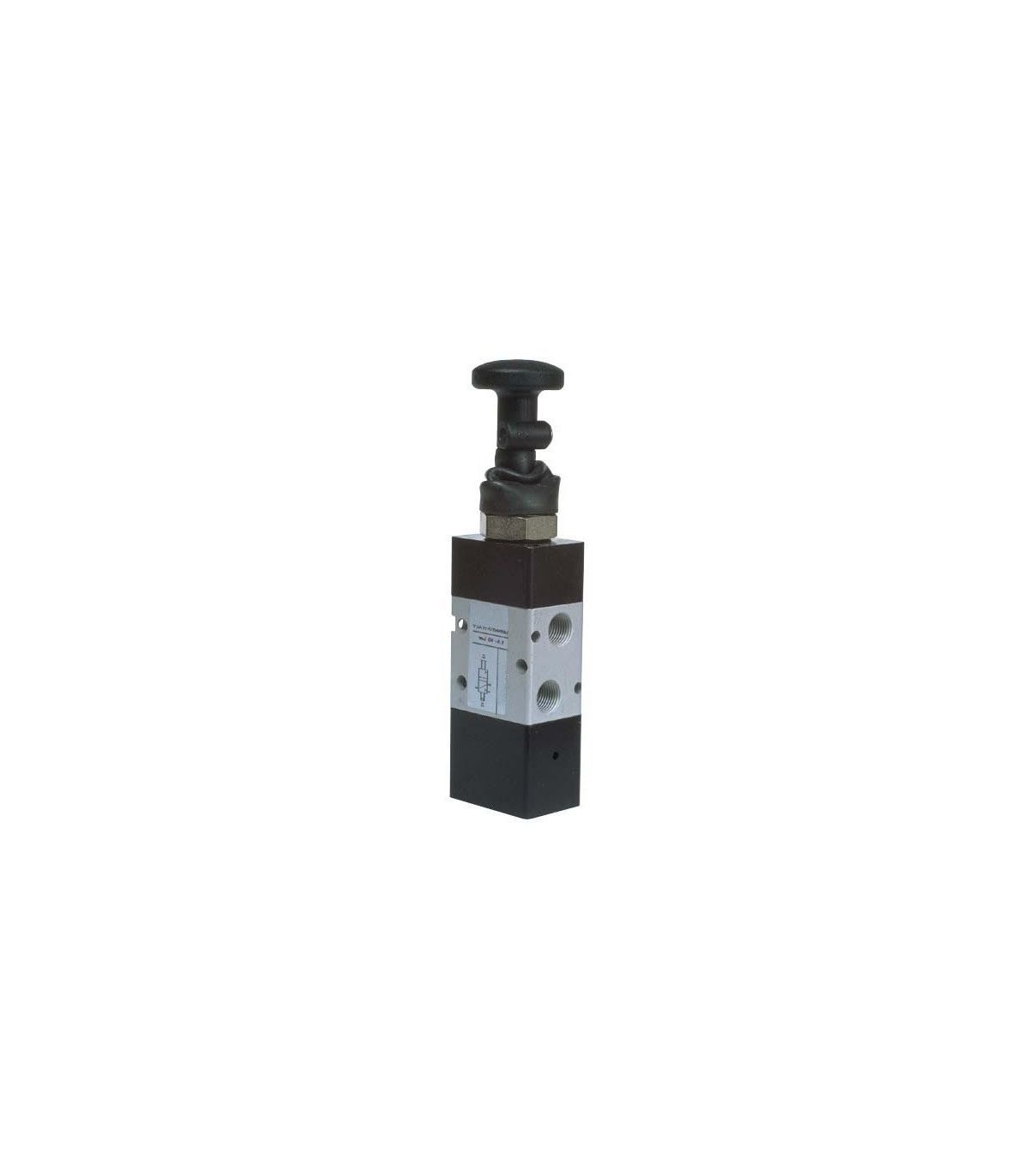

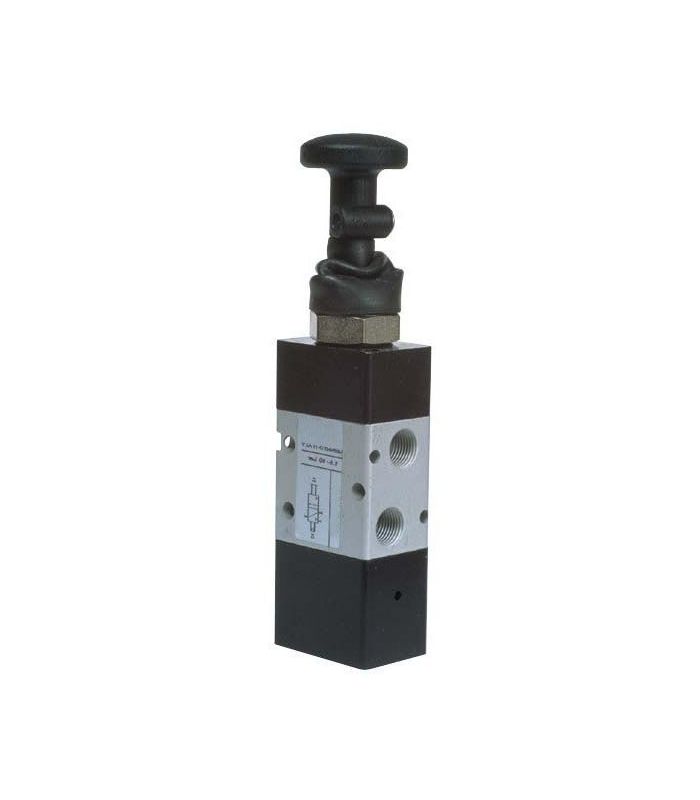

1/8" VALVE PNEUMATIC OR MANUAL RETURN HANDLE KNOB
1/8" VALVE PNEUMATIC OR MANUAL RETURN HANDLE KNOB
1/8" VALVE PNEUMATIC OR MANUAL RETURN HANDLE KNOB
1/8" VALVE PNEUMATIC OR MANUAL RETURN HANDLE KNOB

1/8" VALVE PNEUMATIC OR MANUAL RETURN HANDLE KNOB

A 1/8" knob pull return pneumatic or manual valve is a small pneumatic component to control the flow of compressed air manually. The return to the initial position can be by a spring (manual) or by a pneumatic signal.

Applications: Industrial automation, Medical equipment, Robotics and Instrumentation

Technical data sheet:

  • 1/8" pull control distributor
  • 3/2 and 5/2 Functions
  • The return is carried out pneumatically or also by the same handle.
  • Flow rate at 6 bar 550 Nl/min.
  • Working temperature -10ºC / 60ºC
  • Valve pressure 0.9 - 10 bar.
  • Pilot pressure 2.5 10 bar.
€36.30 (tax included)
€30.00 (tax excl.)
SELECT TYPE
  • 3/2 FLIP-UP
  • 5/2 BISTABLE
Reference:
21210004
Description

1/8" valve knob pull return pneumatic or manual

VALVULA 18 TIRADOR RETORNO NEUMATICO O MANUALVALVULA 18 TIRADOR RETORNO NEUMATICO O MANUAL

Product Details
21210004
Comments
