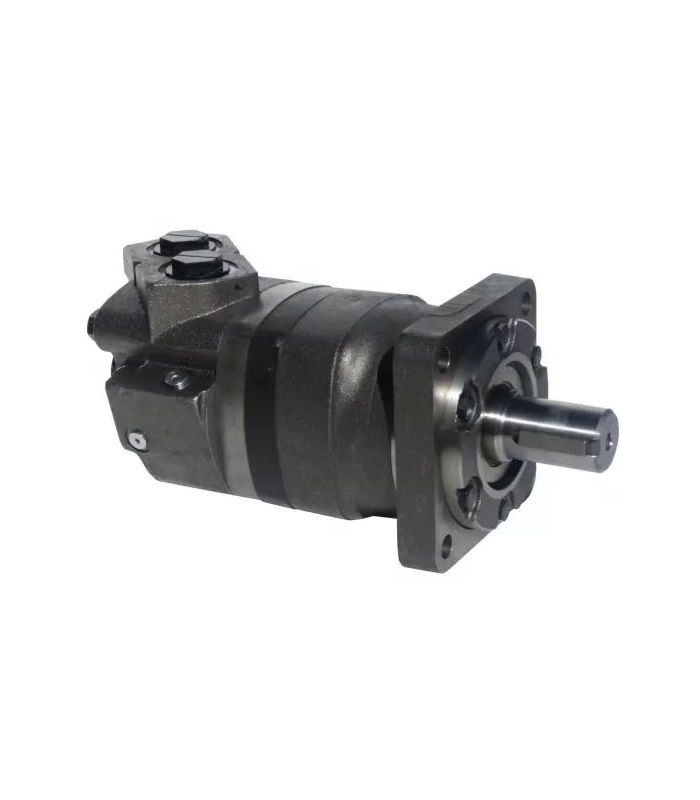

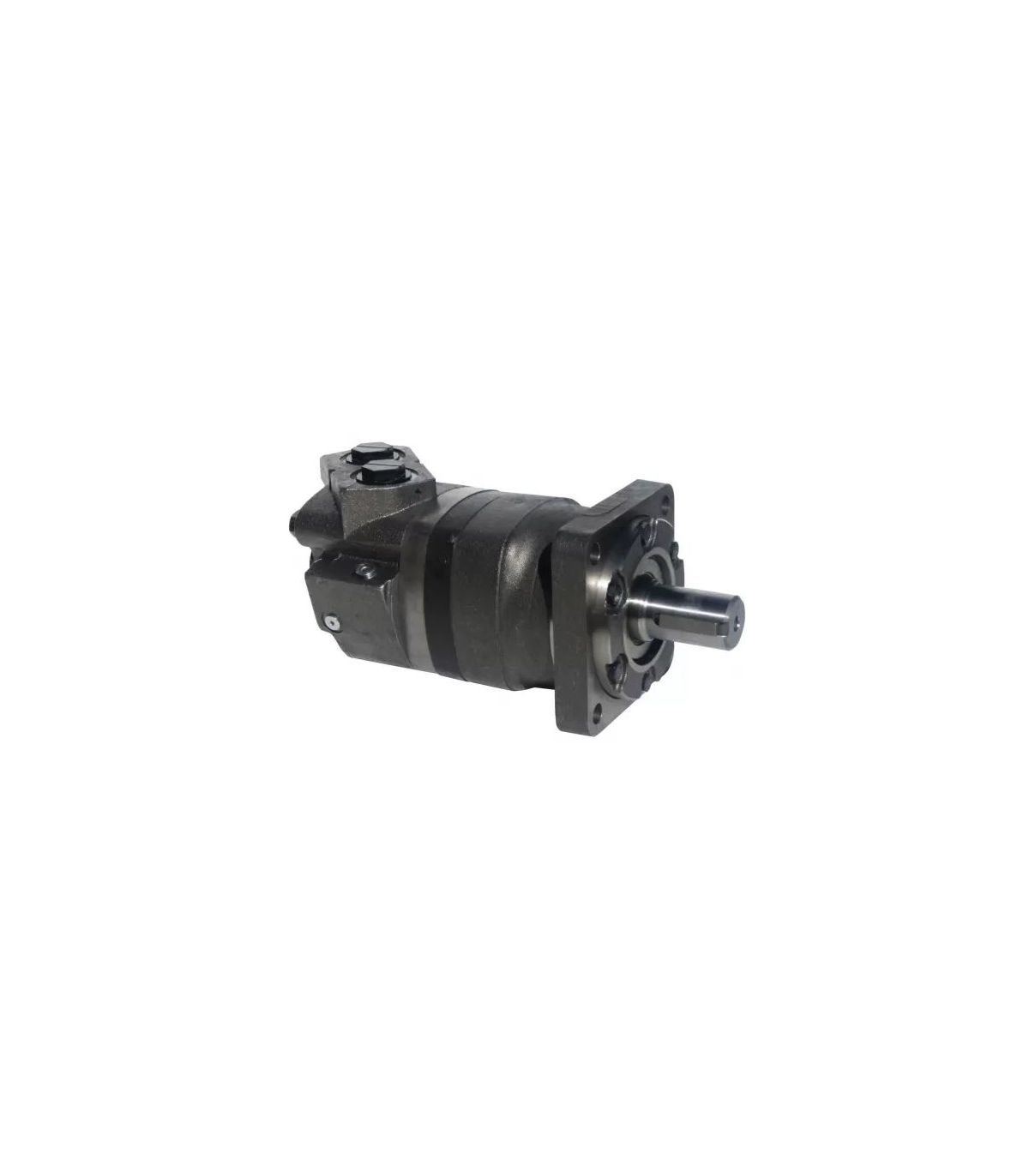

DANFOSS EATON CHAR-LYNN ORBITAL ENGINE 109-1224-006

DANFOSS EATON CHAR-LYNN ORBITAL ENGINE 109-1224-006

A Danfoss Eaton Char-Lynn 109-1224-006 Orbital Motor is a specific type of low-speed, high-torque orbital hydraulic motor designed for a wide range of industrial and mobile applications requiring constant, controlled rotary force.

Applications: agricultural machinery, construction machinery, forestry machinery, material handling equipment, industrial machinery, ships.

Main features :

  • Danfoss Eaton Char-Lynn 400 Series Low Speed High Torque Orbital Hydraulic Motor
  • Square flange with 4 fixing holes with centering of Ø127 mm.
  • cylindrical shaft Ø40
  • Engine displacement 200 cc/rev.
  • 3/4 BSP threaded side connections, 1/4" drain
  • Serving temperature -30 / 80ºC.
  • Max speed 450 rpm.
  • Torque 599 Nm
  • Intermittent pressure 300 bar, continuous 225 bar.
€786.50 (tax included)
€650.00 (tax excl.)
Reference:
4753
Description

Danfoss Eaton Char-Lynn Danfoss Orbital Engine 109-1224-006

The Danfoss Char-Lynn 109-1224-006 hydraulic orbital motor belongs to the 4000 series, designed for low speed high torque (LSHT) applications in demanding industrial and mobile environments.

Key features

  • High torque at low speeds
  • Smooth and quiet operation
  • High volumetric efficiency
  • Robust design and long service life
  • Ability to work in open and closed circuits
  • Integrated non-return valve

Common applications

  • Agricultural machinery (mowers, sprayers)
  • Construction and public works equipment
  • Trenchers and forestry machinery
  • Industrial hydraulic systems
  • Power handling and transmission equipment

Technical data sheet for a Danfoss Eaton Char-Lynn 109-1224-006 orbital engine:

Product Details
4753
