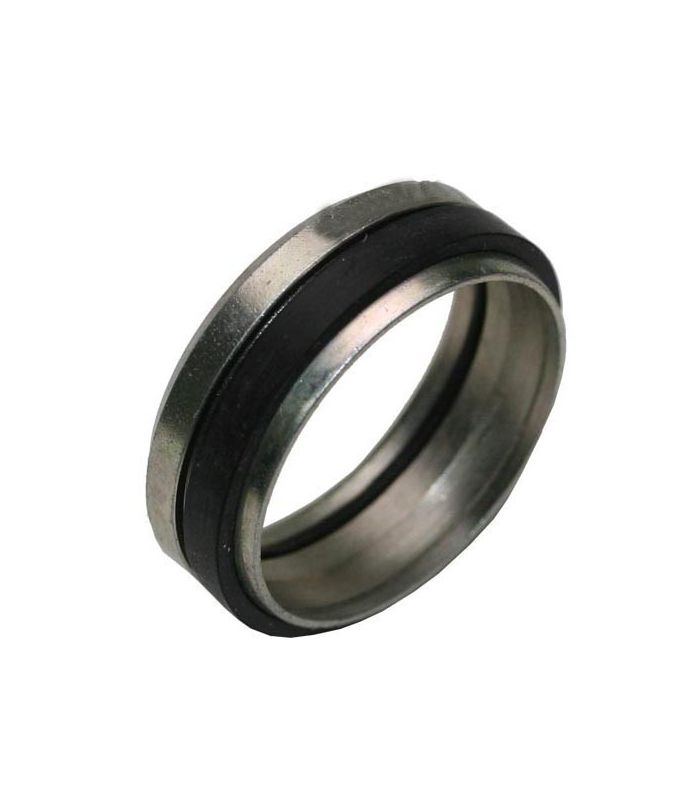

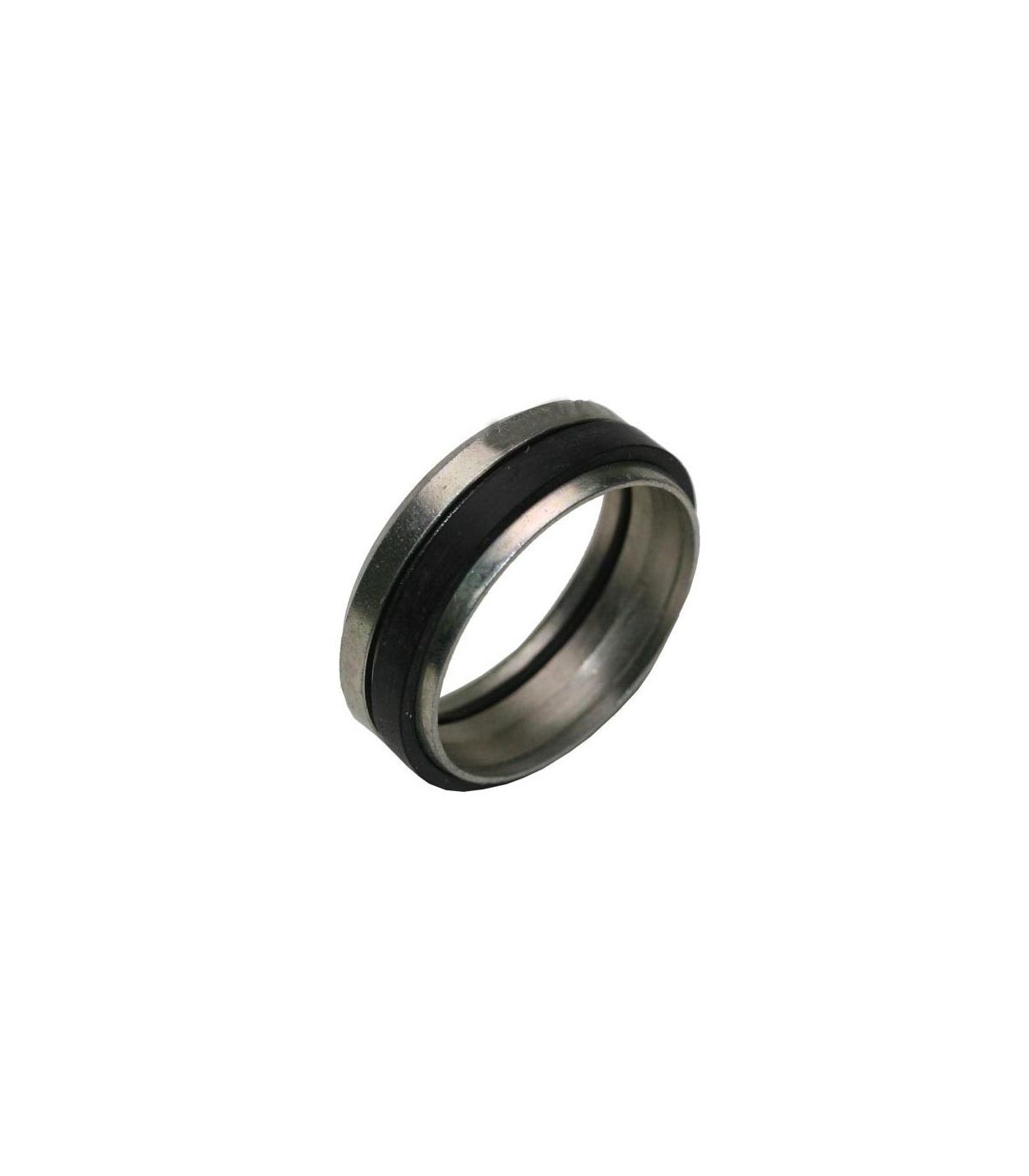

SAFETY BICONE DIN 2353 L

SAFETY BICONE DIN 2353 L

A DIN 2353 L safety bicone fitting is an essential component in hydraulic fitting systems that comply with the DIN 2353 standard, specifically the L series. Its function, together with the fitting body and nut, is to create a secure and leak-free hydraulic pipe connection, especially in medium-pressure applications.

Technical specifications:

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 Bar
    • Ø 28-35-42 100 Bar

Assembly instructions

€1.60 (tax included)
€1.32 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33310004
Description

safety bicone DIN 2353 L

Product Details
33310004
