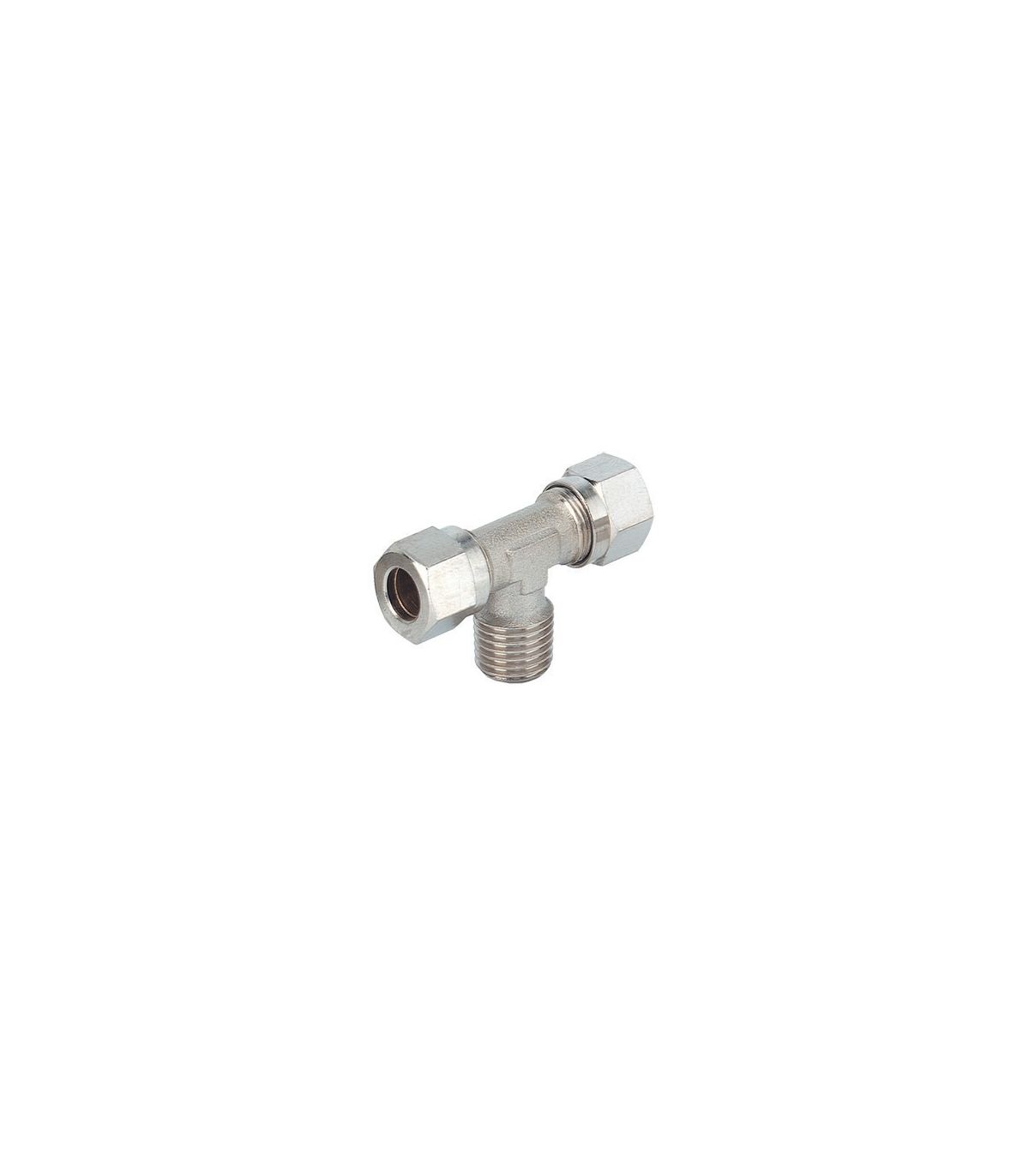

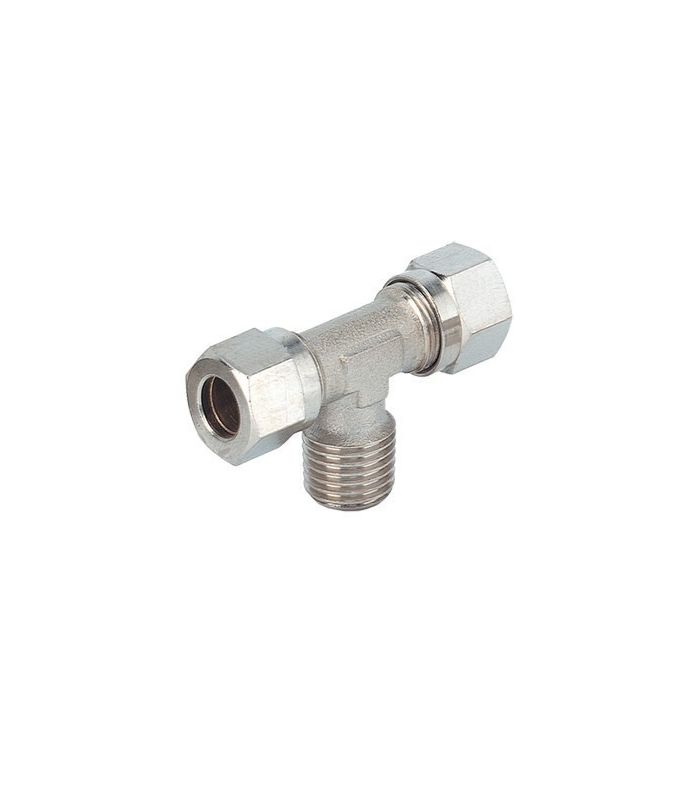

T MALE TUBE CENTRAL THREAD NUT AND BICONE

T MALE TUBE CENTRAL THREAD NUT AND BICONE

Central male tee fitting to nut and bicone tube

  • Made of nickel-plated brass UNI-EN 12164CWG14N.
  • Good resistance to working pressure and temperature.
  • Conical thread 1507 - DIN 2999 and cylindrical ISO 228.
  • Max pressure working pressure 110 bar up to Ø 8 mm, 60 bar from Ø 10 to 18 mm.
  • Suitable for copper, iron, aluminum, brass, PA, PU pipes
€2.32 (tax included)
€1.92 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-1/2
  • Ø 15-1/2
  • Ø 16-1/2
Reference:
11540003
Product Details
11540003
