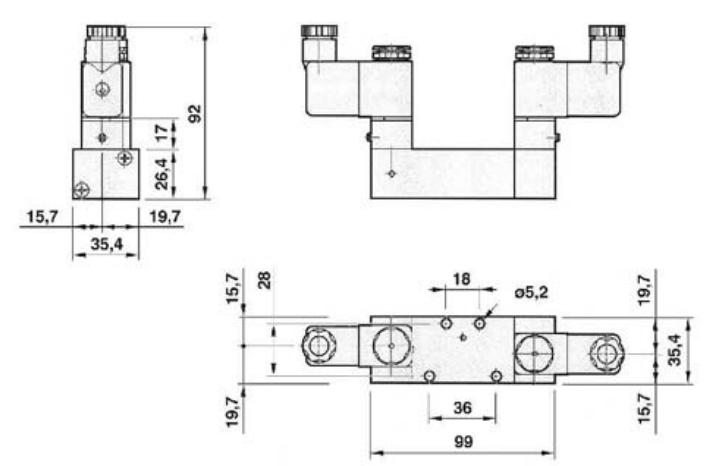

ISO-5599-1 BISTABLE ELECTRIC PILOT DISTRIBUTOR

ISO-5599-1 BISTABLE ELECTRIC PILOT DISTRIBUTOR

An ISO-5599-1 bistable electric pilot valve is a two-way valve that maintains its last position without requiring a continuous electrical signal. The main actuation is achieved by fluid pressure controlled by pilot solenoid valves.

Application in pneumatic systems to control air flow to actuators such as cylinders or pneumatic motors.

Technical sheet:

  • ISO 5599/1 connection
  • Flow rate 1300 l/min. at 6 bar.
  • Working pressure 2-10 bar.
  • Temperature -5ºC / 50ºC
  • Supplied with the electropilot.
  • Coil and connector not included.
€91.66 (tax included)
€75.75 (tax excl.)
Reference:
5178
Description

ISO-5599-1 bistable electric pilot distributor

DISTRIBUIDOR ISO-5599-1 BIESTABLE PILOTO ELEC.

Product Details
5178
