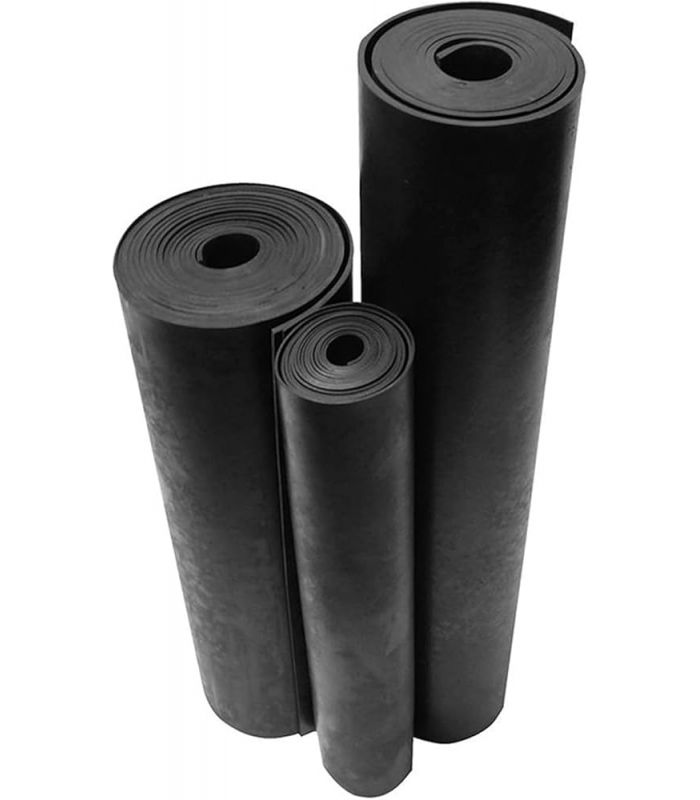

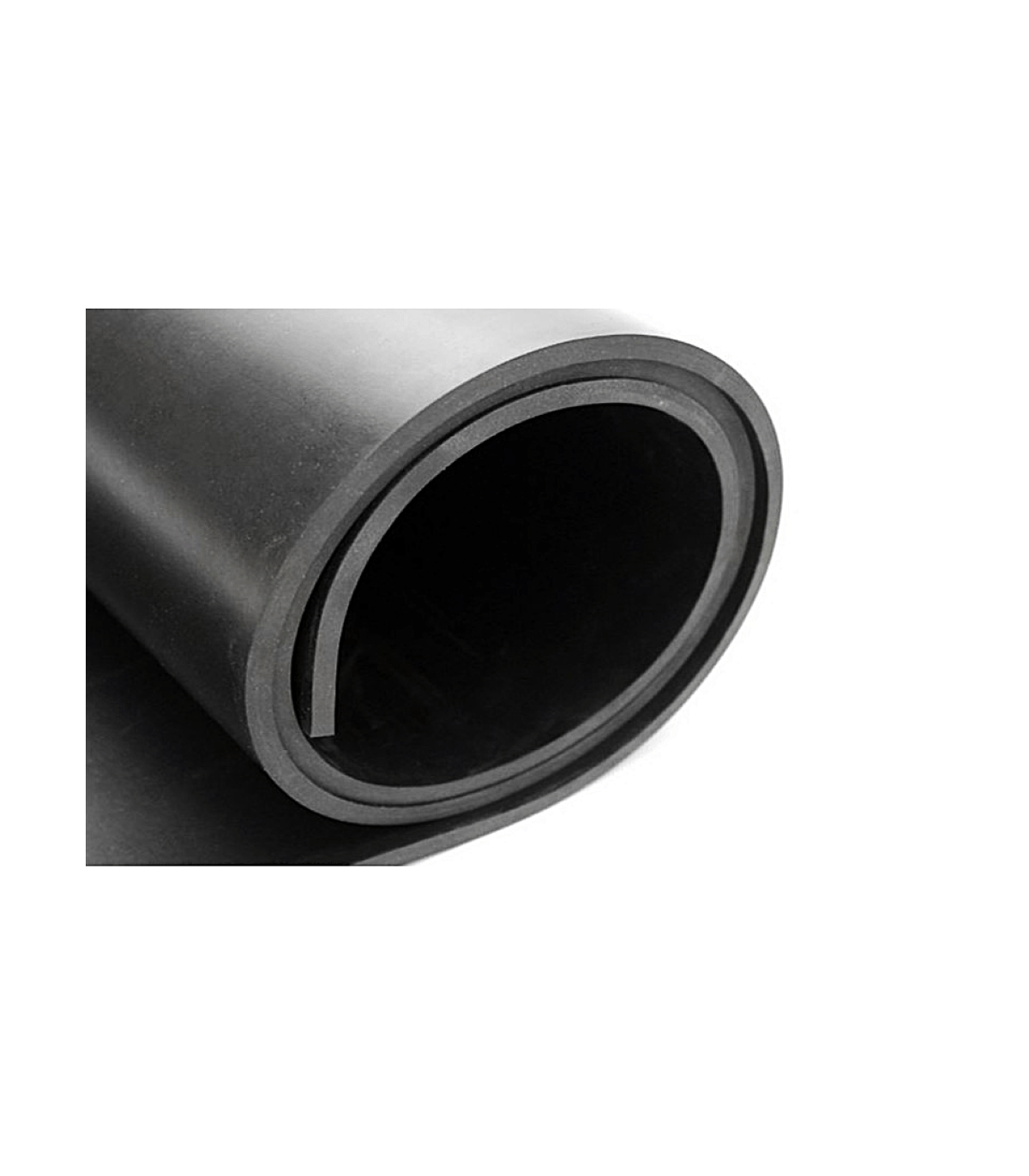

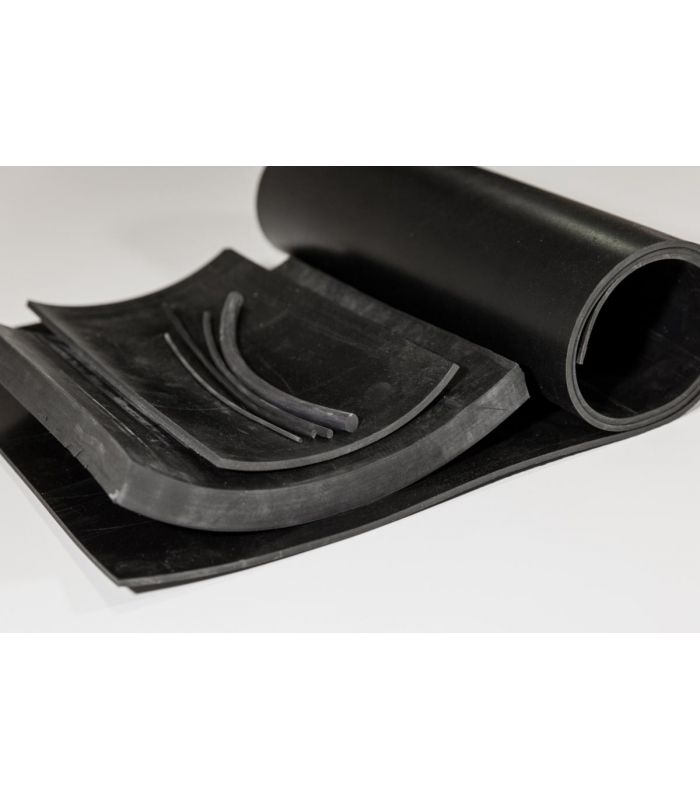

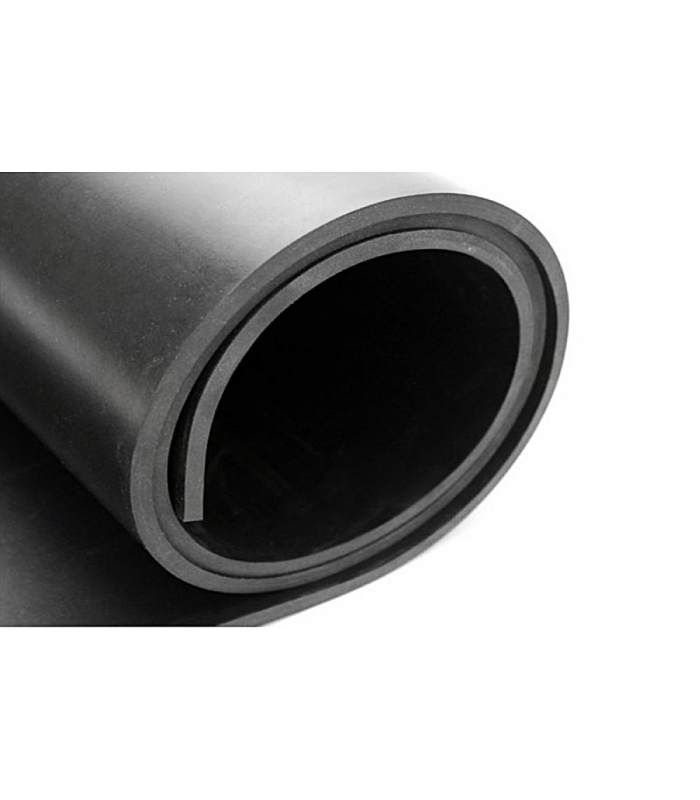

SBR RUBBER SHEET

An SBR rubber sheet is produced from styrene-butadiene rubber (SBR), a type of general-purpose synthetic rubber. It is characterized by its versatility, good abrasion and wear resistance, and relatively low cost. Furthermore, it provides good thermal and acoustic insulation and adheres to a variety of surfaces.

Applications: Flooring and coverings, Gaskets and seals, Insulation, Protection, Supports and shock absorbers, Conveyor belts, Automotive industry, Construction, Footwear.

Technical specifications:

  • Suitable for general industry
  • Good resistance to abrasion, temperatures, water and aging.
  • Poor resistance to oils and solvents.
  • Fixed width 1400 mm.
  • Dimensional tolerances according to ISO-3302ST3

The selection is based on the thickness of the sheet.

Choose full rolls or linear meters, according to your needs.

Read moreShow less
€3.81 (tax incl.)
€3.15 (tax excl.)
THICKNESS/WIDTH
THICKNESS/WIDTH:
SHEET WIDTH:
metros
metros
Reference:
317111
Description

SBR rubber sheet

  • Color: black
  • Weight: 1.50 gr/cm3
  • Hardness: 70 Shore A
  • Breaking load: 40 kp/cm3
  • Elongation at break: 170%
  • Residual deformation (22h at 70ºC): 42%
  • Tear resistance: 14 kp/cm
  • C. Set (24h at 70ºC): 55
  • Thermal aging (72h at 70ºC):

- Hardness increase: 5ºShA

- Increase in breaking load: 5%

- Increase in lengthening: -25%

  • Temperature range: -10ºC to +70ºC

Read moreShow less
