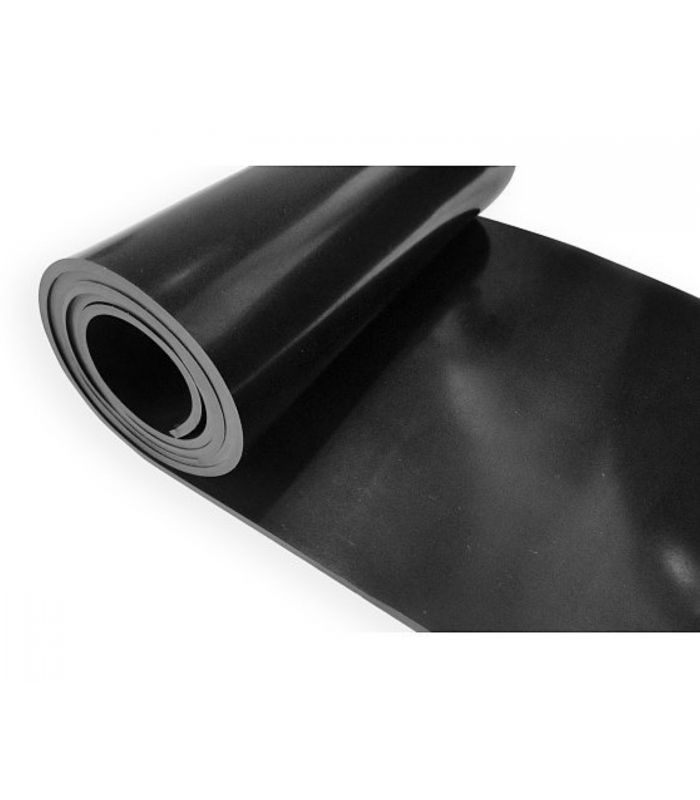

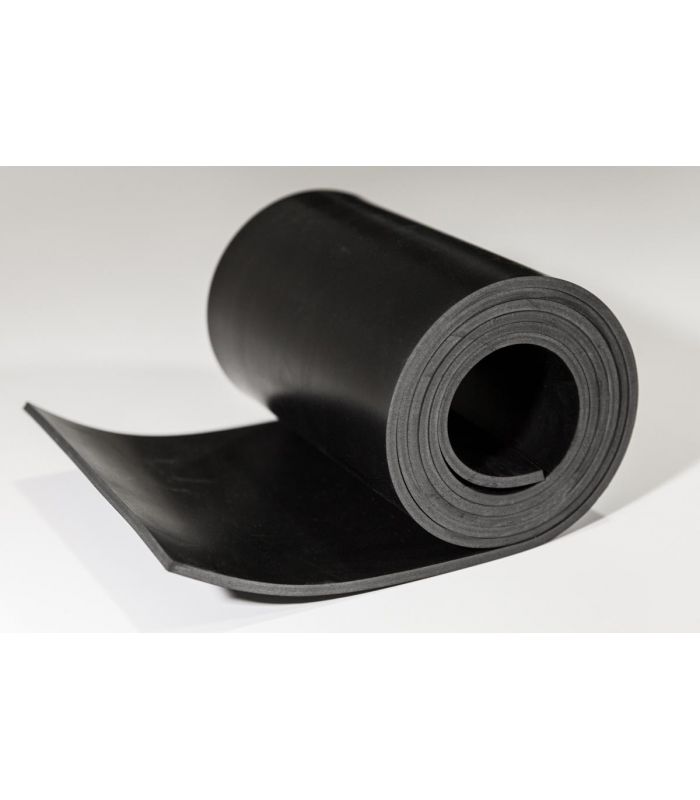

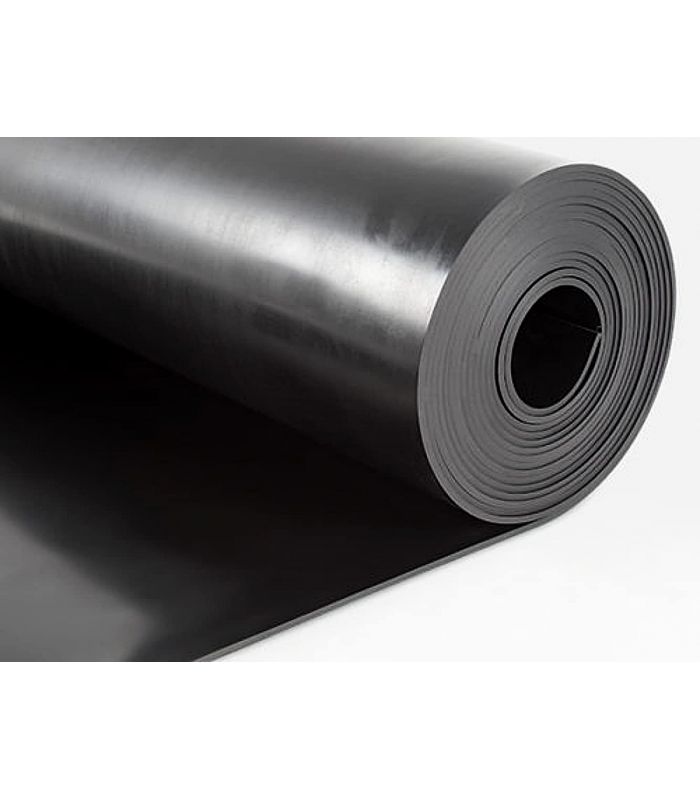

FKM VITON SHEET
FKM VITON SHEET
FKM VITON SHEET
FKM VITON SHEET
FKM VITON SHEET
FKM VITON SHEET

FKM VITON SHEET

A Viton FKM sheet is made from a high-performance synthetic rubber known as fluoroelastomer (FKM). It is distinguished by its exceptional resistance to a wide range of chemicals, high temperatures, and harsh environmental conditions.

Applications: Chemical industry, Automotive and aerospace industry, Oil and gas industry, Pharmaceutical and food industry.

Technical sheet:

  • It is highly resistant to chemicals, high temperatures and extreme conditions.
  • Excellent performance in any application.
  • Excellent compressive strength.
  • Fixed width 1400 mm.
  • Dimensional tolerances according to ISO 3302ST3

The selection is by thickness of the plate.

The length of the roll is 5 meters.

*Choose full rolls or linear meters, depending on your needs*

€515.46 (tax included)
€426.00 (tax excl.)
THICKNESS/WIDTH
THICKNESS/WIDTH:
SHEET WIDTH:
metros
metros
Reference:
317611
Description

FKM Viton sheet

Technical sheet:

  • Color: black
  • Weight: 1.95 +/- 0.05 g/cm3
  • Hardness: 70 +/-5 Shore A
  • Ultimate load: 7 MPa min
  • Elongation at break: 180% min
  • C. Set (24H at 70ºc): 16%
  • Tear resistance: 16 Kn/m
  • Temperature range: - 40ºC to +220ºC
  • Remaining deformation (180ºC 24h): 60%
  • Resistance to sulfuric acid (98% concentration at 23°C): no cracks
  • Thermal aging (72H at 70ºC):

- Hardness increase: 2 ºShA

- Increased breaking load: 5%

- Increased elongation: - 3%

Product Details
317611
