CHAIN ELEVATED UNION
CHAIN ELEVATED UNION
CHAIN ELEVATED UNION
CHAIN ELEVATED UNION
CHAIN ELEVATED UNION
CHAIN ELEVATED UNION

CHAIN ELEVATED UNION

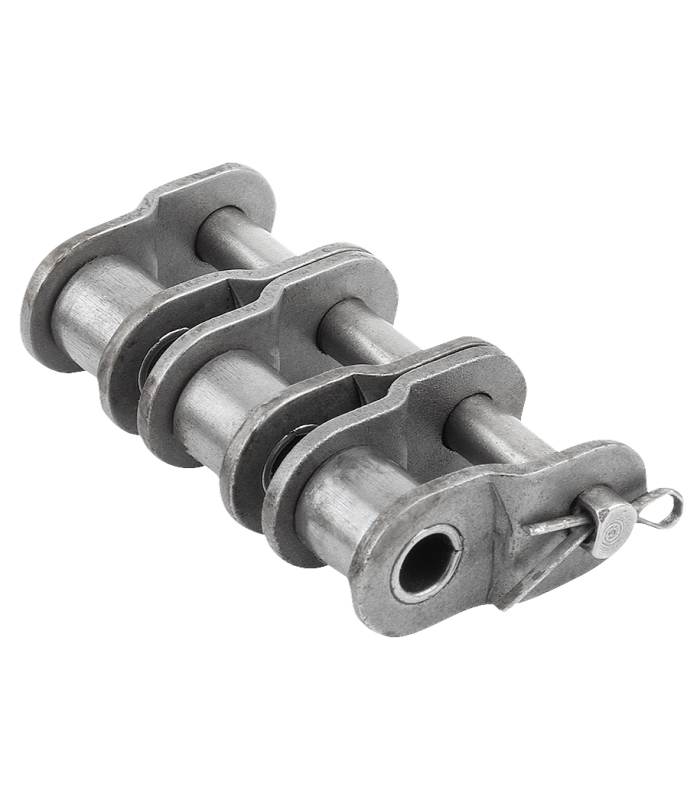

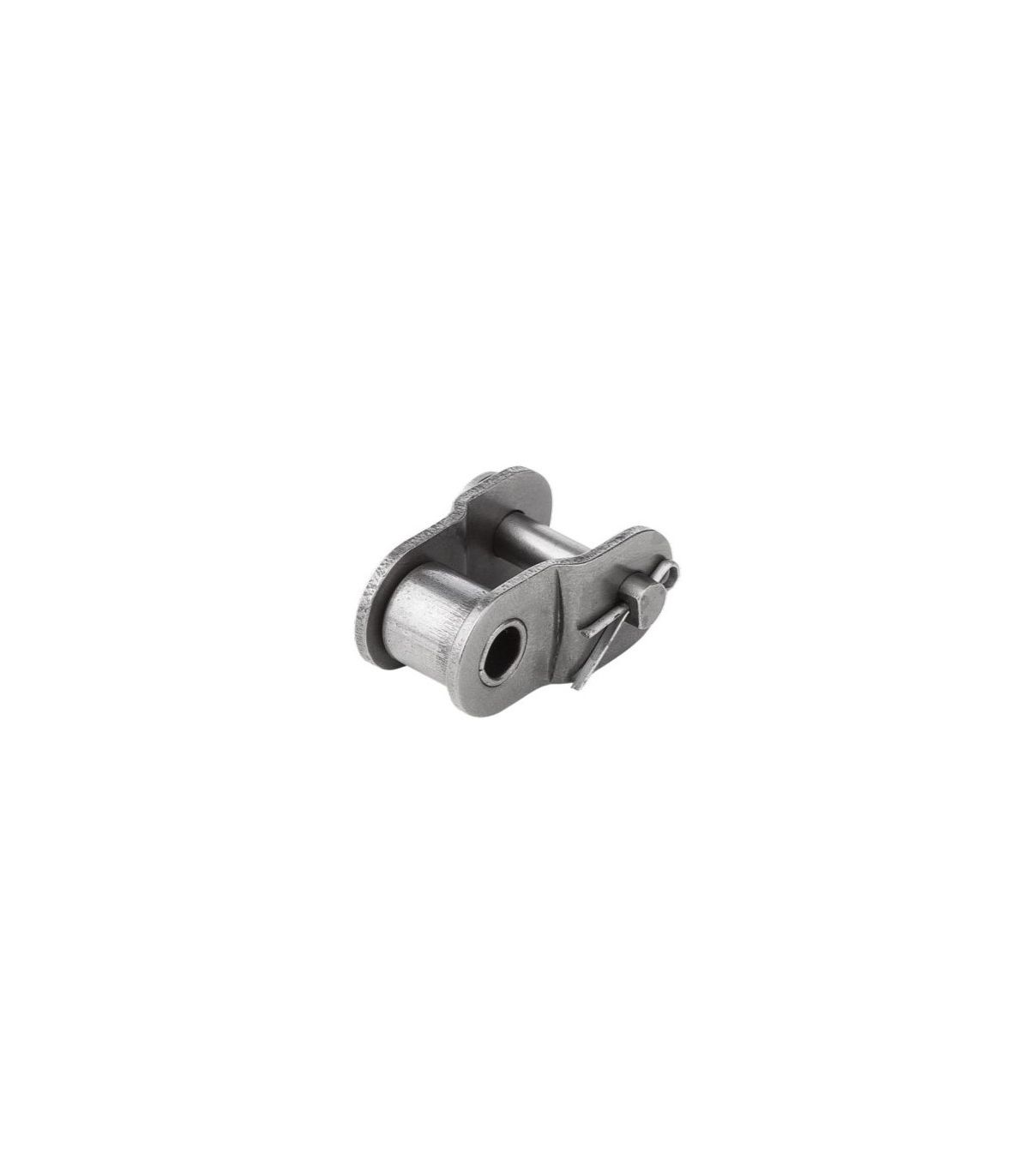

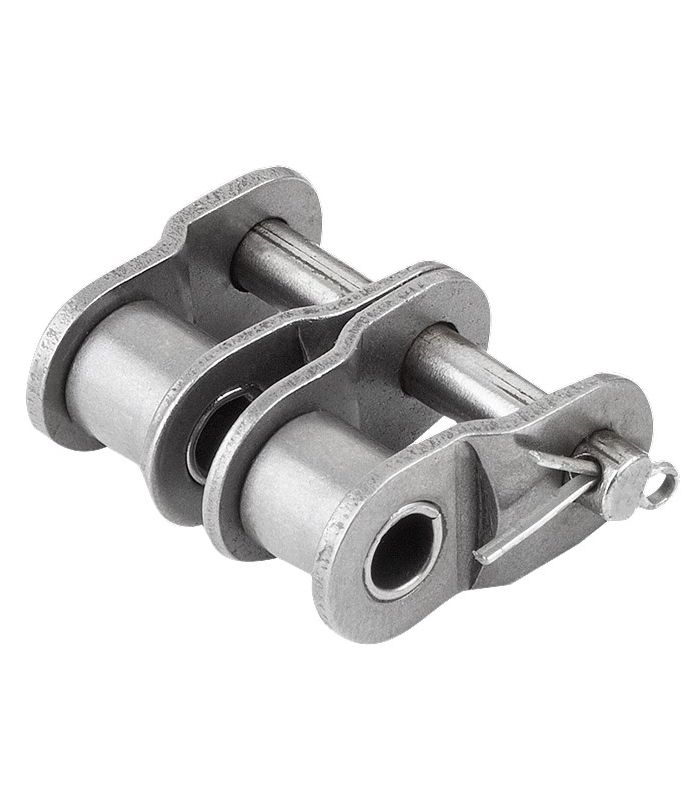

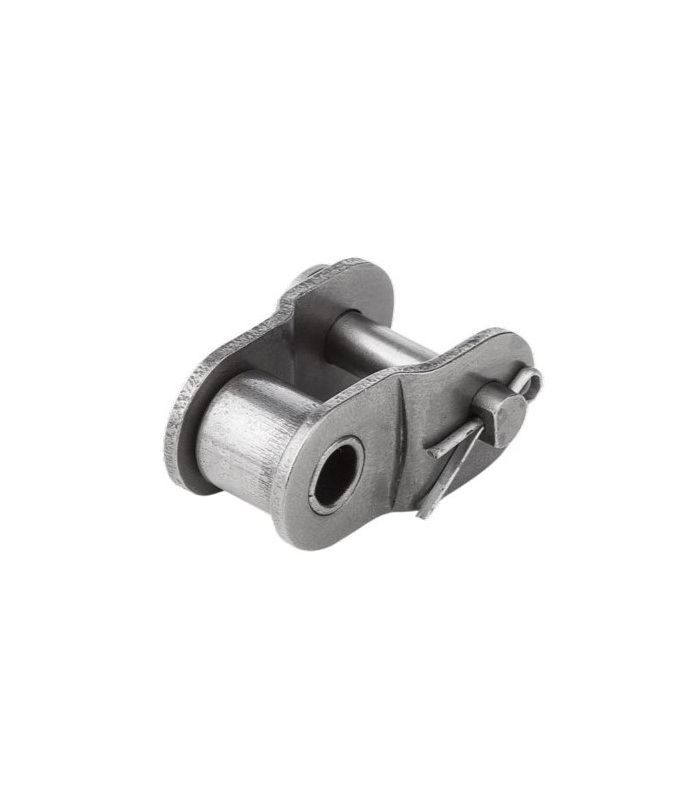

Elbow joint chain

An elbow joint is a combination of an inner link and an outer link and is used when there is an odd number of pitches in a chain.

It is used to join two sections of a chain, forming a 90º angle.

Using an elbow fitting does not require installing a straight fitting.

These joints can be secured using a cotter pin or riveting. It is recommended to use a cotter pin in severe applications.

Applications: Conveyors, Agricultural machinery, Construction, Industrial automation.

€0.73 (tax included)
€0.60 (tax excl.)
SIZE
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 5/8"
SELECT TYPE
  • SIMPLE
  • DOUBLE
  • TRIPLE
Reference:
528310
Description

Elbow joint chain

Product Details
528310
