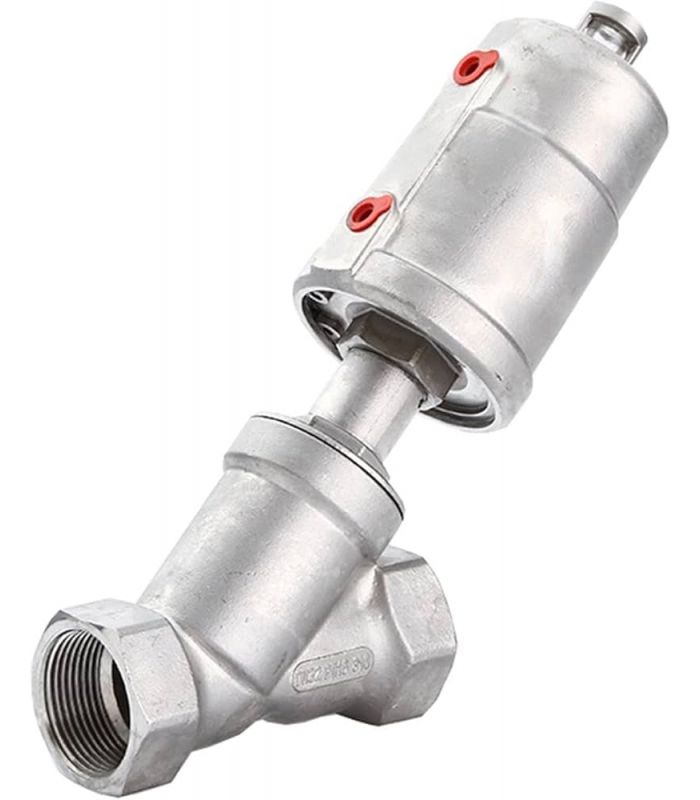

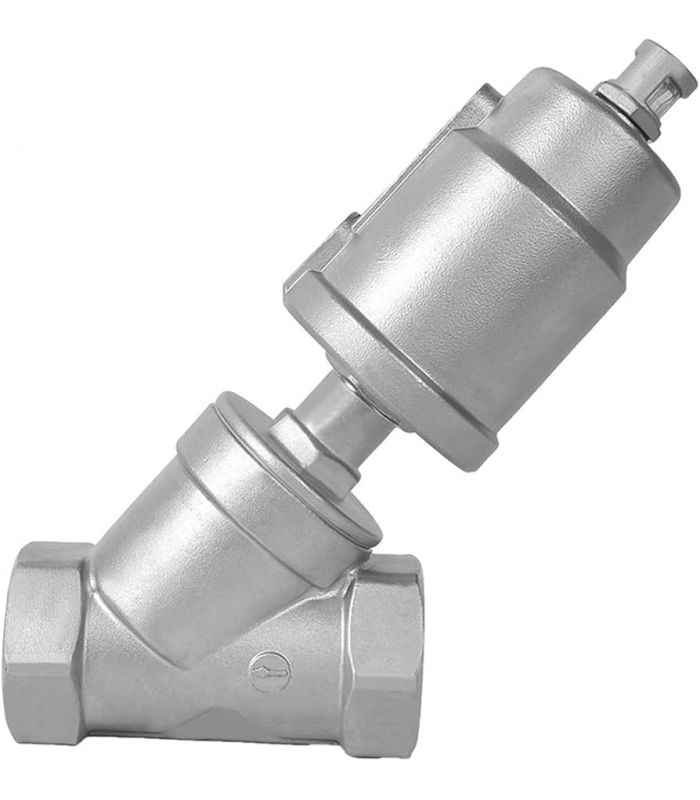

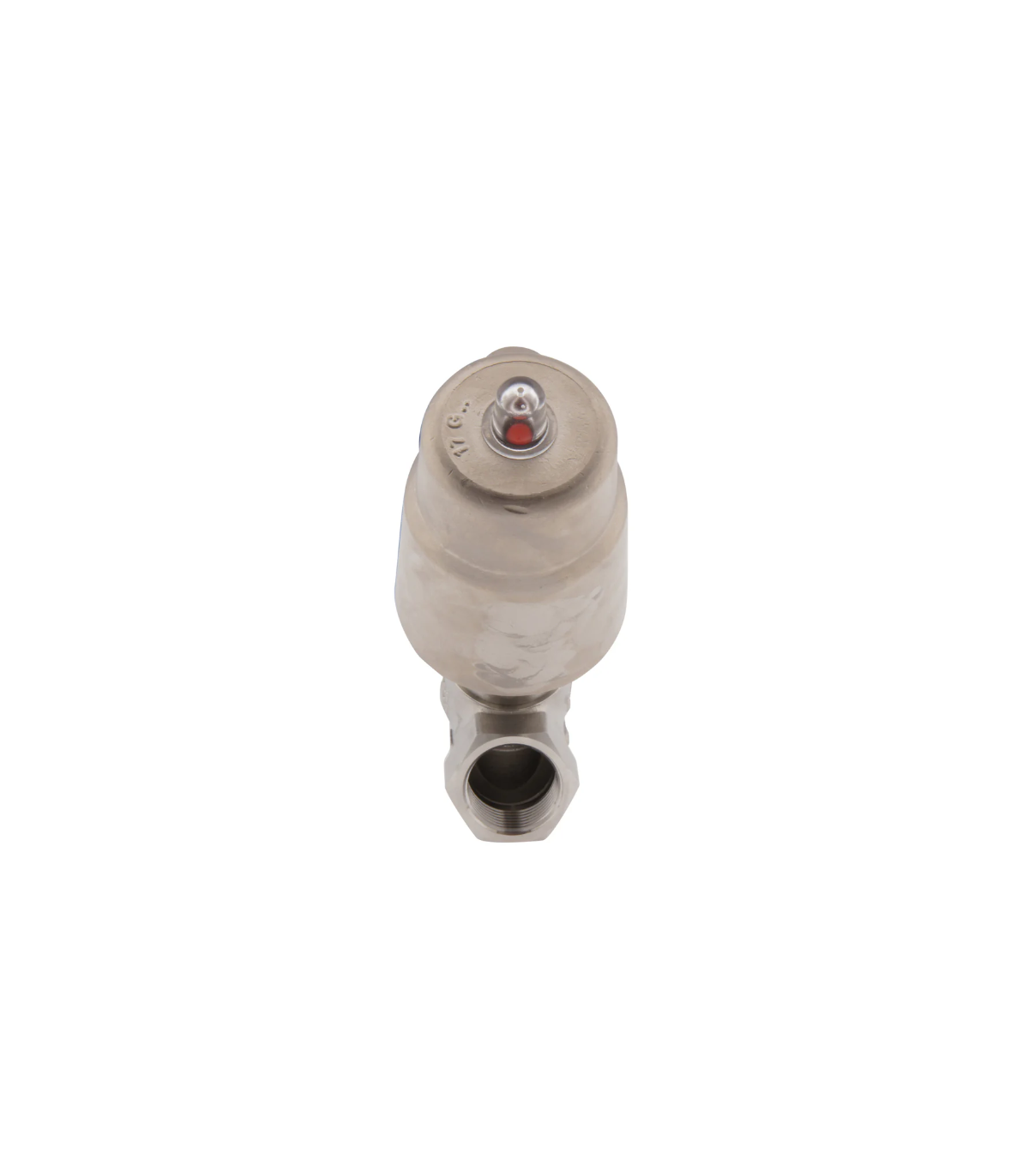

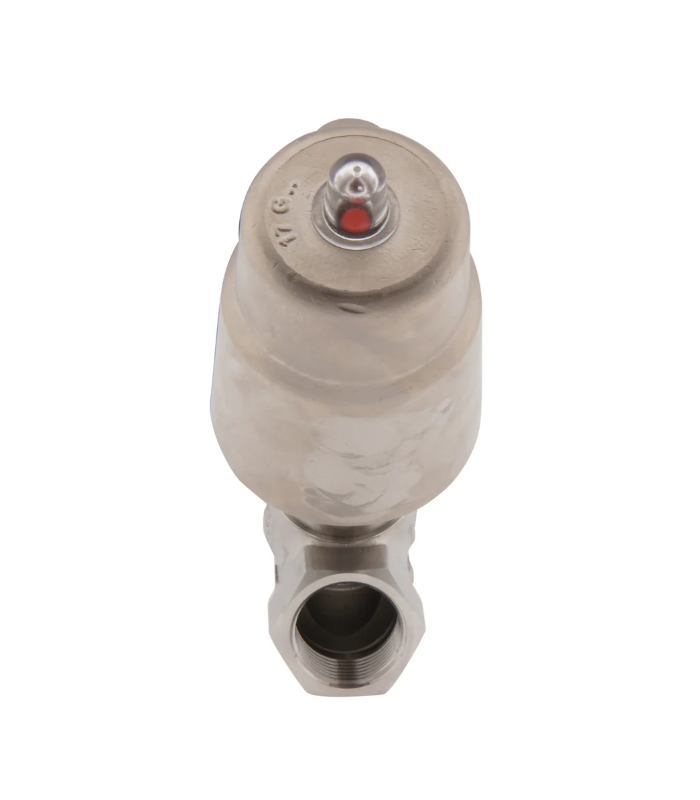

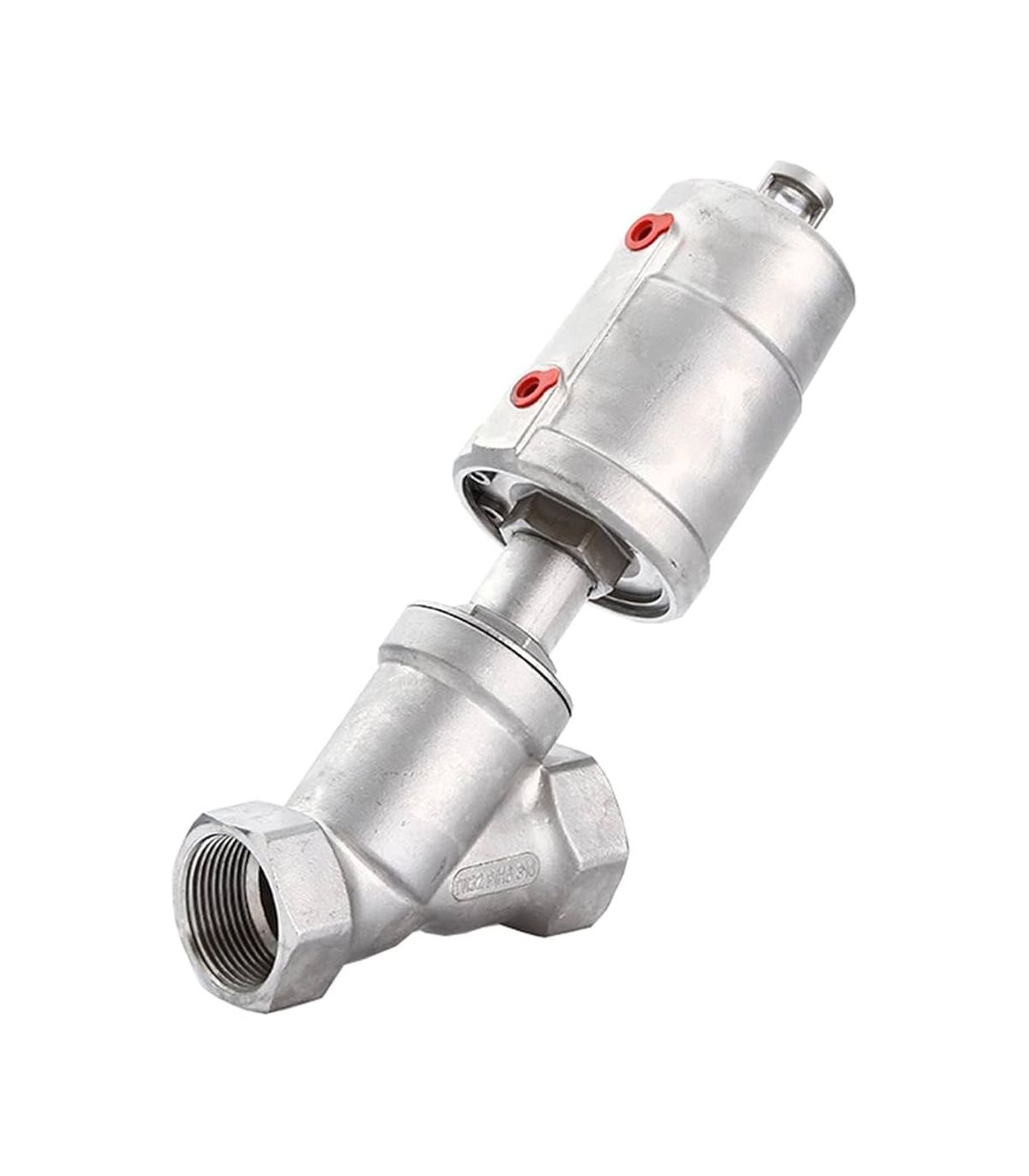

ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL
ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL
ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL
ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL
ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL
ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL

ANGLED SEAT VALVE N. CLOSED STAINLESS STEEL

A closed stainless steel angle seat valve N. works to control the flow of fluids (liquids or gases) in pneumatic, hydraulic or general fluid systems. In the rest state, the valve is closed and an external signal (pneumatic, electric, etc.) is required to open it. The inclined seat allows for a tighter seal and less friction.

Technical data sheet:

  • PTFE (Teflon) sealing gasket
  • INOX-316 valve body
  • Compact design.
  • With pneumatic piloting.
  • Return by dock.
  • Optionally, it can be served in normally open and double effect (consult beforehand)
  • Temperature -10 / 180ºC.
  • Working pressure -1 / 16 bar.
  • Pilot pressure, see attached table.
€57.89 (tax included)
€47.84 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
512303
Description

Angled seat valve N. closed stainless steel
