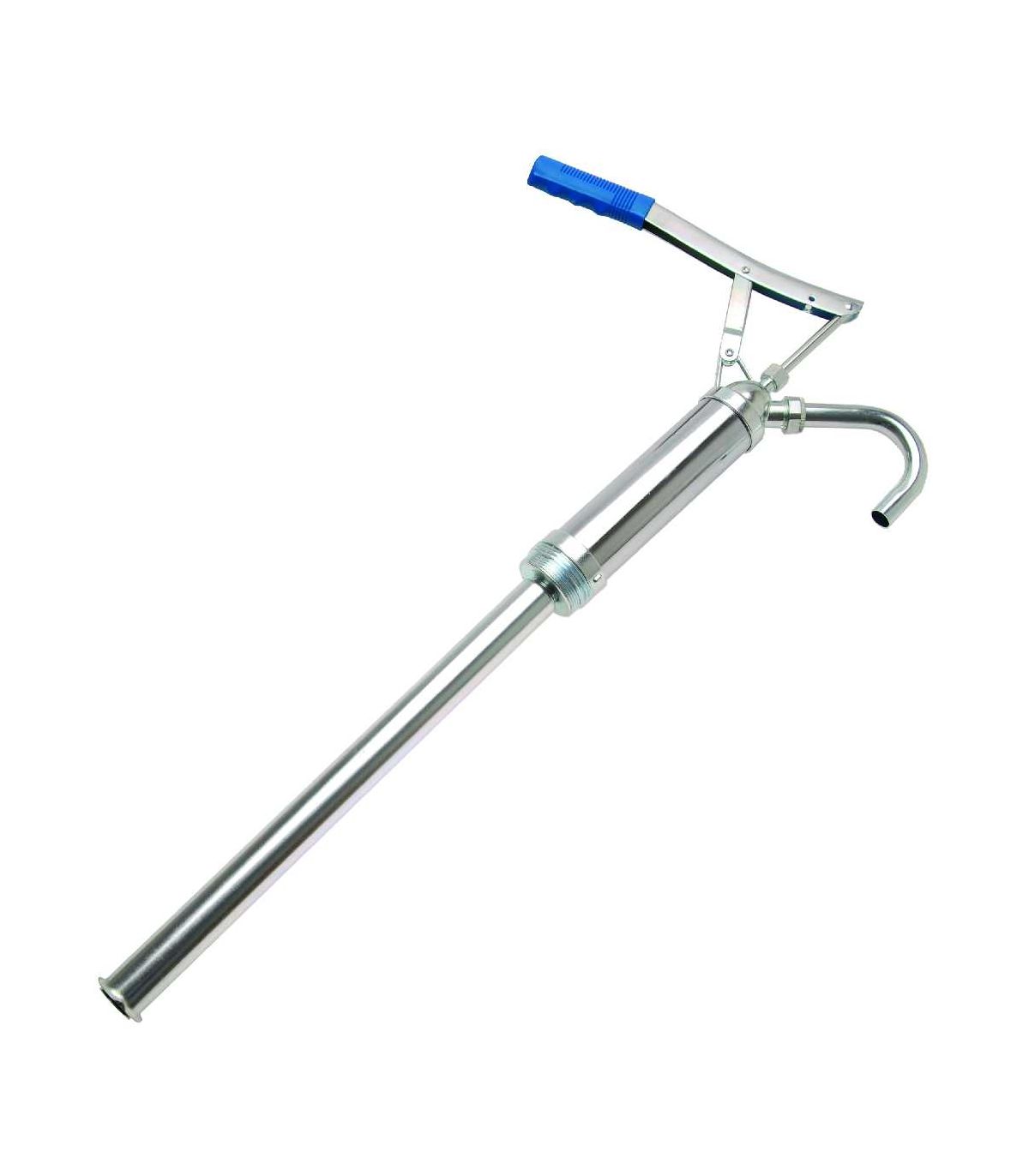

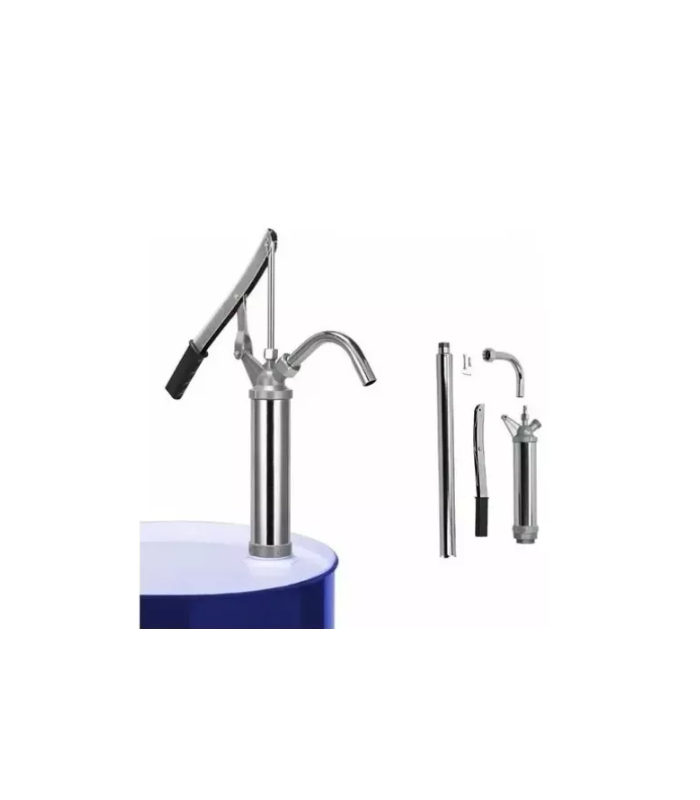

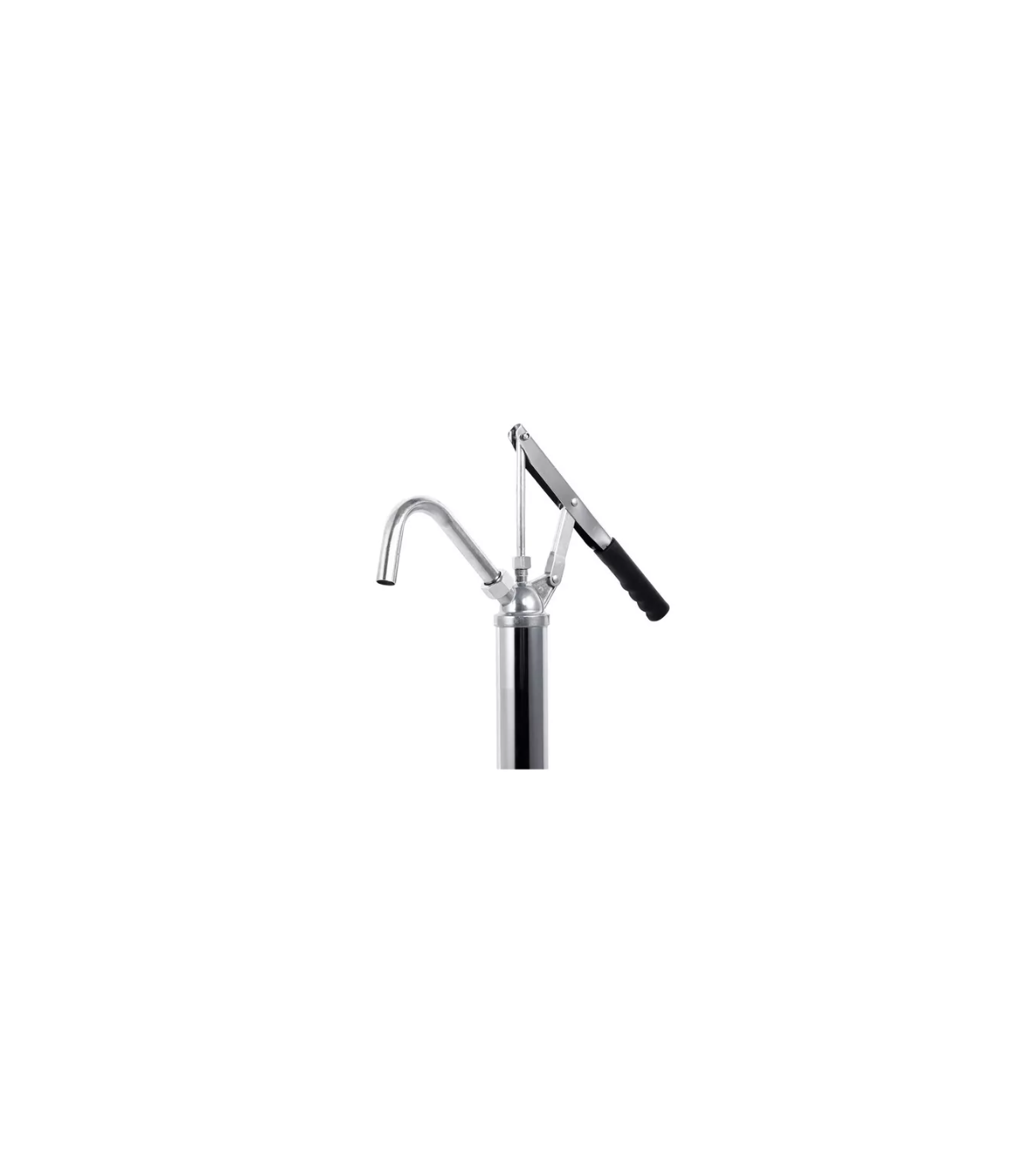

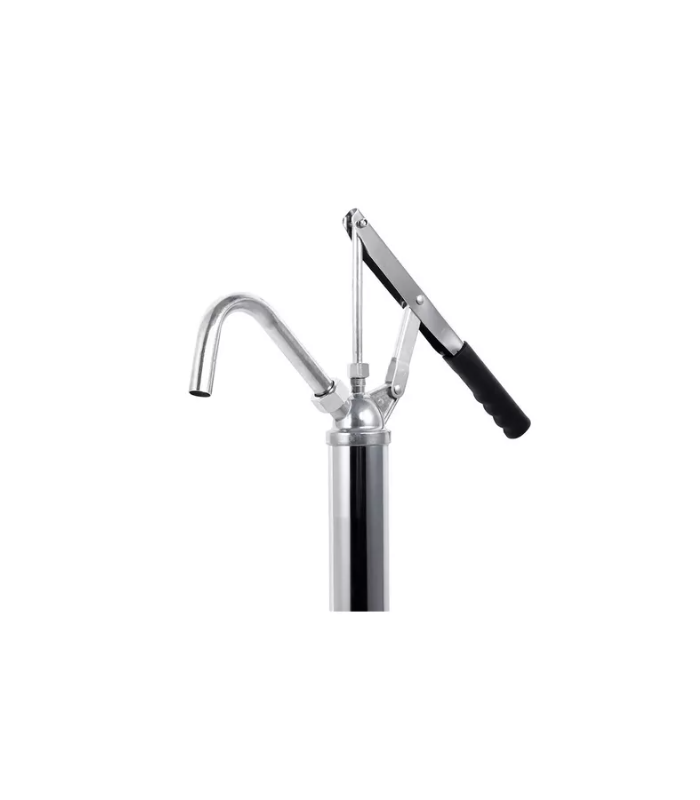

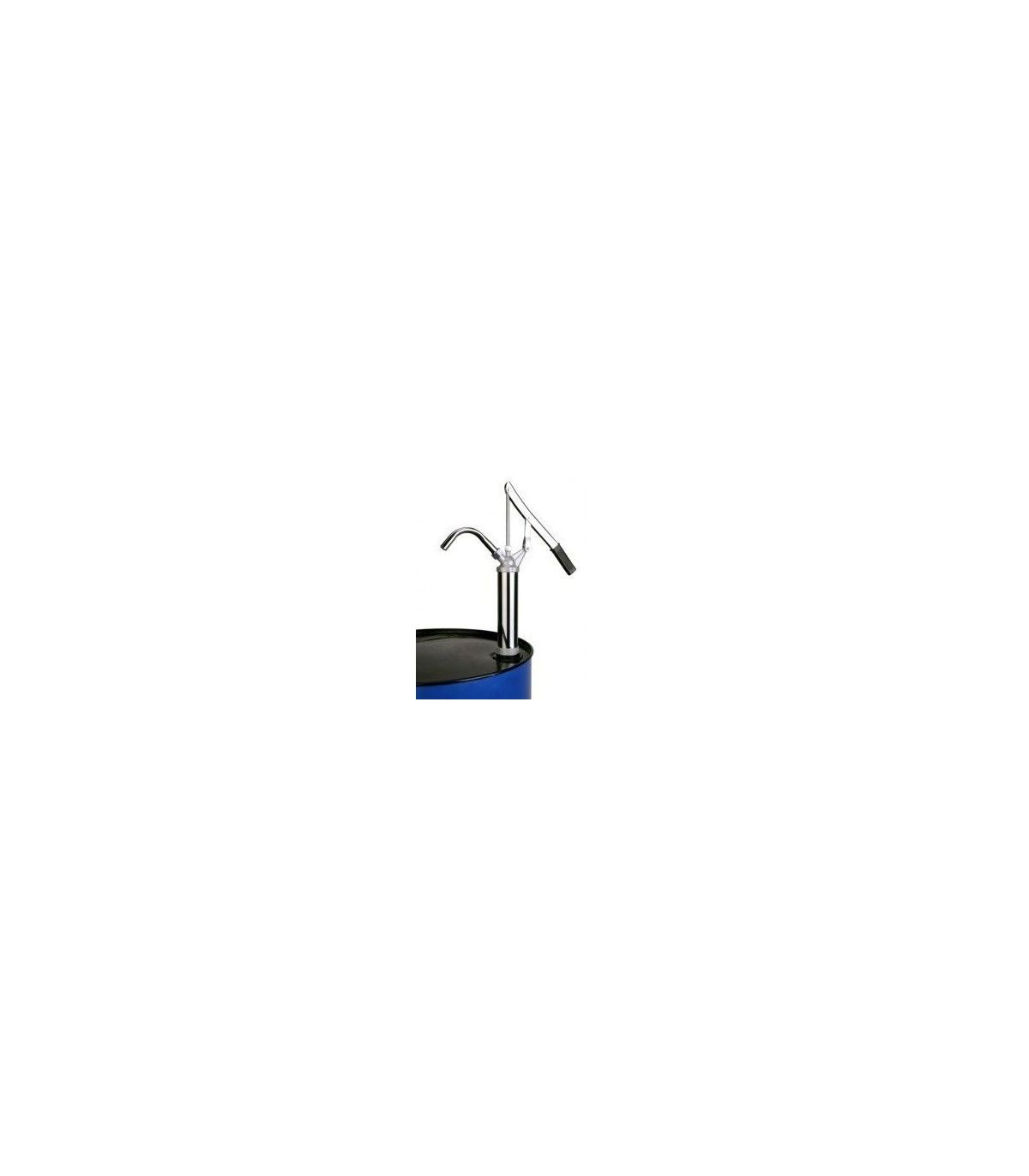

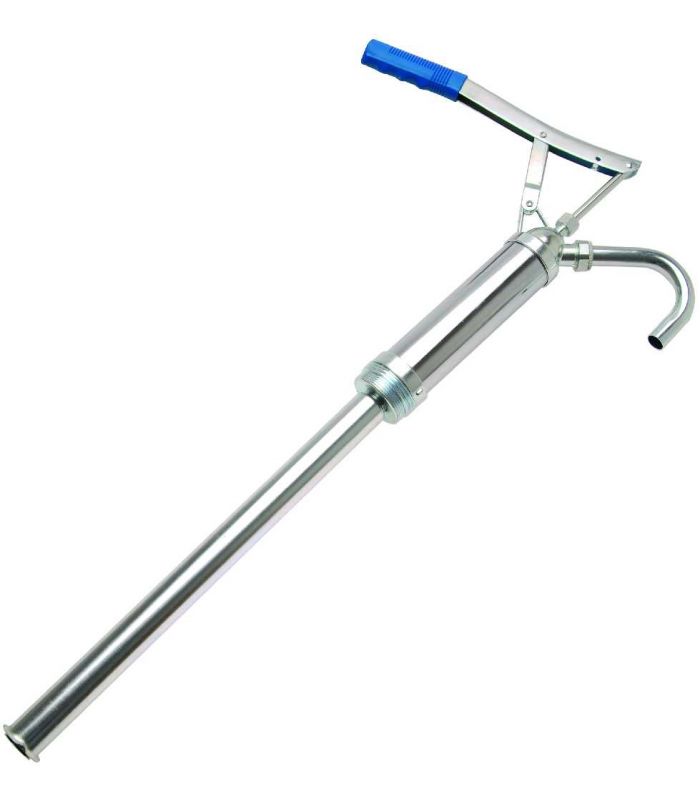

Lever oil transfer pump 10L/min 13015

Its function is to transfer liquids, especially oils, between containers quickly and efficiently. Its operation is based on a lever that activates an internal mechanism that sucks and expels the liquid.

Applications: mechanical workshops, industry, home use.

Data sheet:

  • Media: Oils up to SAE 140
  • Gasket material: Perbunan, a material resistant to many types of oils and chemicals.
  • Flow rate (I / stroke): 0.1 (approx. 10 I/min). Ideal for medium volume transfer tasks.
  • Use: 60 / 200 / 220 Liter Drums
  • Outlet: Plastic nozzle secured with cap nut
  • Surface treatment: All steel parts are galvanized
  • Pump head: Injected zinc die-cast, shockproof
  • Transfer pump body: Steel
  • Suction tube length: 840 mm
  • Adapter for fixing on the drum: G 2'' a and M 64 x 4 a
  • Packaging dimensions (mm): 1100 x 85 x 85
  • Weight, packaging included: 1.8 kg

Specification:

  • For oils up to SAE 140, self-lubricating and non-aggressive fluids
  • Adapter for fixing on the drum, adjustable in height
€42.11 (tax included)
€34.80 (tax excl.)
