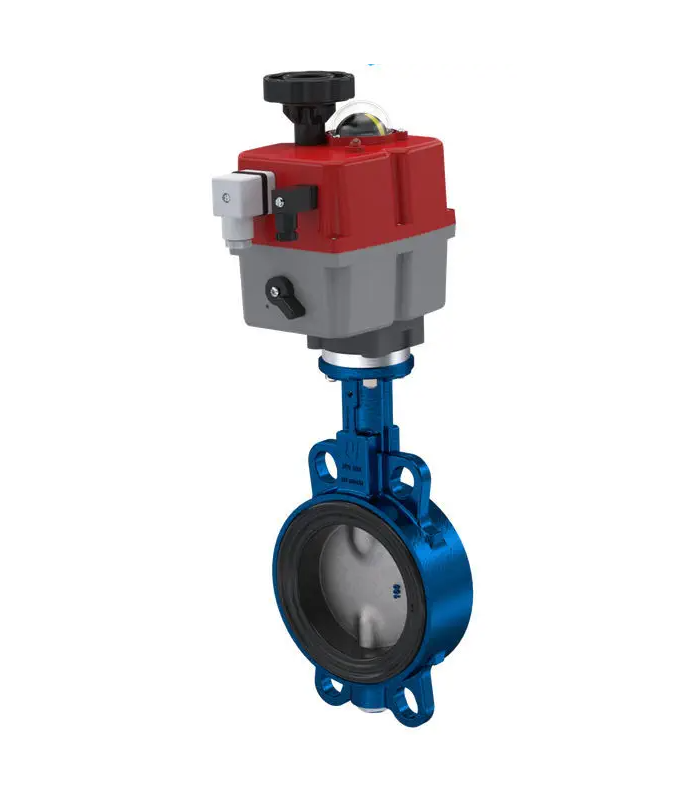

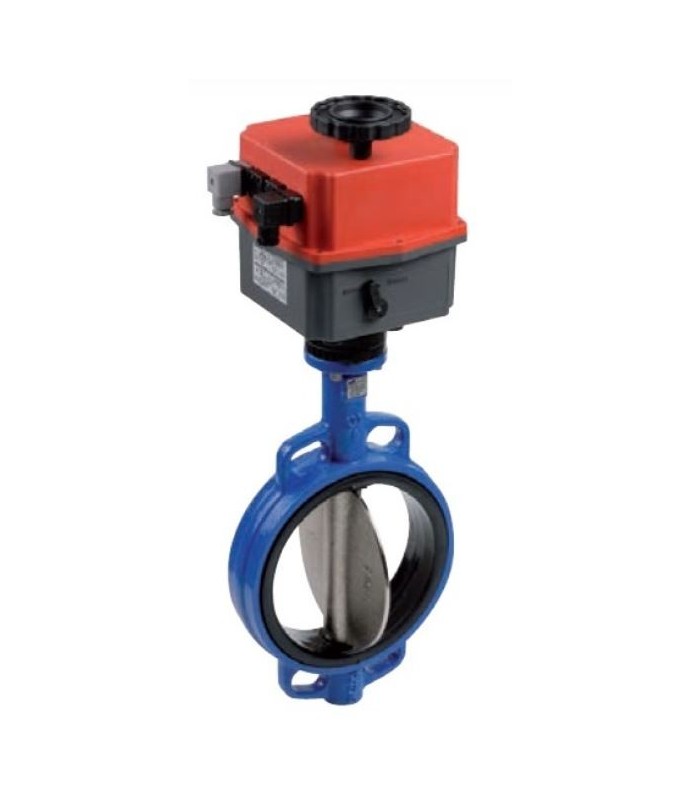

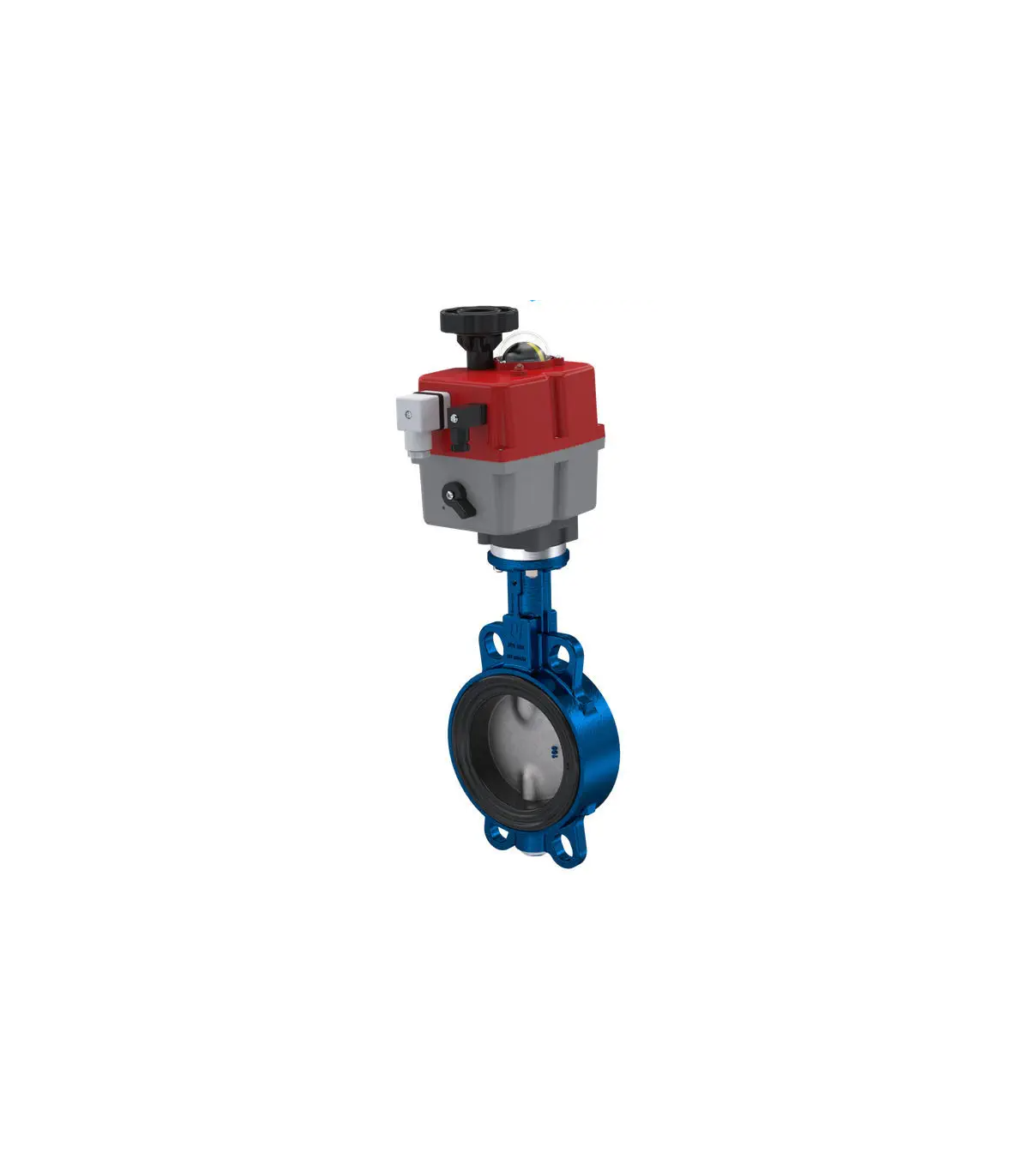

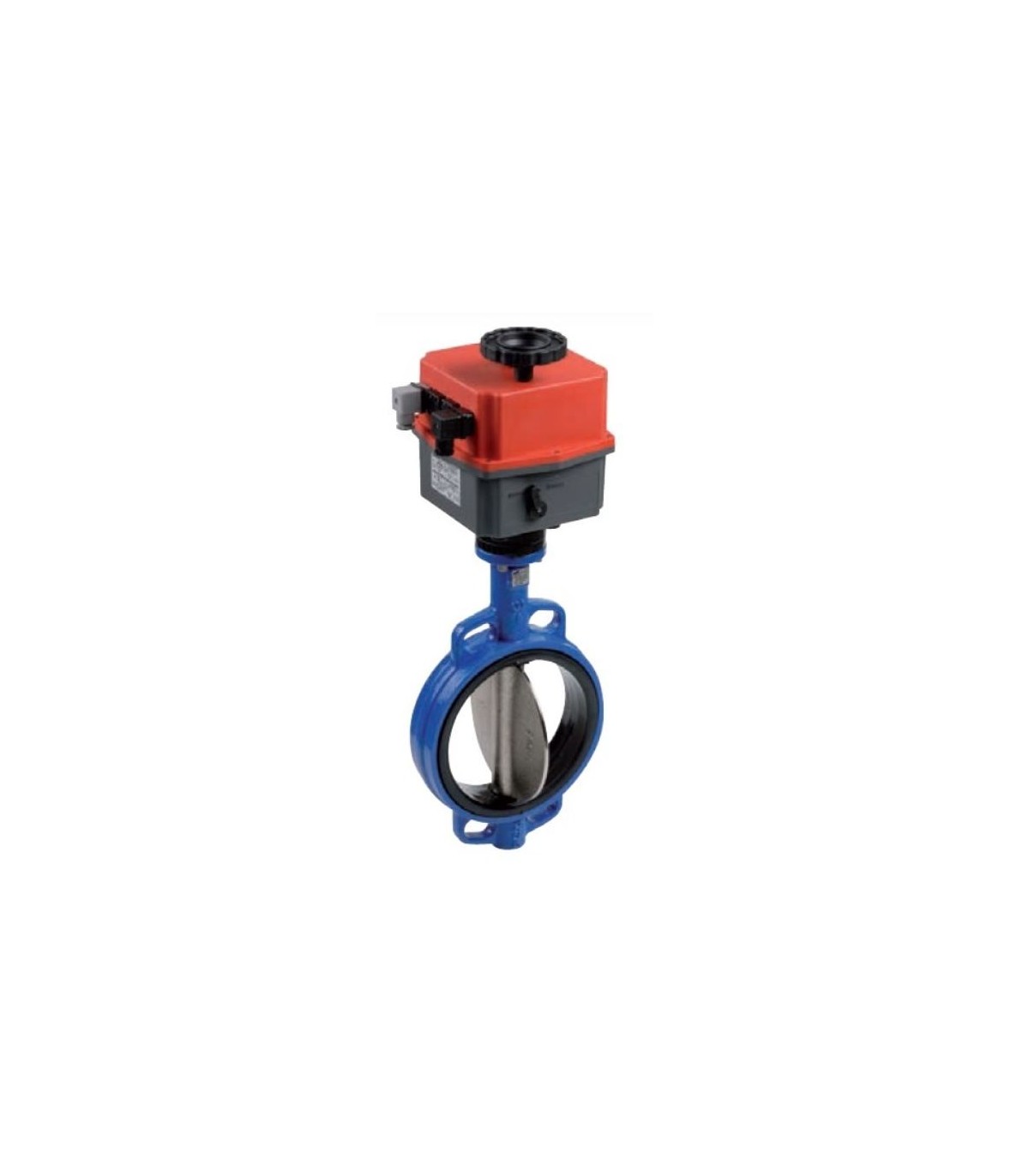

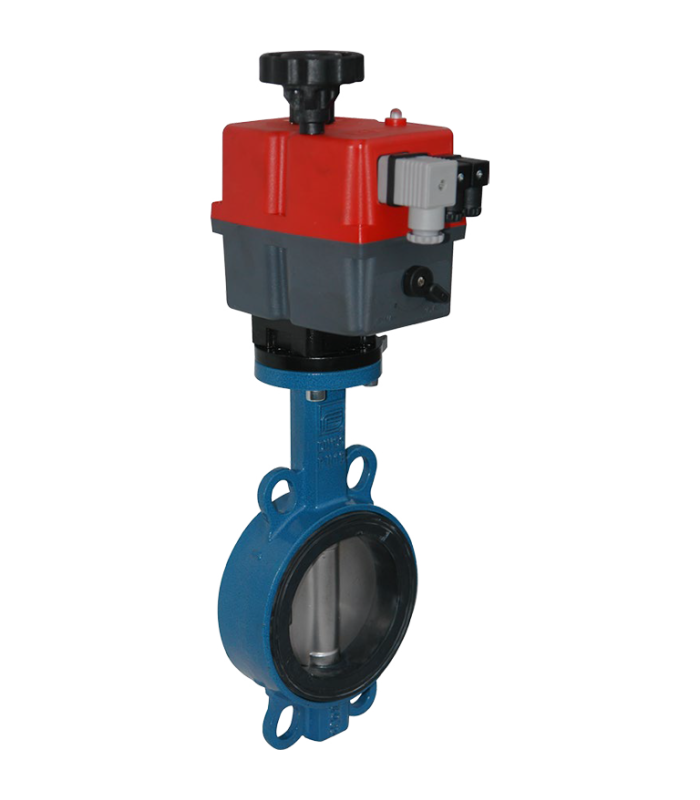

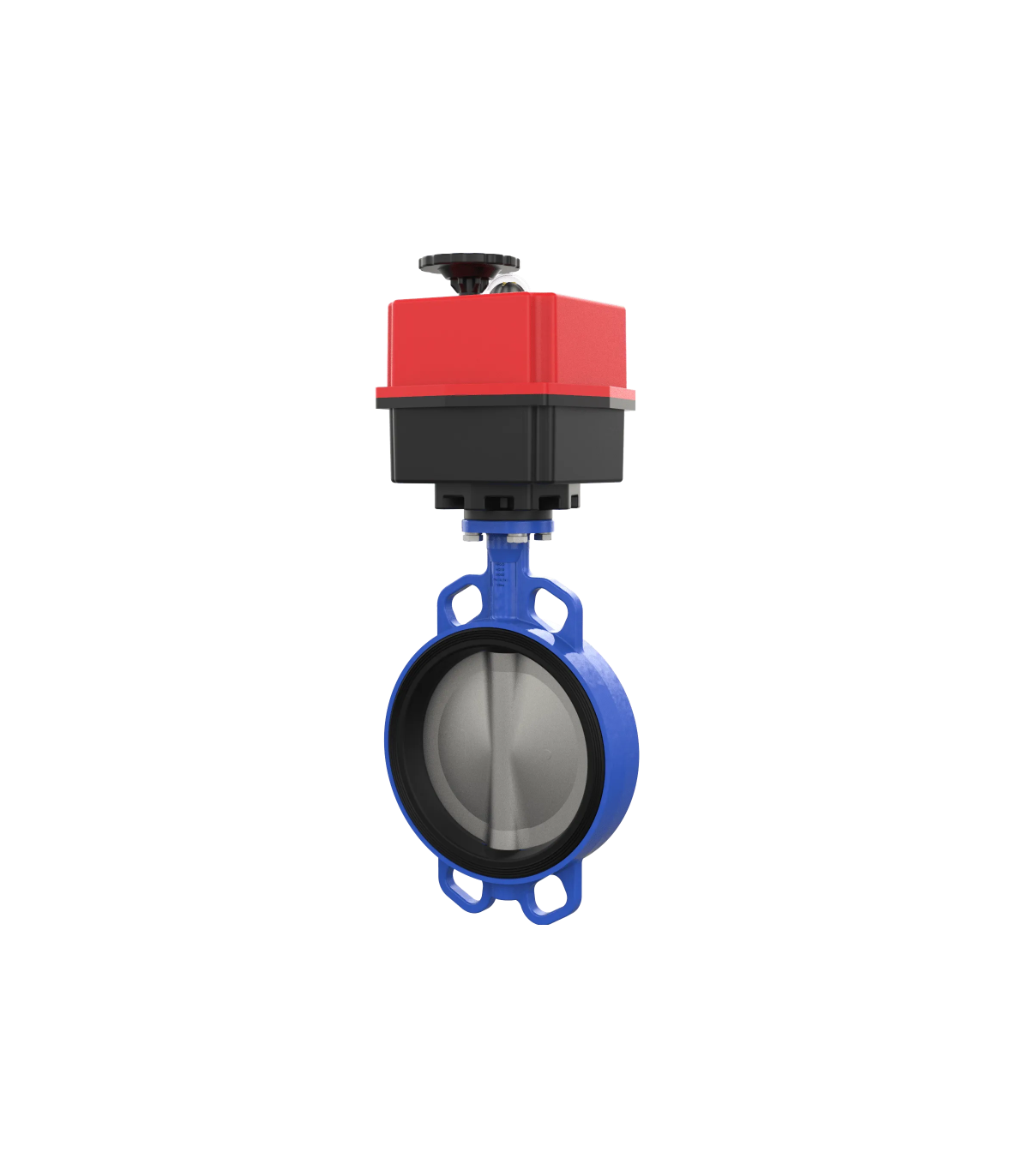

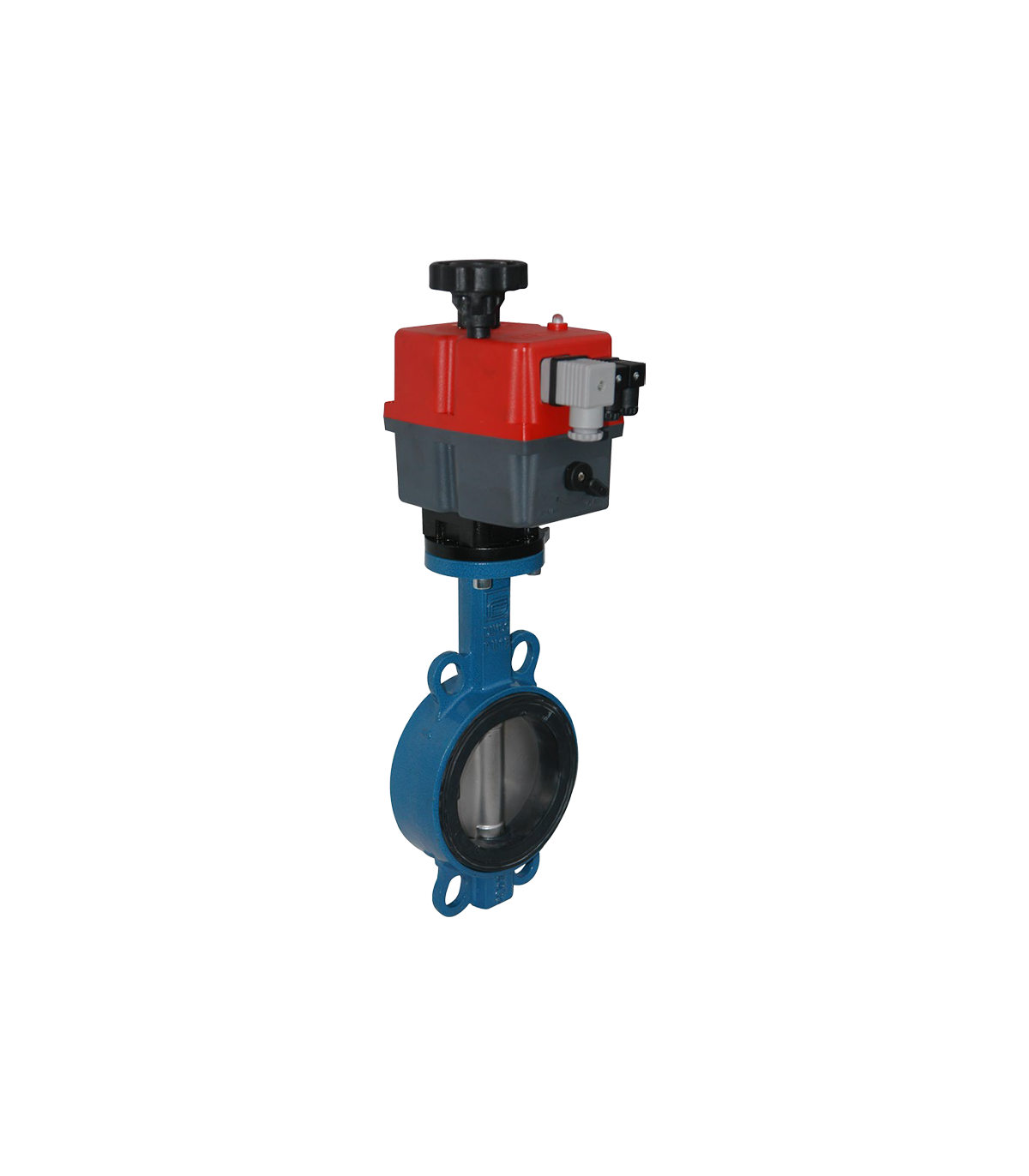

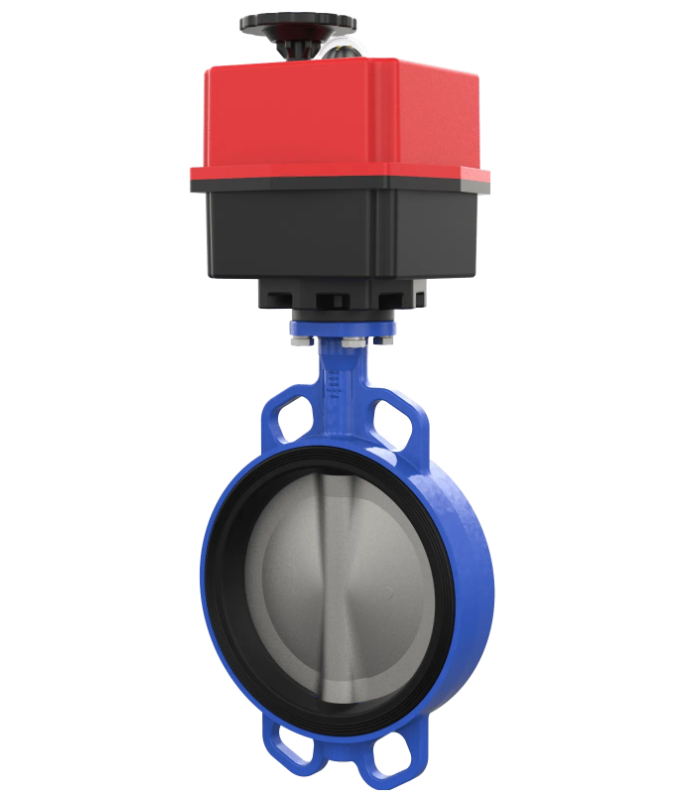

Wafer butterfly valve, cast iron disc, with multi-voltage electric actuator

The cast iron wafer butterfly valve with a multi-voltage electric actuator is a compact and reliable solution for shutting off and controlling fluid flow in industrial installations. Its electric drive allows for automated opening and closing of the valve, facilitating integration into control and automation systems.

Main features:

  • 90° rotation design (optionally 180° - 270°)
  • It incorporates thermal temperature control.
  • Electrical torque control. (In case of excessive torque, the power supply is disconnected to prevent possible damage)
  • Emergency manual control.
  • Operation controlled by an LED.
  • Auxiliary limit switches.
  • Corrosion resistant.
  • 24-240 V AC/DC
  • IP-67 protection.
  • Operating temperature -20ºC / 70ºC

Butterfly valve

  • Body, made of nodular cast iron; disc made of ductile iron EN-GJS-400
  • EPDM closure ring.
  • Temperature 120ºC
  • Pressure 16 bar
Read moreShow less
€300.08 (tax incl.)
€248.00 (tax excl.)
DN
  • DN-50
  • DN-65
  • DN-80
  • DN-100
  • DN-125
  • DN-150
  • DN-250
  • DN-200
  • DN-300
Reference:
5450301
Description

Wafer butterfly valve, cast iron disc, with multi-voltage electric actuator

The cast iron wafer butterfly valve with multi-voltage electric actuator is a compact and reliable solution for shutting off and controlling fluid flow in industrial installations. Its electric drive allows for automated opening and closing of the valve, facilitating integration into control and automation systems.

Made of die-cast metal and cast iron disc, it is suitable for applications requiring corrosion resistance, durability and reliable operation.

Technical specifications

  • Driven by electric motor.
  • Compact and robust design.
  • Suitable for industrial installations and automated systems.
  • It allows for automatic fluid shut-off.

Applications

This valve can be used in various industrial installations for fluid control and shut-off, such as:

  • Water.
  • Compressed air.
  • Industrial fluids.
  • Process facilities.
  • Automation systems.
  • Fluid treatment and distribution facilities.

Technical specifications of a wafer butterfly valve with stainless steel disc and multi-voltage electric actuator:

Read moreShow less
Product Details
5450301
