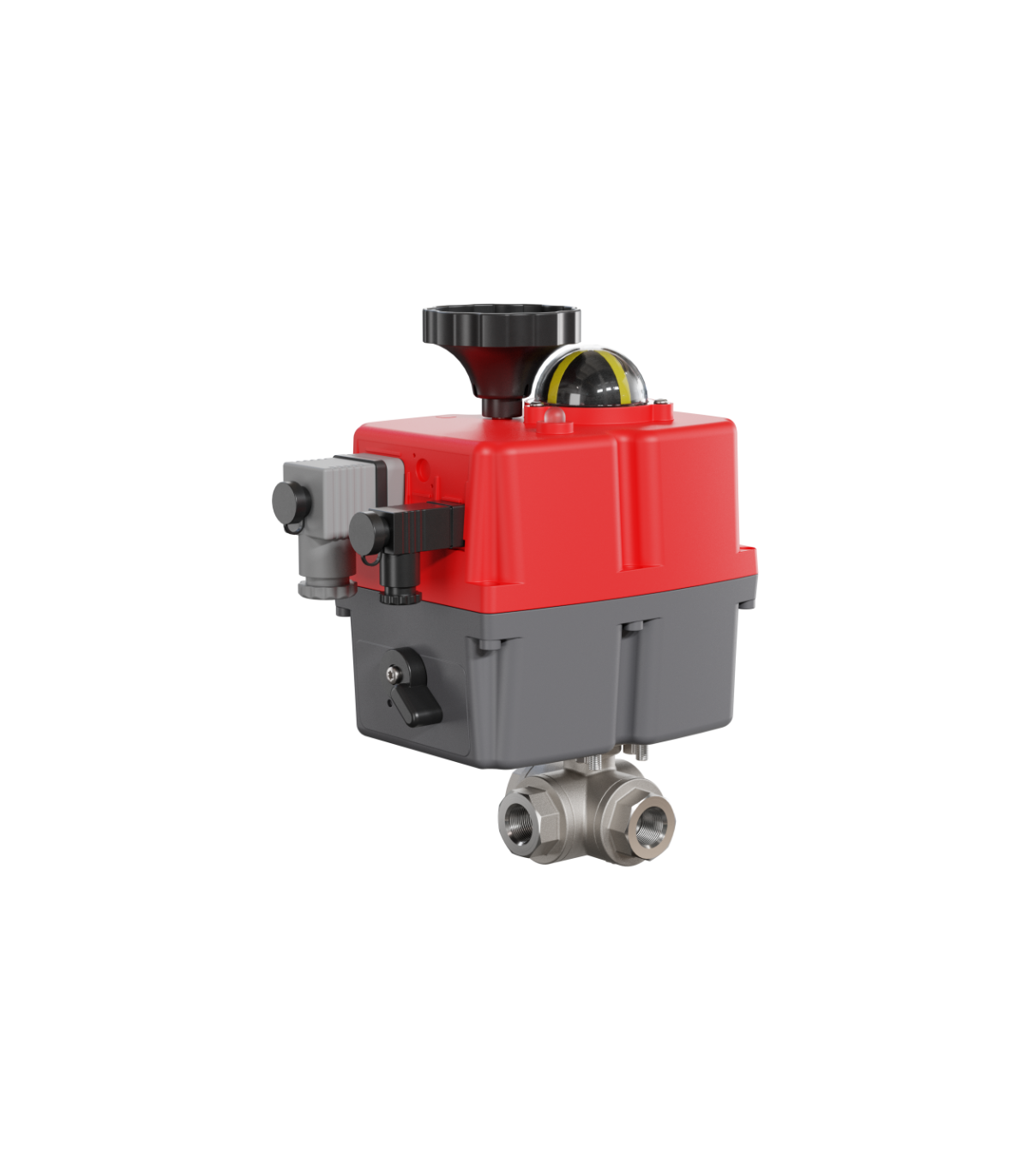

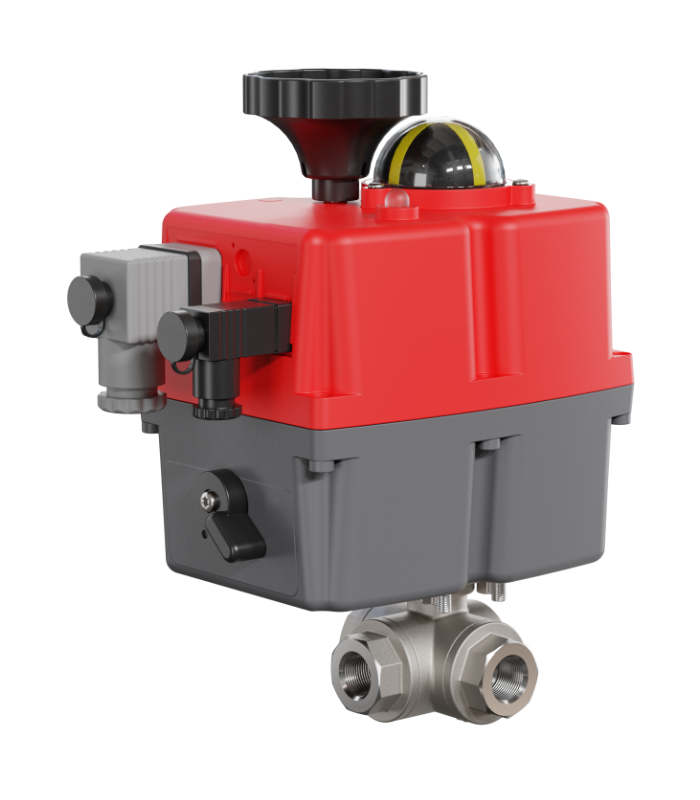

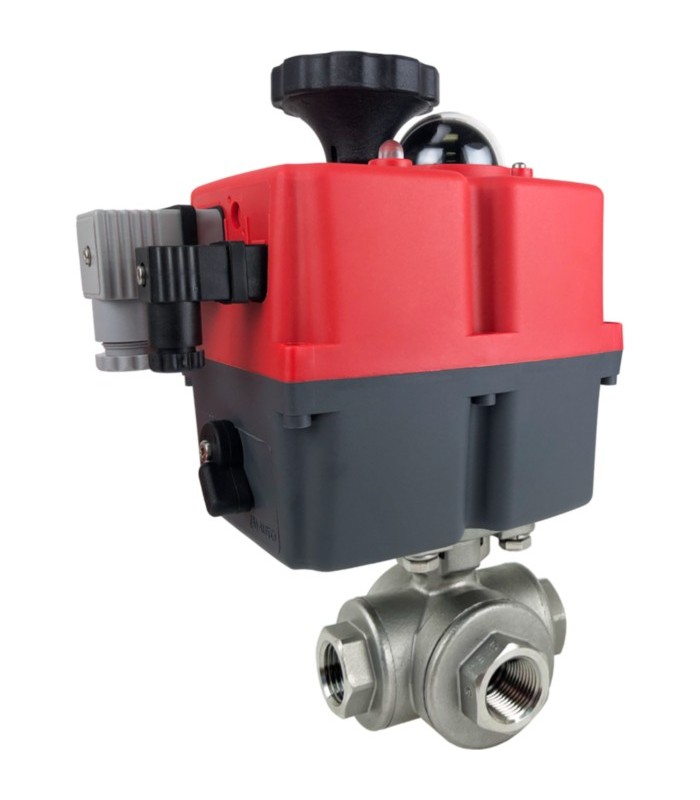

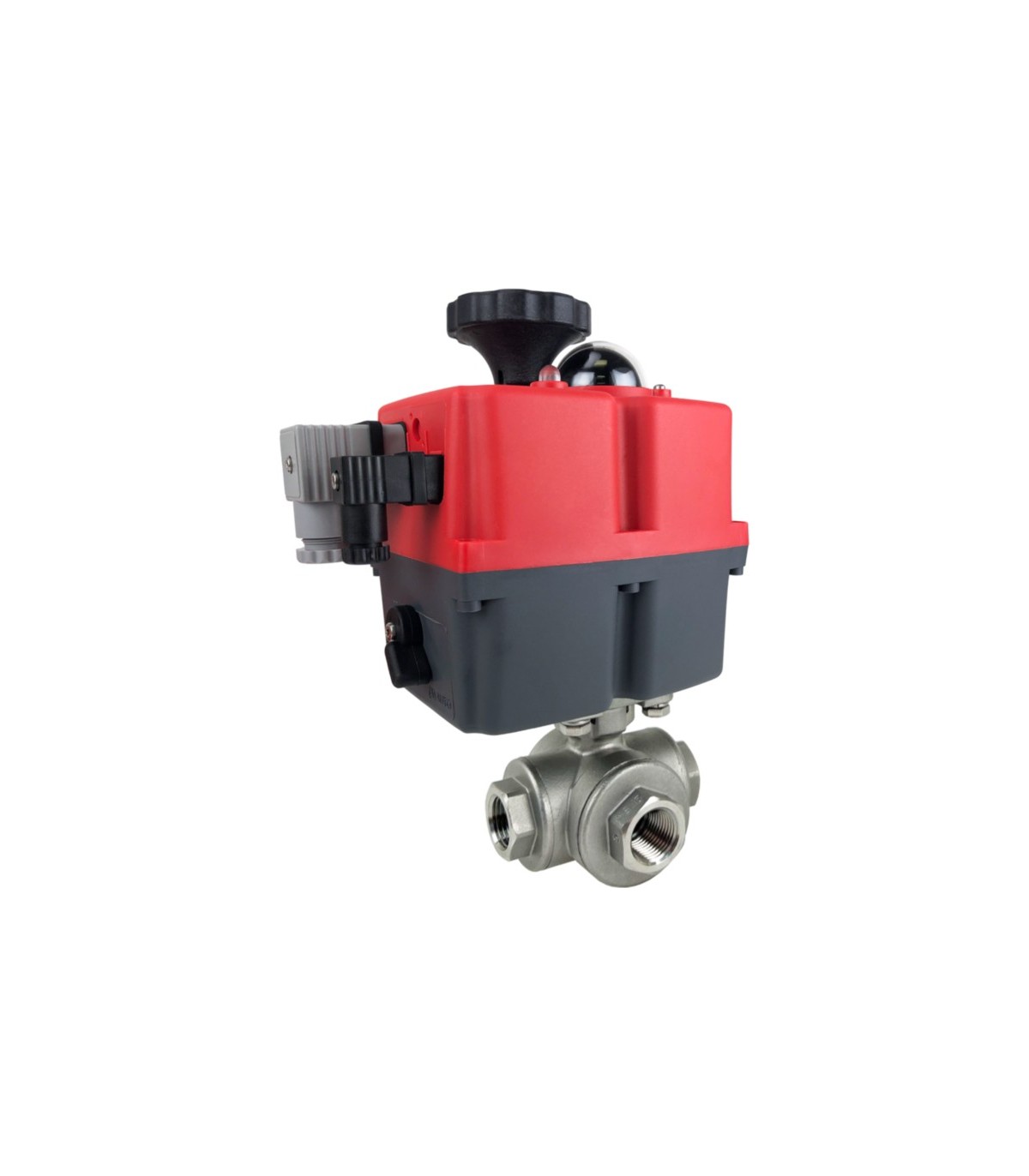

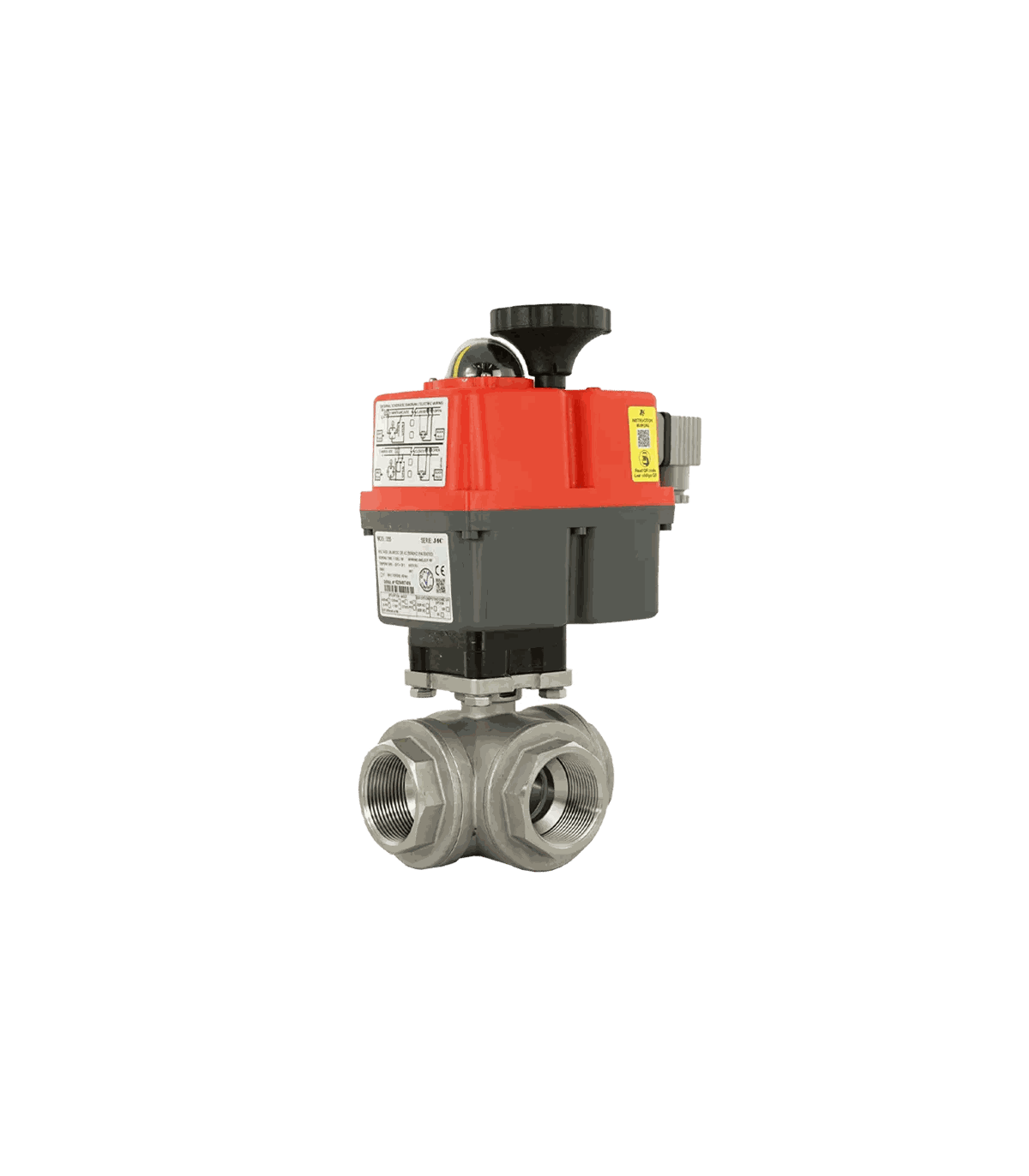

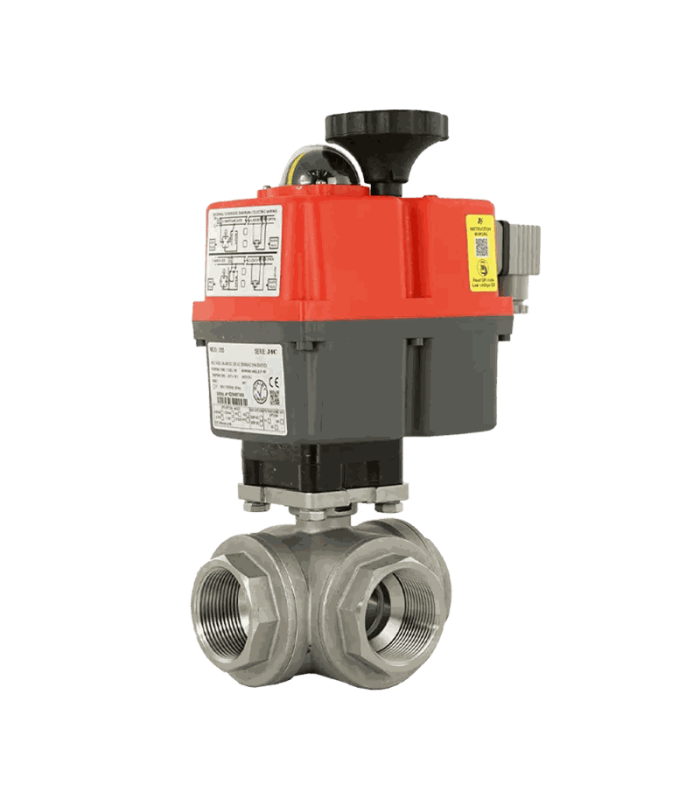

3-WAY BALL VALVE T INOX WITH MULTI-VOLTAGE ELECTRIC ACTUATOR

The stainless steel T-type 3-way ball valve with multi-voltage electric actuator is a compact and reliable solution for shutting off and controlling fluid flow in industrial installations. Its electric drive allows for automated opening and closing of the valve, facilitating integration into control and automation systems.

Main features:

  • 90° turning design
  • It incorporates thermal temperature control.
  • Electrical torque control. (In case of excessive torque, the power supply is disconnected to prevent possible damage)
  • Emergency manual control.
  • Operation controlled by an LED.
  • Auxiliary limit switches.
  • Corrosion resistant.
  • 24-240 V AC/DC
  • IP-67 protection.
  • Operating temperature -20ºC / 70ºC.

3-way T-type ball valve

  • Body, ball and shaft made of stainless-316
  • Teflon closure ring.
  • Temperature 150ºC
  • Pressure 63 bar

Read moreShow less
€300.08 (tax incl.)
€248.00 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
5450501
Description

3-Way Type T Ball Valve in 2 Pieces Stainless Steel with Multi-Voltage Electric Actuator

The stainless steel T-type 3-way ball valve with multi-voltage electric actuator is a compact and reliable solution for shutting off and controlling fluid flow in industrial installations. Its electric drive allows for automated opening and closing of the valve, facilitating integration into control and automation systems.

Made of stainless steel , it is suitable for applications requiring corrosion resistance, durability and reliable operation.

Technical specifications

  • Stainless steel construction.
  • Driven by electric motor.
  • Compact and robust design.
  • Suitable for industrial installations and automated systems.
  • It allows for automatic fluid shut-off.

Applications

This valve can be used in various industrial installations for fluid control and shut-off, such as:

  • Water.
  • Compressed air.
  • Industrial fluids.
  • Process facilities.
  • Automation systems.
  • Fluid treatment and distribution facilities.

Technical specifications of a 3-way stainless steel T-type ball valve with multi-voltage electric actuator:

Read moreShow less
Product Details
5450501
