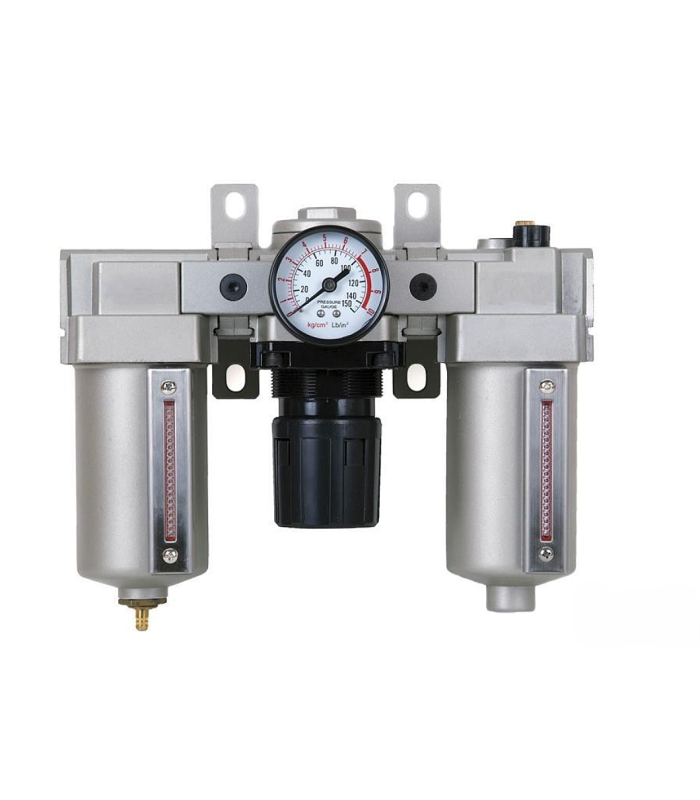

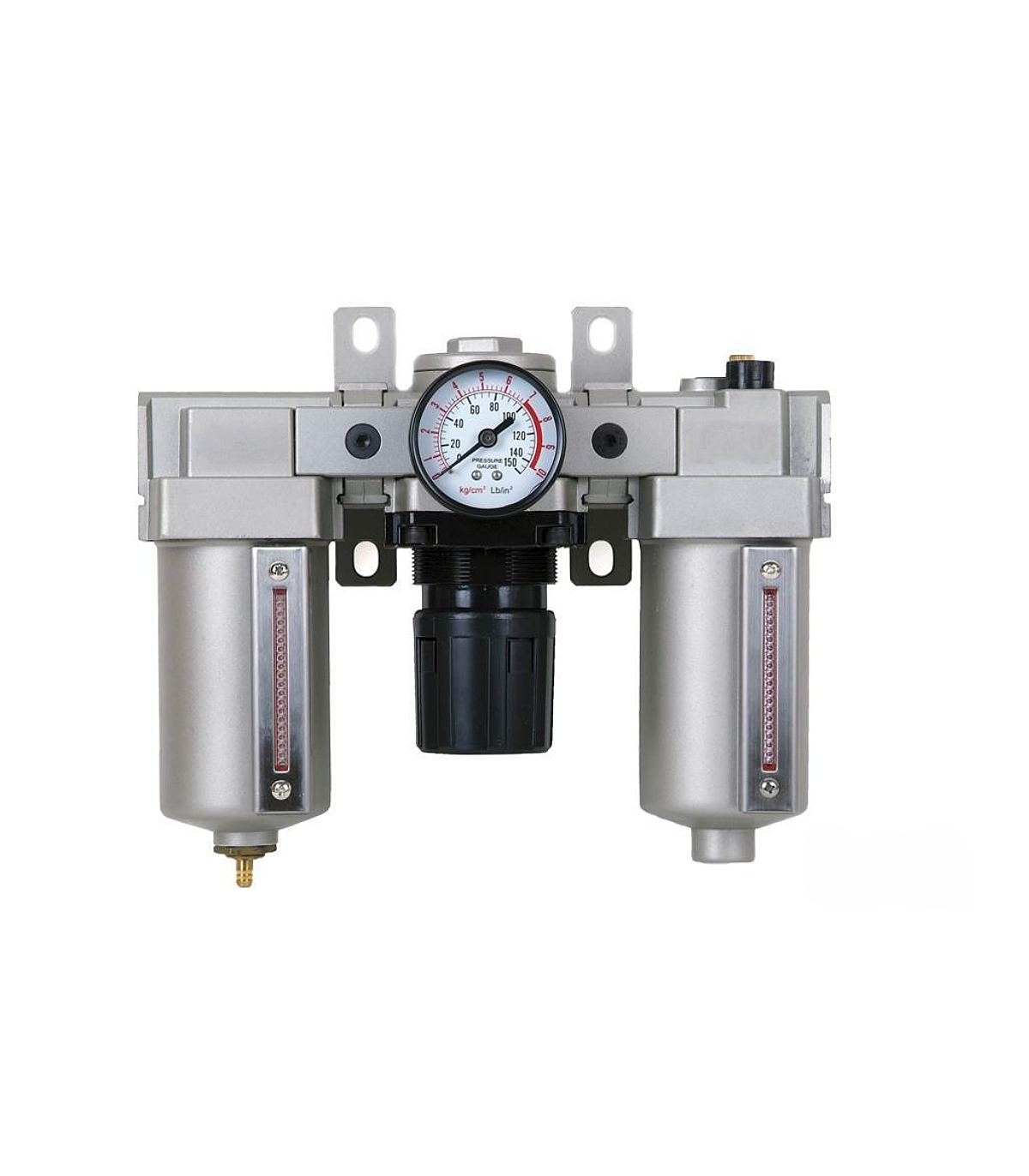

3-PIECE LUBRICATOR REGULATOR FILTER

3-piece lubricator regulator filter

The 3-piece filter regulator lubricator (FRL) is a compressed air treatment unit that integrates a filter, pressure regulator, and lubricator into a single system. It removes impurities and condensate, controls working pressure, and provides lubrication to the air when required by pneumatic equipment.

A compact and practical solution to protect pneumatic components, improve their performance and facilitate installation maintenance.

Technical specifications

Special preformed membrane.

Stability of the regulated pressure regardless of variations in the inlet.

Built-in overpressure relief.

Knob with regulation locking device.

High level of condensate separation.

Pressure fields: Filtration grade: 5 microns and 20 microns (standard).

Manual or semi-automatic condensate drainage device in standard version or with automatic discharge (PA).

Reinforced polyamide cup with external protection, equipped with a quick connection and anti-expulsion mechanism.

Constant supply.

Guaranteed suction even with reduced flow rates.

Sensitive regulation of the amount of lubricant.

360° drip visualization.

Oil filler cap.

Quick-release cup attachment with anti-ejection safety mechanism.

Reinforced polyamide cup with external protection.

Regulation range 0-8 bar

Flow rate at 6.3 bar 850 l/min.

It comes with a pressure gauge and mounting hardware.

Technical data sheet for a 3-piece filter regulator lubricator (FRL):
