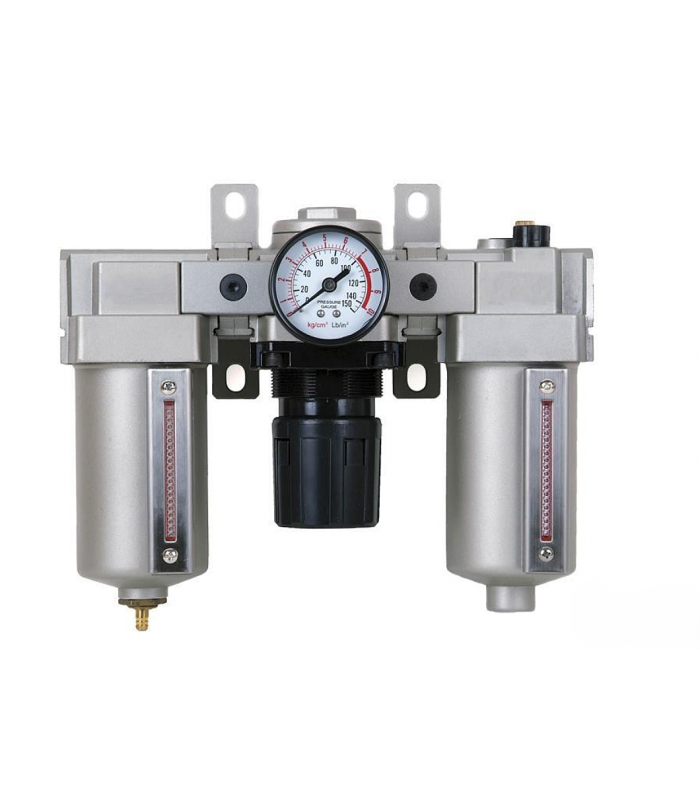

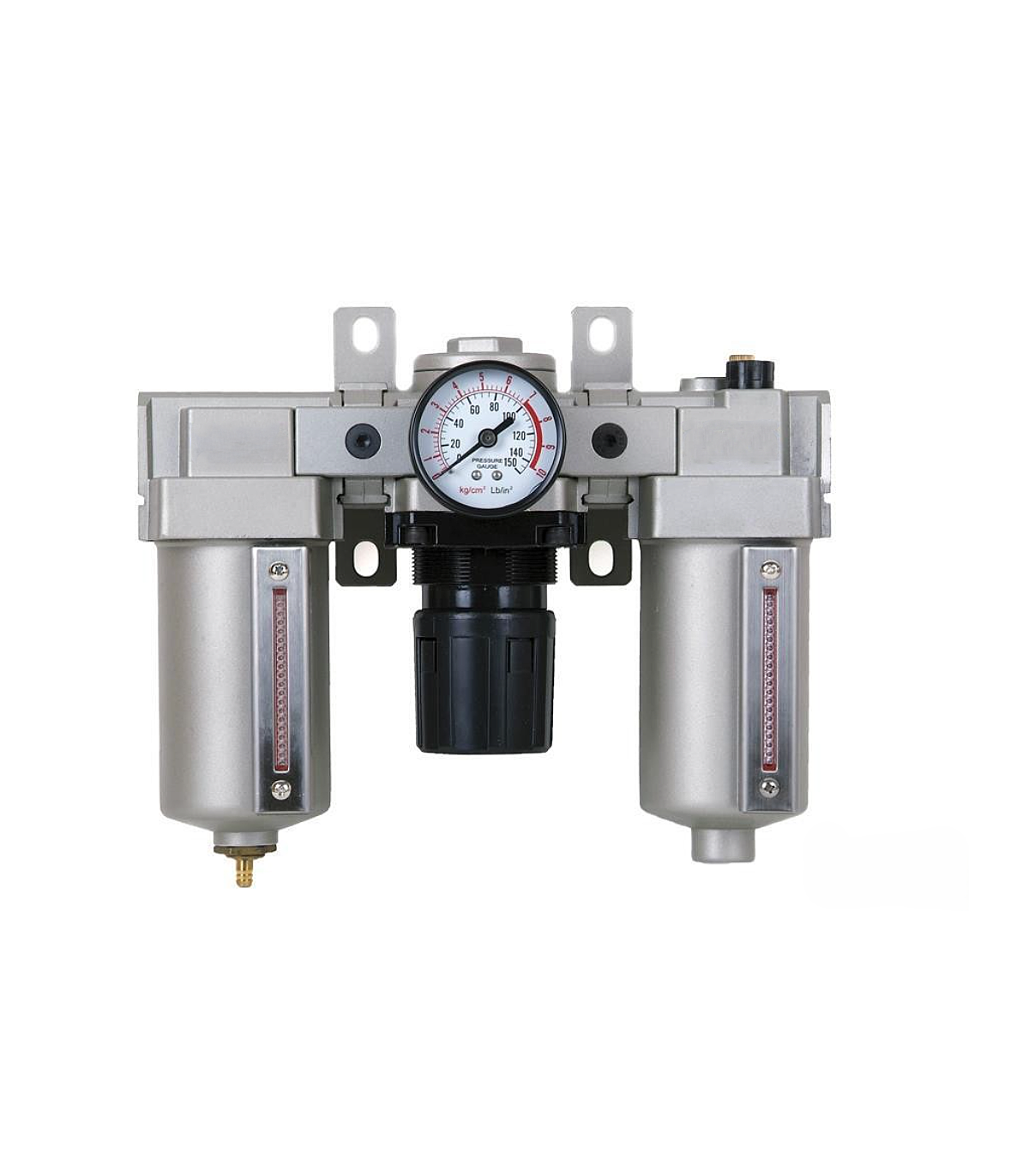

FILTER REGULATOR LUBRICATOR 3 PIECES

FILTER REGULATOR LUBRICATOR 3 PIECES

A 3-piece filter regulator lubricator is a 3-piece combination unit used in compressed air systems to ensure a supply of clean, dry, and lubricated (if required) air to pneumatic components.

Technical sheet:

  • Special preformed membrane.
  • Built-in overpressure relief.
  • Manual or semi-automatic condensation drainage device in standard version or with automatic discharge (PA).
  • Reinforced polyamide cup with external protection, equipped with quick connection with anti-expulsion mechanism.
  • Constant supply.
  • 360º drip visualization.
  • Reinforced polyamide cup with external protection.
  • Regulation range 0-8 bar
  • Flow rate at 6.3 bar 850 l/min.
  • Supplied with pressure gauge and fixing.
€77.27 (tax included)
€63.86 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
Reference:
32200009
Description

3-piece filter regulator lubricator

Technical sheet:

  • Special preformed membrane.
  • Stability of regulated pressure regardless of inlet variations.
  • Built-in overpressure relief.
  • Knob with regulation locking device.
  • High level of condensate separation.
  • Pressure ranges: Filtration grade: 5 microns and 20 microns (standard).
  • Manual or semi-automatic condensation drainage device in standard version or with automatic discharge (PA).
  • Reinforced polyamide cup with external protection, equipped with quick connection with anti-expulsion mechanism.
  • Constant supply.
  • Guaranteed suction even at low flow rates.
  • Sensitive regulation of the amount of lubricant.
  • 360º drip visualization.
  • Oil filler cap.
  • Quick cup coupling with anti-ejection safety mechanism.
  • Reinforced polyamide cup with external protection.
  • Regulation range 0-8 bar
  • Flow rate at 6.3 bar 850 l/min.
  • Supplied with pressure gauge and fixing.

FILTRO-REGULADOR-LUBRICADOR 14

Product Details
32200009
Comments
Related products
ASSEMBLY KIT ASSEMBLY KIT

€7.00 (tax excl.)
€8.47 (tax included)
An assembly kit is a set of components for connecting and securing multiple filter elements together, or for attaching these elements to other components of a filtration system. Technical sheet: Kit for joining...
5 other products in the same category:
WALL MOUNTING BRACKET

€1.87 (tax excl.)
€2.26 (tax included)
A regulator wall mounting bracket is a metal accessory, usually made of steel or aluminum, designed to secure a pressure regulator to a wall. Screws not included. Reduces the risk of damage to the regulator due to...
AUTOMATIC PURGE REPLACEMENT

€24.82 (tax excl.)
€30.03 (tax included)
An automatic filter purge replacement automatically removes condensation from the compressed air in the filters. This helps keep the filter functioning properly and prevents problems such as corrosion, airflow...
5 micron FILTER CARTRIDGE

€4.12 (tax excl.)
€4.99 (tax included)
A 5 micron filter cartridge is a replaceable component within a filtration system designed to remove solid particles and sediment from a fluid (either liquid or gas) that are equal to or greater than 5 µm in size....
FILTER/REGULATOR LUBRICATOR 2 PIECES

€55.44 (tax excl.)
€67.08 (tax included)
A two-piece filter/lubricator regulator is a two-piece combination unit that performs three essential functions in a compressed air system: filtering, regulating pressure, and lubricating the air. It is typically...
0.1 micron FILTER CARTRIDGE

€25.09 (tax excl.)
€30.36 (tax included)
A 0.1 micron filter cartridge is a replaceable component within a filtration system designed to remove extremely fine particles from a fluid (liquid or gas) that are equal to or greater than 0.1 µm Applications: Water...
Recently Viewed
FILTER REGULATOR LUBRICATOR 3 PIECES

€77.27 (tax included)
€63.86 (tax excl.)
A 3-piece filter regulator lubricator is a 3-piece combination unit used in compressed air systems to ensure a supply of clean, dry, and lubricated (if required) air to pneumatic components. Technical sheet: Special...
HYDAC MEMBRANE ACCUMULATOR 0.75L SBO210-075E1/112U

€120.00 (tax excl.)
€145.20 (tax included)
Hydac membrane accumulator to achieve energy storage. Technical information: Volume 0.75 liters. Membrane made of NBR. Equipped with a lockable safety block and complies with the pressure equipment regulations and...

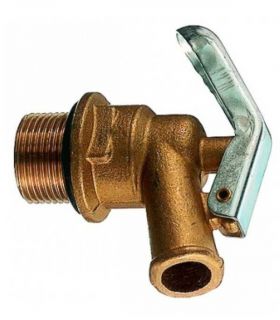

DRUM DRAIN TAP 3/4" 13090

€35.00 (tax excl.)
€42.35 (tax included)
A 3/4" 13090 drum discharge tap is a specific valve to be screwed into the mouth (discharge hole) of a drum, allowing a controlled and safe vacuum of its liquid contents. Applications: Mechanical workshops,...
MALE WALL GROMMET

€2.73 (tax excl.)
€3.30 (tax included)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.

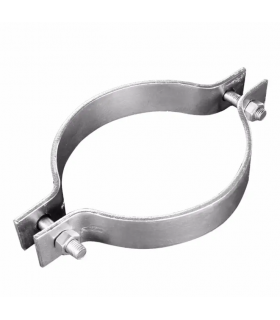

STAINLESS STEEL 304 WELD CLAMP
