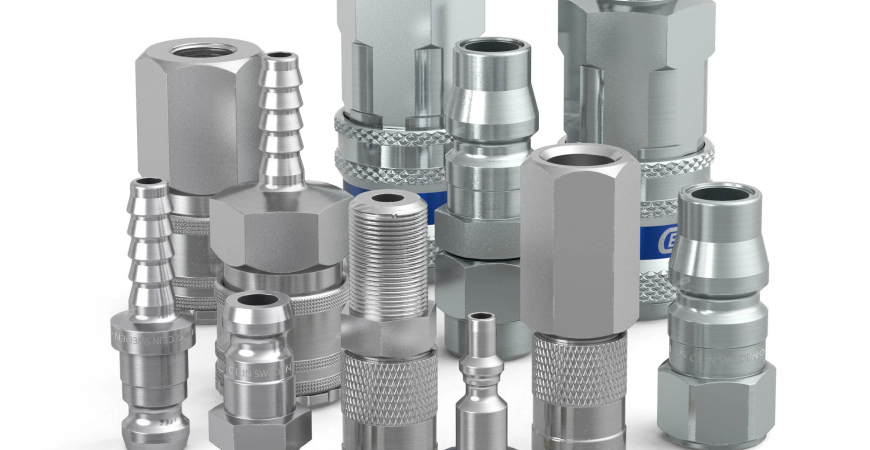

Fast plugs: what they are, types and differences
Quick-connect couplings are essential components in many industrial installations. They allow for the quick and safe connection and disconnection of fluid or compressed air circuits without the need for tools.
Its use considerably reduces maintenance times, facilitates tool changes and improves the safety of facilities, making it an essential element in sectors such as industry, automotive, agriculture, construction or heavy machinery.
What is a fast plug?
A quick plug , also called a quick coupling or quick connect, is a system made up of two pieces: a male adapter and a female adapter.
Generally, the male part is installed in a fixed position to allow for quick and periodic connections and disconnections with other pipes or hoses.
The female part contains the component known as the shut-off valve. Once the male part is attached to it, the valve opens. This creates a completely leak-proof connection that is highly resistant to high pressures.
Their main advantage is that they allow connections to be made in a matter of seconds, without the need for keys or tools.
What are the advantages of a fast plug?
- Reduced assembly and disassembly time.
- Greater safety during maintenance operations.
- Lower risk of leaks.
- Ease of replacing tools or equipment.
- Wide variety of sizes, materials and connections.
- High reliability even in demanding industrial applications.
How can fast plugs be classified?
Although there are various classifications, the most commonly used are pneumatic quick-connect couplings and hydraulic quick-connect couplings .
Pneumatic quick-connect fittings
Pneumatic quick-connect fittings are designed for compressed air installations. They are probably the most well-known and widely used in workshops, factories, and industrial facilities.
They are designed to work with compressed air and typically operate within pressure ranges of 6 to 16 bar. Their lightweight design makes them easy to handle and reduces fatigue during intensive use. Furthermore, they allow for quick and safe connections and disconnections without the need for tools.
To ensure high mechanical resistance and a long service life, they are usually manufactured from materials such as steel, brass, or stainless steel.
We find them in pneumatic tools, compressors, compressed air networks, paint booths, industrial automation, and blowing systems.
Hydraulic quick-connect couplings are designed to transport hydraulic oil or other fluids at very high pressure.
They are specially designed to work with hydraulic oil in demanding applications, safely withstanding very high working pressures. Manufactured from carbon steel or stainless steel, they offer exceptional durability against wear and the most severe conditions.
Furthermore, they incorporate automatic shut-off systems that minimize oil loss during connection and disconnection, ensuring excellent sealing. Their robust design provides high resistance to shocks, vibrations, and dirt, making them the ideal solution for industrial, agricultural, and construction machinery.
They are commonly used in: agricultural machinery, excavators, forklifts, aerial work platforms, forestry equipment, hydraulic presses and construction machinery.
How to choose the right quick-release plug?
Before selecting a fast plug, it is important to consider the following:
- Type of fluid (air, oil, water, etc.).
- Working pressure.
- Required flow rate.
- Connection type (BSP thread, NPT, metric...).
- Body material.
- Compatibility with the existing system.
- Operating temperature.
At Disumtec, we offer a wide range of quick-connect fittings for industrial applications, both pneumatic and hydraulic. We work with high-quality products to provide safe, reliable, durable connections tailored to the needs of each installation.
