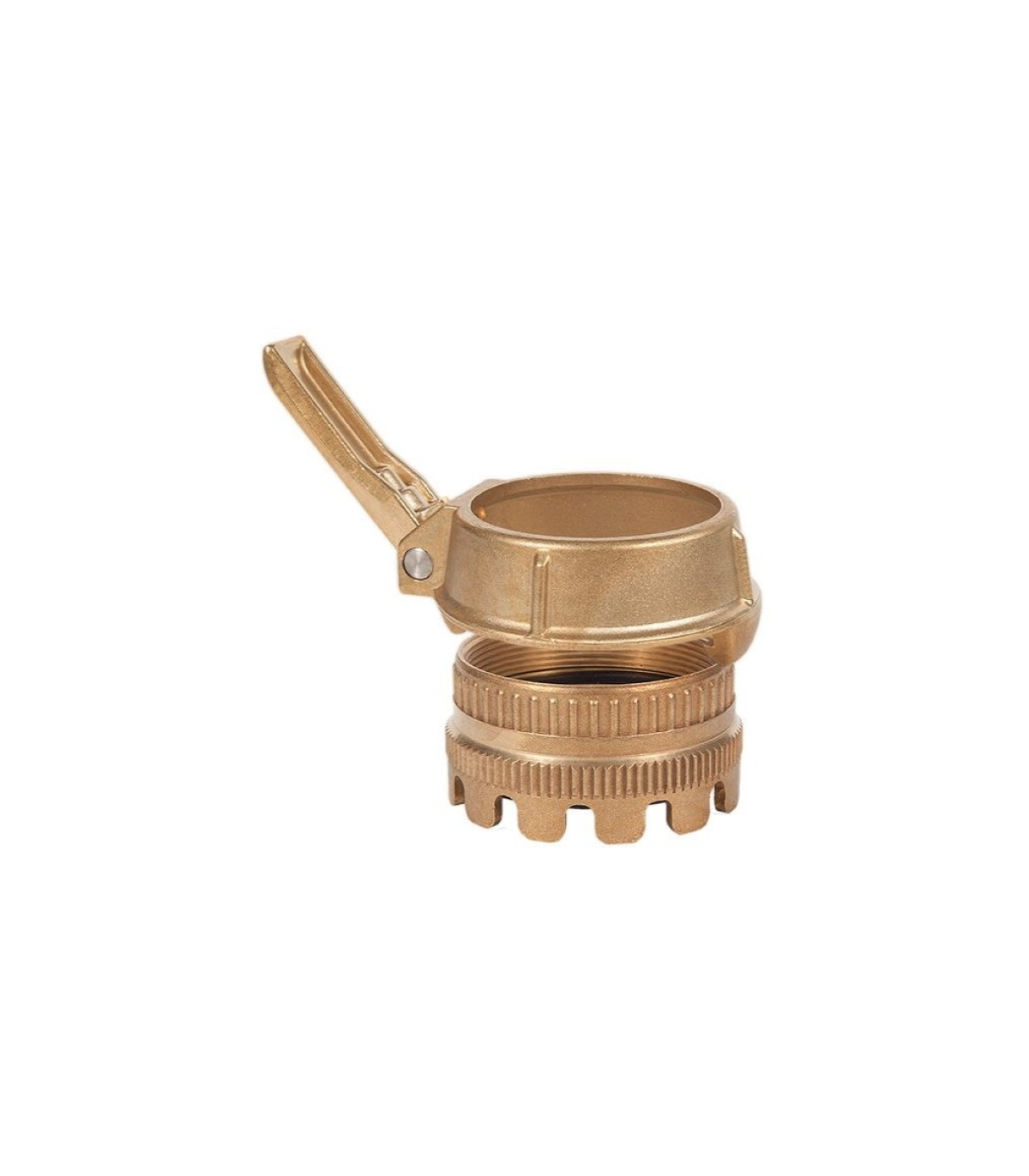

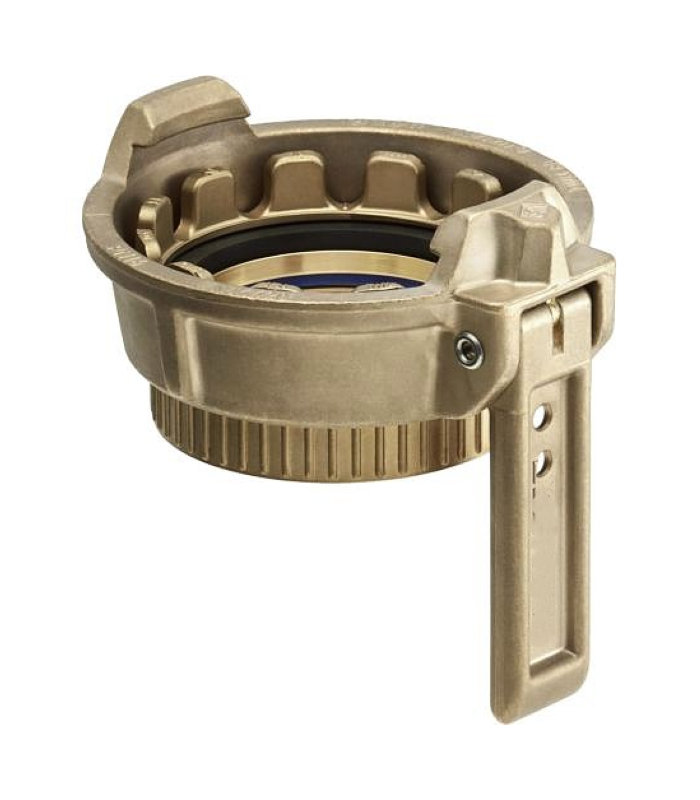

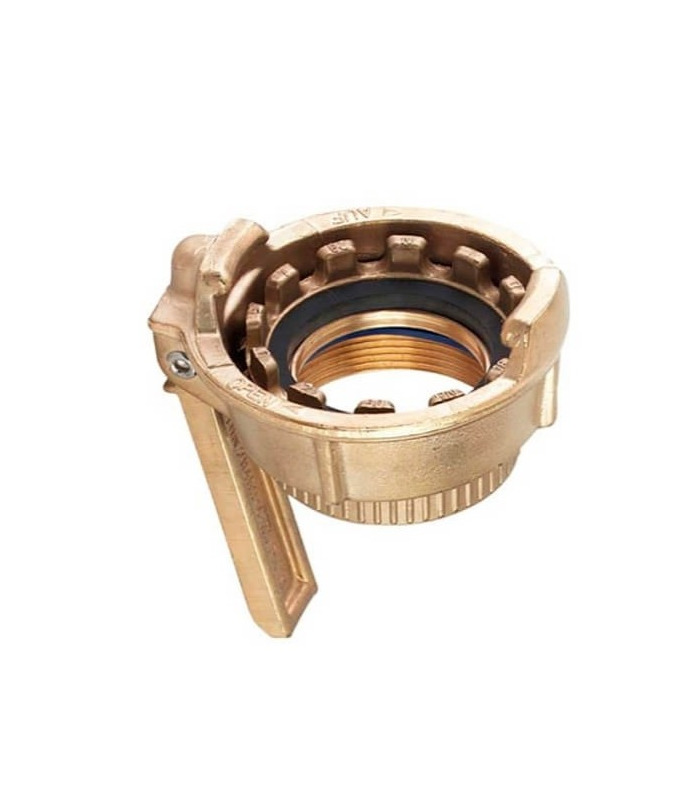

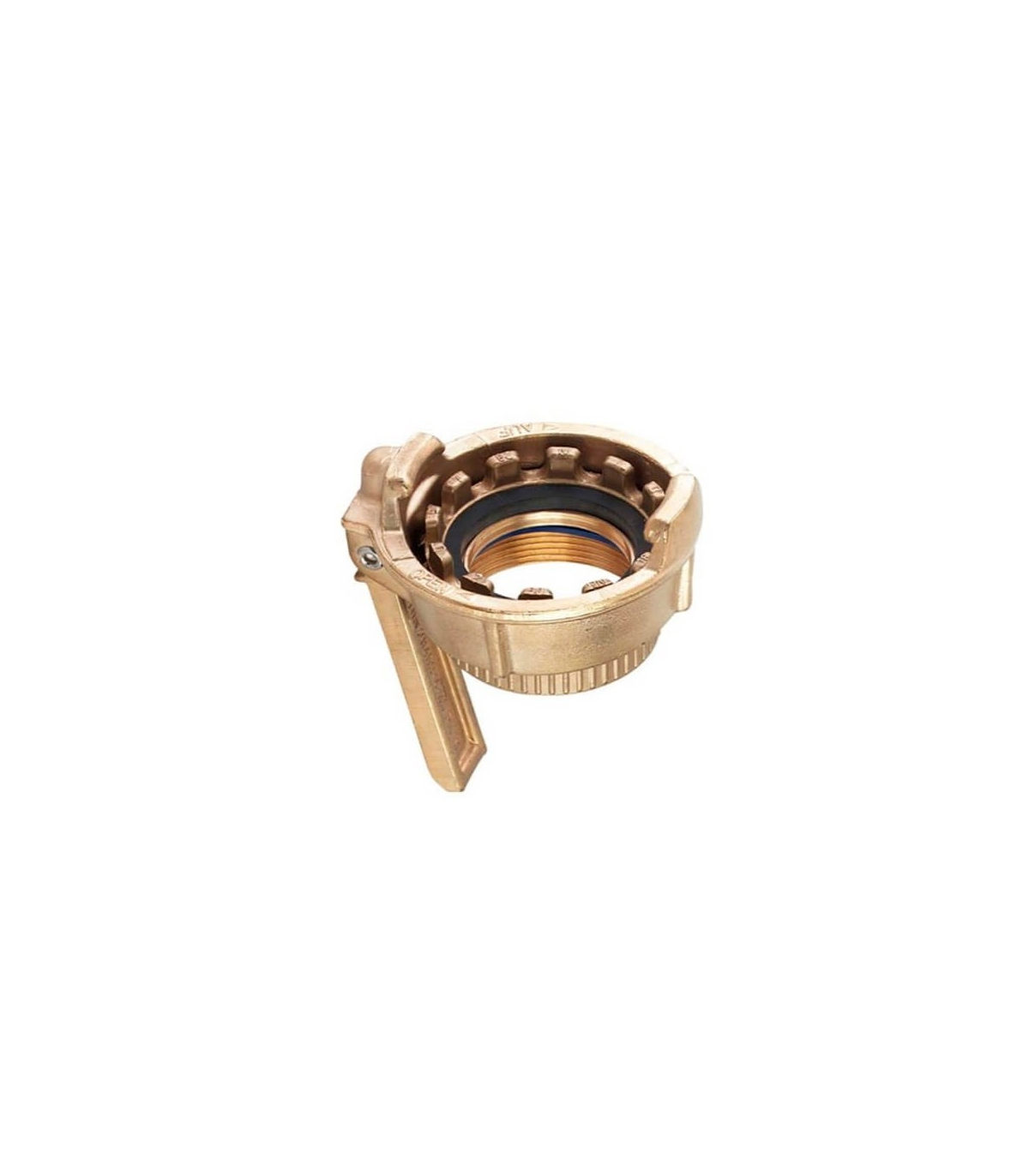

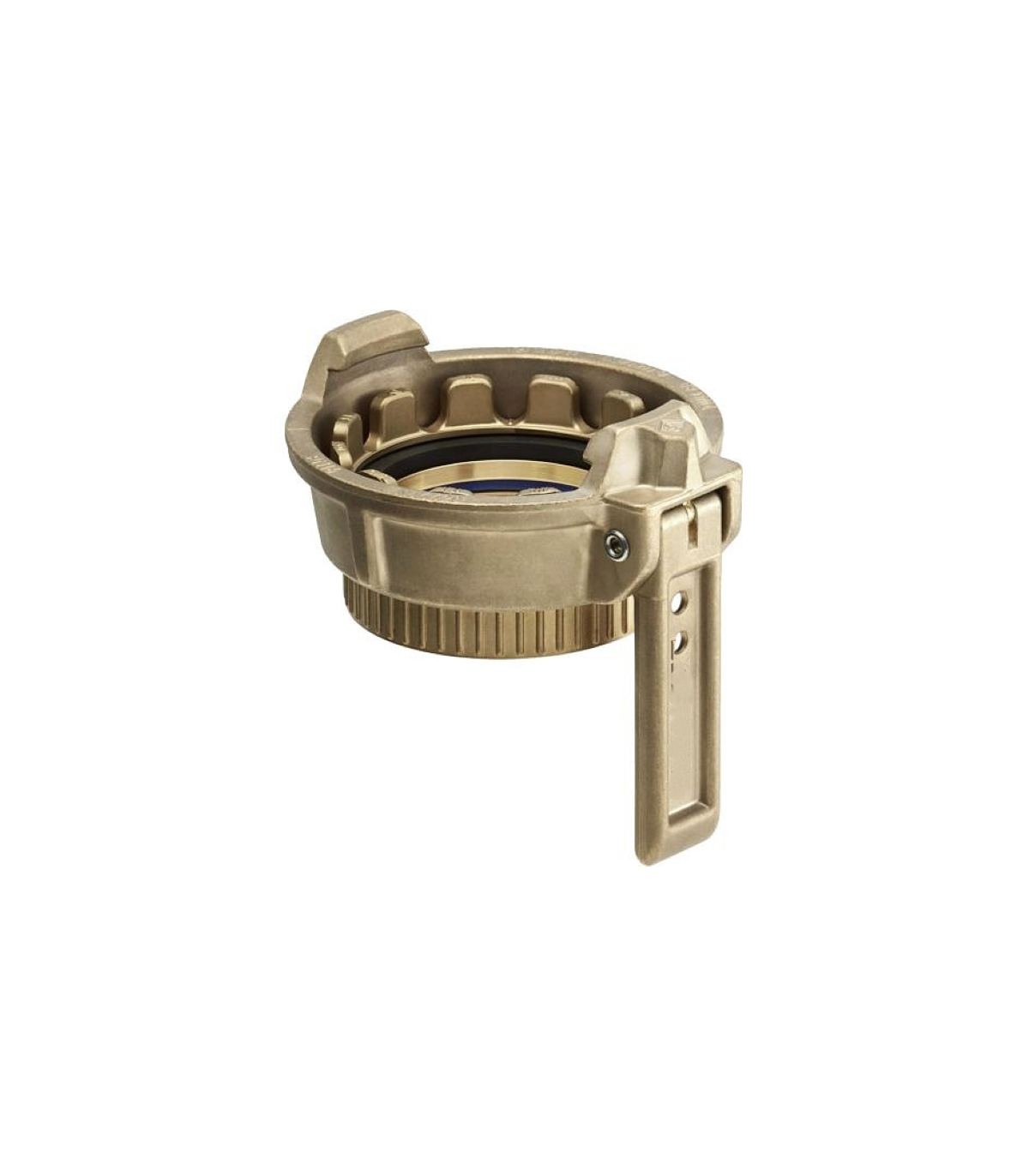

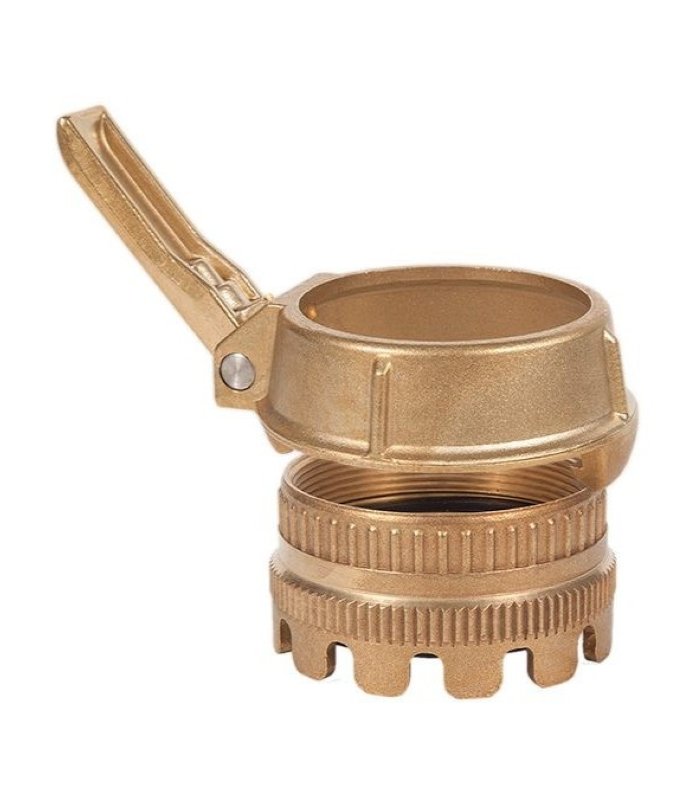

MK TYPE FEMALE FEMALE THREAD BSP

The MK type female BSP female thread is designed to make secure connections on hoses, pipes or loading arms used in transporting and transferring liquids.

Applications: tanker trucks in the transport of liquids, solids and gases, except liquefied gases and steam.

Main features:

Complies with EN 14420-6 / DIN 28450 standards
Made of brass and stainless steel
Working pressure up to 16 bar
Operating temperature -20ºC to +65ºC
NBR gasket in brass and CSM and PTFE gasket in stainless steel

€40.20 (tax included)

€33.23 (tax excl.)

SELECT THE THREAD

MATERIAL

STAINLESS-316
BRASS

Reference:

20377

Description
Comments

Description

MK type female BSP thread

The MK type female BSP threaded fitting is a female quick coupling designed for connection with VK type fittings or compatible adapters. This model incorporates a BSP female thread for installation on hoses, pipes, or tanks.

Main features

Type MK: quick coupling system commonly used on tank trucks. The female MK version corresponds to the female part of the coupling.
BSP female thread: Standard BSP internal thread used to connect a tube, adapter, or terminal with a male thread.
Materials: stainless steel, brass
Standard sizes: DN50 (2"), DN80 (3"), DN100 (4")
Working pressure up to 16 bar

Applications

Transport of fuels (diesel, gasoline)
Chemical industry
Tankers and tank trucks (tankwagens)
Transfer of industrial oils and liquids
Agriculture and technical irrigation

Technical specifications of a Tankwagen MK type female fitting with BSP female thread:

Thread	TO
2"	71
3"	102
4"	129

Product Details

Reference 20377
