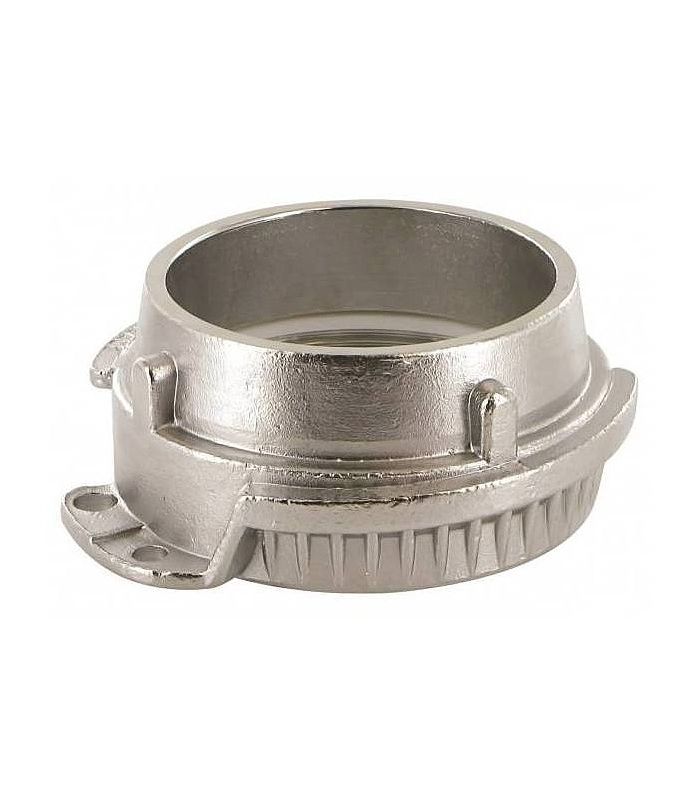

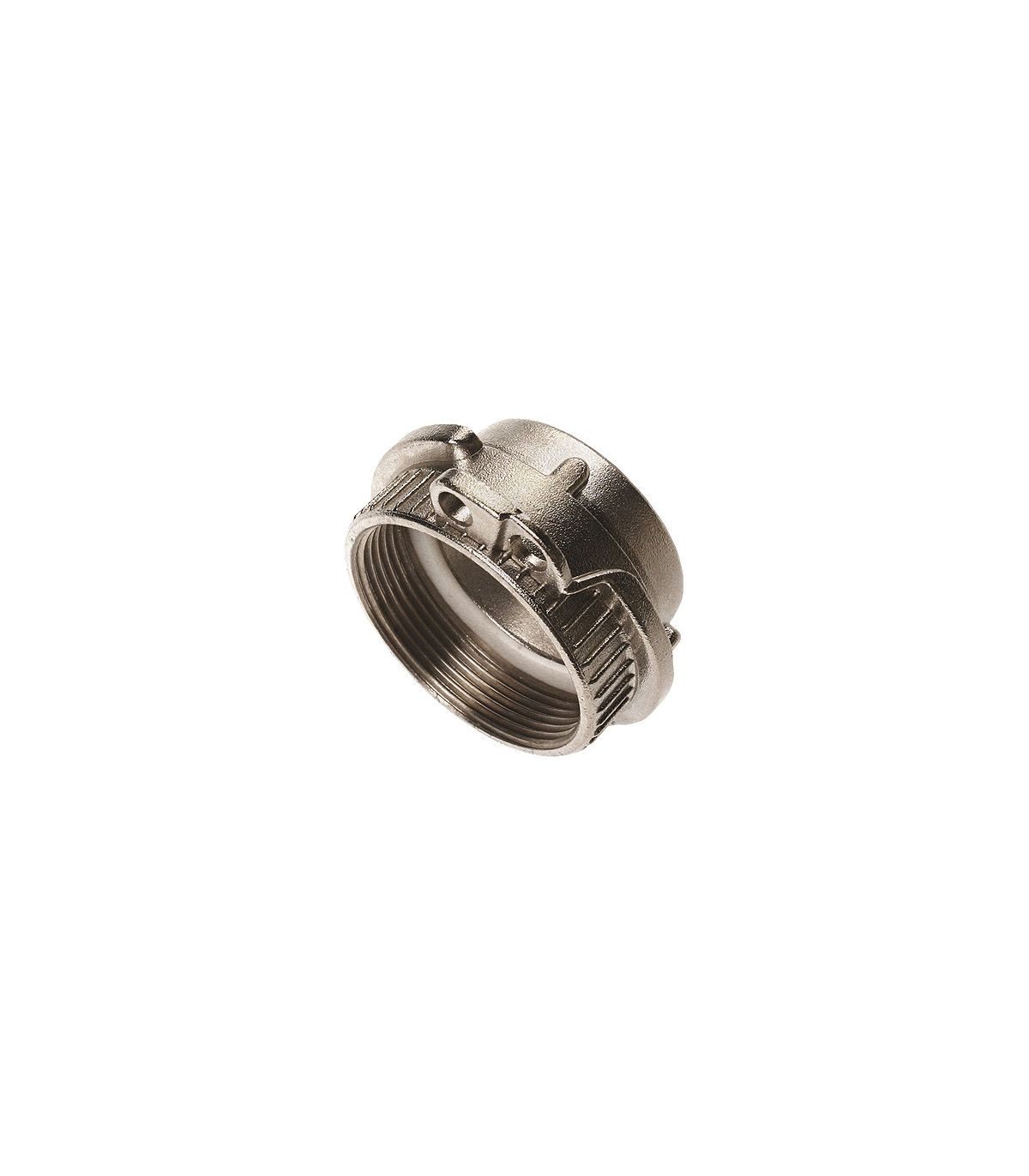

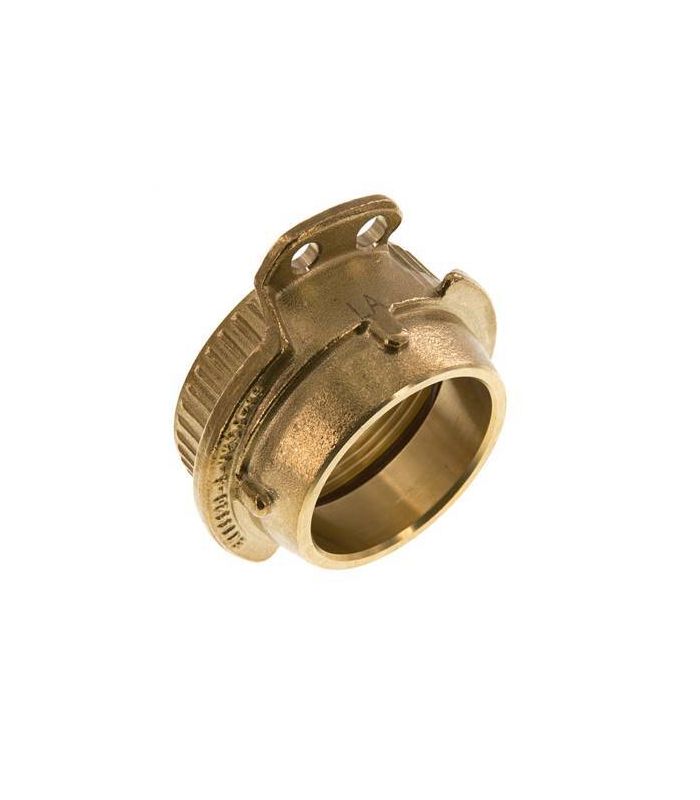

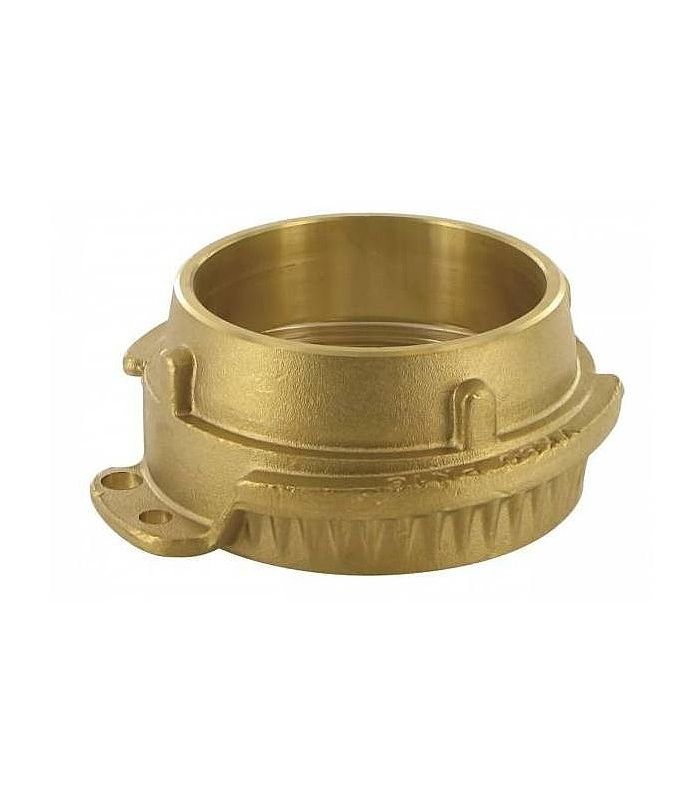

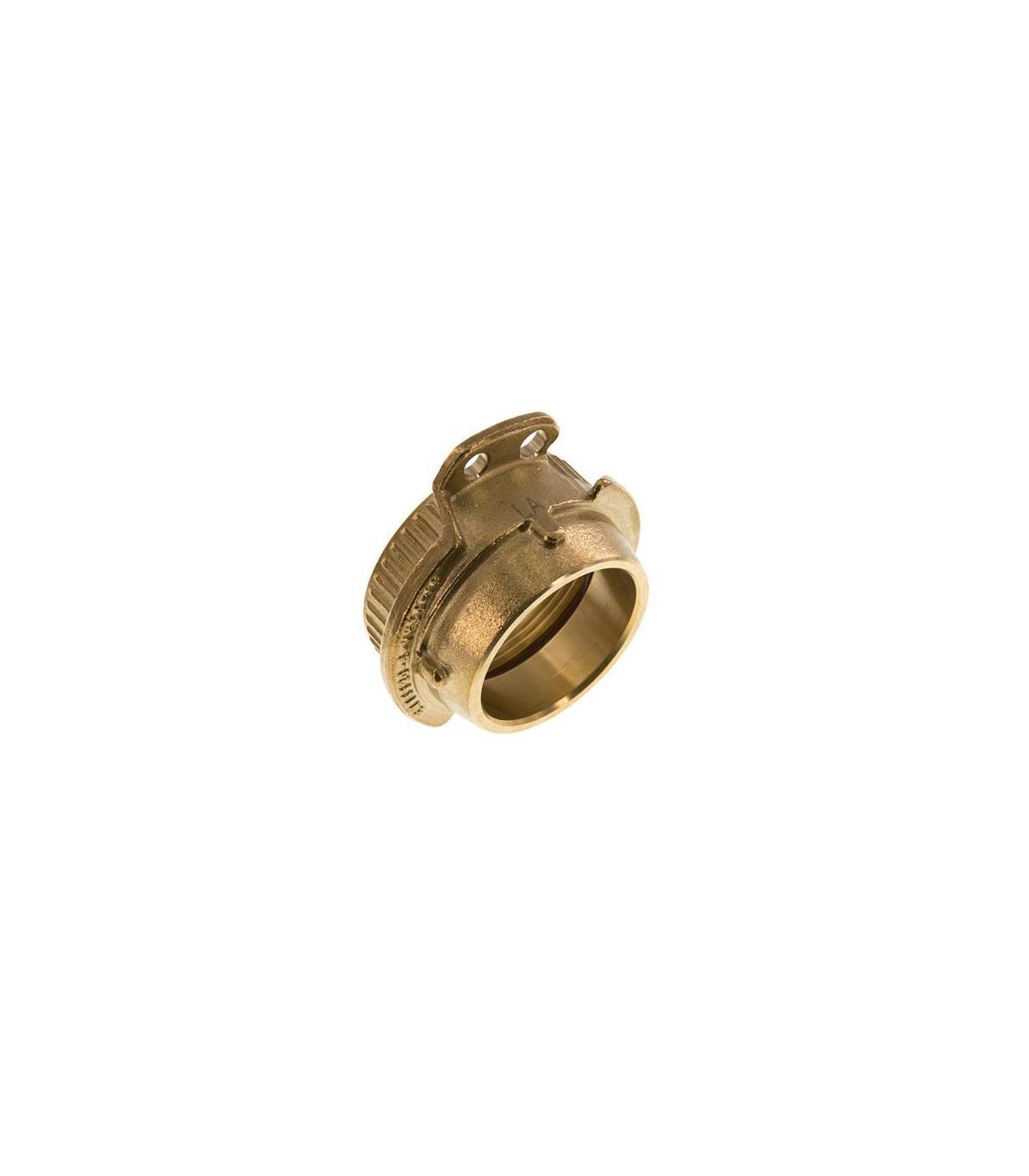

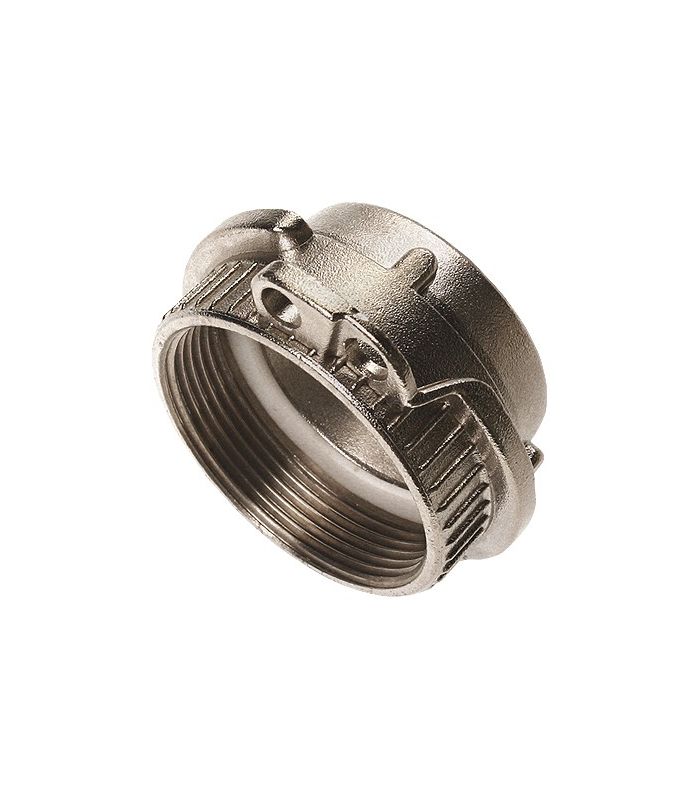

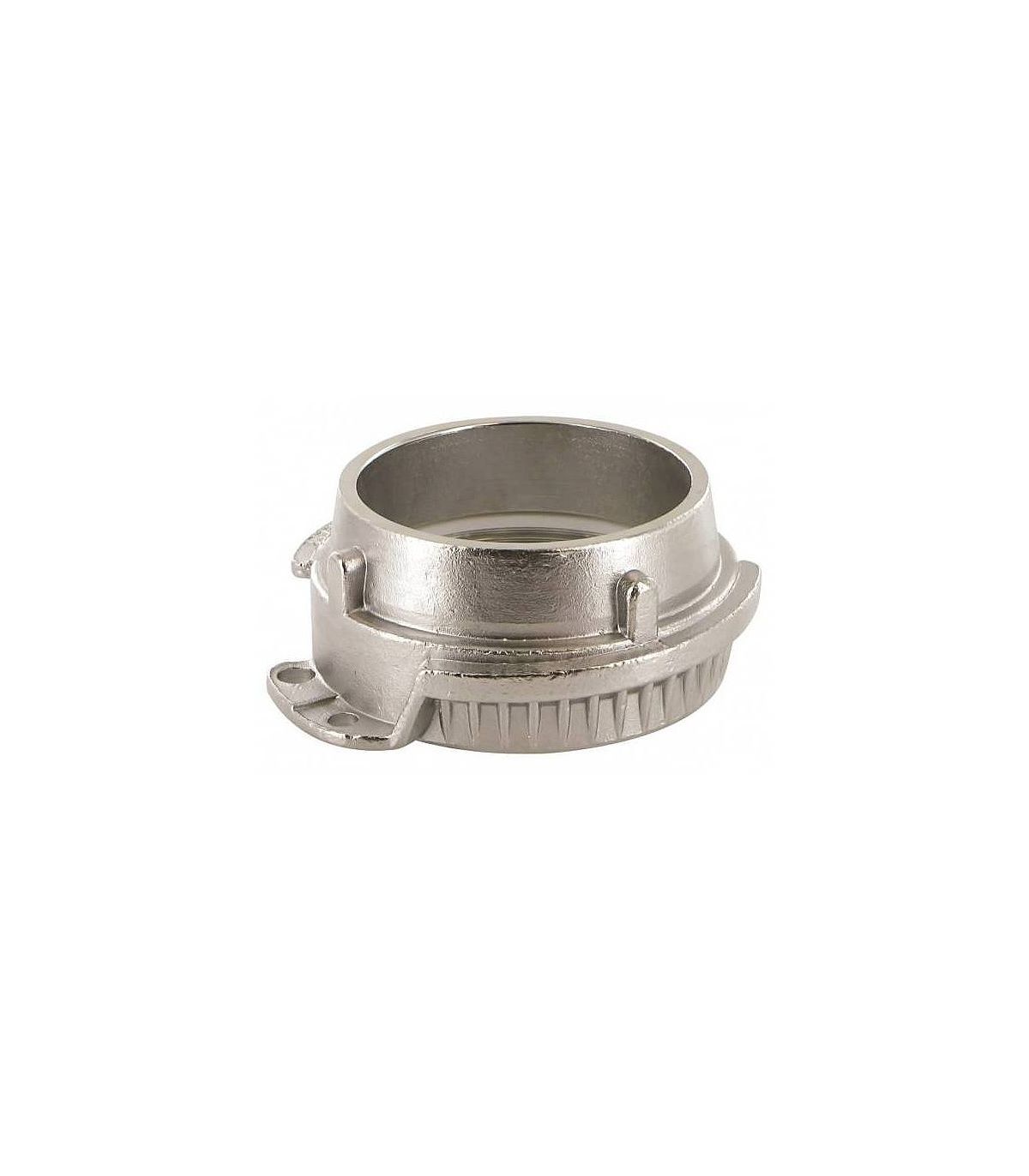

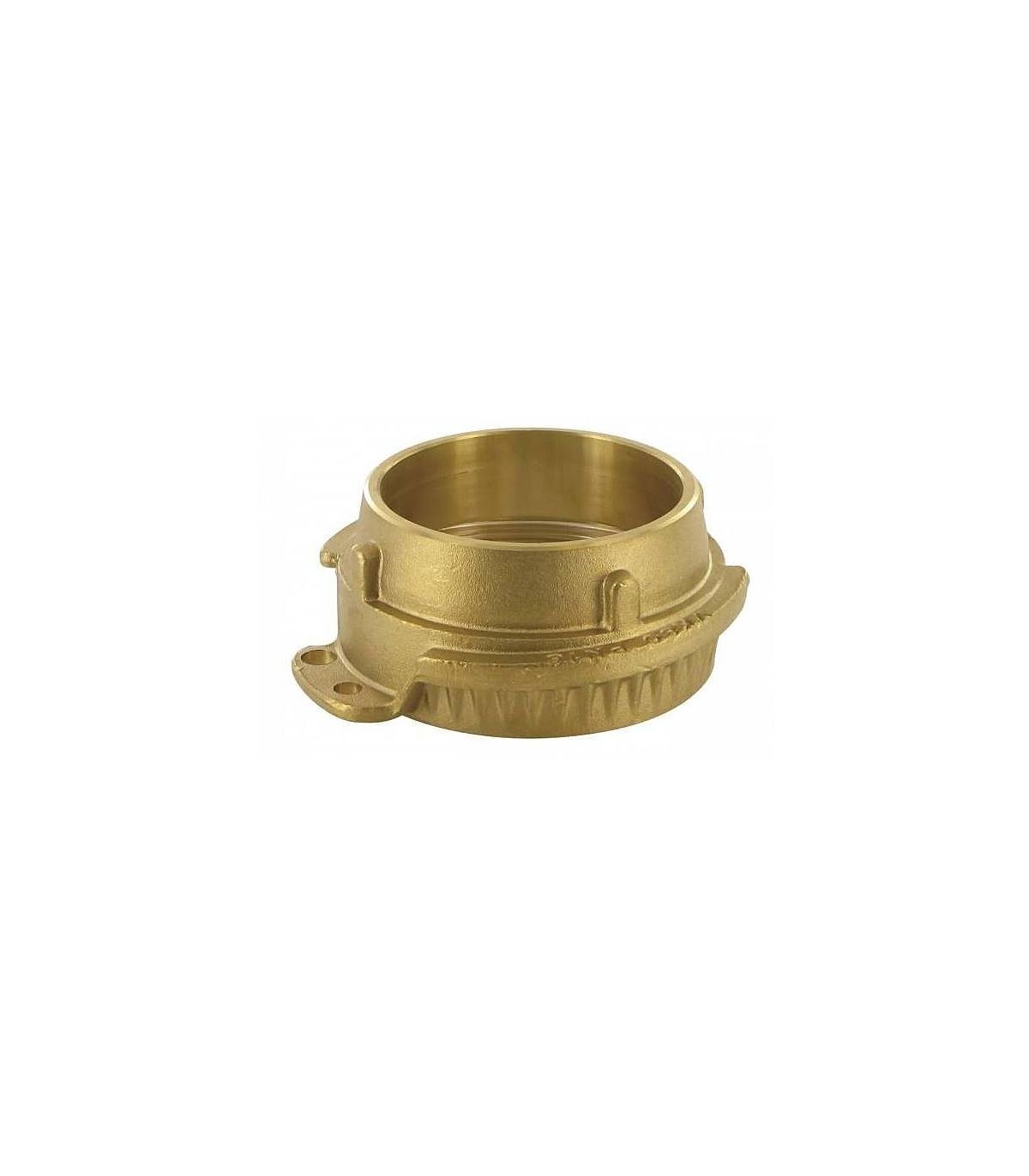

The VK male to BSP female threaded fitting is a quick-connect element used in Tankwagen systems for tank trucks and fluid transfer. It is the male part of the coupling, which connects to an MK female fitting via a lever lock, ensuring a leak-proof and vibration-resistant joint.

Applications: tanker trucks in the transport of liquids, solids and gases, except liquefied gases and steam.

Main features:

  • Complies with EN 14420-6 / DIN 28450 standards
  • Made of brass and stainless steel
  • Working pressure up to 16 bar
  • Operating temperature -20ºC to +65ºC
  • NBR gasket in brass and CSM and PTFE gasket in stainless steel
€17.74 (tax included)
€14.67 (tax excl.)
SELECT THE THREAD
  • 2"
  • 3"
  • 4"
MATERIAL
  • STAINLESS-316
  • BRASS
Reference:
20371
Description

VK type male BSP female thread

The VK male to BSP female threaded fitting is a quick-connect element used in Tankwagen systems (DIN 28450 / EN 14420-6) for tank trucks and fluid transfer. It is the male part of the coupling, which connects to an MK female fitting via a lever lock, ensuring a leak-proof and vibration-resistant joint.

Main features

  • Type: VK (male) Tankwagen
  • Connection: BSPP female internal thread (BSP parallel)
  • Materials: stainless steel, brass
  • Standard sizes: DN50 (2"), DN80 (3"), DN100 (4")
  • Working pressure up to 16 bar

Technical specifications of a Tankwagen VK type male fitting with BSP female thread:

Thread TO
2" 48.5
3" 76
4" 95
Product Details
20371
