20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE
20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE

20X20 LIGHTWEIGHT STRUCTURAL ALUMINUM PROFILE

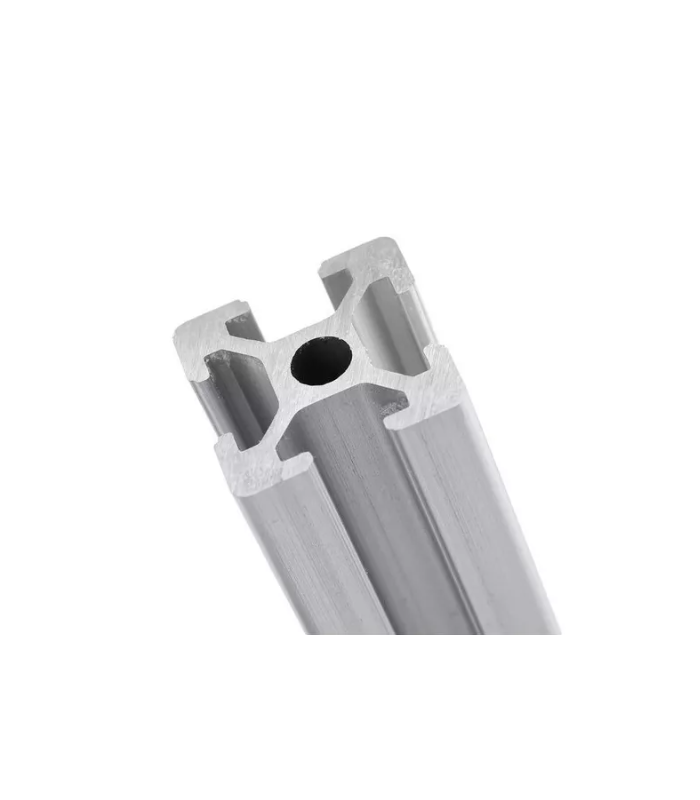

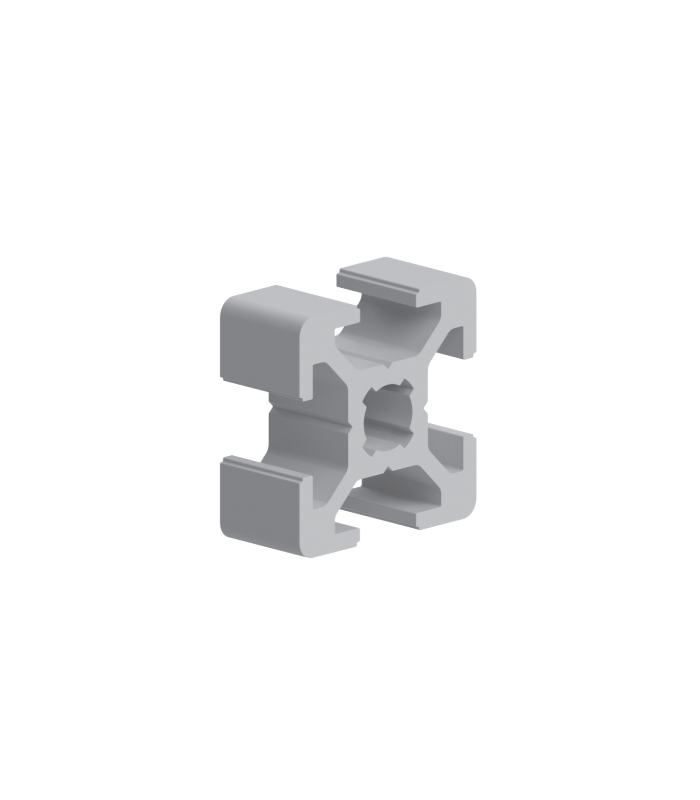

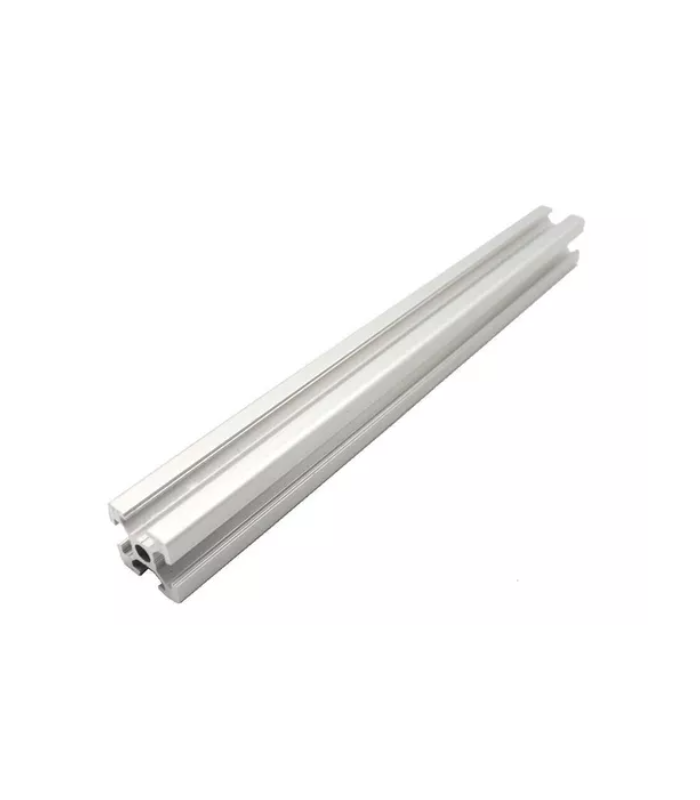

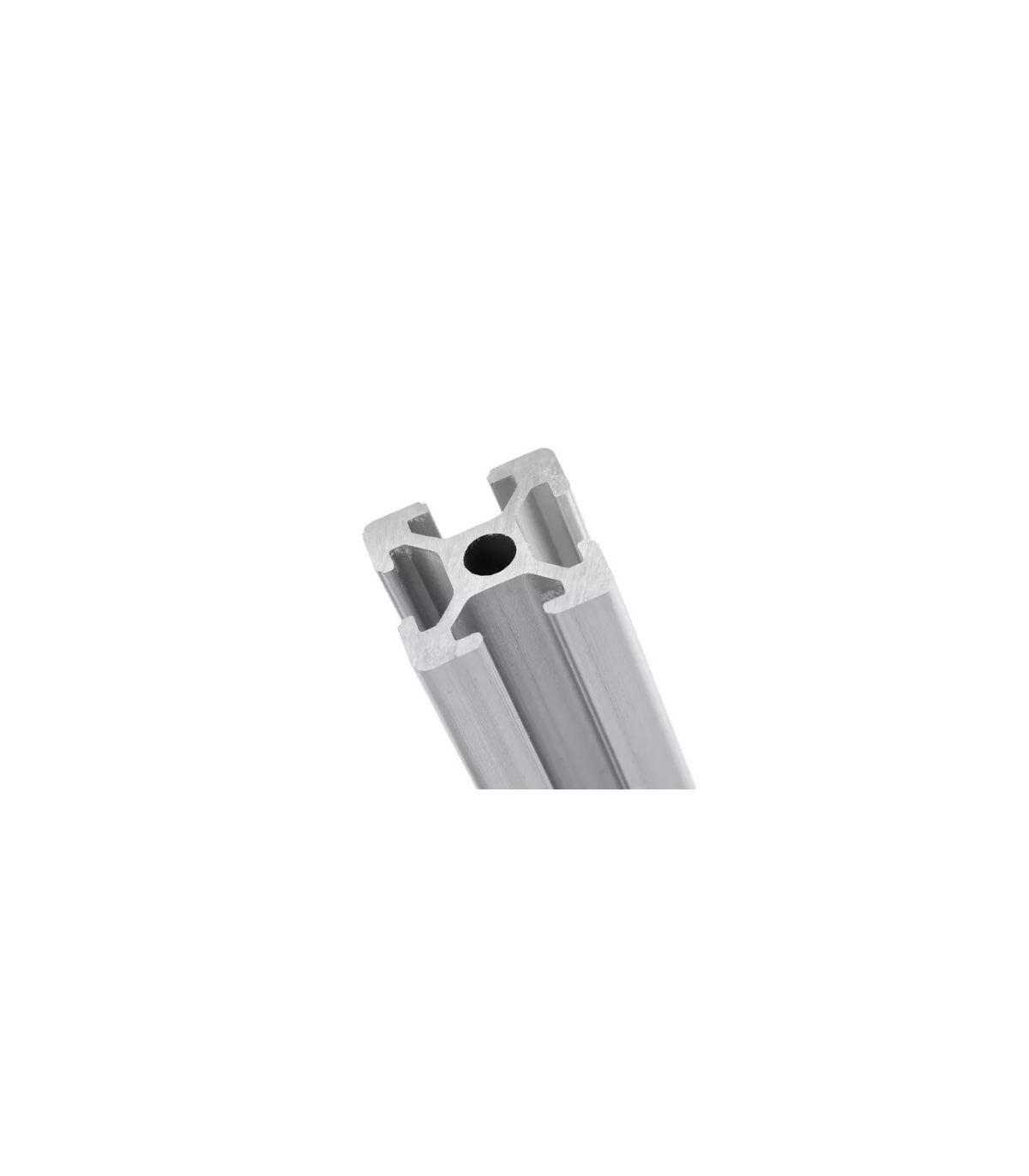

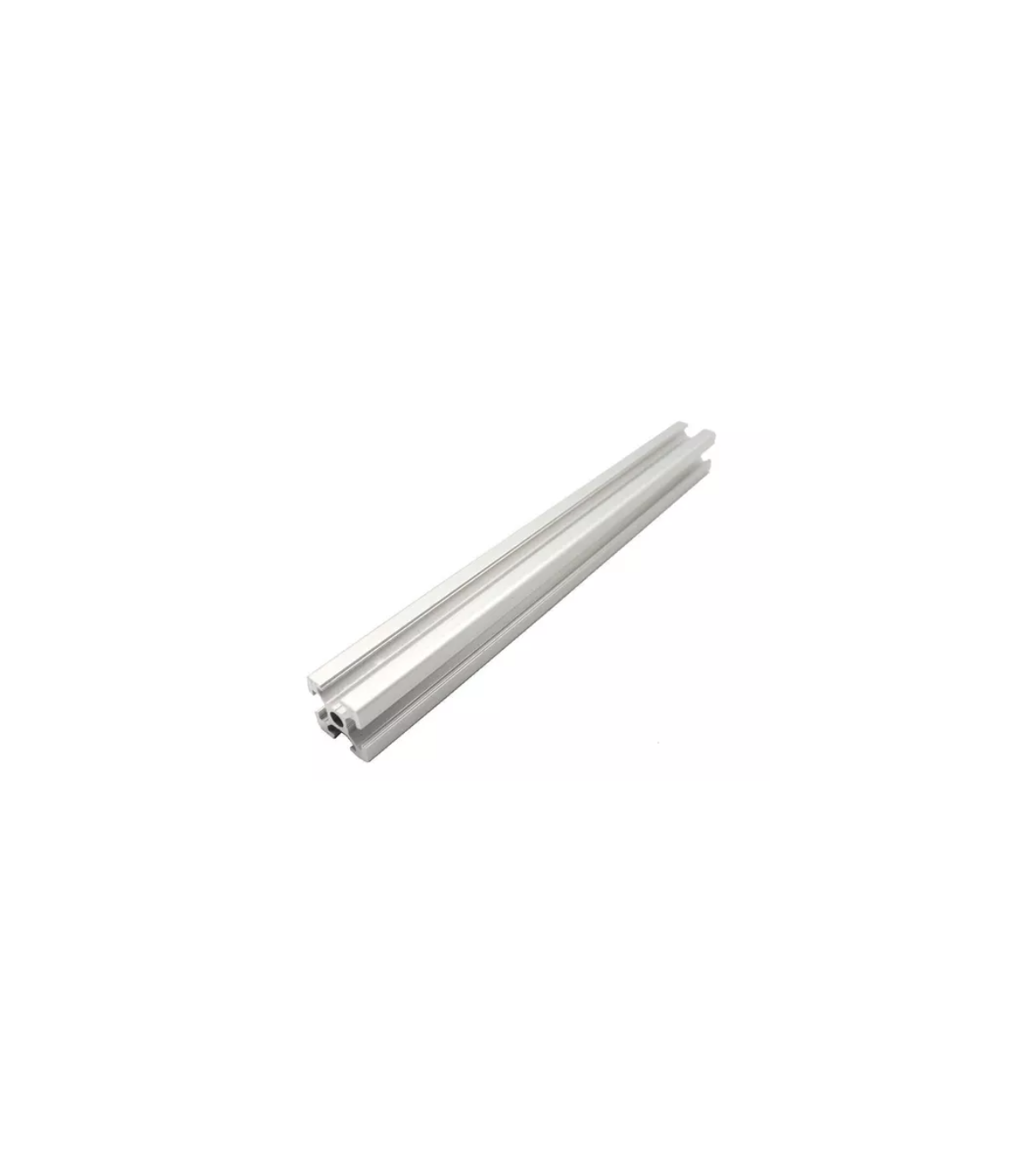

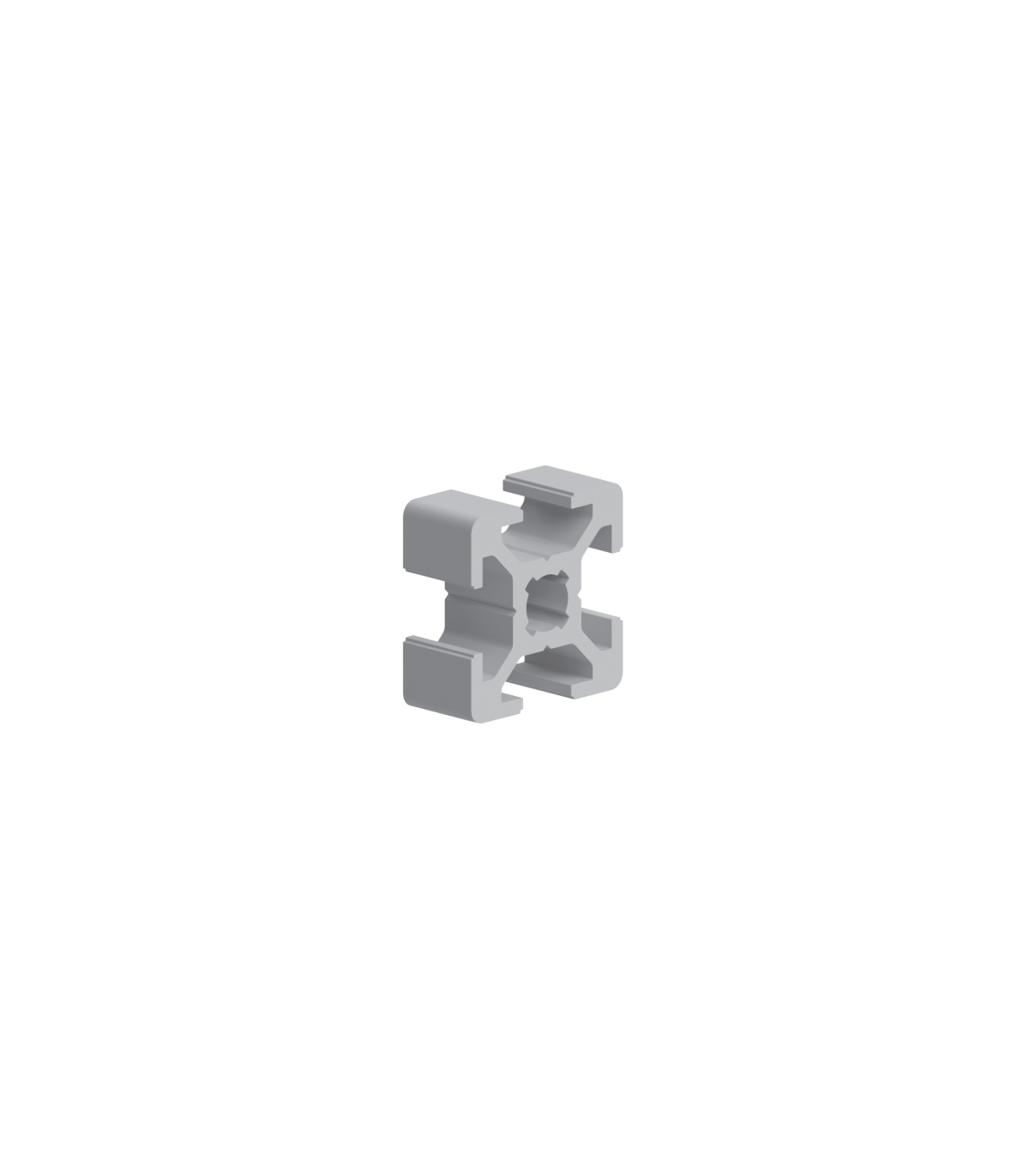

The 20x20 lightweight structural aluminum profile is an extruded aluminum piece with a square cross-section of 20 mm by 20 mm, designed to be lightweight while maintaining good strength.

Technical sheet:

  • 6 mm slot.
  • Anodized aluminum.
  • Fast construction.
  • Possibility of very flexible modification and expansion.
  • Finished surface and protected against corrosion.
  • Reusable components.
  • For all types of sectors and industries.
  • Cutting tolerance +-2mm.

Simply select the desired piece length and quantity. The final price shown includes the material and custom cutting.

Ask us about other items and the possibility of shipping assembled equipment.

For lengths over disumtec.com mm, please contact us at info@disumtec.com

€14.63 (tax included)
€12.09 (tax excl.)
SELECT PROFILE LENGTH AND QUANTITY
mm (Min 100mm; Max 2500mm)

Cutting included in the final price.

Reference:
7000
Description

20x20 lightweight structural aluminum profile

Property Worth

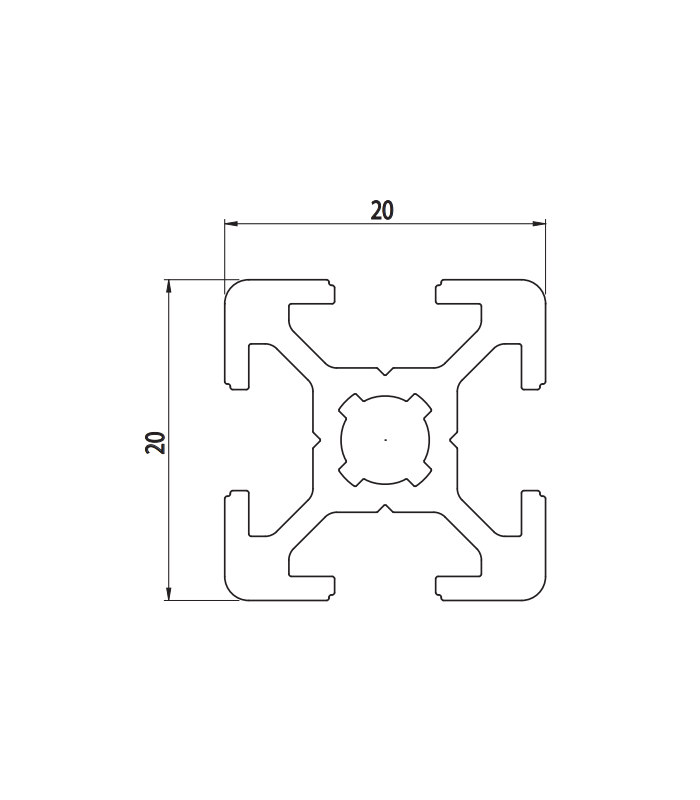

Section 20 x 20 mm
Guy Light structural profile
Material Anodized 6063 T-5 aluminum
Slot 6 mm
Available lengths from 100 mm to 2500 mm
Approx. weight. 0.45 kg/m
Tolerance ± 2 mm
Compatibility Bosch Rexroth, Item, Minitec
lx cm⁴ 0.67
ly cm⁴ 0.67
wx cm³ 0.67
wy cm³ 0.67
mm2 164.83

Product Details
7000
