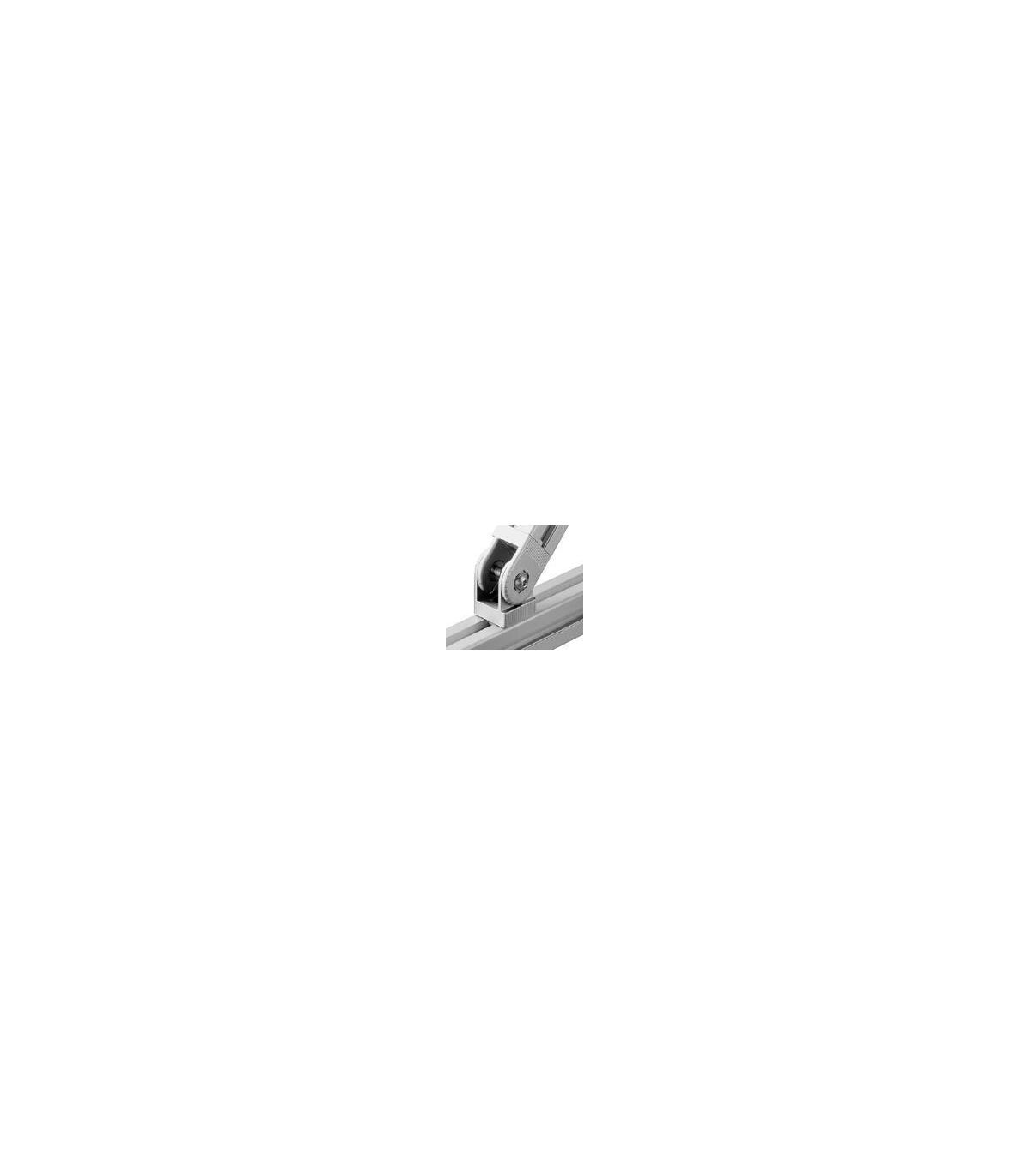

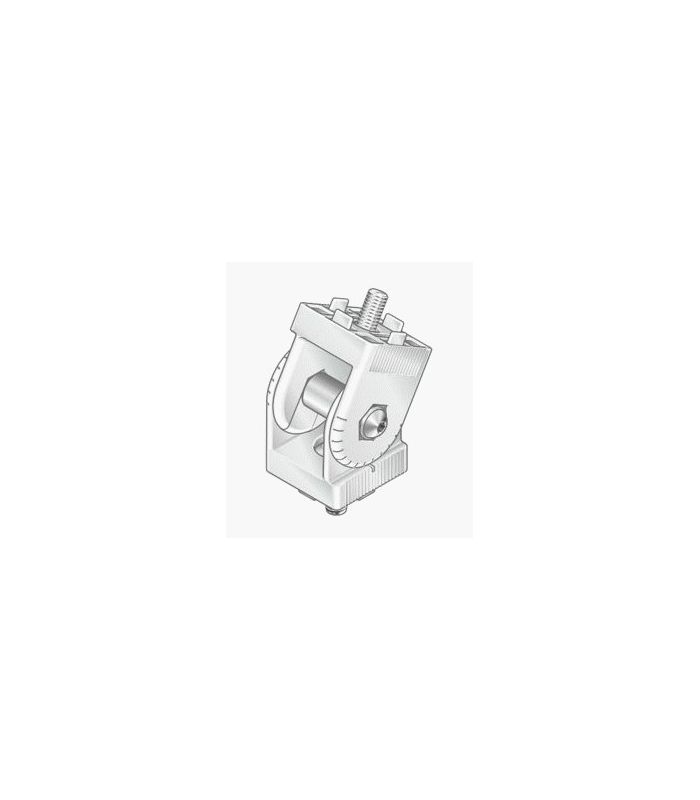

Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint
Lockable swivel joint

Lockable swivel joint

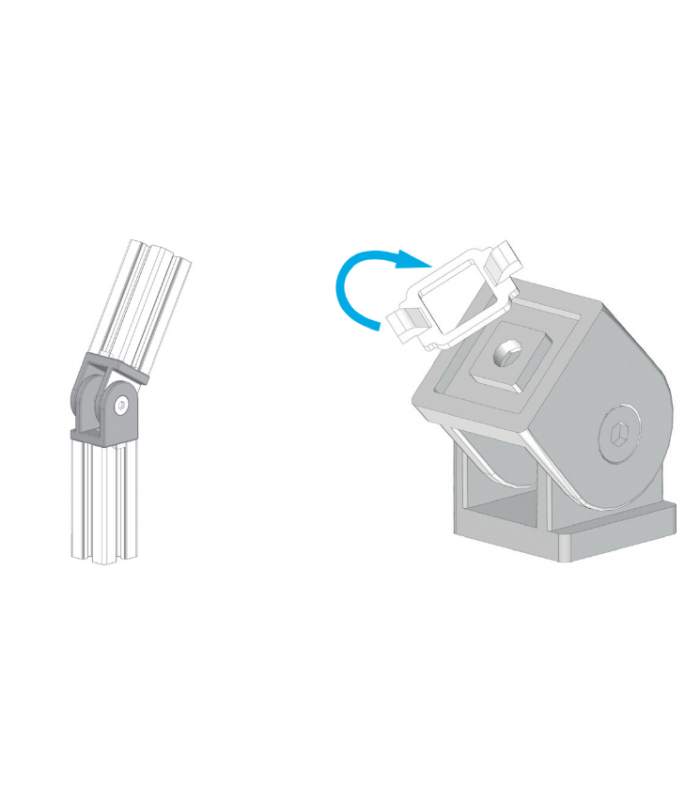

A lockable swivel joint is a type of joint that allows rotary movement in a single plane, but can be locked in place to prevent further movement. It is a common component in many types of machinery and equipment, including robots, mechanical arms, and material handling equipment.

Technical sheet:

  • 180º turning area
  • Auxiliary Graduation 15th
  • It does not require mechanization.
€28.31 (tax included)
€23.39 (tax excl.)
PROFILE MEASUREMENT
  • 30
  • 40
  • 45
Reference:
70220011
Description

Lockable swivel joint

ARTICULACION GIRATORIAARTICULACION GIRATORIA

ARTICULACION GIRATORIAARTICULACION GIRATORIA

Advantages of the lockable swivel joint

  • Allows for great mounting flexibility and field adjustment : the user can set the precise angle and lock it in place without the need for additional cutting.
  • Compatible with standard profiles.
  • Quality finish and locking mechanism that guarantees rigidity in the fixed position.
  • Ideal for quick modular assembly and subsequent adaptations.

Common applications

  • Construction of frames and racks in modular profiles where angle adjustment and fixation are required.
  • Light machine supports, safety guards, modular barriers.
  • Adjustable structures for prototyping, displays, technical furniture.
  • Angle joints in aluminium profiles that need to be reoriented and then fixed (e.g. articulated arms, inclined supports).
  • Light automation systems, adjustable platforms, workstations.
Product Details
70220011
