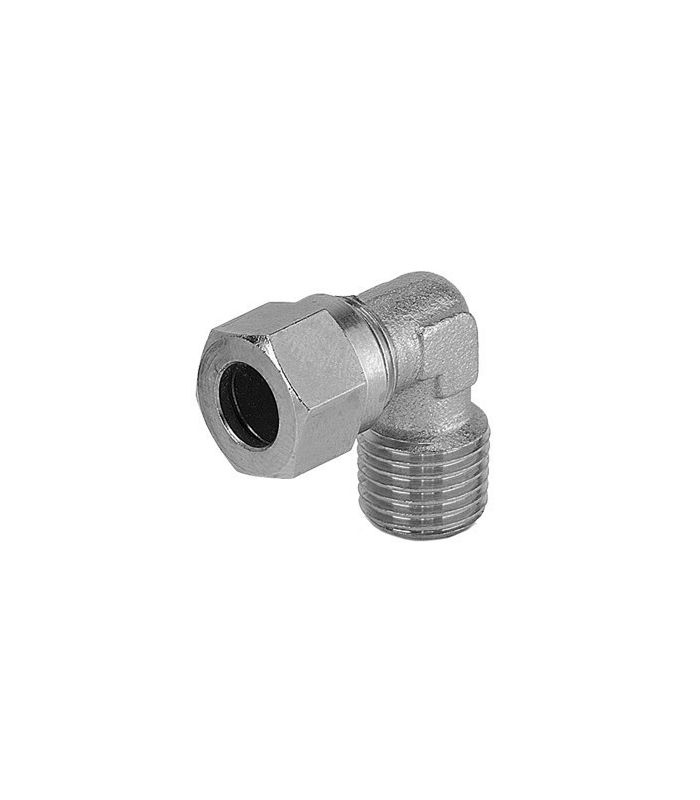

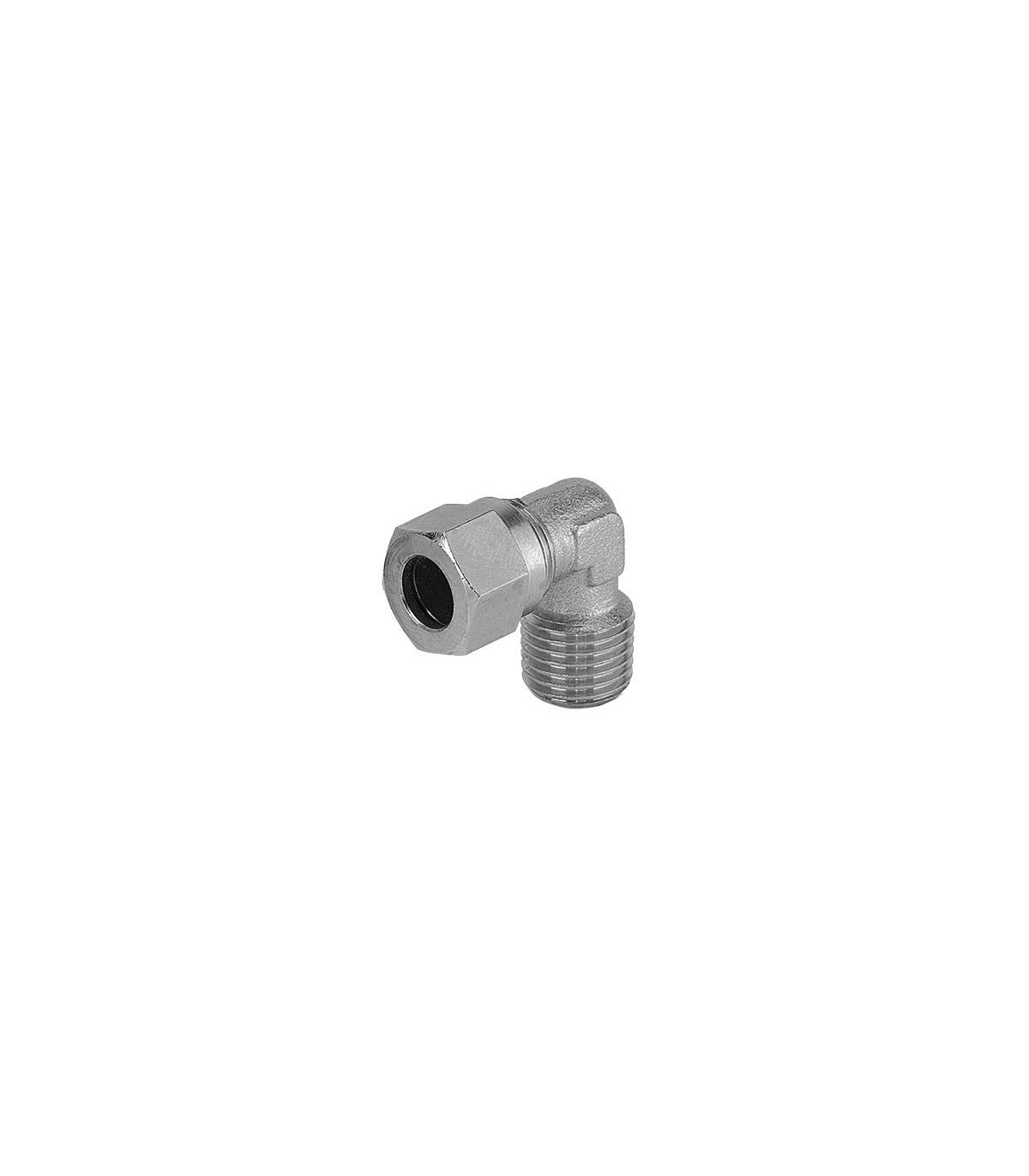

STAINLESS STEEL CONICAL THREAD TUBE ELBOW UNION
STAINLESS STEEL CONICAL THREAD TUBE ELBOW UNION
STAINLESS STEEL CONICAL THREAD TUBE ELBOW UNION
STAINLESS STEEL CONICAL THREAD TUBE ELBOW UNION

STAINLESS STEEL CONICAL THREAD TUBE ELBOW UNION

  • Minimum pressure 0.99 bar
  • Max pressure 100 bar.
  • Temperature -20ºC / 225ºC
  • Made of 316 stainless steel.
  • Conical gas thread conforming to ISO 7.1 BS21.DIN2999
€19.41 (tax included)
€16.04 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
185000111
Description

Stainless steel conical threaded pipe elbow union

A stainless steel tapered threaded elbow fitting allows for a secure connection between a pipe and a threaded element, redirecting the flow at 90°, maintaining a tight seal even under pressure and vibrations.

Technical specifications

  • 90° elbow joint
  • Pipe connection + tapered thread
  • Material: AISI 316 stainless steel
  • High sealing, achieved through a tapered thread and/or cutting ring
  • Excellent corrosion resistance
  • Standard: ISO 7-1

Applications

  • Hydraulic and pneumatic systems
  • Chemical and food industry
  • Water, oil or technical fluid installations
  • Industrial equipment and machinery
  • Marine or outdoor environments
Product Details
185000111
