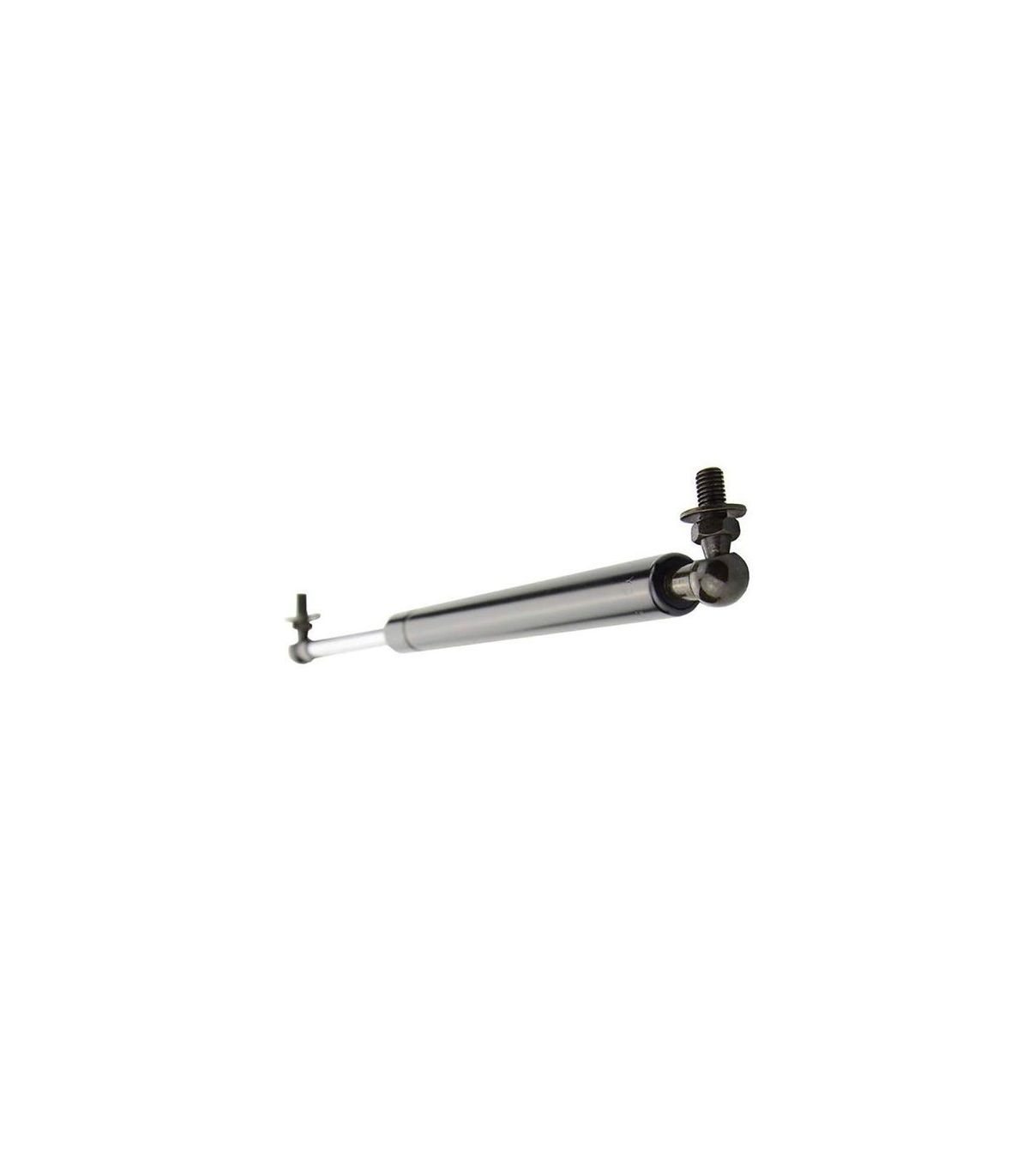

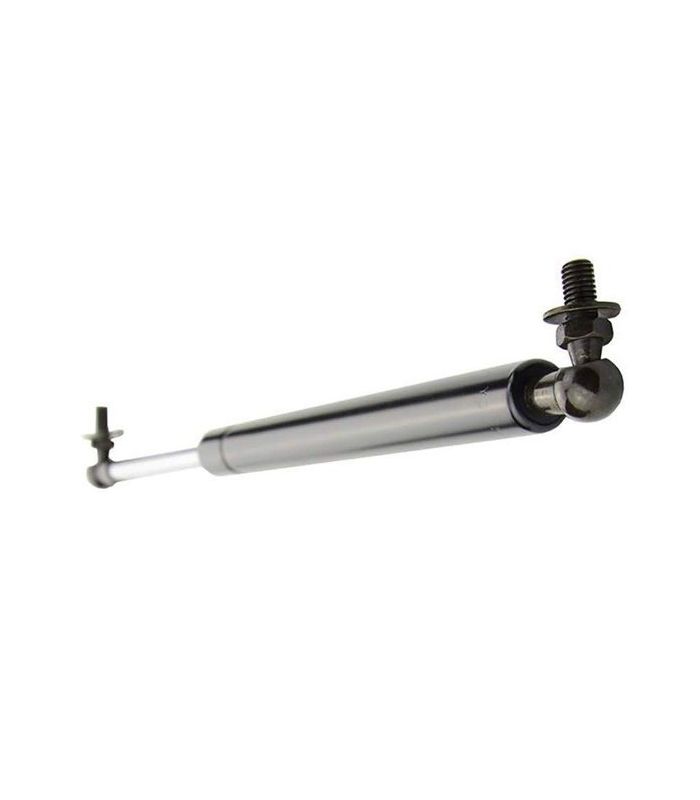

STABILUS LIFT O MAT SPRING 095648 250N

The STABILUS LIFT O MAT 095648 250N spring is used in all applications where a folding or rotating movement is required to securely hold items in their final position. These springs prevent the application's weight from being exerted without restraint on hinges or joints, thus protecting the material.

Technical specifications:

• Minimum friction values to achieve the lowest extraction forces
• Integrated grease chamber and sliding bearings
• Low starting power
• Mounting position: any
• Maintenance-free and ready to be assembled
• Temperatures: -20°C – +80°C
• Housing: coated with thermosetting powder (WM-G 8: brass)
• Piston rod: with ceramic coating (WM-G 8 - 40)
• Piston rod: hardened chrome plated (WM-G 70)
