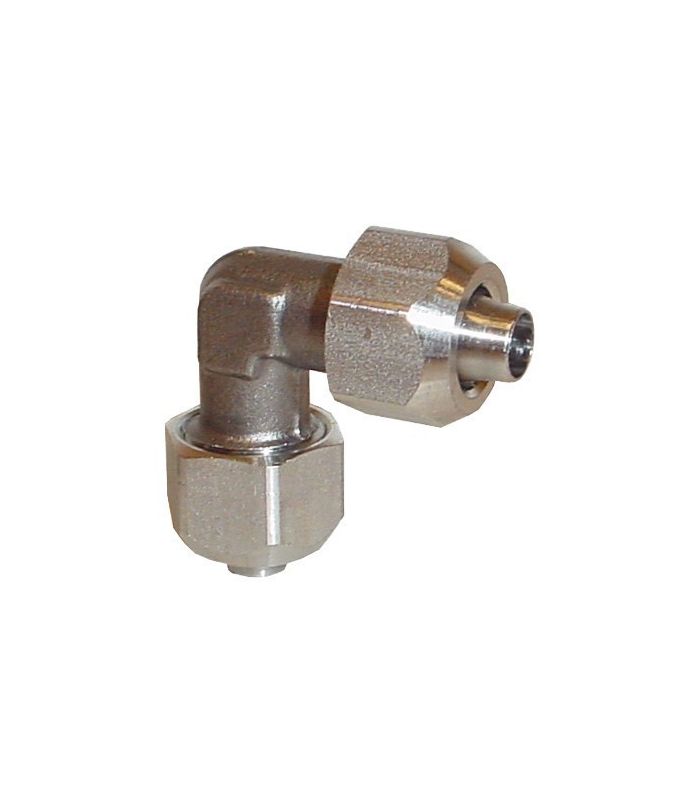

SEMI-QUICK CONNECTION STAINLESS STEEL PIPE ELBOW

SEMI-QUICK CONNECTION STAINLESS STEEL PIPE ELBOW

A semi-quick stainless steel elbow fitting is a type of fitting designed to connect two sections of pipe at a 90° angle. It requires no welding or complex pipe threading tools.

Applications: Instrumentation and control, chemical and petrochemical industry, laboratories, pneumatic braking systems.

Main features:

  • Made of INOX-316
  • Operating temperature -20ºC / 225ºC
  • Working pressure bar -0.99 / 20 bar
  • Tapered gas thread conforming to ISO 7.1 BS 21, DIN 2999
€29.60 (tax included)
€24.46 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
Reference:
180400041
Description

Semi-fast union elbow stainless steel pipe

A semi-fast stainless steel elbow fitting is a fitting designed to connect two pipes at a 90° angle , allowing for faster installation than traditional connections, without the need for complex processes, and guaranteeing high corrosion resistance.

Its advantage is that it combines speed of installation with the security of a robust mechanical connection, reducing assembly times without compromising performance.

Application sectors

Because they are secure but detachable connections, they are used in:

  • Instrumentation and control: Control panels where precision and cleanliness are required.
  • Chemical and petrochemical industry: Transport of aggressive fluids.
  • Laboratories: High purity gas lines.
  • Pneumatic braking systems: In heavy goods vehicles or railways
Product Details
180400041
