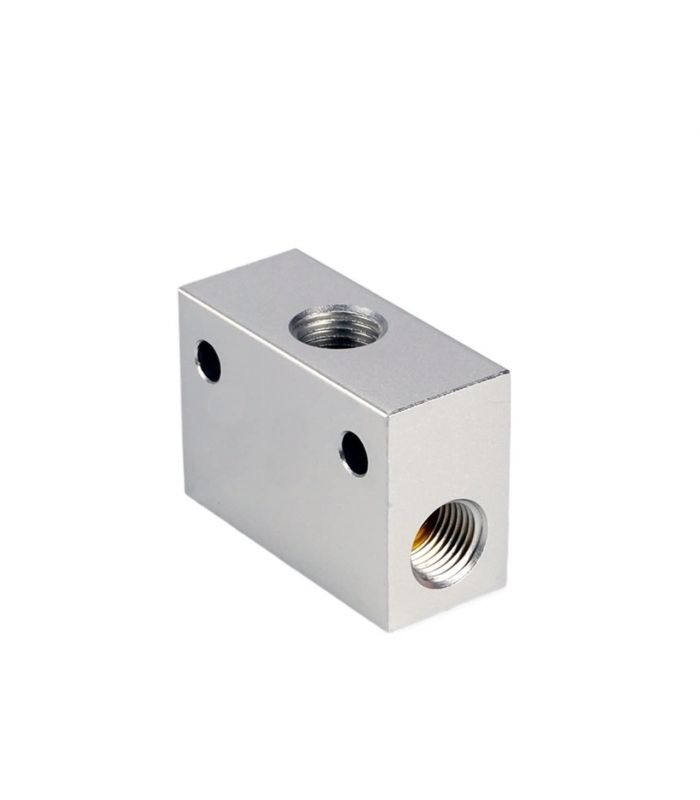

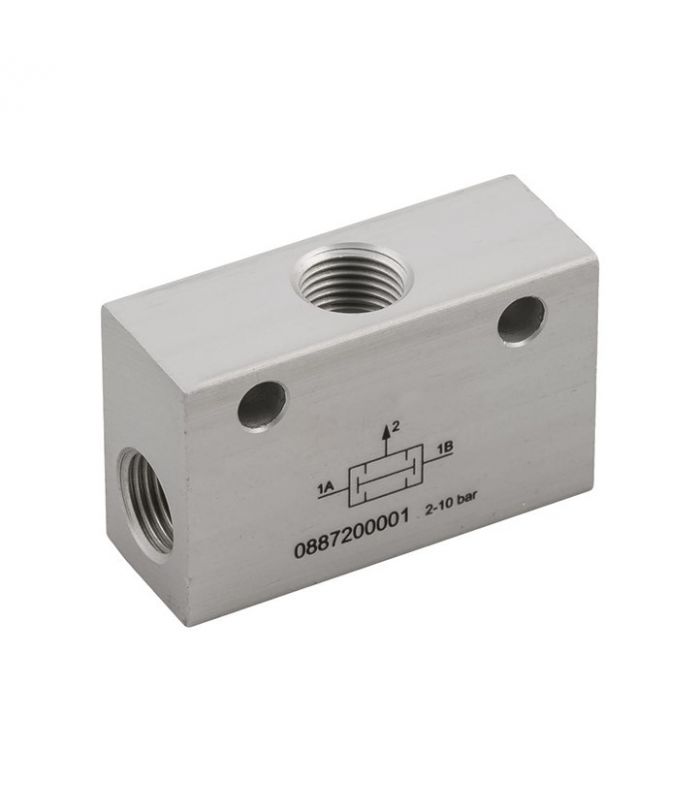

Simultaneity valve Y
It is a pneumatic component that allows the passage of a fluid (usually compressed air) to a common outlet only when there is flow in both inlets.
It consists of two inputs and one output.
Applications: machine tools, industrial automation, security systems.
Technical data sheet:
  • Thread-G1/8
  • nominal-2.5mm
  • Flow rate 6 bar with p 1 bar-100 Nl/min
  • Pressures-Minimum pressure: 2 bar
  • Maximum pressure: 10 bar (1 MPa)
  • Temperatures-Minimum temperature: -10 °C
  • Maximum temperature: +60 °C
  • Material-Aluminum body
  • Stainless steel spring
  • Board at NBR
  • Internal walls in brass
  • Compatible fluids-Compressed air
€16.72 (tax included)
€13.82 (tax excl.)
SELECT THE THREAD
  • 1/8"
Reference:
15060004
Description
Simultaneity valve Y

Product Details
15060004
Comments
12 other products in the same category:
WAFER DISC CAST IRON BUTTERFLY VALVE

€48.00 (tax excl.)
€58.08 (tax included)
The cast iron wafer disc butterfly valve has the function of regulating the passage of liquids or gases through a pipe. Applications: Drinking and wastewater systems, Chemical and petrochemical industry, Food...
POLYAMIDE SPRAYER

€60.00 (tax excl.)
€72.60 (tax included)
A polyamide sprayer acts as a venturi, together with pressurized air, projecting the liquid and creating a mist, with the ability to regulate the flow rate it produces. Applications: Gardening and agriculture,...
1/8" VALVE KNOB HANDLE

€22.43 (tax excl.)
€27.14 (tax included)
The 1/8" knob valve is used to control the flow of compressed air manually using a knob or handle that is turned to open or close the air flow. Applications: Industrial automation, Medical equipment, Robotics and...
SINGLE CONTACT 1/8"

€25.00 (tax excl.)
€30.25 (tax included)
Single contact 1/8" This is a small, specialized electrical connector for quickly and securely connecting cables or conductors with a diameter of 1/8 inch. Its compact design allows it to be used in tight spaces. It...
SAFETY VALVE WITHOUT TARE 1/8" ADJUSTABLE 13-18 BAR

€5.50 (tax excl.)
€6.66 (tax included)
A 1/8" adjustable 13-18 bar safety valve without set point automatically releases the pressure of a system when it exceeds a preset and adjustable value between 13 and 18 bar. Applications: Pneumatic systems,...
BALL VALVE FOR PIPE

€5.76 (tax excl.)
€6.97 (tax included)
A pipe ball valve is specifically designed to be installed directly into a piping system (rigid pipes) using a compression fitting. Its function is to completely open or close the flow of water by rotating a...
1/4" VALVE 90º LEVER

€35.05 (tax excl.)
€42.41 (tax included)
A 1/4" 90º lever valve is designed to control the flow of compressed air manually using a 90º turning lever. Applications: Industrial automation, Medical equipment, Robotics and Instrumentation. Technical data sheet:...

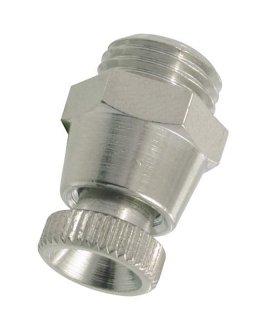

MANUAL PURGE
