QUICK FEMALE MULTI-PRESS PLUG
QUICK FEMALE MULTI-PRESS PLUG
QUICK FEMALE MULTI-PRESS PLUG
QUICK FEMALE MULTI-PRESS PLUG

QUICK FEMALE MULTI-PRESS PLUG

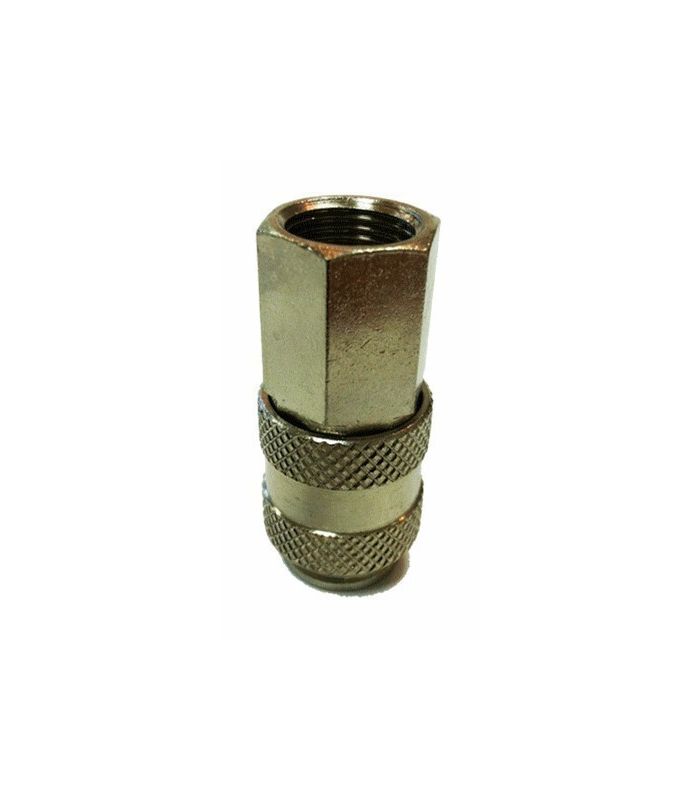

Multi-plug female quick connector

It is a connector designed to facilitate the quick connection and disconnection of different types of adapters in pneumatic or fluid systems.

Applications: Automotive industry, Industrial pneumatics, Air treatment, Laboratories.

Technical data sheet:

  • Universal quick connector, adaptable to various profiles.
  • Nickel-plated steel body.
  • Spring, stainless steel balls.
  • Interchangeable with RECTUS 22-23-24-26, CEJN 300-310-320, PARKER 30-50, ARO 210.
  • Working temperature -15ºC / 80ºC
  • Max. pressure 16 bar.
  • DN-5.5 mm
  • High air flow.
€5.81 (tax included)
€4.80 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
Reference:
13010005
Description

Multi-plug female quick connector

Product Details
13010005

Data sheet

PLUG TYPE
Universal
