PA-12 POLYAMIDE PIPE (25 Mt)
PA-12 POLYAMIDE PIPE (25 Mt)
PA-12 POLYAMIDE PIPE (25 Mt)
PA-12 POLYAMIDE PIPE (25 Mt)
PA-12 POLYAMIDE PIPE (25 Mt)
PA-12 POLYAMIDE PIPE (25 Mt)

PA-12 POLYAMIDE PIPE (25 Mt)

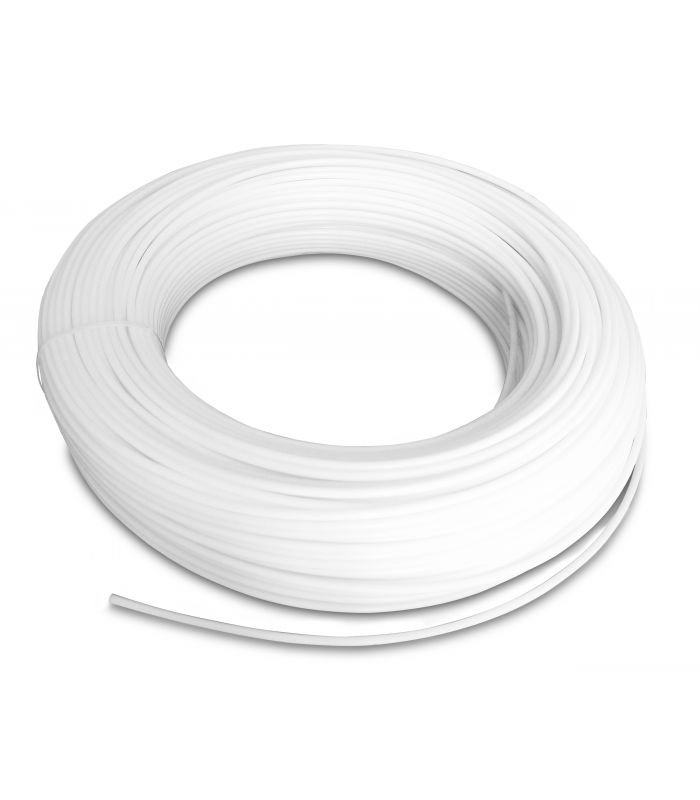

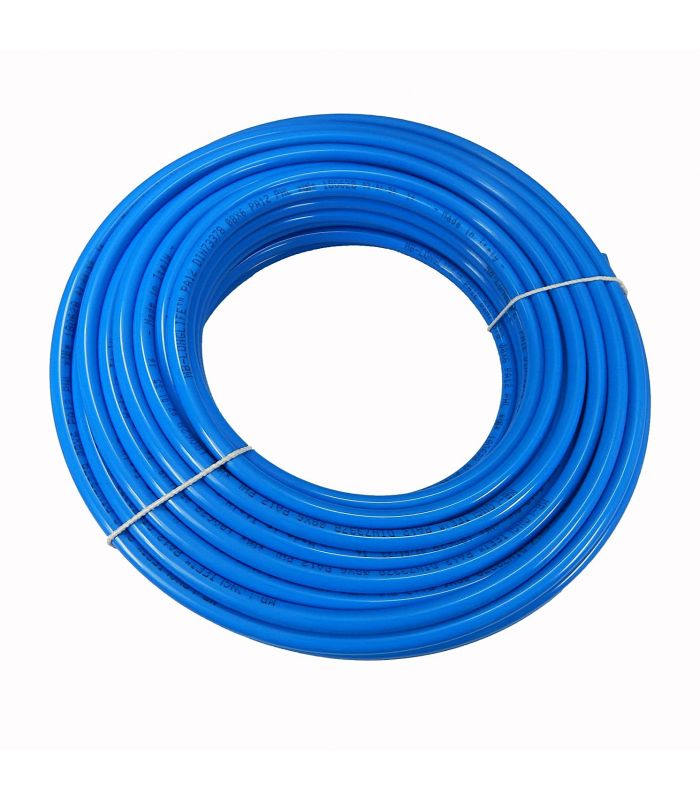

PA-12 Polyamide Tube (25 m)

A 25-meter PA-12 polyamide tube offers excellent mechanical and chemical properties. It is also resistant to moisture and humid environments.

Applications: Pneumatic industry, Food industry, Chemical industry, Automotive, Medical applications.

Technical specifications:

  • High mechanical resistance.
  • Temperature: -40ºC to +100ºC.
  • High resistance to chemical agents.
  • Electrical and thermal insulator.
  • Low water absorption.
  • Silicone-free
  • Vibration absorption

It is supplied in a 25m roll.

€10.89 (tax included)
€9.00 (tax excl.)
Ø TUBE
  • Ø 4x2
  • Ø 6x4
  • Ø 8x6
  • Ø 10x8
  • Ø 12x10
CHOOSE MODEL/COLOR
  • BLUE
  • NATURAL
Reference:
200011
Description

PA-12 Polyamide Tube (25 m)

PA-12 polyamide tubing combines good toughness, low moisture absorption, chemical resistance, and good dimensional stability. It is supplied in 25-meter rolls for use in pneumatics, brake/air systems, fuel and lubricant transport, instrumentation, and industrial applications.

Technical data sheet for the PA-12 polyamide tube:

Code Internal diameter (mm) External diameter (mm) Breakage (20ºC) Working pressure 20ºC minimum radius of curve (mm)
20001 2 4 133 44 15
20002 4 6 80 27 35
20003 6 8 57 19 40
20004 8 10 44 15 60
20005 10 12 36 12 85

Common uses

  • Pneumatic and control lines in automation.
  • Brake/air hoses in heavy vehicles (when compliant with applicable DIN standards).
  • Handling of fuels, oils and lubricants in industrial facilities/vehicles (according to grade).
  • Instrumentation systems
Product Details
200011
Comments
12 other products in the same category:
POLYURETHANE TUBE 98SH (25 Mt)

€12.91 (tax excl.)
€15.63 (tax included)
Polyurethane tube 98SH (25mt) Technical data sheet: Very flexible tube Quality 98 SH-A. Excellent elastic properties, even at low temperatures. Excellent chemical resistance. Good abrasion resistance. Good thermal...
Ø 4 TUBE FIXING FLANGE

€0.25 (tax excl.)
€0.30 (tax included)
Clamping flange for Ø4 tube Made of passivated zinc-plated steel BN176 Precise, solid and robust fastening. Available from 1 to 6 tubes.
DEKABON TUBE (SYNFLEX) 75mt

€118.58 (tax excl.)
€143.48 (tax included)
Dekabon tube (synflex) 75mt It is a pipe composed of multiple layers. Common applications: Instrumentation, Food industry, Industrial automation, Construction. Technical data sheet: Polyethylene / aluminum composite...
REINFORCED CLAMP W2

€1.21 (tax excl.)
€1.46 (tax included)
Reinforced clamp W2 A reinforced W2 clamp is a fastener designed for high-pressure and heavy-duty applications. Thanks to its screw, it ensures a firm grip, vibration resistance, and durability. Applications:...

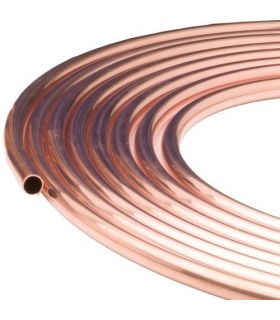

COPPER TUBE (50 Mt)

€225.00 (tax excl.)
€272.25 (tax included)
Copper tube (50 mt) Ideal for heating, cooling and electrical conduction systems. Can be easily soldered to create watertight connections. Applications: Sanitary installations, Heating systems, Air conditioning,...
TEFLON (PTFE) TUBE (25 Mt)

€63.00 (tax excl.)
€76.23 (tax included)
The Teflon (PTFE) tube (25 mt) is a cylindrical conduit made of polytetrafluoroethylene, a synthetic fluoropolymer known for its exceptional chemical and thermal resistance and its non-stick properties. Applications:...
SILICONE TUBE (50 Mt)

€39.75 (tax excl.)
€48.10 (tax included)
Silicone tube (50 mt) It offers high resistance to extreme temperatures, chemicals and atmospheric agents. They are widely used in a variety of industrial, medical and domestic applications due to their unique...
DOUBLE BRIDGE CLAMP W2

€12.36 (tax excl.)
€14.95 (tax included)
The W2 double bridge clamp is a fastening element designed to securely hold hoses, pipes and conduits in industrial installations. Applications: Air conditioning, ventilation and extraction systems. Main features: 430...
ANTISTATIC POLYAMIDE TUBE

€20.63 (tax excl.)
€24.96 (tax included)
Antistatic polyamide tube Applications: General pneumatics and vacuum applications. Can be used in the electronic component production sector, in areas with risk of explosion, mining industry, for coating and...
POLYURETHANE TUBE 98SH (100 Mt)

€46.80 (tax excl.)
€56.63 (tax included)
Polyurethane tube 98SH (100mt) Technical data sheet: Very flexible tube. Quality 98 SH-A. Excellent elastic properties, even at low temperatures. Excellent chemical resistance. Good abrasion resistance. Good thermal...

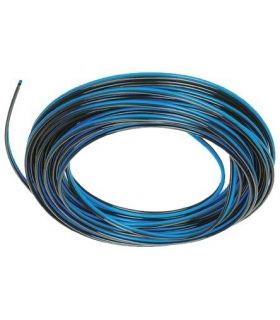

POLYURETHANE BITUBE (25 Mt)
