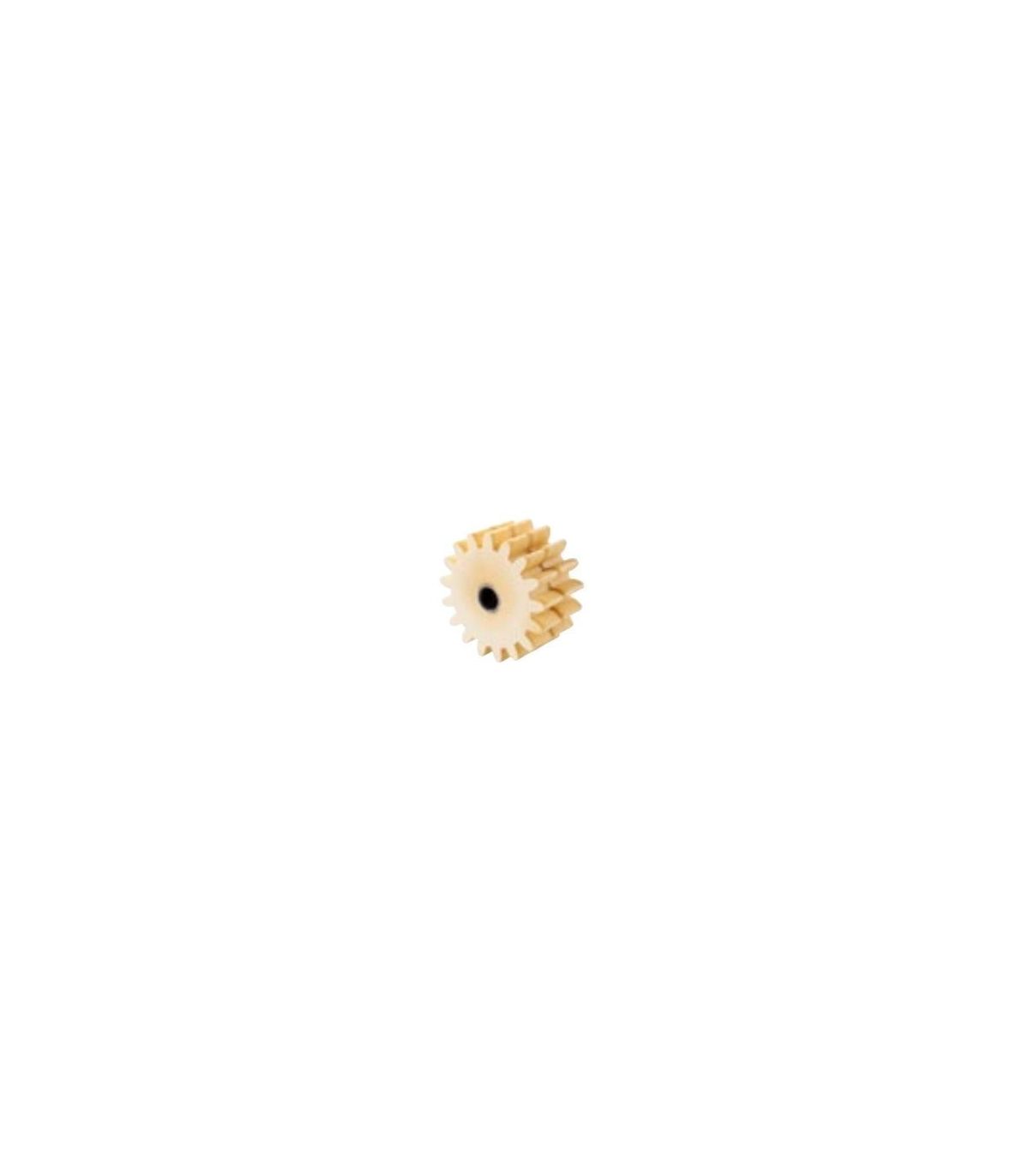

LAT-SZ-G STRAIGHT LUBRICATION SPROCKET

• Lubrication sprocket.
• Made of polyurethane foam (open cell)
• Temperature -30ºC / 150ºC
• Max surface speed 5 m/s.
• Density 240 kg/m³
• Suitable for Lubricationand oil.
• To select the module, take measurement.

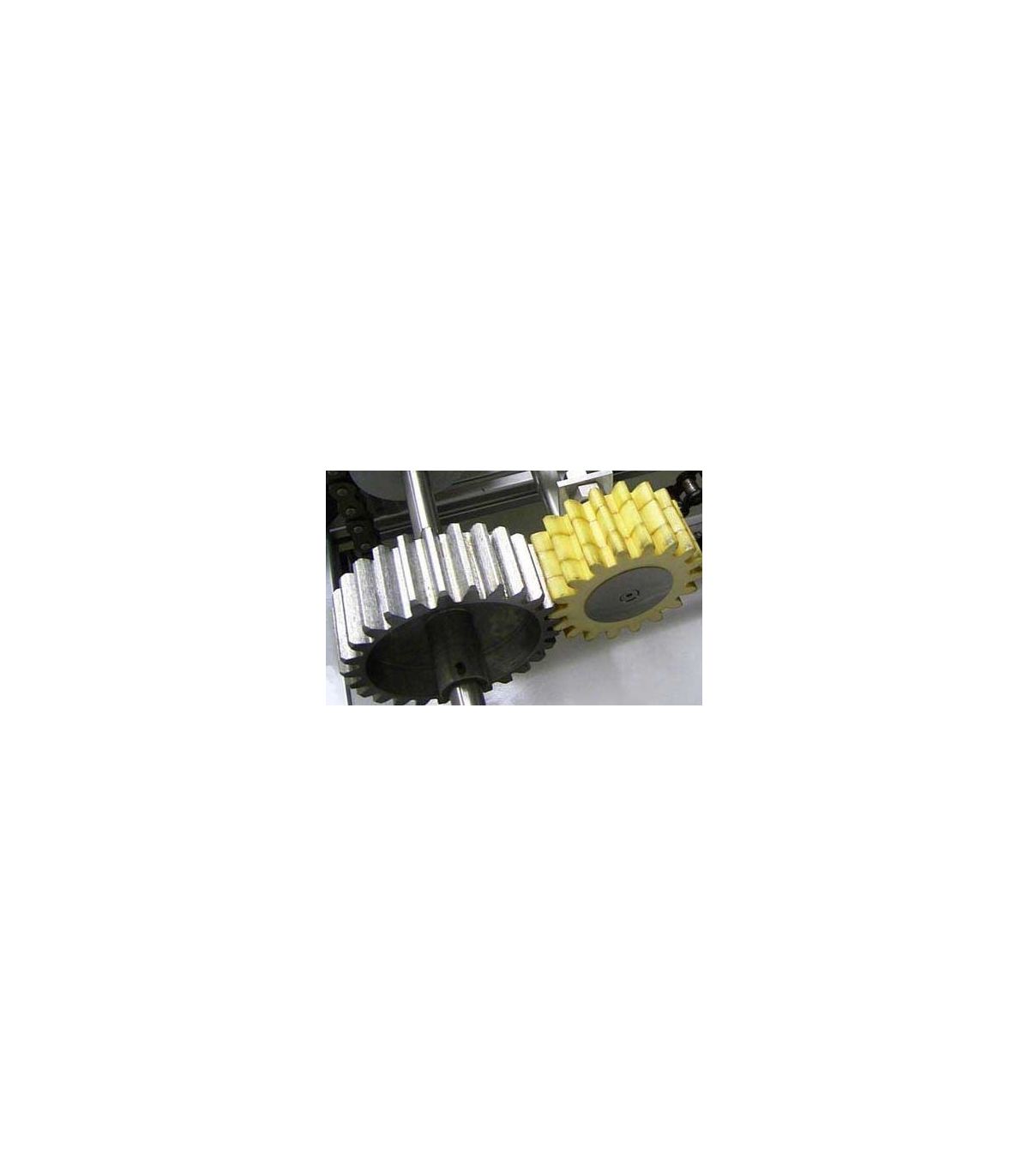

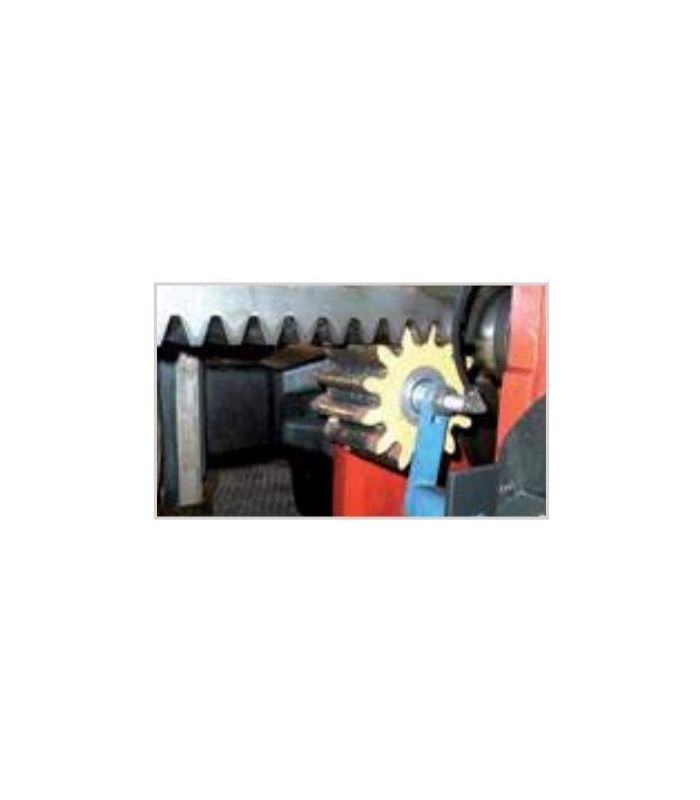

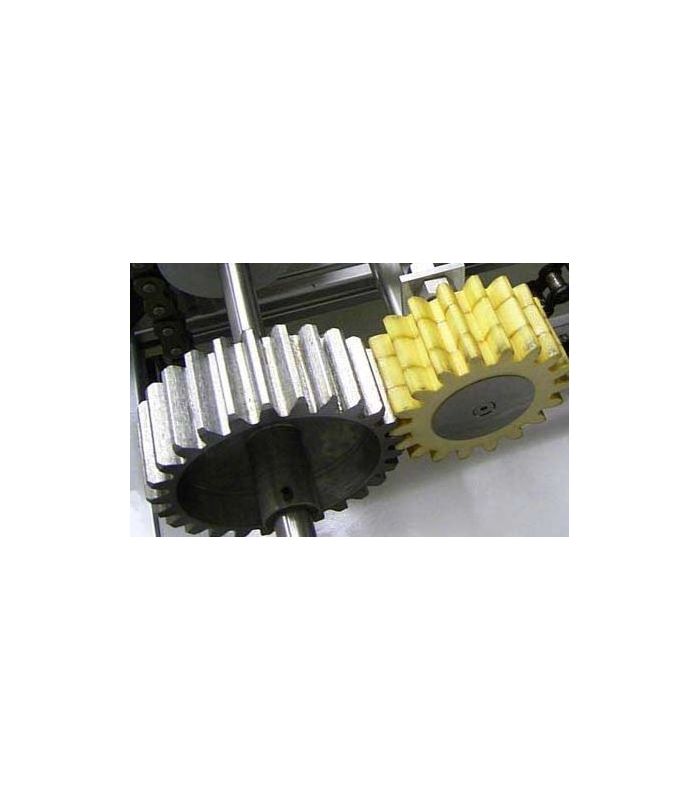

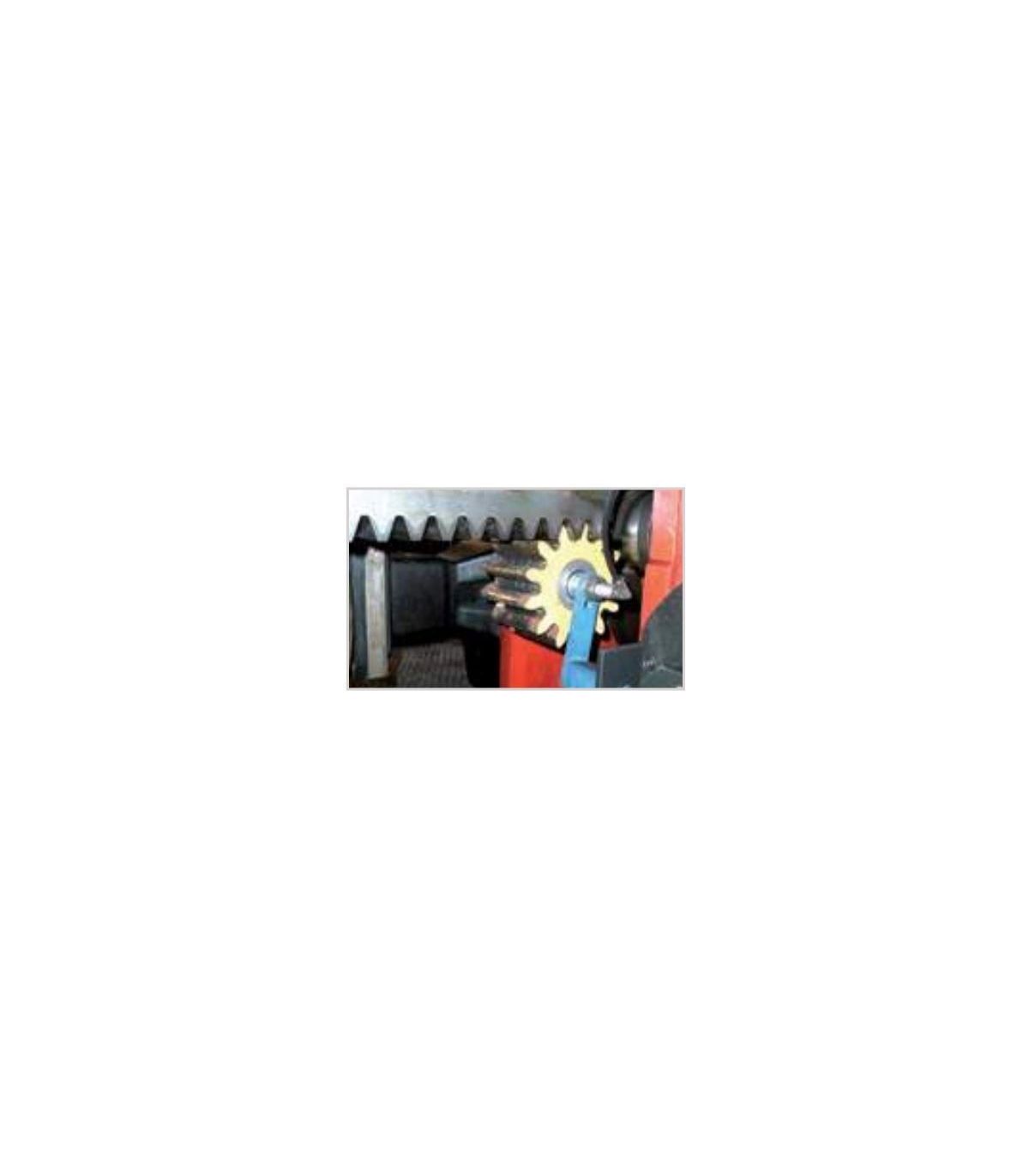

With the Lubricus lubrication sprocket, an optimal tooth supply is guaranteed over long periods. The lubricant is supplied variably through the Lubricus lubrication system.

The lubricant enters through the shaft and the corresponding holes in the foam material. With minimal contact pressure, the stored lubricant is released again. The PU (open cell) foam material used stores the lubricant and expels it in minute quantities. This prevents both overdose and wear due to insufficient lubrication.
The wheels are available with both straight teeth and right diagonal/left diagonal. (module 2-30). From a width of 20 mm, the sprocket consists of several segments.
For lubrication sprockets we have different fixing axles. Depending on the installation or supply of the lubricant, straight or right-angled axles can be applied.
