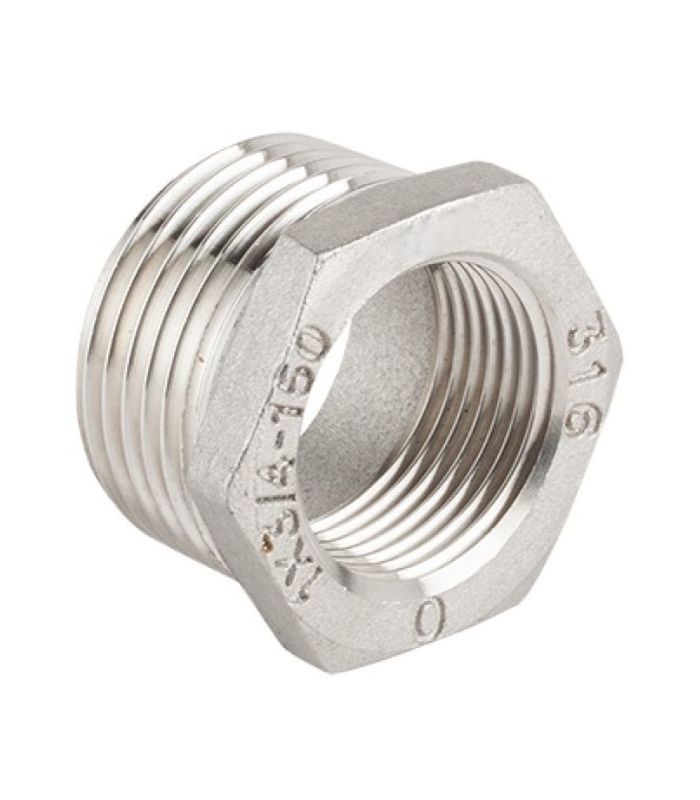

FIG. 241 MALE-FEMALE REDUCER 316 STAINLESS STEEL NPT THREAD

FIG. 241 MALE-FEMALE REDUCER 316 STAINLESS STEEL NPT THREAD

A Fig. 241 316 stainless steel male-female NPT reducer is a threaded fitting used to join two pipes or tubes of the same material but different diameters, creating a reduction in flow rate. It consists of a conical piece with a male thread at one end and a female thread at the other end, with an internal diameter decreasing along the piece.

Typical applications include the food and pharmaceutical industries, chemical industries, oil and gas industries, water treatment, irrigation and sprinkler systems.

Technical sheet:

  • Stainless steel fitting NPT thread 20 bar
  • Stainless Steel Microfusion A-316
  • Dimensions according to ISO-4144 standard
  • Manufactured according to UNE EN 10213-4
  • ANSI B 2.1 NPT thread
  • Temperature -20 / 220ºC
€1.83 (tax included)
€1.51 (tax excl.)

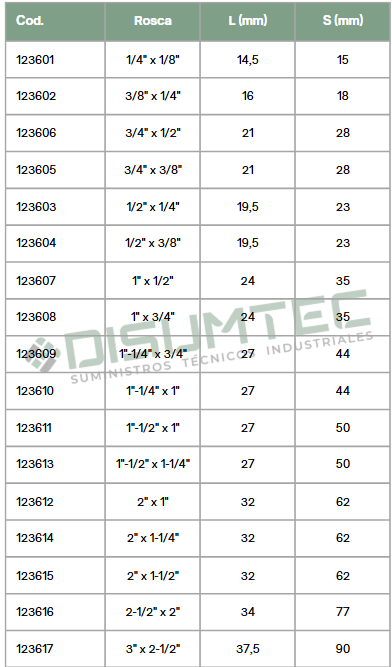

SELECT THE THREAD
  • 1/4"-1/8"
  • 3/8"-1/4"
  • 3/4"-1/2"
  • 3/4"-3/8"
  • 1/2"-1/4"
  • 1/2"-3/8"
  • 1"-1/2"
  • 1"-3/4"
  • 1-1/4"-3/4"
  • 1-1/4"-1"
  • 1-1/2"-1"
  • 1-1/2" - 1-1/4"
  • twenty-one"
  • 2" - 1-1/4"
  • 2" - 1-1/2"
  • 2-1/2" - 2"
  • 3" - 2-1/2"
Reference:
123601
Description

Fig. 241 Male-female reduction 316 stainless steel NPT thread

Product Details
123601
Comments
