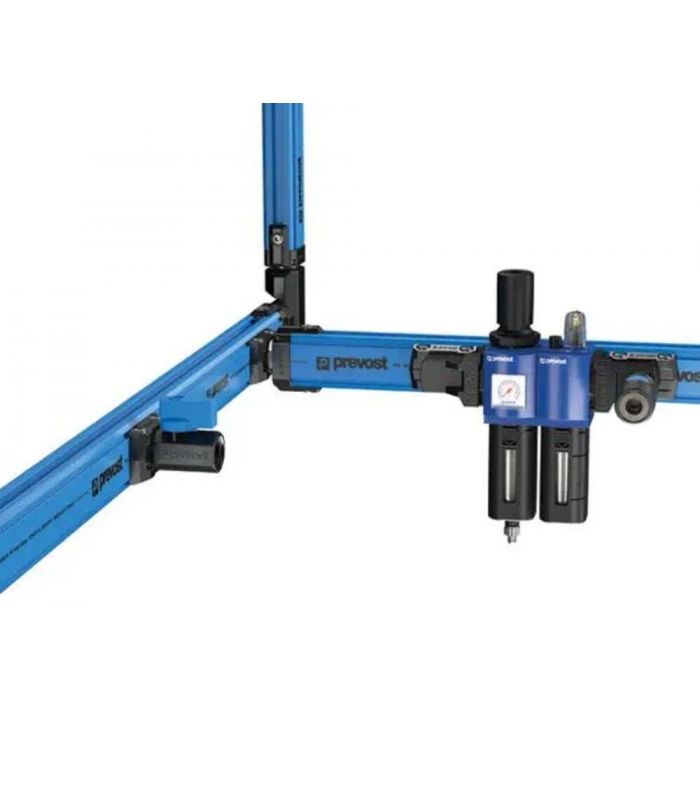

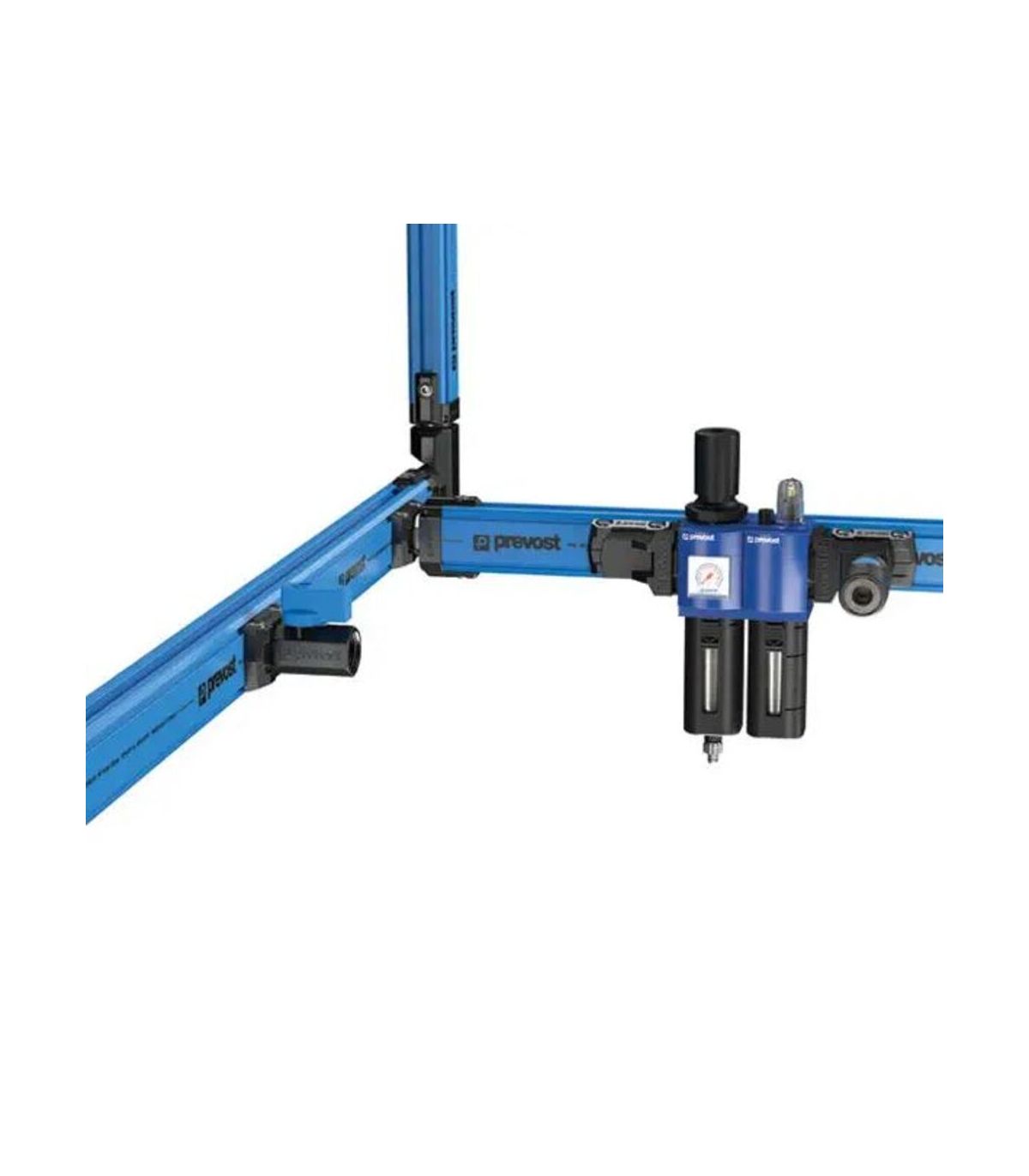

FLANGE WITH OUTLET F/R PREVOST PPS ATUSQ PROFILE

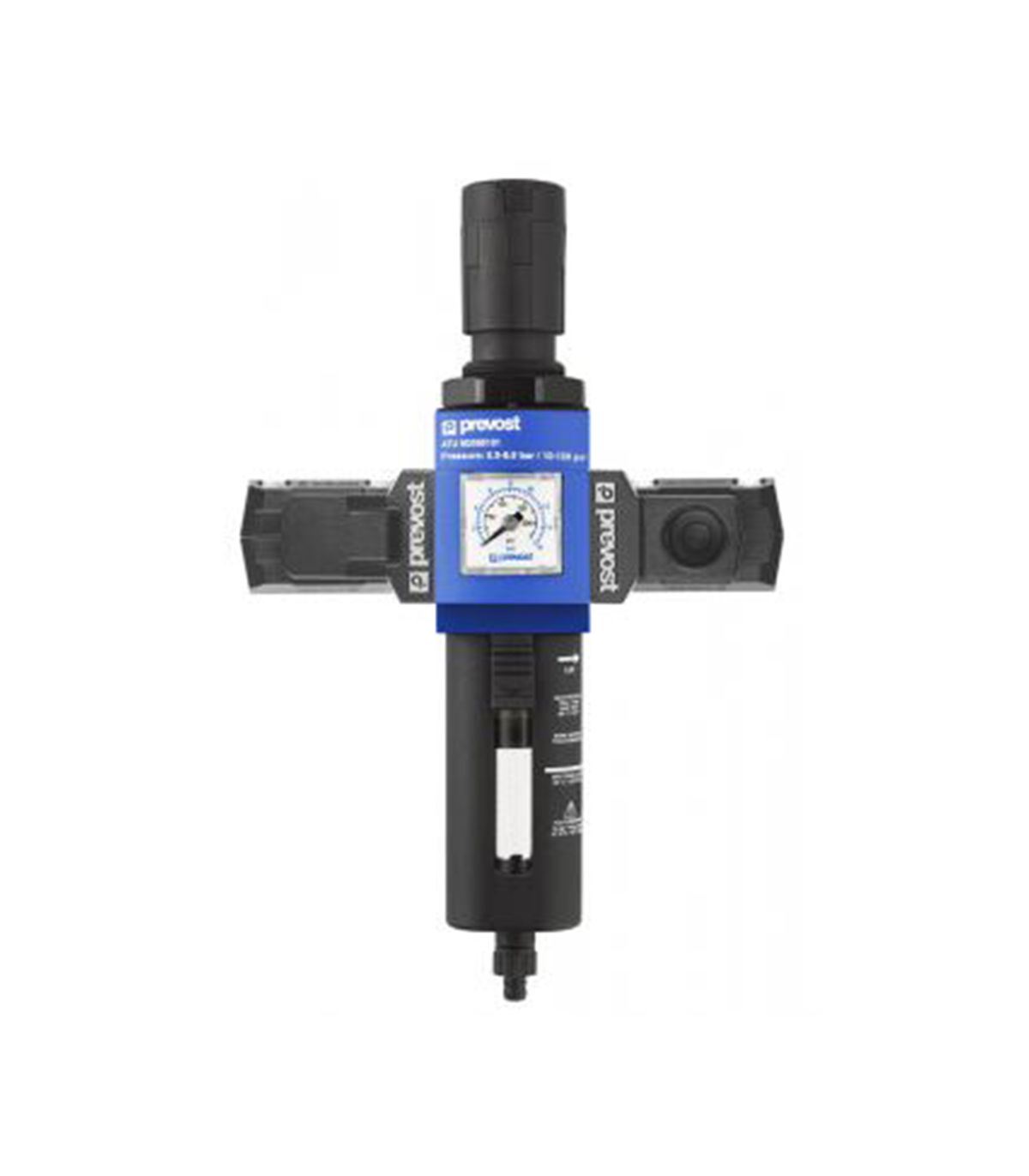

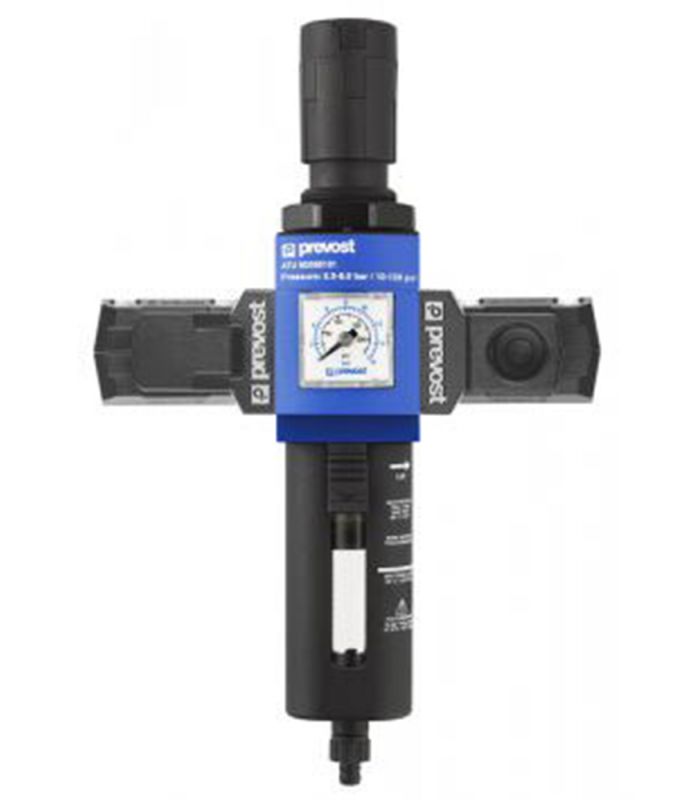

OUTLET Flange WITH FILTER/REGULATOR 1/2" for PREVOST PPS ATUSQ profile

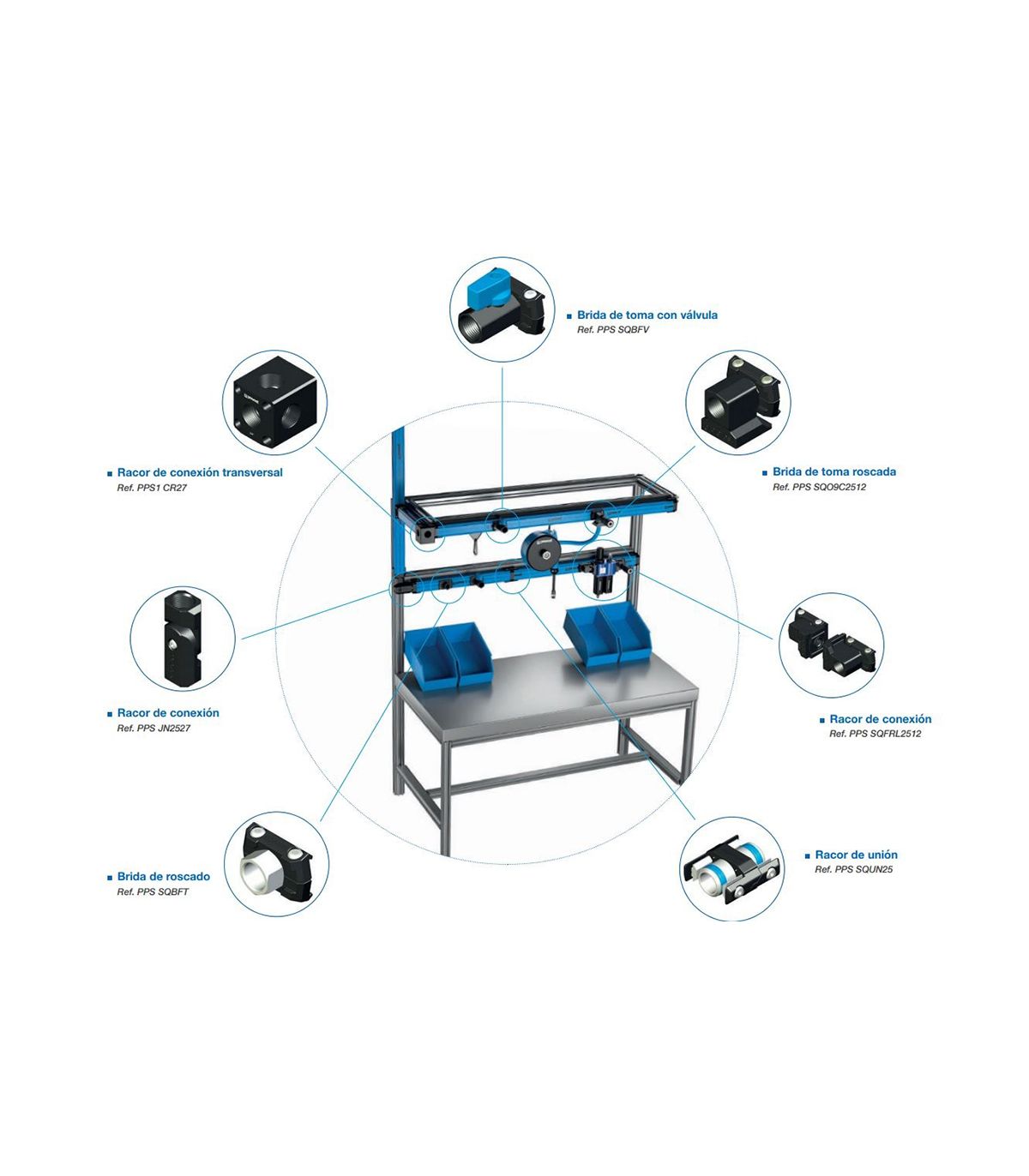

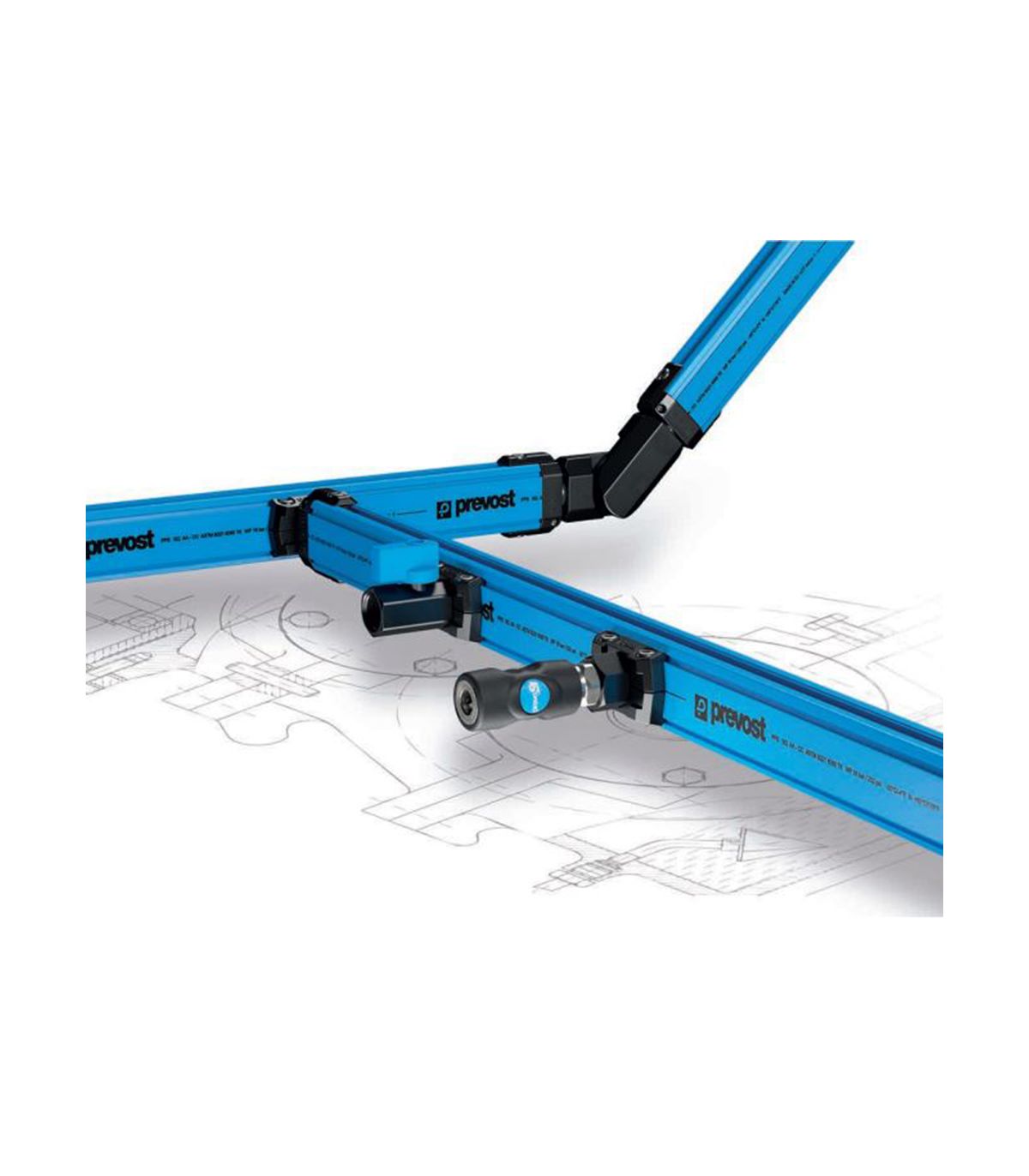

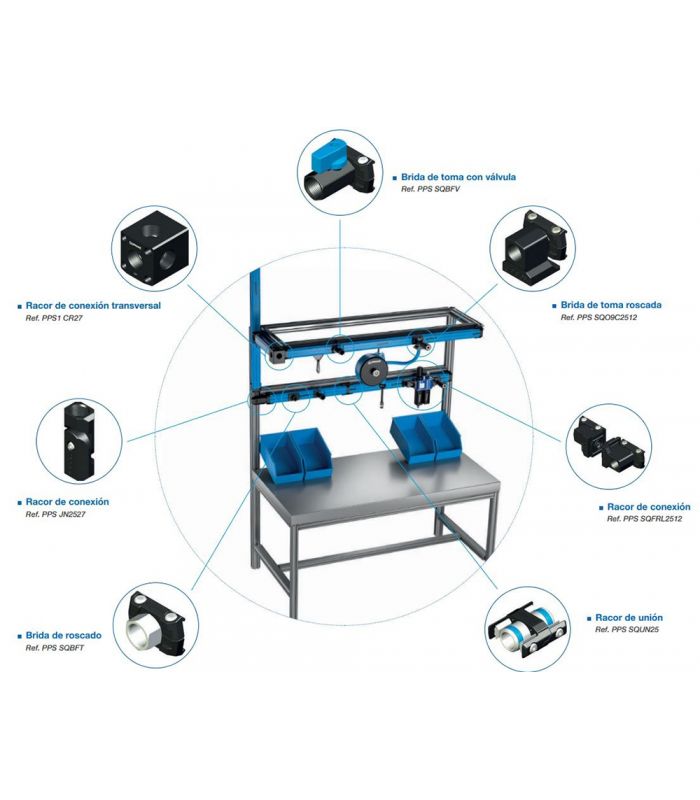

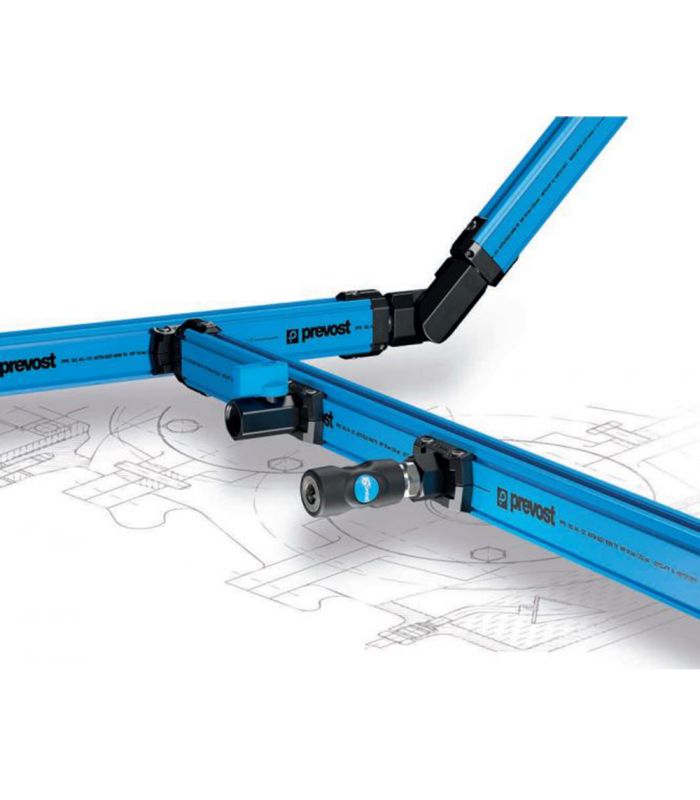

The Prevost PPS (prevost piping system) range is a concept of Ø25 bars made of 100% aluminum for the installation of compressed air; compact, light and resistant, on assembly benches or positions where there is a structural profile installation.

These jobs are well-fed, accessible and ergonomic. The installation is sustainable, modular and can be easily upgraded or modified. Retrench of space.

• Integrated pressure gauge.
• Complies with Atex 1-2 (gas) 21-22 (dust) regulations
• 1/2" female thread outlet
• Filtration degree 25 microns.
• Supplied with the PPS profile fixing flanges
• A sealed air network, guaranteed tightness and optimized air flow.
• Always clean and quality air.
• It can be mounted on any structural aluminum profile on the market, 8 mm slot.
• Working pressure of 0.8/ 12 bar. Temperature 5ºC / 50ºC
• Consult different fully configurable options.

The products are validated and certified by TÜV - They comply with the QUALICOAT requirements, the REACH standard, the standard for fire classification of products and construction elements (EN 13501-1)

CERTIFICATES
