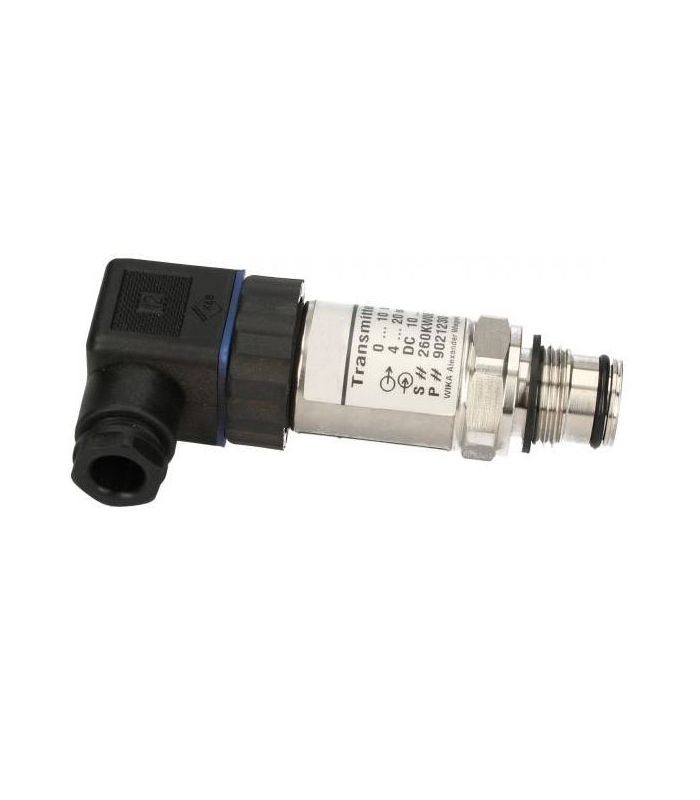

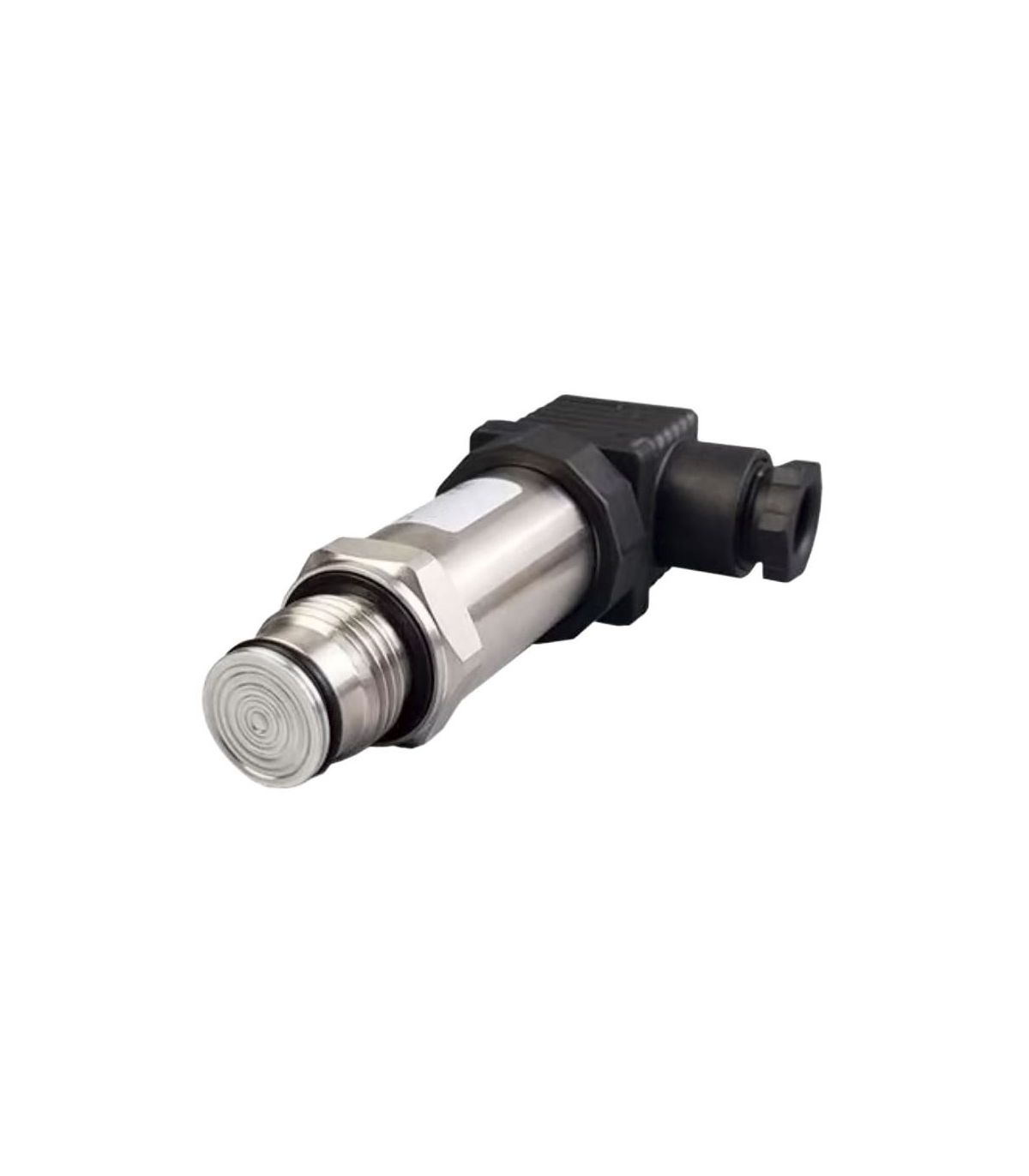

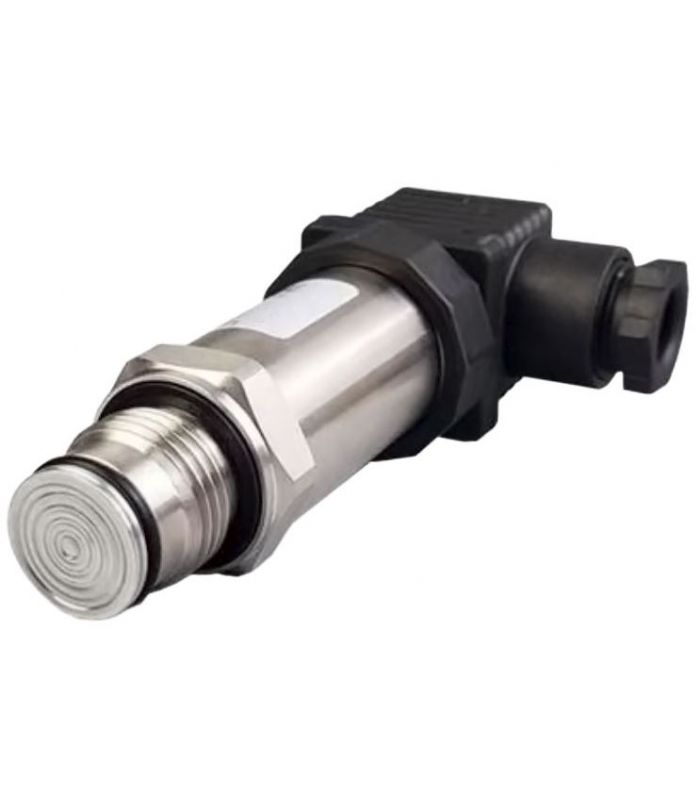

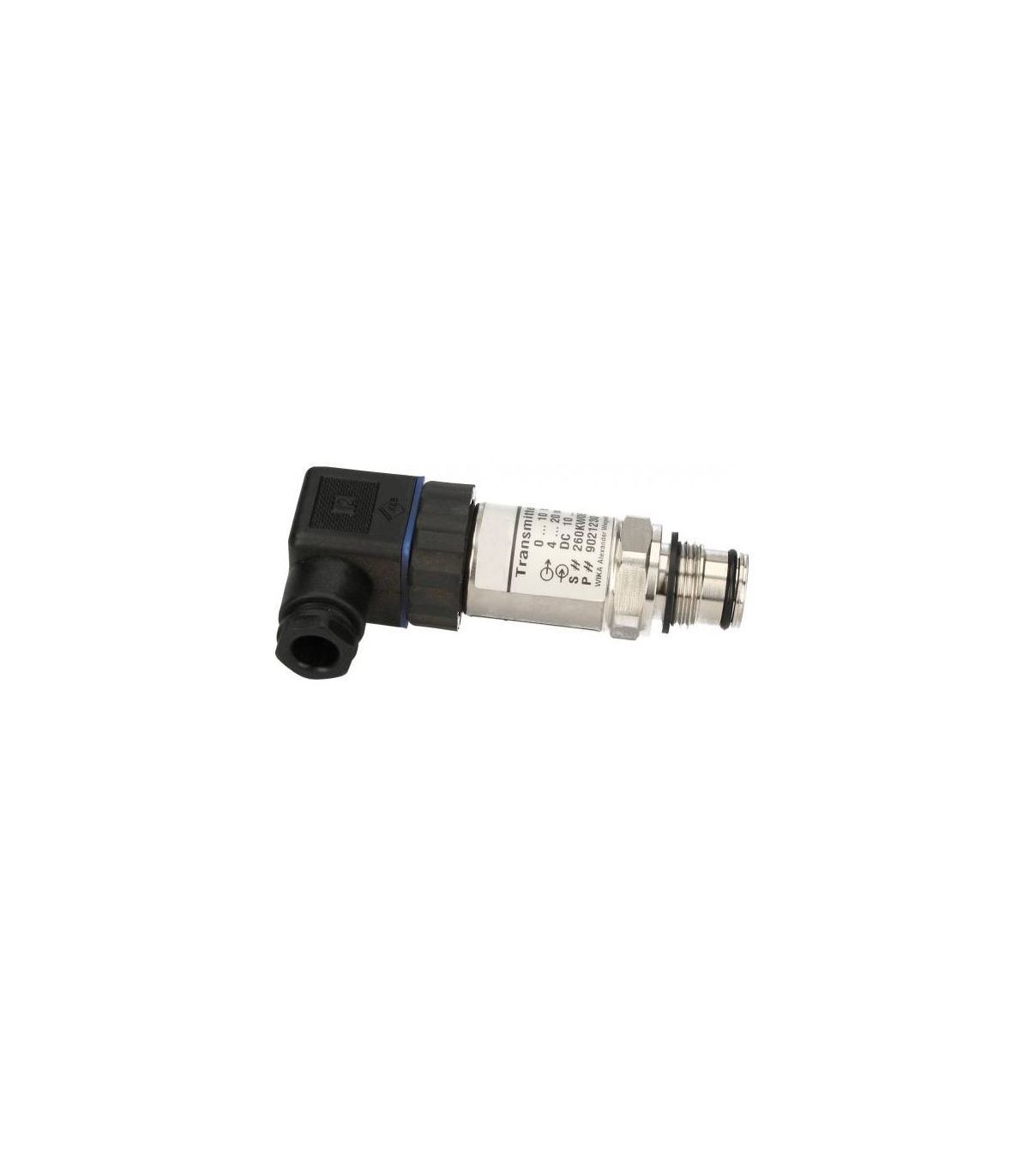

FLUSH DIAPHRAGM PRESSURE TRANSMITTER
FLUSH DIAPHRAGM PRESSURE TRANSMITTER
FLUSH DIAPHRAGM PRESSURE TRANSMITTER
FLUSH DIAPHRAGM PRESSURE TRANSMITTER

FLUSH DIAPHRAGM PRESSURE TRANSMITTER

The pressure transmitter with a flush diaphragm consists of an OEM sensor housed in a stainless steel casing, providing excellent resistance in gaseous or liquid environments. It is ideal for use in highly viscous media containing impurities.

Applications: Food and pharmaceutical industry, Chemical and petrochemical industry, Wastewater treatment.

Technical specifications:

  • Accuracy +/- 0.5% of full scale.
  • Thermal compensation 0..50ºC
  • 4-20 mA DC 2-wire output signal
  • Endurance
  • 12-48 VDC power supply
  • Electrical connection with DIN-43650 connector
  • IP-65 protection
  • 1/2" male thread
  • Permissible temperature -20 / 80ºC
  • Maximum humidity 95% RH
  • Body, membrane and connection made of stainless steel. Gasket made of Viton.

CHECK DELIVERY TIME

€193.60 (tax included)
€160.00 (tax excl.)
PRESSURE
  • 1.6 Bar
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
  • 16 Bar
  • 25 Bar
  • 40 Bar
  • 100 Bar
Reference:
1534000
Description

Pressure transmitter with floating diaphragm

Product Details
1534000
