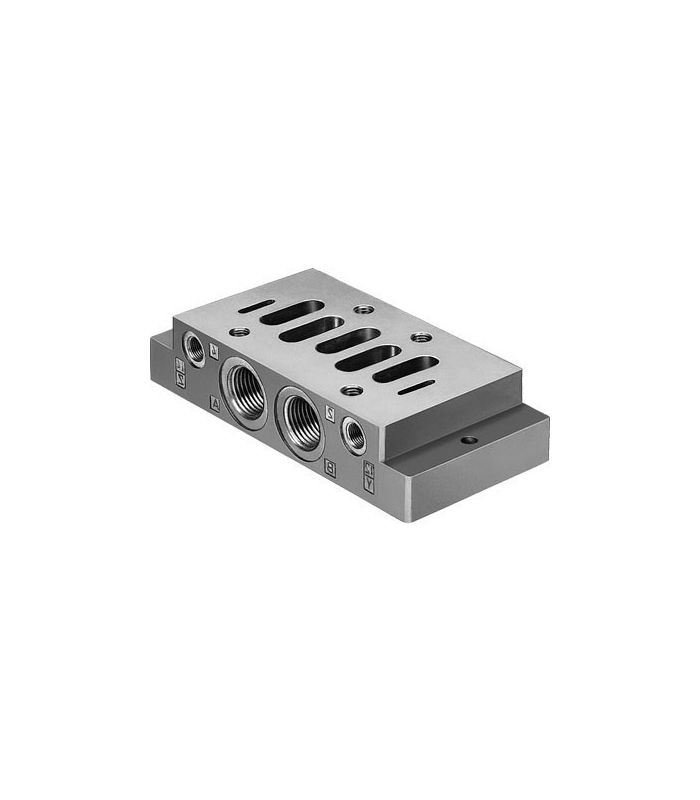

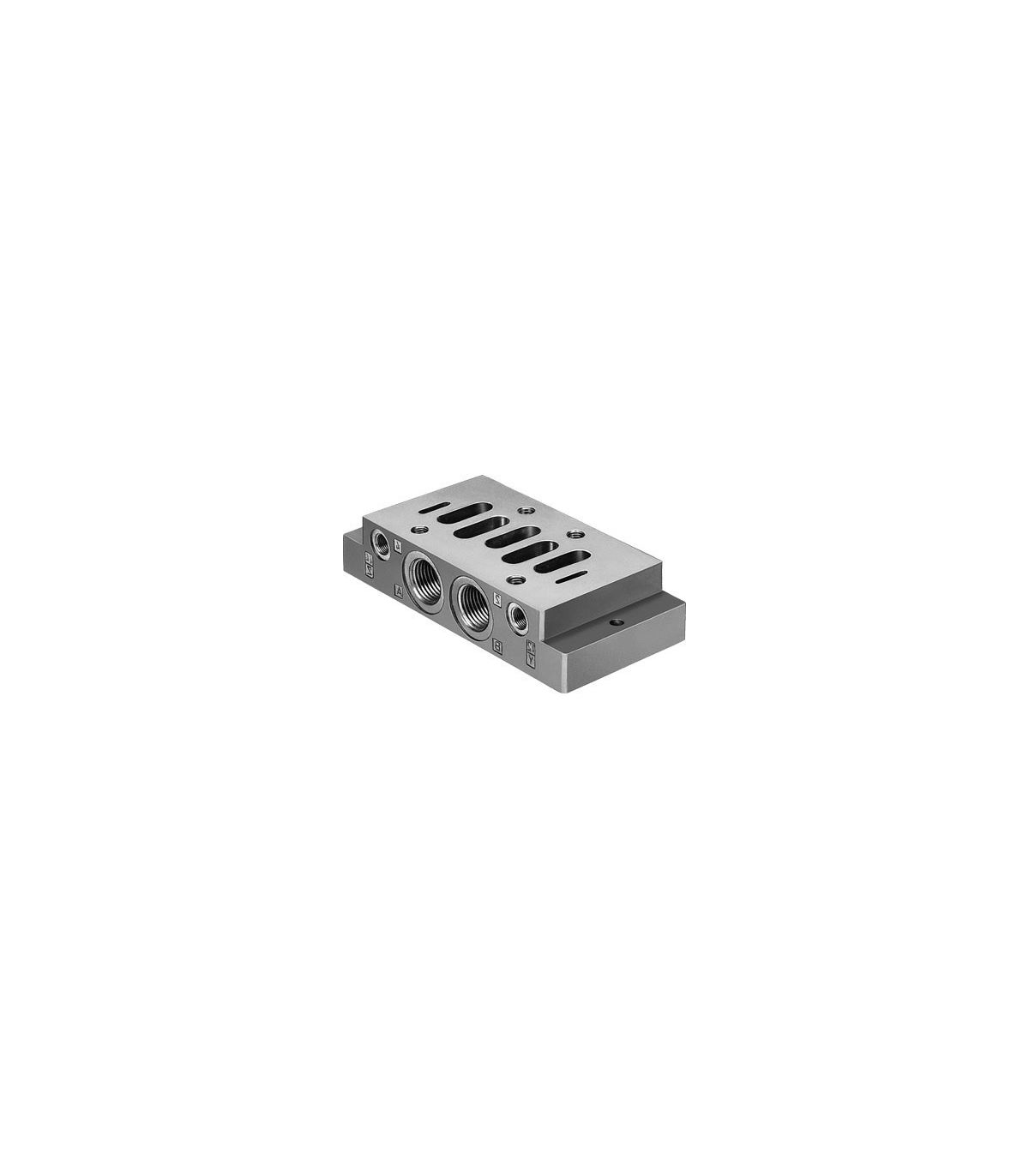

ISO IV SINGLE BASE PLATE

A simple ISO IV base plate provides a standardized mounting surface and port connections for an ISO 5599-1 size IV pneumatic manifold. It allows for connection of air supply lines, actuator outlets, and valve exhausts.

Application in industrial pneumatic systems.

Technical sheet:

Compliance with ISO 5599-1 (Size IV)
Made of aluminum.
3/4" inlet and outlet threads, 1/8" pilot

€75.72 (tax included)

€62.58 (tax excl.)

Reference:

5187

Description
Comments

Description

Simple ISO IV motherboard

PLACA BASE ISO IV SIMPLE

Product Details

Reference 5187

Comments
