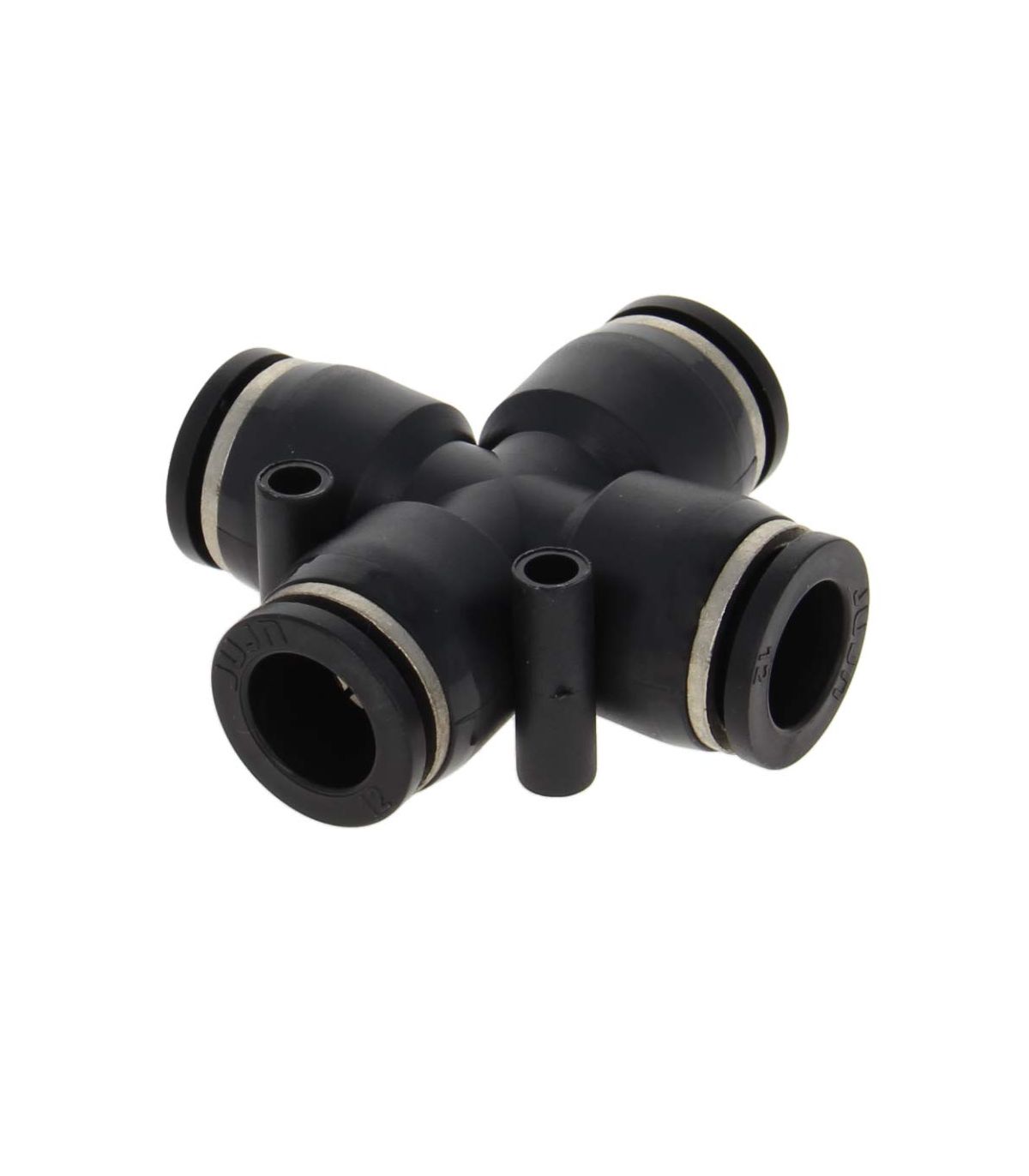

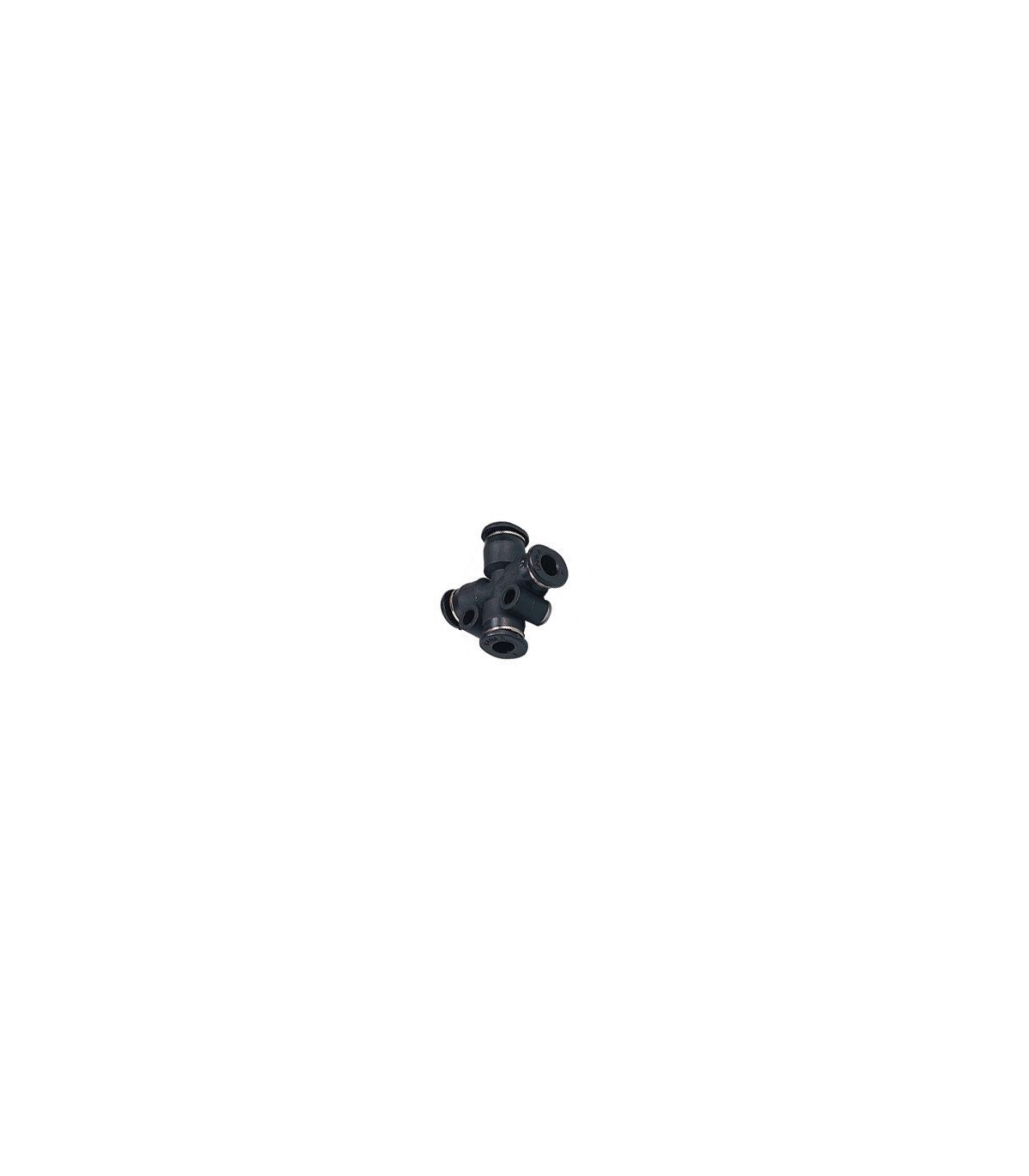

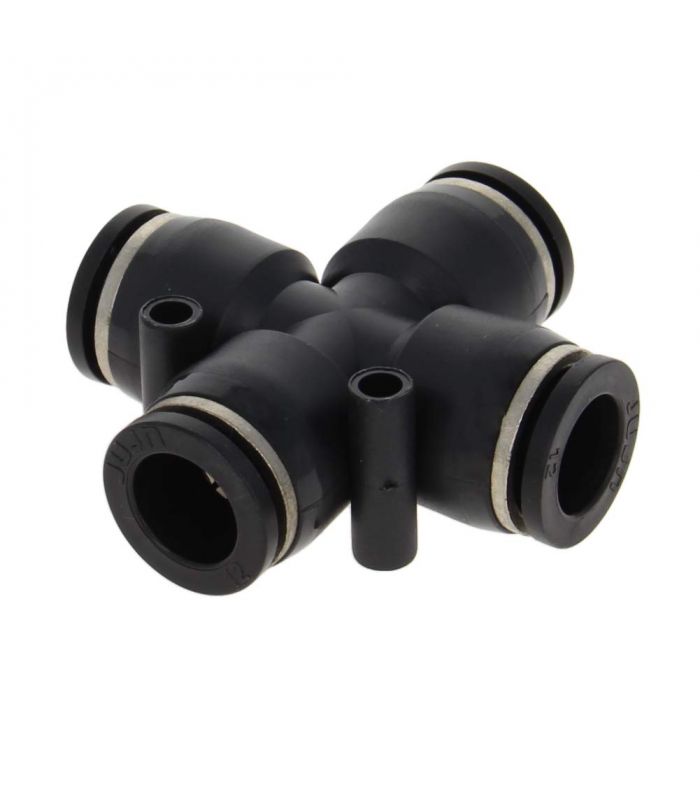

MINIATURE TUBE CROSS
MINIATURE TUBE CROSS
MINIATURE TUBE CROSS
MINIATURE TUBE CROSS

MINIATURE TUBE CROSS

A miniature tube cross is a type of connection designed to join four tubes of very small dimensions.

Applications: Instrumentation, Laboratories, Medical Devices, Electronics, Microfluidics, Precision Pneumatics

Technical sheet:

  • Acetyl resin body. Nickel-plated brass metal parts.
  • Ideal for micro pneumatic assemblies.
  • 40% reduction compared to a conventional fitting.
  • Elliptical push button: Easy disassembly without tools.
  • Maximum working pressure 16 bar.
  • Vacuum pressure: -760 mm Hg (10 Torr).
  • Temperature -15 / 70ºC
€5.02 (tax included)
€4.15 (tax excl.)
DIAMETERS
  • Ø 3
  • Ø 4
Reference:
37100001
Description

miniature tube cross

Product Details
37100001
Comments
