WIDE BLOW NOZZLE
WIDE BLOW NOZZLE
WIDE BLOW NOZZLE
WIDE BLOW NOZZLE

WIDE BLOW NOZZLE

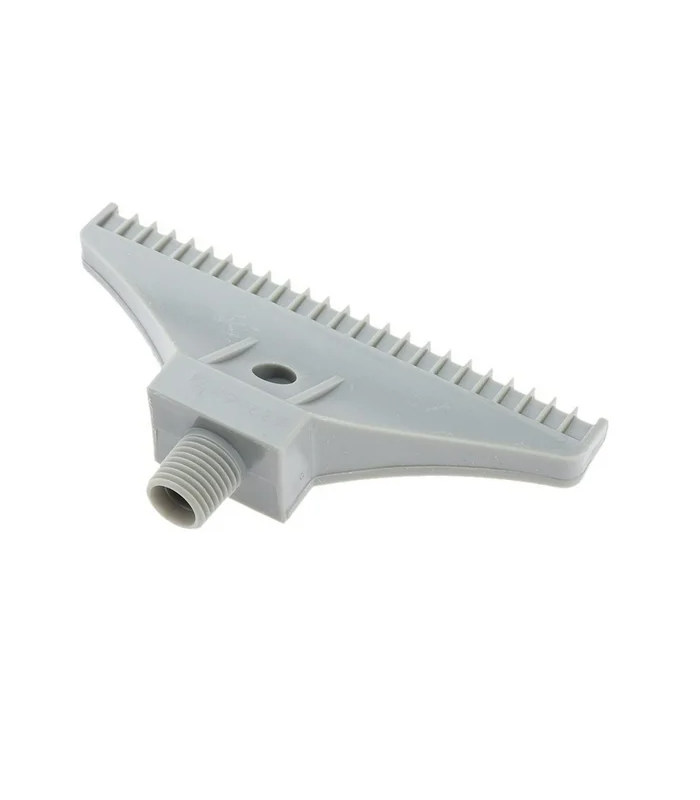

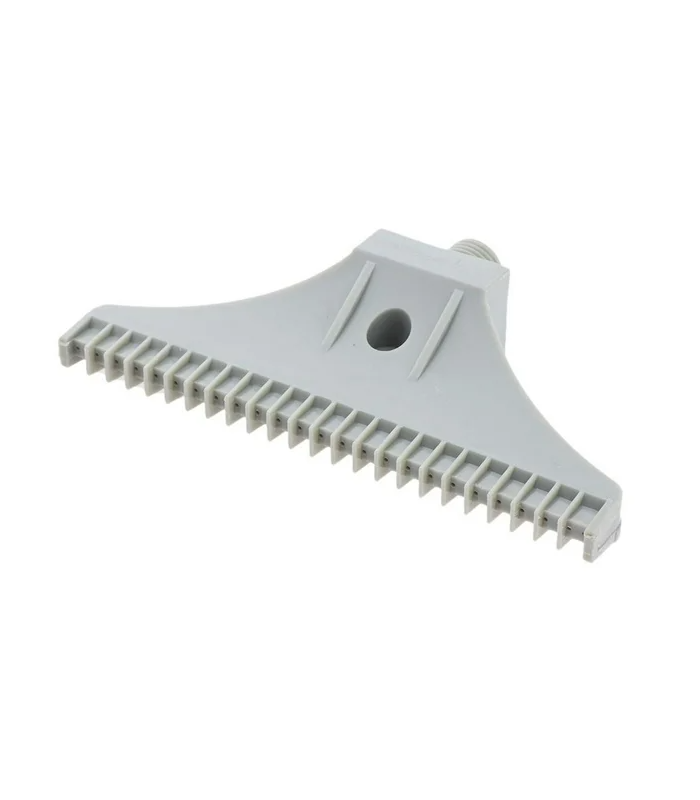

The wide jet nozzle is a compressed air accessory used to generate a wide and uniform air flow. It is characterized by a flat and wide opening, with multiple grooves along its surface. Compared to round jet nozzles, they provide a higher air flow rate.

Applications: Surface cleaning, Surface drying, Component cooling, Transport of light materials such as dust or chips.

Technical data sheet:

  • Nozzle width 121 mm. 46 holes of Ø 1 mm. Thread 3/8
  • Blow force 17 N.
  • Noise level 86 dB(A)
  • Maximum pressure 7 Bar.
  • Max. temperature 120ºC.
  • Made of PPS.
€101.64 (tax included)
€84.00 (tax excl.)
Reference:
43145
Description

Wide blow nozzle

Product Details
43145
Comments
